IslandPathversion 1.0

IslandPath Analysis: Campylobacter jejuni RM1221

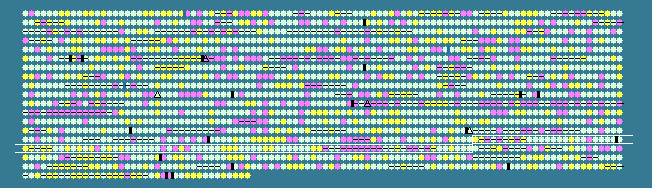

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.10 STD DEV: 3.94
Campylobacter jejuni RM1221, complete genome - 1..1777831
1838 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1476	 34.32	+1	1410963..1411670	+	235	57238377	ptmB	CJE1520	-	posttranslational flagellin modification protein B
1477	 34.11	+1	1411670..1412440	+	256	57238378	ptmA	CJE1521	-	flagellin modification protein A
1478	 26.45	0	1412428..1414389	+	653	57238379	maf-1	CJE1522	-	motility accessory factor
1479	 27.91	0	1414365..1416245	+	626	57238380	maf-2	CJE1523	-	motility accessory factor
1480	 26.24	0	1416258..1418174	+	638	57238381	maf-3	CJE1524	-	motility accessory factor
1481	 27.94	0	1418150..1420057	+	635	57238382	maf-4	CJE1525	-	motility accessory factor
1482	 37.22	+1	1420088..1421809	-	573	57238729	flaB	CJE1526	-	flagellin
1483	 25.49	-1	1421811..1421912	-	33	57238715	-	CJE1527	-	hypothetical protein
1484	 37.40	+1	1421954..1423675	-	573	57238714	flaA	CJE1528	-	flagellin
1485	 28.66	0	1423772..1425589	-	605	57238383	maf-5	CJE1529	-	motility accessory factor
1486	 27.03	0	1425586..1427409	-	607	57238384	maf-6	CJE1530	-	motility accessory factor
1487	 30.68	0	1427419..1428660	-	413	57238385	-	CJE1531	-	hypothetical protein
1488	 29.07	0	1428660..1429175	-	171	57238386	ctsG	CJE1532	-	transformation system protein
1489	 31.55	0	1429176..1430183	-	335	57238387	gcp	CJE1533	-	O-sialoglycoprotein endopeptidase
1490	 32.62	0	1430180..1431574	-	464	57238388	-	CJE1534	-	hypothetical protein
1491	 31.28	0	1431576..1432646	-	356	57238389	dxr	CJE1535	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1492	 34.30	+1	1432643..1433368	-	241	57238390	cdsA	CJE1536	-	phosphatidate cytidylyltransferase
1493	 32.74	0	1433377..1433715	-	112	57238391	-	CJE1537	-	hypothetical protein
1494	 26.83	0	1433717..1435024	-	435	57238392	-	CJE1538	-	fibronectin/fibrinogen binding protein, putative
1495	 26.56	0	1435086..1435661	+	191	57238393	-	CJE1539	-	putative molybdopterin-guanine dinucleotide biosynthesis protein
1496	 28.28	0	1435658..1436647	+	329	57238394	pldA	CJE1540	-	phospholipase A
1497	 31.06	0	1436733..1437701	+	322	57238395	ceuB	CJE1541	-	enterochelin ABC transporter, permease protein
1498	 28.75	0	1437694..1438632	+	312	57238396	ceuC	CJE1542	-	enterochelin ABC transporter, permease protein
1499	 28.57	0	1438629..1439384	+	251	57238397	ceuD	CJE1543	-	enterochelin ABC transporter, ATP-binding protein
1500	 29.73	0	1440614..1441168	-	184	57238398	-	CJE1545	-	hypothetical protein
1501	 34.15	+1	1441303..1443135	-	610	57238399	nrfA	CJE1546	-	cytochrome c552
1502	 34.50	+1	1443150..1443665	-	171	57238400	nrfH	CJE1547	-	cytochrome c-type protein nrfH
1503	 31.94	0	1443853..1445937	+	694	57238401	ppk	CJE1548	-	polyphosphate kinase
1504	 34.60	+1	1447310..1447705	-	131	57238402	-	CJE1550	-	hypothetical protein
1505	 35.62	+1	1447900..1448118	-	72	57238403	-	CJE1551	-	hypothetical protein
1506	 32.84	0	1448158..1448358	-	66	57238404	-	CJE1552	-	hypothetical protein
1507	 31.35	0	1448923..1449375	-	150	57238405	-	CJE1553	-	hypothetical protein
1508	 35.22	+1	1449424..1450431	+	335	57238406	ruvB	CJE1554	-	Holliday junction DNA helicase B
1509	 27.59	0	1450435..1451478	+	347	57238407	-	CJE1555	-	hypothetical protein
1510	 36.35	+1	1451508..1452899	-	463	57238408	fumC	CJE1556	-	fumarate hydratase
1511	 29.14	0	1452955..1456080	-	1041	57238409	-	CJE1557	-	serine protease
1512	 34.45	+1	1456083..1457879	-	598	57238410	glmS	CJE1558	-	D-fructose-6-phosphate amidotransferase
1513	 25.03	-1	1457884..1460232	-	782	57238411	-	CJE1559	-	GlnD family protein
1514	 33.33	0	1460376..1461440	+	354	57238412	-	CJE1560	-	hypothetical protein
1515	 34.09	+1	1461450..1462769	+	439	57238413	-	CJE1561	-	xanthine/uracil permease family protein
1516	 29.28	0	1462783..1463226	+	147	57238414	-	CJE1562	-	putative nucleotide phosphoribosyltransferase
1517	 34.76	+1	1463271..1463969	+	232	57238415	-	CJE1563	-	VacJ family lipoprotein
1518	 28.42	0	1463979..1464548	+	189	57238416	-	CJE1564	-	toluene tolerance protein, putative
1519	 29.57	0	1464548..1467019	+	823	57238417	-	CJE1565	-	hypothetical protein
1520	 31.34	0	1467050..1467652	-	200	57238418	-	CJE1566	-	RdgB/HAM1 family non-canonical purine NTP pyrophosphatase
1521	 30.65	0	1467818..1469119	+	433	57238419	-	CJE1567	-	multidrug resistance efflux transporter, putative
1522	 31.30	0	1469116..1470789	-	557	57238420	-	CJE1568	-	iron-sulfur cluster-binding domain-containing protein
1523	 29.71	0	1470867..1472189	+	440	57238421	selA	CJE1569	-	selenocysteine synthase
1524	 25.86	-1	1472186..1473991	+	601	57238422	selB	CJE1570	-	selenocysteine-specific elongation factor
1525	 29.11	0	1474040..1474750	+	236	57238423	-	CJE1571	-	hypothetical protein
1526	 26.55	0	1474756..1475286	+	176	57238424	-	CJE1572	-	putative lipoprotein
1527	 35.98	+1	1475331..1475822	-	163	57238425	fldA	CJE1573	-	flavodoxin FldA
1528	 22.41	-1	1475822..1476517	-	231	57238426	-	CJE1574	-	hypothetical protein
1529	 28.89	0	1476520..1476834	-	104	57238427	-	CJE1575	-	hypothetical protein
1530	 32.98	0	1477005..1478429	+	474	57238428	katA	CJE1576	-	catalase
1531	 28.24	0	1478486..1478956	+	156	57238429	-	CJE1577	-	ankyrin repeat-containing protein
1532	 27.55	0	1478957..1479613	-	218	57238430	-	CJE1578	-	hypothetical protein
1533	 32.78	0	1479781..1480143	+	120	57238431	-	CJE1579	-	endoribonuclease L-PSP, putative
1534	 35.22	+1	1481600..1482763	+	387	57238432	metC	CJE1581	-	cystathionine beta-lyase
1535	 35.53	+1	1482773..1484140	+	455	57238433	purB-2	CJE1582	-	adenylosuccinate lyase
1536	 34.00	0	1484149..1485489	+	446	57238434	-	CJE1583	-	MmgE/PrpD family protein
1537	 28.00	0	1485571..1485795	+	74	57238435	-	CJE1584	-	feoA family protein
1538	 31.86	0	1487629..1489122	-	497	57238436	-	CJE1586	-	hydrogenase, (NiFe)/(NiFeSe) small subunit family
1539	 33.09	0	1489126..1489950	-	274	57238437	fabI	CJE1587	-	enoyl-(acyl carrier protein) reductase
1540	 30.80	0	1489954..1490625	-	223	57238438	tpiA	CJE1588	-	triosephosphate isomerase
1541	 35.08	+1	1490622..1491824	-	400	57238439	pgk	CJE1589	-	phosphoglycerate kinase
1542	 35.44	+1	1491827..1492825	-	332	57238440	gapA	CJE1590	-	glyceraldehyde 3-phosphate dehydrogenase A
1543	 28.94	0	1492885..1493430	+	181	57238441	nadD	CJE1591	-	nicotinate (nicotinamide) nucleotide adenylyltransferase
1544	 30.28	0	1493458..1493784	+	108	57238442	-	CJE1592	-	hypothetical protein
1545	 26.72	0	1493815..1494192	-	125	57238443	-	CJE1593	-	hypothetical protein
1546	 31.87	0	1494240..1495610	-	456	57238444	algC	CJE1594	-	phosphomannomutase/phosphoglucomutase
1547	 31.84	0	1495732..1496268	+	178	57238445	fliL	CJE1595	-	flagellar basal body-associated protein FliL
1548	 33.05	0	1496268..1496615	+	115	57238446	acpS	CJE1596	-	4'-phosphopantetheinyl transferase
1549	 34.52	+1	1496616..1497035	-	139	57238447	-	CJE1597	-	hypothetical protein
1550	 35.24	+1	1497032..1498393	-	453	57238448	-	CJE1598	-	cytochrome P450 family protein
1551	 26.11	-1	1498390..1499511	-	373	57238449	-	CJE1599	-	hypothetical protein
1552	 28.35	0	1499584..1500768	-	394	57238450	kpsS	CJE1600	-	capsule polysaccharide export protein KpsS
1553	 28.56	0	1500765..1502837	-	690	57238451	kpsC	CJE1601	-	capsule polysaccharide export protein KpsC
1554	 24.53	-1	1502815..1504734	-	639	57238452	-	CJE1602	-	capsular polysaccharide biosynthesis protein, putative
1555	 25.65	-1	1504703..1506655	-	650	57238453	-	CJE1603	-	capsular polysaccharide biosynthesis protein, putative
1556	 26.11	-1	1506655..1508136	-	493	57238454	-	CJE1604	-	capsular polysaccharide biosynthesis protein, putative
1557	 26.03	-1	1508138..1508863	-	241	57238455	-	CJE1605	-	capsular polysaccharide biosynthesis protein, putative
1558	 25.12	-1	1508850..1510151	-	433	57238456	-	CJE1606	-	haloacid dehalogenase-like hydrolase
1559	 25.25	-1	1510144..1510737	-	197	57238457	-	CJE1607	-	hypothetical protein
1560	 26.14	-1	1510712..1511392	-	226	57238458	-	CJE1608	-	capsular biosynthesis nucleotidyltransferase, putative
1561	 32.34	0	1511380..1511985	-	201	57238459	gmhA-2	CJE1609	-	phosphoheptose isomerase
1562	 32.94	0	1511973..1512992	-	339	57238460	-	CJE1610	-	capsular biosynthesis sugar kinase, putative
1563	 34.01	0	1512989..1514020	-	343	57238461	wcbK	CJE1611	-	GDP-mannose 4,6-dehydratase
1564	 28.10	0	1514017..1515066	-	349	57238462	fcl	CJE1612	-	GDP-L-fucose synthetase
1565	 23.09	-1	1515078..1516688	-	536	57238463	-	CJE1613	-	capsular polysaccharide biosynthesis protein, putative
1566	 24.01	-1	1516685..1518121	-	478	57238464	-	CJE1614	-	hypothetical protein
1567	 27.53	0	1518157..1519500	-	447	57238465	-	CJE1615	-	capsular polysaccharide biosynthesis glycosyltransferase WcbB, putative
1568	 22.22	-2	1519503..1521104	-	533	57238466	-	CJE1616	-	capsular polysaccharide biosynthesis protein, putative
1569	 36.60	+1	1521101..1522048	-	315	57238467	kpsF	CJE1617	-	arabinose-5-phosphate isomerase
1570	 31.40	0	1522058..1523716	-	552	57238468	kpsD	CJE1618	-	capsular polysaccharide ABC transporter, periplasmic polysaccharide-binding protein
1571	 29.58	0	1523718..1524836	-	372	57238469	kpsE	CJE1619	-	capsular polysaccharide ABC transporter
1572	 33.63	0	1524836..1525498	-	220	57238470	kpsT	CJE1620	-	capsular polysaccharide ABC transporter, ATP-binding protein
1573	 28.86	0	1525495..1526277	-	260	57238471	kpsM	CJE1621	-	capsular polysaccharide ABC transporter, permease protein
1574	 28.92	0	1526349..1526756	-	135	57238472	-	CJE1622	-	hypothetical protein
1575	 29.08	0	1526831..1527394	+	187	57238473	-	CJE1623	-	hypothetical protein
30.10	MEAN

3.94	STD DEV
