IslandPathversion 1.0

IslandPath Analysis: Campylobacter jejuni RM1221

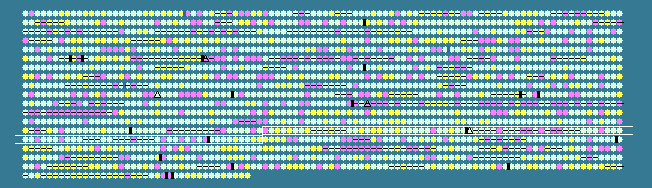

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.10 STD DEV: 3.94
Campylobacter jejuni RM1221, complete genome - 1..1777831
1838 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1341	 23.64	-1	1296612..1297106	-	164	57238120	-	CJE1383	-	hypothetical protein
1342	 31.82	0	1297110..1297241	+	43	57238121	-	CJE1384	-	hypothetical protein
1343	 35.29	+1	1297245..1298780	+	511	57238122	guaA	CJE1385	-	bifunctional GMP synthase/glutamine amidotransferase protein
1344	 29.50	0	1298866..1300326	+	486	57238123	-	CJE1386	-	hypothetical protein
1345	 34.29	+1	1300566..1301816	+	416	57238124	purD	CJE1387	-	phosphoribosylamine--glycine ligase
1346	 33.11	0	1301813..1302265	+	150	57238125	-	CJE1388	-	hypothetical protein
1347	 31.53	0	1302255..1304303	+	682	57238126	-	CJE1389	-	organic solvent tolerance protein, putative
1348	 36.20	+1	1304373..1306532	+	719	57238127	pnp	CJE1390	-	polynucleotide phosphorylase/polyadenylase
1349	 30.64	0	1306529..1307011	+	160	57238128	-	CJE1391	-	hypothetical protein
1350	 30.47	0	1307062..1307724	-	220	57238129	-	CJE1392	-	hypothetical protein
1351	 30.92	0	1308976..1309431	+	151	57238130	-	CJE1394	-	low molecular weight phosphotyrosine protein phosphatase family protein
1352	 35.26	+1	1309683..1310978	+	431	57238131	porA	CJE1395	-	major outer membrane protein
1353	 33.51	0	1311094..1312215	-	373	57238132	dnaJ-2	CJE1396	-	co-chaperone protein DnaJ
1354	 32.44	0	1312372..1313043	+	223	57238133	racR	CJE1397	-	DNA-binding response regulator
1355	 29.13	0	1313040..1314275	+	411	57238134	racS	CJE1398	-	sensor histidine kinase
1356	 30.54	0	1314275..1314847	+	190	57238135	recR	CJE1399	-	recombination protein RecR
1357	 35.01	+1	1314844..1315380	-	178	57238136	hydD	CJE1400	-	hydrogenase maturation protease HydD
1358	 33.19	0	1315377..1316093	-	238	57238137	hydC	CJE1401	-	quinone-reactive Ni/Fe hydrogenase, cytochrome b subunit
1359	 35.31	+1	1316080..1317795	-	571	57238138	hydB	CJE1402	-	quinone-reactive Ni/Fe-hydrogenase, large subunit
1360	 38.60	+2	1317798..1318880	-	360	57238139	hydA	CJE1403	-	quinone-reactive Ni/Fe-hydrogenase, small subunit
1361	 27.80	0	1319058..1320899	-	613	57238140	mnmC	CJE1404	-	5-methylaminomethyl-2-thiouridine methyltransferase
1362	 29.14	0	1320896..1322875	-	659	57238141	-	CJE1405	-	N-acetylmuramoyl-L-alanine amidase
1363	 37.45	+1	1322875..1323966	-	363	57238142	-	CJE1406	-	2-nitropropane dioxygenase family oxidoreductase
1364	 32.42	0	1323963..1325168	-	401	57238143	tyrS	CJE1407	-	tyrosyl-tRNA synthetase
1365	 30.74	0	1325180..1327375	-	731	57238144	-	CJE1408	-	RelA/SpoT family protein
1366	 33.33	0	1327359..1327583	-	74	57238145	rpoZ	CJE1409	-	DNA-directed RNA polymerase subunit omega
1367	 33.47	0	1327594..1328313	-	239	57238146	pyrH	CJE1410	-	uridylate kinase
1368	 27.72	0	1328365..1329558	-	397	57238147	-	CJE1411	-	M24/M37 family peptidase
1369	 25.15	-1	1329555..1330361	-	268	57238148	-	CJE1412	-	cell division protein FtsX, putative
1370	 30.93	0	1330348..1331013	-	221	57238149	lolD	CJE1413	-	lipoprotein releasing system ATP-binding protein LolD
1371	 27.82	0	1331083..1332261	-	392	57238150	trmB	CJE1414	-	tRNA (guanine-N(7))-methyltransferase
1372	 33.90	0	1332261..1333493	-	410	57238151	-	CJE1415	-	fibronectin type III domain-containing protein
1373	 29.31	0	1333441..1334409	-	322	57238152	-	CJE1416	-	ribosomal large subunit pseudouridine synthase D
1374	 28.25	0	1334487..1335587	+	366	57238153	-	CJE1417	-	rod shape-determining protein RodA, putative
1375	 29.08	0	1335926..1337101	+	391	57238154	-	CJE1418	-	phage integrase family site specific recombinase
1376	 28.99	0	1337098..1337304	-	68	57238155	-	CJE1419	-	DNA binding protein, putative
1377	 28.53	0	1337306..1337659	-	117	57238156	-	CJE1420	-	hypothetical protein
1378	 29.76	0	1337677..1338432	-	251	57238157	-	CJE1421	-	site-specific DNA-methyltransferase
1379	 27.72	0	1338410..1338676	-	88	57238158	-	CJE1422	-	emm-like protein
1380	 23.66	-1	1338660..1339031	-	123	57238159	-	CJE1423	-	hypothetical protein
1381	 28.89	0	1339032..1339256	-	74	57238160	-	CJE1424	-	hypothetical protein
1382	 29.49	0	1339265..1339759	-	164	57238161	-	CJE1425	-	hypothetical protein
1383	 31.43	0	1339963..1340277	-	104	57238162	-	CJE1426	-	hypothetical protein
1384	 26.48	0	1340356..1340676	-	106	57238163	-	CJE1427	-	hypothetical protein
1385	 25.71	-1	1340669..1340773	-	34	57238164	-	CJE1428	-	hypothetical protein
1386	 29.11	0	1341064..1341300	-	78	57238165	-	CJE1429	-	hypothetical protein
1387	 23.96	-1	1341314..1342081	-	255	57238166	-	CJE1430	-	RloG protein, putative
1388	 29.33	0	1342098..1342247	-	49	57238167	-	CJE1431	-	hypothetical protein
1389	 24.03	-1	1342219..1342347	-	42	57238168	-	CJE1432	-	hypothetical protein
1390	 22.35	-1	1342415..1342678	-	87	57238169	-	CJE1433	-	hypothetical protein
1391	 29.17	0	1342735..1343022	-	95	57238170	-	CJE1434	-	hypothetical protein
1392	 30.60	0	1343075..1343806	-	243	57238171	-	CJE1435	-	DNA-binding protein Roi
1393	 31.58	0	1344237..1344521	-	94	57238172	-	CJE1436	-	hypothetical protein
1394	 28.63	0	1344501..1344734	+	77	57238174	-	CJE1437	-	hypothetical protein
1395	 27.94	0	1344518..1344721	-	67	57238173	-	CJE1438	-	hypothetical protein
1396	 26.76	0	1344926..1345579	+	217	57238175	-	CJE1439	-	hypothetical protein
1397	 26.55	0	1345814..1346476	+	220	57238176	-	CJE1440	-	signal peptidase I, putative
1398	 29.36	0	1346482..1347135	+	217	57238723	-	CJE1441	-	DNA/RNA non-specific endonuclease
1399	 31.56	0	1347152..1347433	+	93	57238724	-	CJE1442	-	hypothetical protein
1400	 28.28	0	1347447..1347644	-	65	57238725	-	CJE1443	-	hypothetical protein
1401	 26.90	0	1347562..1347981	-	139	57238726	-	CJE1444	-	hypothetical protein
1402	 29.65	0	1348210..1348671	-	153	57238305	-	CJE1445	-	hypothetical protein
1403	 18.52	-2	1348671..1348778	-	35	57238727	-	CJE1446	-	hypothetical protein
1404	 28.04	0	1348720..1350003	-	427	57238306	-	CJE1447	-	hypothetical protein
1405	 29.87	0	1350000..1350374	-	124	57238307	-	CJE1448	-	hypothetical protein
1406	 30.47	0	1350367..1350750	-	127	57238308	-	CJE1449	-	hypothetical protein
1407	 24.21	-1	1350747..1351382	-	211	57238309	-	CJE1450	-	hypothetical protein
1408	 31.34	0	1351395..1351745	-	116	57238310	-	CJE1451	-	hypothetical protein
1409	 31.16	0	1351846..1353411	-	521	57238311	-	CJE1452	-	hypothetical protein
1410	 28.12	0	1353404..1354036	-	210	57238312	-	CJE1453	-	hypothetical protein
1411	 27.36	0	1354033..1354350	-	105	57238313	-	CJE1454	-	phage head-tail adaptor, putative
1412	 28.89	0	1354363..1354677	-	104	57238314	-	CJE1455	-	hypothetical protein
1413	 29.30	0	1354760..1355032	+	90	57238315	-	CJE1456	-	hypothetical protein
1414	 28.97	0	1354797..1355048	-	83	57238316	-	CJE1457	-	hypothetical protein
1415	 32.48	0	1355059..1356225	-	388	57238317	-	CJE1458	-	HK97 family major capsid protein
1416	 31.72	0	1356242..1356799	-	185	57238318	-	CJE1459	-	hypothetical protein
1417	 26.90	0	1356885..1357754	-	289	57238319	-	CJE1460	-	hypothetical protein
1418	 30.75	0	1357767..1363466	-	1899	57238320	-	CJE1461	-	hypothetical protein
1419	 22.73	-1	1363478..1363609	-	43	57238321	-	CJE1462	-	hypothetical protein
1420	 27.11	0	1363592..1363864	+	90	57238322	-	CJE1463	-	hypothetical protein
1421	 27.31	0	1363856..1364071	-	71	57238323	-	CJE1464	-	hypothetical protein
1422	 28.29	0	1364152..1364508	-	118	57238324	-	CJE1465	-	hypothetical protein
1423	 31.70	0	1364505..1365485	-	326	57238325	-	CJE1466	-	hypothetical protein
1424	 23.93	-1	1365657..1366007	-	116	57238326	-	CJE1467	-	hypothetical protein
1425	 30.02	0	1366008..1366550	-	180	57238728	-	CJE1468	-	HK97 family phage protein
1426	 31.12	0	1366547..1367719	-	390	57238327	-	CJE1469	-	HK97 family portal protein
1427	 26.21	0	1367879..1368313	-	144	57238328	-	CJE1470	-	toxin-antitoxin protein, putative
1428	 30.50	0	1368368..1369993	-	541	57238329	-	CJE1471	-	phage terminase, large subunit, putative
1429	 26.42	0	1369997..1370632	-	211	57238330	-	CJE1472	-	phage terminase, small subunit, putative
1430	 29.06	0	1370883..1371233	-	116	57238331	-	CJE1473	-	HNH endonuclease domain-containing protein
1431	 23.02	-1	1371220..1371510	-	96	57238332	-	CJE1474	-	hypothetical protein
1432	 30.80	0	1372261..1373604	+	447	57238333	-	CJE1475	-	TrkH family potassium uptake protein
1433	 31.80	0	1373615..1374265	+	216	57238334	-	CJE1476	-	potassium uptake protein TrkA, putative
1434	 26.79	0	1374262..1374933	-	223	57238335	-	CJE1477	-	hypothetical protein
1435	 31.10	0	1374939..1375565	-	208	57238336	upp	CJE1478	-	uracil phosphoribosyltransferase
1436	 35.60	+1	1375562..1376797	-	411	57238337	-	CJE1479	-	NADP-dependent malic enzyme, truncation
1437	 33.48	0	1376799..1378190	-	463	57238338	gltX	CJE1480	-	glutamyl-tRNA synthetase
1438	 27.94	0	1378255..1379070	+	271	57238339	-	CJE1481	-	hypothetical protein
1439	 35.81	+1	1379107..1380438	-	443	57238340	accC-2	CJE1482	-	biotin carboxylase
1440	 36.40	+1	1380440..1380895	-	151	57238341	accB	CJE1483	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
30.10	MEAN

3.94	STD DEV
