IslandPath Analysis: Campylobacter jejuni RM1221

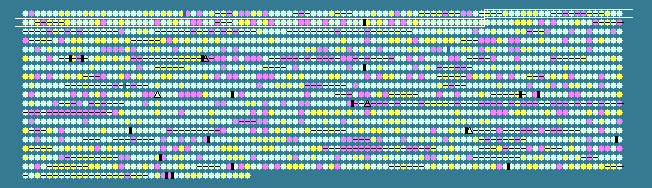

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.10 STD DEV: 3.94
Campylobacter jejuni RM1221, complete genome - 1..1777831
1838 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
78	 37.40	+1	96514..97842	+	442	57237095	dcuA	CJE0083	-	anaerobic C4-dicarboxylate transporter
79	 27.39	0	97948..99309	+	453	57237096	-	CJE0084	-	putative lipoprotein
80	 27.37	0	99319..99687	+	122	57237097	-	CJE0085	-	putative lipoprotein
81	 34.78	+1	99711..100334	+	207	57237098	-	CJE0086	-	putative lipoprotein
82	 31.02	0	100417..101754	+	445	57237099	-	CJE0087	-	hypothetical protein
83	 32.75	0	101764..102966	+	400	57237100	-	CJE0088	-	hypothetical protein
84	 34.95	+1	103125..103433	+	102	57237101	rplU	CJE0089	-	50S ribosomal protein L21
85	 37.25	+1	103444..103698	+	84	57237102	rpmA	CJE0090	-	50S ribosomal protein L27
86	 35.99	+1	103805..104857	+	350	57237103	obgE	CJE0091	-	GTPase ObgE
87	 32.01	0	104962..105717	+	251	57237104	proB	CJE0092	-	gamma-glutamyl kinase
88	 32.57	0	105791..106708	+	305	57237105	fmt	CJE0093	-	methionyl-tRNA formyltransferase
89	 28.44	0	106671..107324	+	217	57237106	-	CJE0094	-	biotin--protein ligase
90	 31.04	0	107321..108106	+	261	57237107	-	CJE0095	-	ParA family chromosome partitioning ATPase
91	 25.93	-1	108112..108948	+	278	57237108	-	CJE0096	-	ParB family chromosome partitioning protein
92	 28.17	0	109009..109434	+	141	57237109	-	CJE0097	-	F0F1 ATP synthase subunit B'
93	 25.54	-1	109445..109957	+	170	57237110	-	CJE0098	-	F0F1 ATP synthase subunit B
94	 21.84	-2	109960..110481	+	173	57237111	atpH	CJE0099	-	F0F1 ATP synthase subunit delta
95	 35.33	+1	110495..112000	+	501	57237112	atpA	CJE0100	-	F0F1 ATP synthase subunit alpha
96	 28.93	0	112009..112893	+	294	57237113	atpG	CJE0101	-	F0F1 ATP synthase subunit gamma
97	 35.12	+1	112919..114316	+	465	57237114	atpD	CJE0102	-	F0F1 ATP synthase subunit beta
98	 35.13	+1	114320..114709	+	129	57237115	atpC	CJE0103	-	F0F1 ATP synthase subunit epsilon
99	 29.91	0	114709..115263	+	184	57237116	-	CJE0104	-	MotA/TolQ/ExbB proton channel family protein
100	 28.21	0	115272..115661	+	129	57237117	-	CJE0105	-	TonB system transport protein ExbD, putative
101	 29.10	0	115664..116443	+	259	57237118	-	CJE0106	-	TonB domain-containing protein
102	 29.69	0	116453..117661	+	402	57237119	tolB	CJE0107	-	translocation protein TolB
103	 33.94	0	117738..118235	+	165	57237120	-	CJE0108	-	peptidoglycan-associated lipoprotein Omp18
104	 26.27	0	118239..119186	+	315	57237121	-	CJE0109	-	hypothetical protein
105	 36.84	+1	119201..119770	+	189	57237122	slyD	CJE0110	-	FKBP-type peptidyl-prolyl cis-trans isomerase SlyD
106	 33.55	0	119770..120690	+	306	57237123	fabD	CJE0111	-	malonyl CoA-acyl carrier protein transacylase
107	 33.91	0	120687..121376	+	229	57237124	mtnA	CJE0112	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
108	 35.58	+1	121373..122128	+	251	57237125	-	CJE0113	-	PP-loop family protein
109	 27.39	0	122133..122654	+	173	57237126	-	CJE0114	-	pyrazinamidase/nicotinamidase, putative
110	 28.29	0	122654..123268	+	204	57237127	-	CJE0115	-	hypothetical protein
111	 31.37	0	123265..123672	+	135	57237128	-	CJE0116	-	putative metalloprotease
112	 28.41	0	123796..124485	+	229	57237129	-	CJE0117	-	hypothetical protein
113	 33.76	0	124510..125436	-	308	57237130	dusB	CJE0118	-	tRNA-dihydrouridine synthase B
114	 26.04	-1	125433..126419	-	328	57237131	-	CJE0119	-	hypothetical protein
115	 31.40	0	126409..126771	-	120	57237132	-	CJE0120	-	dnaK suppressor protein, putative
116	 27.71	0	126783..127244	-	153	57237133	-	CJE0121	-	hypothetical protein
117	 33.81	0	127234..128076	-	280	57237134	accD	CJE0122	-	acetyl-CoA carboxylase subunit beta
118	 28.63	0	128085..128807	-	240	57237135	-	CJE0123	-	inositol monophosphatase family protein
119	 31.40	0	128807..131026	-	739	57237136	-	CJE0124	-	OMP85 family outer membrane protein
120	 30.31	0	131103..131930	+	275	57237137	tyrA	CJE0125	-	prephenate dehydrogenase
121	 29.84	0	132010..133383	+	457	57237138	-	CJE0126	-	M24/M37 family peptidase
122	 31.19	0	133383..134267	+	294	57237139	lpxC	CJE0127	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
123	 25.62	-1	134306..134707	+	133	57237140	-	CJE0128	-	hypothetical protein
124	 30.94	0	134716..135594	+	292	57237141	thrB	CJE0129	-	homoserine kinase
125	 27.52	0	135619..135876	+	85	57237142	-	CJE0130	-	hypothetical protein
126	 35.09	+1	135863..138478	+	871	57237143	infB	CJE0131	-	translation initiation factor IF-2
127	 31.40	0	138475..138837	+	120	57237144	rbfA	CJE0132	-	ribosome-binding factor A
128	 30.73	0	138827..139249	+	140	57237145	-	CJE0133	-	hypothetical protein
129	 25.19	-1	139354..141342	+	662	57237146	-	CJE0134	-	McrBC restriction endonuclease system, McrB subunit, putative
130	 25.68	-1	141335..142666	+	443	57237147	-	CJE0135	-	hypothetical protein
131	 33.08	0	142655..143458	-	267	57237148	-	CJE0136	-	cation ABC transporter, permease protein
132	 29.36	0	143451..144305	-	284	57237149	-	CJE0137	-	cation ABC transporter, ATP-binding protein
133	 26.37	0	144318..145208	-	296	57237150	-	CJE0138	-	cation ABC transporter, periplasmic cation-binding protein
134	 26.67	0	145477..145806	+	109	57237151	-	CJE0139	-	hypothetical protein
135	 31.24	0	145824..147446	+	540	57237152	-	CJE0140	-	methyl-accepting chemotaxis protein
136	 32.83	0	147581..149362	+	593	57237153	-	CJE0141	-	hypothetical protein
137	 35.57	+1	149400..150338	-	312	57237154	trxB	CJE0142	-	thioredoxin-disulfide reductase
138	 34.60	+1	150472..150786	-	104	57237155	trx	CJE0143	-	thioredoxin
139	 24.19	-1	150843..151181	-	112	57237156	-	CJE0144	-	hypothetical protein
140	 31.49	0	151181..152428	-	415	57237157	hom	CJE0145	-	homoserine dehydrogenase
141	 34.08	+1	152432..153634	-	400	57237158	-	CJE0146	-	aspartate aminotransferase
142	 24.54	-1	153646..154452	-	268	57237159	-	CJE0147	-	hypothetical protein
143	 27.58	0	154446..155384	-	312	57237160	-	CJE0148	-	hypothetical protein
144	 31.87	0	155377..156060	-	227	57237161	-	CJE0149	-	RNA methyltransferase
145	 28.73	0	156074..156898	-	274	57237162	-	CJE0150	-	tetrapyrrole methylase family protein
146	 31.34	0	156901..157101	-	66	57237163	rpmE	CJE0151	-	50S ribosomal protein L31
147	 25.72	-1	157180..157836	-	218	57237164	-	CJE0152	-	hypothetical protein
148	 24.51	-1	157838..158245	-	135	57237165	-	CJE0153	-	hypothetical protein
149	 27.70	0	158245..158670	-	141	57237166	-	CJE0154	-	cytochrome c family protein
150	 28.69	0	158670..159251	-	193	57237167	-	CJE0155	-	6-pyruvoyl tetrahydrobiopterin synthase-like protein
151	 26.21	0	159248..159991	-	247	57237168	-	CJE0156	-	radical SAM domain-containing protein
152	 29.39	0	159994..160956	-	320	57237169	moaA	CJE0157	-	molybdenum cofactor biosynthesis protein A
153	 27.33	0	160969..161484	-	171	57237170	-	CJE0158	-	hypothetical protein
154	 25.90	-1	161481..161978	-	165	57237171	-	CJE0159	-	hypothetical protein
155	 30.73	0	161969..162853	-	294	57237172	ubiA	CJE0160	-	prenyltransferase
156	 26.78	0	162924..163793	+	289	57237173	miaA	CJE0161	-	tRNA delta(2)-isopentenylpyrophosphate transferase
157	 27.48	0	163779..164342	-	187	57237174	-	CJE0162	-	hypothetical protein
158	 33.88	0	164700..164882	-	60	57237175	-	CJE0163	-	hypothetical protein
159	 32.58	0	165146..165808	+	220	57237176	sodB	CJE0164	-	superoxide dismutase, Fe
160	 35.07	+1	165836..167041	-	401	57237177	-	CJE0165	-	saccharopine dehydrogenase
161	 26.95	0	167083..167991	-	302	57237178	-	CJE0166	-	iron ABC transporter, ATP binding subunit
162	 26.04	-1	167975..169591	-	538	57237179	-	CJE0167	-	iron ABC transporter, permease protein
163	 30.65	0	169591..170595	-	334	57237180	-	CJE0168	-	iron ABC transporter, periplasmic iron-binding protein
164	 20.00	-2	170606..170815	-	69	57237181	-	CJE0169	-	hypothetical protein
165	 28.99	0	170945..171796	+	283	57237182	-	CJE0170	-	TonB-dependent colicin lipoprotein, putative
166	 34.30	+1	171793..174060	+	755	57237183	-	CJE0171	-	TonB-dependent colicin receptor protein, putative
167	 30.58	0	174072..174833	+	253	57237184	exbB-1	CJE0172	-	TonB system transport protein ExbB
168	 28.22	0	174820..175230	+	136	57237185	-	CJE0173	-	biopolymer  ExbD/TolR family transporter
169	 30.39	0	175232..175978	+	248	57237186	-	CJE0174	-	TonB-dependent colicin receptor protein, putative
170	 28.83	0	176030..177229	+	399	57237187	-	CJE0175	-	putative transporter
171	 32.09	0	177400..178686	+	428	57237188	-	CJE0176	-	transporter, putative
172	 26.92	0	178700..179884	-	394	57237189	-	CJE0177	-	Ser/Thr protein phosphatase family protein
173	 30.95	0	179894..180103	-	69	57237190	-	CJE0178	-	PhnA domain-containing protein
174	 31.94	0	180096..180815	-	239	57237191	-	CJE0179	-	TerC family integral membrane protein
175	 29.28	0	180887..181453	-	188	57237192	purN	CJE0180	-	phosphoribosylglycinamide formyltransferase
176	 28.45	0	181444..182814	-	456	57237193	-	CJE0181	-	hypothetical protein
177	 28.04	0	182798..183496	-	232	57237194	-	CJE0182	-	hypothetical protein
30.10	MEAN

3.94	STD DEV
