IslandPath Analysis: Campylobacter jejuni RM1221

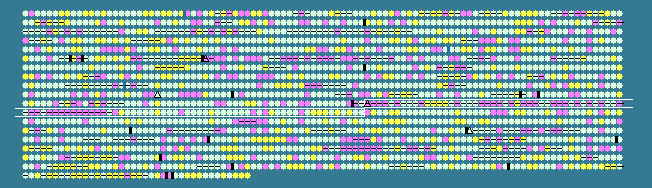

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.10 STD DEV: 3.94
Campylobacter jejuni RM1221, complete genome - 1..1777831
1838 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1058	 26.49	0	1021914..1022585	-	223	57237839	-	CJE1094	-	phage integrase family site specific recombinase
1059	 21.84	-2	1022591..1022851	-	86	57237840	-	CJE1095	-	hypothetical protein
1060	 17.75	-2	1023081..1023311	+	76	57237841	-	CJE1096	-	hypothetical protein
1061	 24.79	-1	1023559..1023675	-	38	57237842	-	CJE1097	-	hypothetical protein
1062	 29.17	0	1023863..1024006	-	47	57237843	-	CJE1098	-	hypothetical protein
1063	 23.48	-1	1024050..1024181	-	43	57237844	-	CJE1099	-	hypothetical protein
1064	 27.78	0	1024202..1024489	-	95	57237845	-	CJE1100	-	death-on-curing family protein
1065	 27.33	0	1024486..1024635	-	49	57237846	-	CJE1101	-	hypothetical protein
1066	 28.07	0	1024907..1025134	+	75	57237847	-	CJE1102	-	hypothetical protein
1067	 21.67	-2	1025103..1025402	+	99	57237848	-	CJE1103	-	hypothetical protein
1068	 35.12	+1	1025481..1025648	+	55	57237849	-	CJE1104	-	hypothetical protein
1069	 34.77	+1	1025669..1026223	-	184	57237850	-	CJE1105	-	hypothetical protein
1070	 36.30	+1	1026192..1026596	-	134	57237851	-	CJE1106	-	hypothetical protein
1071	 35.41	+1	1026778..1028367	-	529	57237852	-	CJE1107	-	TraG-like protein
1072	 31.48	0	1028406..1028567	-	53	57237853	-	CJE1108	-	hypothetical protein
1073	 20.47	-2	1028815..1029615	-	266	57237854	-	CJE1109	-	hypothetical protein
1074	 31.16	0	1029669..1030955	-	428	57237855	-	CJE1110	-	hypothetical protein
1075	 31.31	0	1031031..1032317	-	428	57237856	-	CJE1111	-	hypothetical protein
1076	 28.18	0	1032328..1033065	-	245	57237857	-	CJE1112	-	hypothetical protein
1077	 22.39	-1	1033187..1035799	-	870	57237858	-	CJE1113	-	hypothetical protein
1078	 26.14	-1	1035796..1037226	-	476	57237859	-	CJE1114	-	hypothetical protein
1079	 26.41	0	1037234..1038736	-	500	57237860	-	CJE1115	-	hypothetical protein
1080	 24.84	-1	1038746..1039051	-	101	57237861	-	CJE1116	-	hypothetical protein
1081	 27.44	0	1039102..1039593	-	163	57237862	-	CJE1117	-	hypothetical protein
1082	 18.57	-2	1040222..1040458	-	78	57237863	-	CJE1118	-	hypothetical protein
1083	 33.79	0	1040538..1040756	+	72	57237864	-	CJE1119	-	hypothetical protein
1084	 26.52	0	1040819..1040950	+	43	57237865	-	CJE1120	-	hypothetical protein
1085	 25.21	-1	1042357..1042590	-	77	57237866	-	CJE1122	-	hypothetical protein
1086	 21.18	-2	1042587..1042874	-	95	57237867	-	CJE1123	-	hypothetical protein
1087	 28.36	0	1043022..1043564	-	180	57237868	-	CJE1124	-	hypothetical protein
1088	 28.33	0	1043806..1043925	-	39	57237869	-	CJE1125	-	hypothetical protein
1089	 25.84	-1	1043942..1044208	-	88	57237870	-	CJE1126	-	hypothetical protein
1090	 23.89	-1	1044211..1044771	-	186	57237871	-	CJE1127	-	hypothetical protein
1091	 16.28	-2	1044811..1044939	-	42	57237872	-	CJE1128	-	hypothetical protein
1092	 33.33	0	1045351..1045557	-	68	57237873	-	CJE1129	-	hypothetical protein
1093	 25.64	-1	1045630..1046097	+	155	57237874	-	CJE1130	-	hypothetical protein
1094	 26.67	0	1046112..1046321	+	69	57237875	-	CJE1131	-	hypothetical protein
1095	 21.36	-2	1046363..1046788	+	141	57237876	-	CJE1132	-	hypothetical protein
1096	 27.81	0	1046785..1047834	+	349	57237877	-	CJE1133	-	hypothetical protein
1097	 23.46	-1	1047837..1048079	+	80	57237878	-	CJE1134	-	hypothetical protein
1098	 27.29	0	1048069..1049937	+	622	57237879	-	CJE1135	-	hypothetical protein
1099	 28.51	0	1049927..1050673	+	248	57237880	-	CJE1136	-	hypothetical protein
1100	 25.83	-1	1050718..1054650	+	1310	57237881	-	CJE1137	-	hypothetical protein
1101	 31.84	0	1054669..1055937	+	422	57237882	-	CJE1138	-	hypothetical protein
1102	 25.67	-1	1055941..1056840	-	299	57237883	-	CJE1139	-	hypothetical protein
1103	 25.56	-1	1057767..1059182	+	471	57237884	-	CJE1141	-	hypothetical protein
1104	 30.43	0	1059374..1060270	+	298	57237885	-	CJE1142	-	hypothetical protein
1105	 24.33	-1	1060350..1061093	+	247	57237886	-	CJE1143	-	hypothetical protein
1106	 24.76	-1	1061080..1061184	+	34	57237887	-	CJE1144	-	hypothetical protein
1107	 23.19	-1	1061185..1061529	+	114	57237888	-	CJE1145	-	hypothetical protein
1108	 23.49	-1	1061519..1062595	+	358	57237889	-	CJE1146	-	hypothetical protein
1109	 23.47	-1	1062598..1063611	+	337	57237890	-	CJE1147	-	hypothetical protein
1110	 24.14	-1	1063657..1064526	+	289	57237891	-	CJE1148	-	hypothetical protein
1111	 21.37	-2	1064519..1064635	+	38	57237892	-	CJE1149	-	hypothetical protein
1112	 22.48	-1	1064610..1065374	+	254	57237893	-	CJE1150	-	hypothetical protein
1113	 25.68	-1	1065358..1068297	+	979	57237894	-	CJE1151	-	hypothetical protein
1114	 25.14	-1	1068290..1069546	+	418	57237895	-	CJE1152	-	hypothetical protein
1115	 27.00	0	1069546..1070808	+	420	57237896	-	CJE1153	-	hypothetical protein
1116	 25.35	-1	1070821..1071033	+	70	57237897	-	CJE1154	-	hypothetical protein
1117	 36.75	+1	1071640..1071756	+	38	57237898	-	CJE1155	-	hypothetical protein
1118	 28.82	0	1071875..1072339	-	154	57237899	-	CJE1156	-	hypothetical protein
1119	 29.79	0	1072340..1075585	-	1081	57237900	-	CJE1157	-	CcmF/CcyK/CcsA family cytochrome c biogenesis protein
1120	 32.33	0	1075603..1076298	-	231	57237901	livF	CJE1158	-	high affinity branched-chain amino acid ABC transporter, ATP-binding protein
1121	 31.00	0	1076285..1077055	-	256	57237902	livG	CJE1159	-	high affinity branched-chain amino acid ABC transporter, ATP-binding protein
1122	 32.19	0	1077052..1078104	-	350	57237903	livM	CJE1160	-	high affinity branched-chain amino acid ABC transporter, permease protein
1123	 33.78	0	1078104..1079000	-	298	57237904	livH	CJE1161	-	high affinity branched-chain amino acid ABC transporter, permease protein
1124	 32.07	0	1079019..1080128	-	369	57237905	-	CJE1162	-	high affinity branched-chain amino acid ABC transporter, periplasmic amino acid-binding protein
1125	 31.18	0	1080150..1081265	-	371	57237906	-	CJE1163	-	high affinity branched-chain amino acid ABC transporter, periplasmic amino acid-binding protein
1126	 30.34	0	1081296..1081730	-	144	57237907	-	CJE1164	-	cytochrome c family protein
1127	 22.92	-1	1081739..1081930	-	63	57237908	-	CJE1165	-	porin domain-containing protein
1128	 29.39	0	1081983..1082489	-	168	57237909	-	CJE1166	-	hypothetical protein
1129	 32.27	0	1082498..1083529	-	343	57237910	asd	CJE1167	-	aspartate-semialdehyde dehydrogenase
1130	 28.80	0	1083529..1084830	-	433	57237911	-	CJE1168	-	sigma-54 dependent DNA-binding response regulator
1131	 28.89	0	1084887..1085336	-	149	57237912	-	CJE1169	-	hypothetical protein
1132	 36.43	+1	1085312..1085827	-	171	57237913	-	CJE1170	-	putative lipoprotein
1133	 33.37	0	1085894..1088482	-	862	57237914	gyrA	CJE1171	-	DNA gyrase subunit A
1134	 26.74	0	1088523..1089098	-	191	57237915	ctsW	CJE1172	-	transformation system protein
1135	 28.53	0	1089095..1089739	-	214	57237916	mapA	CJE1173	-	outer membrane liproprotein MapA
1136	 33.39	0	1089816..1091612	-	598	57237917	lepA	CJE1174	-	GTP-binding protein LepA
1137	 30.63	0	1093009..1093749	+	246	57237918	-	CJE1176	-	hypothetical protein
1138	 31.71	0	1093752..1096769	+	1005	57237919	-	CJE1177	-	AcrB/AcrD/AcrF family protein
1139	 26.02	-1	1096793..1097599	-	268	57237920	-	CJE1178	-	adenylosuccinate lyase
1140	 27.92	0	1097600..1098319	-	239	57237921	-	CJE1179	-	arginyl-tRNA-protein transferase
1141	 26.59	0	1098319..1098570	-	83	57237922	-	CJE1180	-	hypothetical protein
1142	 33.82	0	1098574..1100019	-	481	57237923	accC-1	CJE1181	-	acetyl-CoA carboxylase
1143	 31.96	0	1100159..1101322	+	387	57237924	-	CJE1182	-	cell cycle protein FtsW
1144	 29.93	0	1101319..1102347	+	342	57237925	murG	CJE1183	-	N-acetylglucosaminyl transferase
1145	 28.95	0	1102318..1103481	-	387	57237926	-	CJE1184	-	hypothetical protein
1146	 28.64	0	1103489..1104340	-	283	57237927	-	CJE1185	-	hypothetical protein
1147	 25.36	-1	1104403..1105293	-	296	57237928	-	CJE1186	-	AraC family transcriptional regulator
1148	 30.69	0	1105290..1105895	-	201	57237929	-	CJE1187	-	thiamine-phosphate pyrophosphorylase, putative
1149	 34.90	+1	1105885..1107030	-	381	57237930	thiH	CJE1188	-	thiamine biosynthesis protein ThiH
1150	 39.00	+2	1107033..1107809	-	258	57237931	thiG	CJE1189	-	thiazole synthase
1151	 34.33	+1	1107812..1108615	-	267	57237932	thiF	CJE1190	-	thiamine biosynthesis protein ThiF
1152	 29.17	0	1108612..1108803	-	63	57237933	thiS	CJE1191	-	thiamine biosynthesis protein ThiS
1153	 36.07	+1	1108813..1109910	-	365	57237934	dapE	CJE1192	-	succinyl-diaminopimelate desuccinylase
1154	 28.83	0	1109915..1110514	-	199	57237935	-	CJE1193	-	amino acid transporter LysE
1155	 33.90	0	1110507..1111208	-	233	57237936	-	CJE1194	-	NAD-dependent deacetylase
1156	 26.76	0	1111251..1115282	-	1343	57237937	-	CJE1195	-	type II restriction-modification enzyme
1157	 32.52	0	1115291..1117498	-	735	57237938	mutS	CJE1196	-	recombination and DNA strand exchange inhibitor protein
30.10	MEAN

3.94	STD DEV
