IslandPath Analysis: Campylobacter jejuni RM1221

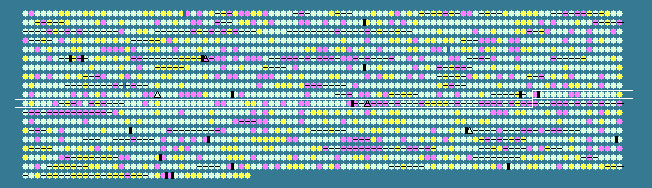

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.10 STD DEV: 3.94
Campylobacter jejuni RM1221, complete genome - 1..1777831
1838 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
986	 21.00	-2	955834..956214	-	126	57237767	-	CJE1017	-	hypothetical protein
987	 27.61	0	957015..957800	-	261	57237768	-	CJE1018	-	His/Glu/Gln/Arg/opine ABC transporter permease
988	 29.60	0	957823..959028	-	401	57237769	-	CJE1019	-	permease, putative
989	 33.10	0	959025..961613	-	862	57237770	secA	CJE1020	-	preprotein translocase subunit SecA
990	 26.86	0	961713..962222	+	169	161486705	lolA	CJE1021	-	outer-membrane lipoprotein carrier protein
991	 27.62	0	962219..962953	-	244	57237772	-	CJE1022	-	hypothetical protein
992	 26.34	0	962963..964306	-	447	57237773	-	CJE1023	-	hypothetical protein
993	 25.98	-1	964355..965701	+	448	57237774	-	CJE1024	-	putative lipoprotein
994	 33.10	0	965713..966585	-	290	57237775	-	CJE1025	-	carbon-nitrogen family hydrolase
995	 28.49	0	966582..967469	-	295	57237776	-	CJE1026	-	cation efflux family protein
996	 29.04	0	967466..968443	-	325	57237777	-	CJE1027	-	peptidyl-arginine deiminase family protein
997	 29.20	0	968542..968976	-	144	57237778	-	CJE1028	-	putative lipoprotein
998	 27.50	0	968992..969111	-	39	57237779	-	CJE1029	-	hypothetical protein
999	 31.84	0	969127..969660	-	177	57237780	-	CJE1030	-	methyl-accepting chemotaxis protein
1000	 33.86	0	970677..972209	-	510	57237781	purH	CJE1033	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
1001	 29.58	0	972212..972850	-	212	57237782	-	CJE1034	-	DnaJ domain-containing protein
1002	 35.48	+1	972979..975165	-	728	57237783	purL	CJE1035	-	phosphoribosylformylglycinamidine synthase II
1003	 30.93	0	975176..976504	-	442	57237784	trmE	CJE1036	-	tRNA modification GTPase TrmE
1004	 30.65	0	976497..977315	-	272	57237785	-	CJE1037	-	hypothetical protein
1005	 31.07	0	977312..978904	-	530	57237786	-	CJE1038	-	putative inner membrane protein translocase component YidC
1006	 26.02	-1	978901..979242	-	113	57237787	-	CJE1039	-	hypothetical protein
1007	 28.13	0	979239..979565	-	108	57237788	rnpA	CJE1040	-	ribonuclease P protein component
1008	 40.74	+2	979562..979696	-	44	57237789	rpmH	CJE1041	-	50S ribosomal protein L34
1009	 25.21	-1	979827..980306	+	159	57237790	-	CJE1042	-	acetyltransferase
1010	 24.96	-1	980303..980911	+	202	57237791	-	CJE1043	-	hypothetical protein
1011	 29.22	0	980908..982098	+	396	57237792	-	CJE1044	-	hypothetical protein
1012	 26.40	0	982090..982464	-	124	57237793	-	CJE1045	-	thioesterase family protein
1013	 35.35	+1	982572..982670	-	32	57237794	-	CJE1046	-	hypothetical protein
1014	 23.26	-1	984859..984987	+	42	57237795	-	CJE1048	-	hypothetical protein
1015	 30.70	0	985084..985197	+	37	57237796	-	CJE1049	-	hypothetical protein
1016	 32.20	0	985215..985391	+	58	57237797	-	CJE1050	-	hypothetical protein
1017	 30.70	0	985388..985501	-	37	57237798	-	CJE1051	-	hypothetical protein
1018	 28.81	0	985554..986084	+	176	57237799	-	CJE1052	-	hypothetical protein
1019	 33.33	0	986086..986409	+	107	57237800	-	CJE1053	-	hypothetical protein
1020	 31.15	0	986550..986732	+	60	57237801	-	CJE1054	-	hypothetical protein
1021	 15.91	-2	986744..986875	-	43	57237802	-	CJE1055	-	hypothetical protein
1022	 30.02	0	988820..989695	+	291	57237803	-	CJE1058	-	methyltransferase, putative
1023	 35.92	+1	989768..990346	+	192	57237804	-	CJE1059	-	hypothetical protein
1024	 29.89	0	990347..990520	-	57	57237805	-	CJE1060	-	putative lipoprotein
1025	 27.08	0	990529..991056	-	175	57237806	-	CJE1061	-	thermonuclease family protein
1026	 33.25	0	991124..992392	+	422	57237807	pepD	CJE1062	-	aminoacyl-histidine dipeptidase
1027	 30.85	0	992375..993622	-	415	57237808	cjaB	CJE1063	-	transport protein CjaB
1028	 33.33	0	993663..994502	-	279	57237809	-	CJE1064	-	surface antigen, CjaA
1029	 27.61	0	994722..995840	+	372	57237810	jlpA	CJE1065	-	surface-exposed lipoprotein
1030	 27.26	0	995932..996672	+	246	57237811	-	CJE1066	-	hypothetical protein
1031	 33.07	0	996676..997827	-	383	57237812	hipO	CJE1067	-	hippurate hydrolase
1032	 29.25	0	997829..998440	-	203	57237813	-	CJE1068	-	hypothetical protein
1033	 19.47	-2	998544..998882	+	112	57237814	-	CJE1069	-	hypothetical protein
1034	 24.28	-1	998885..999646	-	253	57237815	-	CJE1070	-	hypothetical protein
1035	 30.73	0	999643..1000908	-	421	57237816	-	CJE1071	-	iron-sulfur cluster-binding domain-containing protein
1036	 30.60	0	1000910..1002265	-	451	57237817	hemN	CJE1072	-	coproporphyrinogen III oxidase
1037	 31.10	0	1002252..1002743	-	163	57237818	-	CJE1073	-	hypothetical protein
1038	 34.96	+1	1002740..1003660	-	306	57237819	argF	CJE1074	-	ornithine carbamoyltransferase
1039	 33.64	0	1003657..1004640	-	327	57237820	hemB	CJE1075	-	delta-aminolevulinic acid dehydratase
1040	 30.84	0	1004698..1005258	+	186	57237821	ribA	CJE1076	-	GTP cyclohydrolase II
1041	 25.40	-1	1005259..1005825	+	188	57237822	gidB	CJE1077	-	methyltransferase GidB
1042	 30.54	0	1005841..1006413	-	190	57237823	-	CJE1078	-	hypothetical protein
1043	 33.42	0	1006508..1007605	-	365	57237824	-	CJE1079	-	hypothetical protein
1044	 26.19	0	1007718..1008599	+	293	57237825	-	CJE1080	-	LysR family transcriptional regulator
1045	 30.77	0	1008679..1010547	+	622	57237826	rpoD	CJE1081	-	RNA polymerase sigma factor RpoD
1046	 27.68	0	1010563..1011075	-	170	57237827	sixA	CJE1082	-	phosphohistidine phosphatase SixA
1047	 26.40	0	1011072..1011590	-	172	57237828	-	CJE1083	-	rhomboid family protein
1048	 24.94	-1	1011689..1012105	+	138	57237829	-	CJE1084	-	hypothetical protein
1049	 29.25	0	1012113..1013729	-	538	57237830	-	CJE1085	-	cell division protein FtsH, putative
1050	 30.86	0	1013733..1014983	-	416	57237831	-	CJE1086	-	MiaB-like tRNA modifying enzyme
1051	 27.23	0	1014980..1016551	-	523	57237832	-	CJE1087	-	mechanosensitive ion channel family protein
1052	 28.60	0	1016548..1017603	-	351	57237833	aroB	CJE1088	-	3-dehydroquinate synthase
1053	 27.41	0	1017649..1019049	-	466	57237834	-	CJE1089	-	TrkA domain-containing protein
1054	 32.89	0	1019079..1020200	+	373	57237835	tgt	CJE1090	-	queuine tRNA-ribosyltransferase
1055	 23.31	-1	1020202..1020969	+	255	57237836	-	CJE1091	-	hypothetical protein
1056	 24.07	-1	1021288..1021395	+	35	57237837	-	CJE1092	-	hypothetical protein
1057	 27.35	0	1021521..1021871	+	116	57237838	-	CJE1093	-	hypothetical protein
1058	 26.49	0	1021914..1022585	-	223	57237839	-	CJE1094	-	phage integrase family site specific recombinase
1059	 21.84	-2	1022591..1022851	-	86	57237840	-	CJE1095	-	hypothetical protein
1060	 17.75	-2	1023081..1023311	+	76	57237841	-	CJE1096	-	hypothetical protein
1061	 24.79	-1	1023559..1023675	-	38	57237842	-	CJE1097	-	hypothetical protein
1062	 29.17	0	1023863..1024006	-	47	57237843	-	CJE1098	-	hypothetical protein
1063	 23.48	-1	1024050..1024181	-	43	57237844	-	CJE1099	-	hypothetical protein
1064	 27.78	0	1024202..1024489	-	95	57237845	-	CJE1100	-	death-on-curing family protein
1065	 27.33	0	1024486..1024635	-	49	57237846	-	CJE1101	-	hypothetical protein
1066	 28.07	0	1024907..1025134	+	75	57237847	-	CJE1102	-	hypothetical protein
1067	 21.67	-2	1025103..1025402	+	99	57237848	-	CJE1103	-	hypothetical protein
1068	 35.12	+1	1025481..1025648	+	55	57237849	-	CJE1104	-	hypothetical protein
1069	 34.77	+1	1025669..1026223	-	184	57237850	-	CJE1105	-	hypothetical protein
1070	 36.30	+1	1026192..1026596	-	134	57237851	-	CJE1106	-	hypothetical protein
1071	 35.41	+1	1026778..1028367	-	529	57237852	-	CJE1107	-	TraG-like protein
1072	 31.48	0	1028406..1028567	-	53	57237853	-	CJE1108	-	hypothetical protein
1073	 20.47	-2	1028815..1029615	-	266	57237854	-	CJE1109	-	hypothetical protein
1074	 31.16	0	1029669..1030955	-	428	57237855	-	CJE1110	-	hypothetical protein
1075	 31.31	0	1031031..1032317	-	428	57237856	-	CJE1111	-	hypothetical protein
1076	 28.18	0	1032328..1033065	-	245	57237857	-	CJE1112	-	hypothetical protein
1077	 22.39	-1	1033187..1035799	-	870	57237858	-	CJE1113	-	hypothetical protein
1078	 26.14	-1	1035796..1037226	-	476	57237859	-	CJE1114	-	hypothetical protein
1079	 26.41	0	1037234..1038736	-	500	57237860	-	CJE1115	-	hypothetical protein
1080	 24.84	-1	1038746..1039051	-	101	57237861	-	CJE1116	-	hypothetical protein
1081	 27.44	0	1039102..1039593	-	163	57237862	-	CJE1117	-	hypothetical protein
1082	 18.57	-2	1040222..1040458	-	78	57237863	-	CJE1118	-	hypothetical protein
1083	 33.79	0	1040538..1040756	+	72	57237864	-	CJE1119	-	hypothetical protein
1084	 26.52	0	1040819..1040950	+	43	57237865	-	CJE1120	-	hypothetical protein
1085	 25.21	-1	1042357..1042590	-	77	57237866	-	CJE1122	-	hypothetical protein
30.10	MEAN

3.94	STD DEV
