IslandPathversion 1.0

IslandPath Analysis: Campylobacter hominis ATCC BAA-381

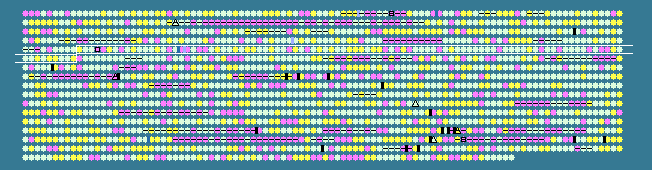

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.82 STD DEV: 5.24
Campylobacter hominis ATCC BAA-381, complete genome - 1..1711273
1682 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
410	 35.61	0	394069..394683	+	204	154147874	thiE	CHAB381_0436	-	thiamine-phosphate pyrophosphorylase
411	 34.75	0	394670..395446	+	258	154149465	-	CHAB381_0437	-	putative undecaprenol kinase
412	 34.83	0	395661..396461	+	266	154148477	-	CHAB381_0438	-	antigenic protein
413	 18.28	-2	396673..396858	-	61	154149068	-	CHAB381_0439	-	transposase
414	 24.31	-1	397153..397296	-	47	154149177	-	CHAB381_0440	-	hypothetical protein
415	 36.66	0	397307..399409	-	700	154149133	feoB	CHAB381_0441	-	ferrous iron transport protein B
416	 33.33	0	399396..399632	-	78	154147937	-	CHAB381_0442	-	hypothetical protein
417	 16.26	-2	399773..399895	-	40	154148832	-	CHAB381_0443	-	hypothetical protein
418	 32.51	0	400108..400590	-	160	154149390	-	CHAB381_0444	-	redoxin superfamily protein
419	 36.10	0	400612..401298	-	228	154149517	-	CHAB381_0445	-	macrolide export ATP-binding/permease protein MacB
420	 33.60	0	401298..402419	-	373	154148367	-	CHAB381_0446	-	integral membrane protein-permease component
421	 33.10	0	402409..403689	-	426	154149051	-	CHAB381_0447	-	ABC transport permease protein-involved in lipoprotein release
422	 32.35	0	403686..405116	-	476	154148105	-	CHAB381_0448	-	integral membrane protein
423	 41.19	+1	405181..405702	-	173	154148121	-	CHAB381_0449	-	hypothetical protein
424	 33.19	0	405716..407755	-	679	154149282	-	CHAB381_0450	-	FTR1 family iron permease
425	 27.73	0	408273..408986	-	237	154148989	-	CHAB381_0451	-	hypothetical protein
426	 34.95	0	409122..409802	+	226	154148024	-	CHAB381_0452	-	aspartate racemase
427	 22.44	-1	415421..415576	+	51	154148556	-	CHAB381_0459	-	hypothetical protein
428	 25.79	-1	420097..420348	+	83	154149310	-	CHAB381_0462	-	ComE operon protein 1
429	 29.11	0	420700..420936	+	78	154148380	-	CHAB381_0463	-	secreted protein
430	 28.33	0	421762..421881	+	39	154148266	-	CHAB381_0464	-	hypothetical protein
431	 25.83	-1	422048..422167	+	39	154148053	-	CHAB381_0465	-	hypothetical protein
432	 34.25	0	423602..424252	-	216	154148962	-	CHAB381_0466	-	endonuclease III
433	 37.37	+1	424245..425036	-	263	154148161	-	CHAB381_0467	-	metallophosphoesterase
434	 34.80	0	425103..425921	-	272	154149268	-	CHAB381_0468	-	AAA ATPase family protein
435	 34.41	0	425908..428868	-	986	154147968	mfd	CHAB381_0469	-	transcription-repair coupling factor
436	 36.31	0	428865..429671	-	268	154149117	-	CHAB381_0470	-	M24/M37 family peptidase
437	 33.25	0	429655..430830	-	391	154149410	-	CHAB381_0471	-	folylpolyglutamate synthase
438	 35.81	0	430827..431351	-	174	154148908	-	CHAB381_0472	-	hypothetical protein
439	 36.24	0	431348..433789	-	813	154149192	leuS	CHAB381_0473	-	leucyl-tRNA synthetase
440	 34.80	0	433799..434140	-	113	154148683	-	CHAB381_0474	-	hypothetical protein
441	 33.13	0	434150..435121	-	323	154148803	secF	CHAB381_0475	-	preprotein translocase subunit SecF
442	 36.69	0	435121..436701	-	526	154148251	secD	CHAB381_0476	-	preprotein translocase subunit SecD
443	 34.80	0	436694..436966	-	90	154148979	yajC	CHAB381_0477	-	preprotein translocase subunit YajC
444	 30.23	0	437059..438249	+	396	154148286	lnt	CHAB381_0478	-	apolipoprotein N-acyltransferase
445	 25.75	-1	438492..438860	+	122	154149001	-	CHAB381_0479	-	putative periplasmic protein
446	 35.61	0	439220..440797	-	525	154147887	serA	CHAB381_0480	-	D-3-phosphoglycerate dehydrogenase
447	 32.62	0	440815..442488	-	557	154147885	-	CHAB381_0481	-	30S ribosomal protein S1
448	 14.04	-2	442594..442707	+	37	154148663	-	CHAB381_0482	-	hypothetical protein
449	 33.09	0	442811..443638	-	275	154149498	ispH	CHAB381_0483	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
450	 37.96	+1	443628..444902	-	424	154148304	aroA	CHAB381_0484	-	3-phosphoshikimate 1-carboxyvinyltransferase
451	 31.22	0	444899..447217	-	772	154148616	pheT	CHAB381_0485	-	phenylalanyl-tRNA synthetase subunit beta
452	 36.44	0	447214..448275	-	353	154149307	pheS	CHAB381_0486	-	phenylalanyl-tRNA synthetase subunit alpha
453	 33.61	0	448338..448694	+	118	154147978	-	CHAB381_0487	-	histidine triad nucleotide-binding protein 2 (hint-2)(hint-3)
454	 29.91	0	448817..449722	+	301	154148737	prmA	CHAB381_0488	-	ribosomal protein L11 methyltransferase
455	 37.78	+1	449725..451656	+	643	154149469	-	CHAB381_0489	-	putative cell division protease FtsH-like protein
456	 35.37	0	451653..452390	+	245	154148338	pssA	CHAB381_0490	-	CDP-diacylglycerol--serine O-phosphatidyltransferse
457	 35.97	0	452383..453897	+	504	154149292	leuA	CHAB381_0491	-	2-isopropylmalate synthase
458	 30.51	0	453994..454737	-	247	154148142	dapF	CHAB381_0492	-	diaminopimelate epimerase
459	 37.50	+1	454906..455097	+	63	154149059	rpmI	CHAB381_0493	-	ribosomal protein L35
460	 35.31	0	455197..455550	+	117	154147912	rplT	CHAB381_0494	-	50S ribosomal protein L20
461	 14.74	-2	455686..455841	-	51	154148738	-	CHAB381_0495	-	hypothetical protein
462	 28.63	0	456753..457007	-	84	154148230	-	CHAB381_0496	-	hypothetical protein
463	 26.43	-1	456997..457590	-	197	154148990	-	CHAB381_0497	-	hypothetical protein
464	 40.40	+1	457934..458386	-	150	154148259	-	CHAB381_0498	-	hypothetical protein
465	 27.78	0	458396..458719	-	107	154148829	-	CHAB381_0499	-	hypothetical protein
466	 34.70	0	458733..459827	-	364	154148037	prfB	CHAB381_0500	-	peptide chain release factor 2
467	 32.48	0	459937..460758	+	273	154148340	panC	CHAB381_0501	-	pantoate--beta-alanine ligase
468	 34.33	0	460760..462061	+	433	154149538	-	CHAB381_0502	-	hypothetical protein
469	 29.02	0	462042..463037	+	331	154149315	-	CHAB381_0504	-	tRNA(Ile)-lysidine synthase
470	 25.94	-1	463017..463760	-	247	154148100	-	CHAB381_0503	-	hypothetical protein
471	 34.90	0	463817..464455	-	212	154148245	-	CHAB381_0505	-	lipoprotein
472	 35.81	0	464436..465725	-	429	154149237	miaB	CHAB381_0506	-	tRNA-I(6)A37 thiotransferase enzyme MiaB
473	 28.40	0	465722..465964	-	80	154149491	-	CHAB381_0507	-	hypothetical protein
474	 35.06	0	466126..467226	+	366	154148222	nusA	CHAB381_0508	-	transcription elongation factor NusA
475	 32.60	0	467481..468575	+	364	154148772	-	CHAB381_0509	-	hypothetical protein
476	 28.99	0	468568..468843	+	91	154149218	-	CHAB381_0510	-	hypothetical protein
477	 32.31	0	468836..470002	+	388	154148489	-	CHAB381_0511	-	hypothetical protein
478	 31.33	0	469999..470646	+	215	154149411	-	CHAB381_0512	-	ABC transporter, ATP-binding protein
479	 30.21	0	470643..471602	+	319	154148650	-	CHAB381_0513	-	hypothetical protein
480	 27.02	0	471664..472392	-	242	154148828	-	CHAB381_0514	-	methyltransferase domain-containing protein
481	 34.75	0	472376..472729	-	117	154148068	-	CHAB381_0515	-	zinc uptake regulation protein
482	 33.67	0	473055..473954	+	299	154149361	-	CHAB381_0516	-	periplasmic solute binding protein
483	 32.73	0	473999..474820	+	273	154148800	-	CHAB381_0517	-	manganese transport system ATP-binding protein MntA
484	 34.97	0	474813..475607	+	264	154148927	-	CHAB381_0518	-	cation ABC transporter, permease protein
485	 35.34	0	475838..476335	+	165	154147936	bcp	CHAB381_0519	-	bacterioferritin comigratory protein
486	 31.12	0	476393..477205	+	270	154149175	-	CHAB381_0520	-	amino acid
487	 19.51	-2	477354..477476	-	40	154148139	-	CHAB381_0521	-	hypothetical protein
488	 33.99	0	477610..478827	-	405	154148445	pgi	CHAB381_0522	-	glucose-6-phosphate isomerase
489	 34.54	0	478814..479644	-	276	154149225	galU	CHAB381_0523	-	UTP-glucose-1-phosphate uridylyltransferase
490	 27.78	0	479714..480289	+	191	154148673	-	CHAB381_0524	-	thymidylate synthase
491	 33.87	0	480384..481124	-	246	154149441	-	CHAB381_0525	-	putative secreted protein
492	 33.33	0	481270..482037	+	255	154148472	-	CHAB381_0526	-	M24/M37 family peptidase
493	 34.23	0	482104..482547	+	147	154148597	-	CHAB381_0527	-	hypothetical protein
494	 30.92	0	482557..483219	+	220	154149518	-	CHAB381_0528	-	transcriptional activator protein CopR
495	 23.74	-1	483209..484375	+	388	154148352	-	CHAB381_0529	-	sensor histidine kinase
496	 34.01	0	484377..485714	-	445	154149340	-	CHAB381_0530	-	sodium- and chloride-dependent transporter
497	 27.39	0	485854..486240	+	128	154148994	-	CHAB381_0531	-	hypothetical protein
498	 17.46	-2	486521..486646	+	41	154148238	-	CHAB381_0532	-	hypothetical protein
499	 37.08	+1	486694..487626	-	310	154148885	nifR	CHAB381_0533	-	NifR3 family protein
500	 31.32	0	487659..488651	-	330	154147994	-	CHAB381_0534	-	hypothetical protein
501	 31.64	0	488662..489015	-	117	154149522	dksA	CHAB381_0535	-	DnaK suppressor protein
502	 30.48	0	489025..489480	-	151	154147919	-	CHAB381_0536	-	hypothetical protein
503	 36.59	0	489473..490363	-	296	154148982	accD	CHAB381_0537	-	acetyl-CoA carboxylase subunit beta
504	 34.98	0	490449..492518	-	689	154147905	-	CHAB381_0538	-	transporter
505	 35.56	0	492528..493469	-	313	154148629	-	CHAB381_0539	-	immunogenic protein
506	 37.19	+1	493553..494200	-	215	154149357	-	CHAB381_0540	-	cobalt import ATP-binding protein CbiO
507	 28.42	0	494197..494847	-	216	154148342	-	CHAB381_0541	-	putative cobalt ABC transporter CbiQ, permease subunit
508	 29.75	0	494844..495290	-	148	154149050	-	CHAB381_0542	-	hypothetical protein
509	 36.43	0	495287..495868	-	193	154148148	-	CHAB381_0543	-	cobalt transport protein CbiM
31.82	MEAN

5.24	STD DEV
