IslandPath Analysis: Campylobacter hominis ATCC BAA-381

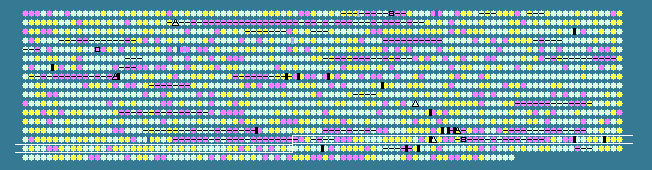

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.82 STD DEV: 5.24
Campylobacter hominis ATCC BAA-381, complete genome - 1..1711273
1682 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1446	 26.10	-1	1466305..1473654	-	2449	154148201	-	CHAB381_1536	-	hemagglutination activity domain-containing protein
1447	 28.34	0	1473666..1475366	-	566	154148959	-	CHAB381_1537	-	putative hemolysin activation protein HecB
1448	 35.83	0	1475511..1479152	+	1213	154148261	-	CHAB381_1538	-	DNA polymerase III subunit alpha
1449	 30.30	0	1479320..1479946	+	208	154149195	-	CHAB381_1539	-	hypothetical protein
1450	 21.28	-2	1480003..1480143	-	46	154148485	-	CHAB381_1540	-	hypothetical protein
1451	 30.95	0	1480323..1480700	+	125	154149489	-	CHAB381_1541	-	cadmium efflux system accessory protein
1452	 35.06	0	1482820..1483050	+	76	154148958	-	CHAB381_1543	-	hypothetical protein
1453	 20.67	-2	1483274..1483423	+	49	154148457	-	CHAB381_1545	-	hypothetical protein
1454	 18.52	-2	1483420..1483770	-	116	154147878	-	CHAB381_1544	-	hypothetical protein
1455	 19.38	-2	1483822..1484079	-	85	154147992	-	CHAB381_1546	-	hypothetical protein
1456	 36.25	0	1484866..1485654	-	262	154148516	-	CHAB381_1547	-	protein CysQ
1457	 36.77	0	1485651..1486958	-	435	154149131	gltA	CHAB381_1548	-	citrate (Si)-synthase
1458	 32.13	0	1487024..1488187	-	387	154147950	-	CHAB381_1549	-	sodium/hydrogen exchanger family protein
1459	 33.33	0	1488184..1488726	-	180	154149295	-	CHAB381_1550	-	phosphodiesterase
1460	 35.07	0	1488719..1490788	-	689	154148385	topA	CHAB381_1551	-	DNA topoisomerase I
1461	 37.00	0	1490785..1491357	-	190	154148574	dcd	CHAB381_1552	-	deoxycytidine triphosphate deaminase
1462	 35.60	0	1491713..1492153	+	146	154149338	accB	CHAB381_1553	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
1463	 40.15	+1	1492153..1493487	+	444	154148767	accC	CHAB381_1554	-	biotin carboxylase
1464	 36.10	0	1493759..1495168	+	469	154148174	-	CHAB381_1555	-	aspartate ammonia-lyase (Aspartase)
1465	 37.35	+1	1495224..1496717	+	497	154148972	-	CHAB381_1556	-	anaerobic C4-dicarboxylate transporter DcuA
1466	 31.64	0	1497445..1498743	-	432	154148115	-	CHAB381_1557	-	putative phosphoglycerol transferase I (phosphatidylglycerol--membrane-oligosaccharide glycerophosphotransferase)
1467	 28.02	0	1498721..1498927	+	68	154149475	-	CHAB381_1558	-	hypothetical protein
1468	 36.72	0	1499275..1499835	-	186	154148066	-	CHAB381_1559	-	N-terminal methylation domain-containing protein
1469	 29.99	0	1500344..1501600	+	418	154149279	-	CHAB381_1561	-	site-specific recombinase phage integrase family protein
1470	 37.41	+1	1501748..1502311	+	187	154148547	-	CHAB381_1562	-	transformation system protein
1471	 25.55	-1	1502392..1502892	+	166	154148270	-	CHAB381_1563	-	hypothetical protein
1472	 21.75	-1	1503007..1503429	-	140	154148374	-	CHAB381_1564	-	hypothetical protein
1473	 35.94	0	1503487..1504062	-	191	154148636	-	CHAB381_1565	-	N-terminal methylation domain-containing protein
1474	 23.03	-1	1504314..1505264	+	316	154149496	-	CHAB381_1566	-	putative transposase
1475	 16.41	-2	1505245..1505439	+	64	154147952	-	CHAB381_1567	-	hypothetical protein
1476	 28.01	0	1505436..1505867	+	143	154148919	-	CHAB381_1568	-	hypothetical protein
1477	 22.86	-1	1505984..1507405	+	473	154148749	-	CHAB381_1569	-	hypothetical protein
1478	 28.35	0	1507466..1507786	+	106	154148193	-	CHAB381_1570	-	hypothetical protein
1479	 22.48	-1	1507801..1508436	+	211	154149002	-	CHAB381_1571	-	hypothetical protein
1480	 33.80	0	1508440..1509501	+	353	154149321	-	CHAB381_1572	-	hypothetical protein
1481	 17.69	-2	1509511..1509657	+	48	154149326	-	CHAB381_1573	-	hypothetical protein
1482	 20.83	-2	1509701..1509844	+	47	154148377	-	CHAB381_1574	-	hypothetical protein
1483	 28.29	0	1509841..1510593	+	250	154149416	-	CHAB381_1575	-	hypothetical protein
1484	 31.67	0	1510596..1510895	+	99	154148656	-	CHAB381_1576	-	hypothetical protein
1485	 20.03	-2	1510895..1511623	+	242	154148008	-	CHAB381_1577	-	hypothetical protein
1486	 28.05	0	1511664..1511966	+	100	154149110	-	CHAB381_1578	-	hypothetical protein
1487	 26.04	-1	1512302..1512589	-	95	154149162	-	CHAB381_1579	-	hypothetical protein
1488	 27.40	0	1512770..1512988	+	72	154148450	-	CHAB381_1580	-	hypothetical protein
1489	 36.78	0	1513454..1513801	+	115	154148446	-	CHAB381_1581	-	hypothetical protein
1490	 30.72	0	1513812..1514156	+	114	154149346	-	CHAB381_1582	-	hypothetical protein
1491	 24.41	-1	1514159..1514371	+	70	154148633	-	CHAB381_1583	-	hypothetical protein
1492	 18.82	-2	1514368..1514925	+	185	154148945	-	CHAB381_1584	-	hypothetical protein
1493	 33.14	0	1516755..1517276	+	173	154148382	-	CHAB381_1591	-	conjugal transfer protein
1494	 32.51	0	1517273..1518001	+	242	154149114	-	CHAB381_1592	-	hypothetical protein
1495	 36.34	0	1518466..1519929	-	487	154149452	gpmI	CHAB381_1593	-	phosphoglyceromutase
1496	 35.31	0	1520008..1521072	+	354	154148296	mraY	CHAB381_1594	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
1497	 33.83	0	1521076..1522278	+	400	154148835	murD	CHAB381_1595	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1498	 35.92	0	1522763..1523188	+	141	154148530	rplM	CHAB381_1597	-	50S ribosomal protein L13
1499	 40.77	+1	1523191..1523580	+	129	154149095	rpsI	CHAB381_1598	-	30S ribosomal protein S9
1500	 37.62	+1	1523676..1524677	+	333	154147928	-	CHAB381_1599	-	outer membrane fibronectin-binding protein
1501	 29.97	0	1524744..1525397	+	217	154148355	-	CHAB381_1600	-	pyrophosphatase PpaX
1502	 38.63	+1	1525472..1529023	+	1183	154149287	nifJ	CHAB381_1601	-	pyruvate:ferredoxin (flavodoxin) oxidoreductase
1503	 30.34	0	1529560..1530027	+	155	154148698	-	CHAB381_1602	-	cytochrome c553
1504	 32.58	0	1530866..1530997	-	43	154148944	-	CHAB381_1603	-	hypothetical protein
1505	 17.95	-2	1531244..1531399	+	51	154148703	-	CHAB381_1604	-	hypothetical protein
1506	 22.80	-1	1531594..1532058	-	154	154149513	-	CHAB381_1605	-	putative secy-independent transporter protein
1507	 36.78	0	1532159..1532419	-	86	154148419	-	CHAB381_1606	-	hypothetical protein
1508	 29.63	0	1532420..1532554	-	44	154149375	-	CHAB381_1607	-	hypothetical protein
1509	 37.78	+1	1532520..1532654	-	44	154148272	-	CHAB381_1608	-	hypothetical protein
1510	 38.62	+1	1532700..1533683	-	327	154149314	-	CHAB381_1609	-	thiamine biosynthesis protein:ExsB
1511	 33.45	0	1533680..1535326	-	548	154148103	dnaG	CHAB381_1610	-	DNA primase
1512	 32.75	0	1535384..1536403	+	339	154149042	-	CHAB381_1611	-	TPR repeat-containing protein
1513	 39.67	+1	1536381..1536806	+	141	154149229	rnhA	CHAB381_1612	-	ribonuclease H
1514	 34.67	0	1536810..1537481	+	223	154148336	rnc	CHAB381_1613	-	ribonuclease III
1515	 18.43	-2	1537478..1537732	+	84	154149303	-	CHAB381_1614	-	hypothetical protein
1516	 40.64	+1	1537749..1539131	+	460	154148549	glcD	CHAB381_1615	-	glycolate oxidase, subunit GlcD
1517	 36.22	0	1539425..1540705	+	426	154149396	-	CHAB381_1616	-	iron-sulfur cluster-binding domain-containing protein
1518	 35.02	0	1540710..1541600	+	296	154148080	-	CHAB381_1617	-	transporter
1519	 38.11	+1	1542007..1543074	-	355	154149107	prfA	CHAB381_1618	-	peptide chain release factor 1
1520	 35.96	0	1543075..1543341	-	88	154147916	rpsT	CHAB381_1619	-	30S ribosomal protein S20
1521	 38.14	+1	1543462..1545291	-	609	154148330	-	CHAB381_1620	-	biotin/lipoyl attachment
1522	 35.32	0	1545342..1546697	-	451	154148158	-	CHAB381_1621	-	trap dicarboxylate transporter, dctm subunit
1523	 33.15	0	1546699..1547253	-	184	154148709	-	CHAB381_1622	-	tripartite ATP-independent periplasmic transporter, DctQ component
1524	 34.26	0	1547417..1548064	+	215	154149535	-	CHAB381_1623	-	disulfide bond formation protein B
1525	 35.74	0	1548146..1549351	+	401	154148603	-	CHAB381_1624	-	NADH dehydrogenase ndh
1526	 33.16	0	1549728..1550318	-	196	154149304	-	CHAB381_1625	-	uridine diphosphate glucose pyrophosphatase
1527	 36.48	0	1550303..1551667	-	454	154149089	mgtE	CHAB381_1626	-	magnesium transporter
1528	 31.27	0	1551678..1552838	-	386	154149492	-	CHAB381_1627	-	M24/M37 family peptidase
1529	 36.81	0	1552960..1553679	+	239	154148922	-	CHAB381_1628	-	hypothetical protein
1530	 33.47	0	1553682..1554437	+	251	154148197	xth	CHAB381_1629	-	exodeoxyribonuclease III
1531	 32.74	0	1554535..1555371	+	278	154149153	-	CHAB381_1630	-	universal stress protein
1532	 35.19	0	1555390..1556955	+	521	154148399	-	CHAB381_1631	-	phosphate transporter
1533	 30.03	0	1557396..1557698	-	100	154148237	-	CHAB381_1632	-	antibiotic biosynthesis monooxygenase
1534	 34.61	0	1557736..1558284	-	182	154147989	-	CHAB381_1633	-	protein ThiJ
1535	 35.93	0	1558414..1559760	+	448	154148988	-	CHAB381_1634	-	malate:quinone oxidoreductase (malate dehydrogenase[acceptor]) (MQO)
1536	 37.11	+1	1559865..1561319	+	484	154148203	pyk	CHAB381_1635	-	pyruvate kinase
1537	 24.56	-1	1561605..1561718	-	37	154149035	-	CHAB381_1636	-	hypothetical protein
1538	 35.63	0	1561919..1562527	-	202	154148124	hisG	CHAB381_1637	-	ATP phosphoribosyltransferase catalytic subunit
1539	 32.53	0	1562527..1563147	-	206	154149430	-	CHAB381_1638	-	pantothenate kinase
1540	 24.62	-1	1563134..1563466	-	110	154148331	-	CHAB381_1639	-	hypothetical protein
1541	 33.53	0	1563456..1564472	-	338	154147970	-	CHAB381_1640	-	hypothetical protein
1542	 25.94	-1	1564469..1565077	-	202	154148716	-	CHAB381_1641	-	hypothetical protein
1543	 30.61	0	1565153..1565446	+	97	154148209	gatC	CHAB381_1642	-	glutamyl-tRNA(Gln) amidotransferase, C subunit
1544	 36.19	0	1565458..1566543	+	361	154149111	pilT	CHAB381_1643	-	twitching motility protein PilT
1545	 32.42	0	1566543..1567199	+	218	154149533	cvpA	CHAB381_1644	-	CvpA family protein
31.82	MEAN

5.24	STD DEV
