IslandPathversion 1.0

IslandPath Analysis: Campylobacter hominis ATCC BAA-381

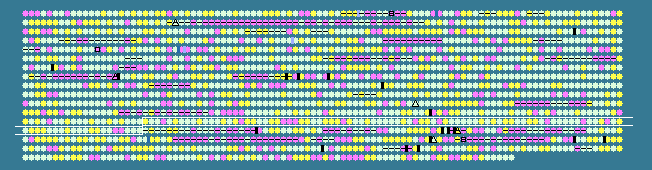

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.82 STD DEV: 5.24
Campylobacter hominis ATCC BAA-381, complete genome - 1..1711273
1682 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1221	 35.74	0	1230233..1231312	-	359	154148378	serC	CHAB381_1292	-	phosphoserine aminotransferase
1222	 34.45	0	1231322..1232485	-	387	154148736	xseA	CHAB381_1293	-	exodeoxyribonuclease VII large subunit
1223	 33.89	0	1232556..1233272	-	238	154147990	-	CHAB381_1294	-	ubiquinone/menaquinone biosynthesis methyltransferase
1224	 24.83	-1	1233272..1234471	-	399	154149183	-	CHAB381_1295	-	hypothetical protein
1225	 34.55	0	1234519..1234929	-	136	154149103	-	CHAB381_1296	-	FUR family transcriptional regulator
1226	 38.60	+1	1234997..1236820	-	607	154148341	dxs	CHAB381_1297	-	1-deoxy-D-xylulose-5-phosphate synthase
1227	 33.15	0	1236825..1237925	-	366	154149281	hisC	CHAB381_1298	-	histidinol-phosphate aminotransferase
1228	 35.28	0	1237922..1239001	-	359	154149332	pheA	CHAB381_1299	-	chorismate mutase/prephenate dehydratase
1229	 33.59	0	1238985..1239770	-	261	154149021	-	CHAB381_1300	-	HAD family hydrolase
1230	 36.24	0	1239767..1241005	-	412	154147876	lysA	CHAB381_1301	-	diaminopimelate decarboxylase
1231	 29.19	0	1241162..1242223	-	353	154148833	-	CHAB381_1302	-	permease YjgP/YjgQ
1232	 31.07	0	1242220..1242882	-	220	154148461	pth	CHAB381_1303	-	peptidyl-tRNA hydrolase
1233	 32.96	0	1242891..1243427	-	178	154149398	-	CHAB381_1304	-	50S ribosomal protein L25/general stress protein Ctc
1234	 36.72	0	1243493..1244701	-	402	154148593	-	CHAB381_1305	-	twitching mobility protein
1235	 33.43	0	1244704..1245708	-	334	154148986	tal	CHAB381_1306	-	transaldolase
1236	 36.54	0	1245701..1246324	-	207	154148188	serB	CHAB381_1307	-	phosphoserine phosphatase SerB
1237	 25.28	-1	1246342..1247061	-	239	154149080	-	CHAB381_1308	-	metallophosphoesterase
1238	 36.61	0	1247051..1248058	-	335	154148300	argC	CHAB381_1309	-	N-acetyl-gamma-glutamyl-phosphate reductase
1239	 35.38	0	1248069..1248557	-	162	154149289	-	CHAB381_1310	-	transcription elongation factor GreA
1240	 34.49	0	1248659..1249693	-	344	154148546	lpxB	CHAB381_1311	-	lipid-A-disaccharide synthase
1241	 30.98	0	1249768..1250277	+	169	154149497	-	CHAB381_1312	-	hypothetical protein
1242	 35.40	0	1250274..1251047	+	257	154148884	surE	CHAB381_1313	-	stationary phase survival protein SurE
1243	 35.39	0	1251032..1251712	+	226	154148006	-	CHAB381_1314	-	ThiF family protein
1244	 26.04	-1	1251864..1252055	-	63	154148781	-	CHAB381_1315	-	ABC-type dipeptide/oligopeptide/nickel transport system, permease component
1245	 24.67	-1	1252555..1252704	-	49	154148264	-	CHAB381_1317	-	hypothetical protein
1246	 26.98	0	1252905..1254227	+	440	154147882	-	CHAB381_1318	-	galactosyl transferase CpsE
1247	 36.76	0	1254283..1255506	-	407	154149076	proA	CHAB381_1319	-	gamma-glutamyl phosphate reductase
1248	 36.69	0	1255581..1256534	+	317	154148113	-	CHAB381_1320	-	oxidoreductase
1249	 28.81	0	1256531..1257238	+	235	154148405	-	CHAB381_1321	-	methyltransferase small
1250	 30.84	0	1257235..1258476	+	413	154148793	-	CHAB381_1322	-	TPR repeat-containing protein
1251	 36.90	0	1258473..1259258	+	261	154148043	trpC	CHAB381_1323	-	indole-3-glycerol phosphate synthase
1252	 37.35	+1	1259260..1259757	+	165	154148575	-	CHAB381_1324	-	Hit family protein
1253	 36.94	0	1259773..1260771	+	332	154149179	-	CHAB381_1325	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
1254	 20.51	-2	1260781..1260897	-	38	154149266	-	CHAB381_1326	-	hypothetical protein
1255	 35.52	0	1261016..1261882	-	288	154148594	ftsY	CHAB381_1327	-	signal recognition particle-docking protein FtsY
1256	 31.18	0	1261882..1262439	-	185	154149088	-	CHAB381_1328	-	thiredoxin
1257	 28.53	0	1262487..1263110	+	207	154148432	-	CHAB381_1329	-	5,10-methenyltetrahydrofolate synthetase
1258	 36.69	0	1263076..1264596	+	506	154148111	-	CHAB381_1330	-	phosphodiesterase
1259	 34.39	0	1264605..1265171	+	188	154149087	-	CHAB381_1331	-	hypothetical protein
1260	 30.29	0	1265171..1265728	+	185	154147897	-	CHAB381_1332	-	integral membrane protein
1261	 31.69	0	1266291..1267079	-	262	154148267	-	CHAB381_1334	-	hydrolase with alpha/beta fold
1262	 34.45	0	1267286..1270339	-	1017	154149248	-	CHAB381_1335	-	CcmF/CcyK/CcsA family cytochrome c biogenesis protein
1263	 30.80	0	1270336..1270770	-	144	154148256	-	CHAB381_1336	-	hypothetical protein
1264	 41.67	+1	1271013..1271144	+	43	154149053	-	CHAB381_1337	-	hypothetical protein
1265	 30.26	0	1271221..1271448	+	75	154147945	-	CHAB381_1338	-	cytochrome c family protein
1266	 24.24	-1	1271487..1271618	-	43	154148838	-	CHAB381_1339	-	hypothetical protein
1267	 36.25	0	1271598..1271906	+	102	154148578	rplU	CHAB381_1340	-	50S ribosomal protein L21
1268	 38.37	+1	1271918..1272175	+	85	154149449	rpmA	CHAB381_1341	-	50S ribosomal protein L27
1269	 28.96	0	1272352..1272717	+	121	154149445	-	CHAB381_1342	-	hypothetical protein
1270	 24.68	-1	1272714..1273106	+	130	154148679	-	CHAB381_1343	-	putative GTP pyrophosphokinase
1271	 35.96	0	1273200..1274495	+	431	154149028	rho	CHAB381_1344	-	transcription termination factor Rho
1272	 34.36	0	1274621..1275400	-	259	154148557	-	CHAB381_1345	-	CjaC
1273	 32.16	0	1275566..1276933	+	455	154148468	ccoG	CHAB381_1346	-	cytochrome c oxidase accessory protein CcoG
1274	 35.16	0	1277169..1277771	-	200	154148744	-	CHAB381_1347	-	hypothetical protein
1275	 32.17	0	1278021..1280432	+	803	154148290	-	CHAB381_1348	-	putative high-molecular-weight surface-exposed protein
1276	 32.39	0	1281021..1281446	-	141	154149439	-	CHAB381_1349	-	hypothetical protein
1277	 38.55	+1	1281471..1284731	-	1086	154148753	carB	CHAB381_1350	-	carbamoyl phosphate synthase large subunit
1278	 29.45	0	1284731..1285477	-	248	154149196	-	CHAB381_1351	-	rod shape-determining protein MreC
1279	 40.60	+1	1285470..1286501	-	343	154148708	mreB	CHAB381_1352	-	rod shape-determining protein MreB
1280	 35.28	0	1286495..1287730	-	411	154148896	clpX	CHAB381_1353	-	ATP-dependent protease ATP-binding subunit
1281	 37.55	+1	1287730..1288512	-	260	154149478	lpxA	CHAB381_1354	-	UDP-N-acetylglucosamine acyltransferase
1282	 36.76	0	1288512..1288949	-	145	154149105	fabZ	CHAB381_1355	-	beta-hydroxyacyl-(acyl-carrier-protein) dehydratase FabZ
1283	 32.58	0	1288983..1290050	-	355	154148104	-	CHAB381_1356	-	hypothetical protein
1284	 29.08	0	1290120..1293197	+	1025	154148646	-	CHAB381_1357	-	hypothetical protein
1285	 40.03	+1	1293227..1294003	+	258	154149156	dapB	CHAB381_1358	-	dihydrodipicolinate reductase
1286	 39.34	+1	1293973..1295337	+	454	154147906	purF	CHAB381_1359	-	amidophosphoribosyltransferase
1287	 29.03	0	1295988..1296173	+	61	154149422	-	CHAB381_1360	-	hypothetical protein
1288	 24.39	-1	1296573..1296695	-	40	154148122	-	CHAB381_1361	-	hypothetical protein
1289	 32.45	0	1297008..1297685	-	225	154148783	-	CHAB381_1362	-	DNA-binding response regulator
1290	 30.12	0	1297682..1298896	-	404	154147923	-	CHAB381_1363	-	PAS/PAC sensor signal transduction histidine kinase
1291	 30.78	0	1298893..1299558	-	221	154149101	-	CHAB381_1364	-	hypothetical protein
1292	 33.96	0	1299555..1300667	-	370	154148177	carA	CHAB381_1365	-	carbamoyl phosphate synthase small subunit
1293	 31.34	0	1300667..1301218	-	183	154149302	-	CHAB381_1366	-	hypothetical protein
1294	 15.38	-2	1301254..1301409	-	51	154148125	-	CHAB381_1367	-	hypothetical protein
1295	 34.43	0	1301447..1303267	-	606	154149043	-	CHAB381_1368	-	invasion antigen B
1296	 33.45	0	1303412..1304260	+	282	154148062	-	CHAB381_1369	-	ATP phosphoribosyltransferase regulatory subunit
1297	 38.37	+1	1304257..1305507	+	416	154148619	purA	CHAB381_1370	-	adenylosuccinate synthetase
1298	 19.17	-2	1305916..1306035	+	39	154148939	-	CHAB381_1371	-	hypothetical protein
1299	 31.10	0	1306482..1307198	-	238	154148434	-	CHAB381_1372	-	hypothetical protein
1300	 35.69	0	1307210..1308823	-	537	154149363	ilvA	CHAB381_1373	-	threonine dehydratase
1301	 31.01	0	1308820..1309893	-	357	154147974	trmA	CHAB381_1374	-	tRNA (uracil-5-)-methyltransferase
1302	 38.95	+1	1309890..1311563	-	557	154148823	-	CHAB381_1375	-	Na(+)/H(+) antiporter family protein
1303	 35.99	0	1311564..1312316	-	250	154148952	-	CHAB381_1376	-	NADP-dependent l-serine/l-allo-threonine dehydrogenase ydfg
1304	 37.56	+1	1312550..1313875	+	441	154148400	hcp	CHAB381_1377	-	hydroxylamine reductase
1305	 33.64	0	1314553..1316181	-	542	154149536	-	CHAB381_1378	-	putative soluble lytic murein transglycosylase
1306	 33.67	0	1316159..1316452	-	97	154148604	-	CHAB381_1379	-	yggt family protein
1307	 35.02	0	1316449..1317750	-	433	154148042	gltX	CHAB381_1380	-	glutamyl-tRNA synthetase
1308	 35.34	0	1317849..1318247	+	132	154148809	mscL	CHAB381_1381	-	large conductance mechanosensitive channel protein
1309	 34.27	0	1318244..1318885	+	213	154147910	-	CHAB381_1382	-	transcription regulator
1310	 31.69	0	1318887..1319984	+	365	154149126	-	CHAB381_1383	-	metallophosphoesterase
1311	 32.33	0	1319981..1320781	+	266	154147880	psd	CHAB381_1384	-	phosphatidylserine decarboxylase
1312	 40.55	+1	1320837..1321238	+	133	154149263	-	CHAB381_1385	-	N- methylation
1313	 35.95	0	1321245..1323080	+	611	154148899	priA	CHAB381_1386	-	primosome assembly protein PriA
1314	 32.56	0	1323697..1323825	+	42	154148173	-	CHAB381_1387	-	hypothetical protein
1315	 29.17	0	1323851..1324018	+	55	154148707	-	CHAB381_1389	-	Fis family transcriptional regulator
1316	 15.09	-2	1323982..1324140	-	52	154149112	-	CHAB381_1388	-	hypothetical protein
1317	 21.05	-2	1324214..1324327	+	37	154147929	-	CHAB381_1390	-	hypothetical protein
1318	 31.60	0	1324394..1327165	-	923	154148488	-	CHAB381_1391	-	ATP-dependent DNA helicase UvrD
1319	 31.05	0	1327162..1329573	-	803	154149234	-	CHAB381_1392	-	hypothetical protein
1320	 29.24	0	1329573..1330061	-	162	154149429	-	CHAB381_1393	-	putative lipoprotein
31.82	MEAN

5.24	STD DEV
