IslandPath Analysis: Campylobacter hominis ATCC BAA-381

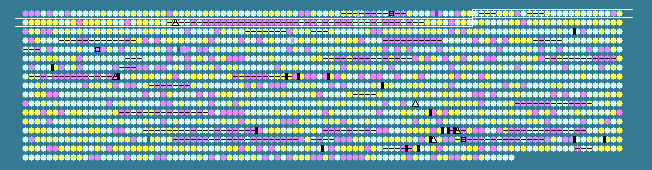

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 31.82   STD DEV: 5.24
Campylobacter hominis ATCC BAA-381, complete genome - 1..1711273
1682 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
76	 35.12	0	78896..79510	+	204	154148894	rplD	CHAB381_0085	-	50S ribosomal protein L4
77	 34.40	0	79512..79793	+	93	154148877	rplW	CHAB381_0086	-	50S ribosomal protein L23
78	 37.67	+1	79795..80625	+	276	154147959	rplB	CHAB381_0087	-	50S ribosomal protein L2
79	 32.62	0	80625..80906	+	93	154149120	rpsS	CHAB381_0088	-	30S ribosomal protein S19
80	 36.97	0	80916..81245	+	109	154149283	rplV	CHAB381_0089	-	50S ribosomal protein L22
81	 35.34	0	81248..81943	+	231	154149468	rpsC	CHAB381_0090	-	30S ribosomal protein S3
82	 36.62	0	81946..82371	+	141	154148600	rplP	CHAB381_0091	-	50S ribosomal protein L16
83	 26.88	0	82358..82543	+	61	154149231	rpmC	CHAB381_0092	-	50S ribosomal protein L29
84	 32.94	0	82554..82805	+	83	154148095	rpsQ	CHAB381_0093	-	30S ribosomal protein S17
85	 38.75	+1	82805..83173	+	122	154148791	rplN	CHAB381_0094	-	50S ribosomal protein L14
86	 30.74	0	83173..83403	+	76	154148233	rplX	CHAB381_0095	-	50S ribosomal protein L24
87	 31.32	0	83407..83952	+	181	154148087	-	CHAB381_0096	-	50S ribosomal protein L5
88	 38.17	+1	83954..84139	+	61	154149067	rpsN	CHAB381_0097	-	ribosomal protein S14p/S29e
89	 32.58	0	84149..84544	+	131	154149530	rpsH	CHAB381_0098	-	30S ribosomal protein S8
90	 34.26	0	84620..85156	+	178	154148630	-	CHAB381_0099	-	50S ribosomal protein L6
91	 31.09	0	85166..85522	+	118	154148292	rplR	CHAB381_0100	-	50S ribosomal protein L18
92	 31.97	0	85532..85972	+	146	154148935	rpsE	CHAB381_0101	-	30S ribosomal protein S5
93	 36.32	0	85983..86384	+	133	154148588	rplO	CHAB381_0102	-	50S ribosomal protein L15
94	 33.49	0	86384..87649	+	421	154149113	-	CHAB381_0103	-	preprotein translocase subunit SecY
95	 34.78	0	87649..88407	+	252	154148348	map	CHAB381_0104	-	methionine aminopeptidase
96	 37.55	+1	88404..88877	+	157	154149511	ybaK	CHAB381_0105	-	YbaK/ebsC protein
97	 31.72	0	88904..89521	+	205	154148799	-	CHAB381_0106	-	putative methyl transferase
98	 30.40	0	89982..90800	-	272	154149336	dapF	CHAB381_0107	-	diaminopimelate epimerase
99	 26.57	-1	90775..91380	-	201	154148632	coaE	CHAB381_0108	-	dephospho-CoA kinase
100	 37.70	+1	91454..92437	+	327	154148180	purM	CHAB381_0109	-	phosphoribosylaminoimidazole synthetase
101	 33.09	0	92494..93321	-	275	154149306	-	CHAB381_0110	-	putative periplasmic protein
102	 35.78	0	93406..94794	+	462	154147872	gltX	CHAB381_0111	-	glutamyl-tRNA synthetase
103	 36.94	0	94791..96038	+	415	154149335	-	CHAB381_0112	-	NADP-dependent malic enzyme (NADP-me)
104	 36.34	0	96035..97465	+	476	154148015	pncB	CHAB381_0113	-	putative nicotinate phosphoribosyltransferase
105	 37.24	+1	97753..98853	+	366	154148765	aroC	CHAB381_0114	-	chorismate synthase
106	 36.76	0	98918..99325	+	135	154148930	-	CHAB381_0115	-	N-terminal methylation domain-containing protein
107	 34.02	0	99360..99794	-	144	154148389	moaE	CHAB381_0116	-	molybdopterin converting factor, subunit 2
108	 30.18	0	99796..100017	-	73	154148751	-	CHAB381_0117	-	hypothetical protein
109	 36.59	0	100090..101316	+	408	154148229	nspC	CHAB381_0118	-	carboxynorspermidine decarboxylase
110	 25.88	-1	101471..101698	+	75	154148563	-	CHAB381_0119	-	hypothetical protein
111	 36.54	0	101881..102879	-	332	154148017	-	CHAB381_0120	-	O-sialoglycoprotein endopeptidase
112	 35.65	0	102876..103955	-	359	154148397	dxr	CHAB381_0121	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
113	 36.22	0	103949..104710	-	253	154148963	cdsA	CHAB381_0122	-	phosphatidate cytidylyltransferase
114	 29.07	0	104752..106065	-	437	154147985	-	CHAB381_0123	-	fibronectin/fibrinogen-binding protein
115	 39.44	+1	106123..107382	+	419	154148626	leuC	CHAB381_0124	-	3-isopropylmalate dehydratase large subunit
116	 32.07	0	107385..107939	+	184	154148621	-	CHAB381_0125	-	putative molybdopterin-guanine dinucleotide biosynthesis protein
117	 34.37	0	107936..108904	+	322	154149331	-	CHAB381_0126	-	phospholipase A
118	 18.25	-2	108954..109079	-	41	154148375	-	CHAB381_0127	-	hypothetical protein
119	 31.75	0	109353..109478	-	41	154149135	-	CHAB381_0128	-	hypothetical protein
120	 37.99	+1	109824..111497	-	557	154148861	nrfA	CHAB381_0129	-	nitrite reductase (cytochrome; ammonia-forming)
121	 39.04	+1	111515..112057	-	180	154147870	nrfH	CHAB381_0130	-	cytochrome c nitrate reductase, small subunit
122	 32.42	0	112187..113275	-	362	154148617	ribD	CHAB381_0131	-	riboflavin biosynthesis protein RibD
123	 37.39	+1	113359..113925	-	188	154148096	efp	CHAB381_0132	-	elongation factor P
124	 34.92	0	113975..115549	-	524	154148993	recJ	CHAB381_0133	-	single-stranded-DNA-specific exonuclease RecJ
125	 36.35	0	115539..117164	-	541	154149163	pyrG	CHAB381_0134	-	CTP synthetase
126	 31.35	0	117385..118542	-	385	154149149	-	CHAB381_0135	-	bacteriophage-related integrase
127	 31.53	0	121315..122310	+	331	154148072	-	CHAB381_0138	-	hypothetical protein
128	 31.89	0	122323..122739	+	138	154147996	-	CHAB381_0139	-	single-strand binding protein family
129	 23.08	-1	122739..122972	+	77	154148758	-	CHAB381_0140	-	troponin C
130	 33.05	0	122969..123673	+	234	154149261	-	CHAB381_0141	-	TrbM protein
131	 26.72	0	123681..124028	+	115	154149079	-	CHAB381_0142	-	germination-specific N-acetylmuramoyl-L-alanine amidase
132	 27.37	0	124032..125858	+	608	154147960	-	CHAB381_0143	-	hypothetical protein
133	 25.09	-1	125980..126270	+	96	154148882	-	CHAB381_0144	-	hypothetical protein
134	 27.97	0	126899..127327	+	142	154147895	-	CHAB381_0145	-	hypothetical protein
135	 26.17	-1	127350..127670	+	106	154149012	-	CHAB381_0146	-	nucleotidyltransferase family protein
136	 27.48	0	128233..129855	-	540	154148782	-	CHAB381_0148	-	relaxase/mobilization nuclease domain-containing protein
137	 23.90	-1	130587..131837	+	416	154149403	-	CHAB381_0150	-	Cpp17
138	 25.33	-1	131888..132112	-	74	154148970	-	CHAB381_0151	-	hypothetical protein
139	 21.04	-2	132205..132741	-	178	154149435	-	CHAB381_0152	-	hypothetical protein
140	 23.58	-1	132775..133338	-	187	154148864	-	CHAB381_0153	-	Cpp12
141	 25.40	-1	133422..134429	-	335	154147933	-	CHAB381_0154	-	hypothetical protein
142	 23.66	-1	134401..134886	-	161	154148325	-	CHAB381_0155	-	hypothetical protein
143	 21.54	-1	134903..135148	-	81	154149447	-	CHAB381_0156	-	hypothetical protein
144	 20.56	-2	135132..135311	-	59	154149102	-	CHAB381_0157	-	hypothetical protein
145	 25.65	-1	135408..136292	-	294	154148179	-	CHAB381_0158	-	zeta toxin superfamily protein
146	 24.65	-1	136289..136576	-	95	154147875	-	CHAB381_0159	-	hypothetical protein
147	 29.18	0	136683..143036	-	2117	154149046	-	CHAB381_0160	-	Cpp14
148	 23.90	-1	143118..143933	-	271	154148545	-	CHAB381_0162	-	hypothetical protein
149	 24.66	-1	143944..144381	-	145	154149246	-	CHAB381_0163	-	lytic transglycosylase, catalytic
150	 28.64	0	144392..146542	-	716	154148360	-	CHAB381_0164	-	DNA topoisomerase 3 (DNA topoisomerase III)
151	 19.35	-2	146554..147897	-	447	154149082	-	CHAB381_0165	-	hypothetical protein
152	 29.96	0	147910..148710	-	266	154148106	-	CHAB381_0166	-	hypothetical protein
153	 24.06	-1	148728..149654	-	308	154148821	-	CHAB381_0167	-	hypothetical protein
154	 27.83	0	149654..150343	-	229	154149472	-	CHAB381_0168	-	Cpp45
155	 21.36	-1	150340..150765	-	141	154148570	-	CHAB381_0169	-	Cpp44
156	 29.64	0	150762..152738	-	658	154149168	-	CHAB381_0170	-	cmgd4
157	 30.05	0	152728..153489	-	253	154148275	-	CHAB381_0171	-	Cpp33
158	 30.90	0	153486..154472	-	328	154148018	virB	CHAB381_0172	-	P-type DNA transfer ATPase VirB11
159	 22.62	-1	154476..154643	-	55	154148881	-	CHAB381_0173	-	hypothetical protein
160	 28.55	0	154652..155863	-	403	154148212	-	CHAB381_0174	-	cmgb10
161	 24.52	-1	155856..156785	-	309	154148925	virB	CHAB381_0175	-	P-type conjugative transfer protein VirB9
162	 27.88	0	156790..157467	-	225	154149274	-	CHAB381_0176	-	cmgB8
163	 20.43	-2	157467..157652	-	61	154148311	-	CHAB381_0177	-	hypothetical protein
164	 29.00	0	157652..158689	-	345	154149461	-	CHAB381_0178	-	hypothetical protein
165	 28.12	0	158705..159472	-	255	154148596	-	CHAB381_0179	-	transport associated protein 4
166	 29.36	0	159475..161160	-	561	154148853	-	CHAB381_0180	-	cmgb3/4
167	 33.59	0	161256..161645	+	129	154147948	-	CHAB381_0181	-	NADH dehydrogenase subunit A
168	 42.35	+2	161627..162136	+	169	154148789	-	CHAB381_0182	-	NADH dehydrogenase subunit B
169	 33.59	0	162136..162924	+	262	154148319	-	CHAB381_0183	-	NADH dehydrogenase subunit C
170	 41.32	+1	162924..164150	+	408	154149066	nuoD	CHAB381_0184	-	NADH dehydrogenase subunit D
171	 32.47	0	164147..164377	+	76	154148904	-	CHAB381_0185	-	hypothetical protein
172	 27.93	0	164374..165039	+	221	154148054	-	CHAB381_0186	-	hypothetical protein
173	 34.38	0	165041..167323	+	760	154149064	-	CHAB381_0187	-	NADH dehydrogenase subunit G
174	 37.75	+1	167316..168311	+	331	154148117	-	CHAB381_0188	-	NADH dehydrogenase subunit H
175	 34.49	0	168320..168922	+	200	154149243	-	CHAB381_0189	-	NADH dehydrogenase subunit I
31.82	MEAN

5.24	STD DEV
