IslandPath Analysis: Campylobacter hominis ATCC BAA-381

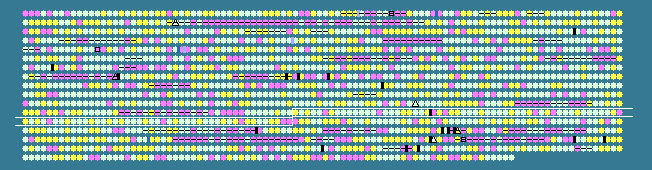

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.82 STD DEV: 5.24
Campylobacter hominis ATCC BAA-381, complete genome - 1..1711273
1682 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1146	 39.09	+1	1149751..1150323	+	190	154149456	-	CHAB381_1214	-	hypothetical protein
1147	 32.34	0	1150320..1151021	+	233	154149003	-	CHAB381_1215	-	transformation system protein
1148	 38.31	+1	1151542..1152828	-	428	154148194	hisD	CHAB381_1216	-	histidinol dehydrogenase
1149	 34.72	0	1152853..1153719	-	288	154148206	-	CHAB381_1217	-	1-aminocyclopropane-1-carboxylate deaminase
1150	 30.37	0	1153725..1154738	-	337	154148493	-	CHAB381_1218	-	putative chemotaxis protein MotB
1151	 25.83	-1	1154728..1155900	-	390	154149236	-	CHAB381_1219	-	hypothetical protein
1152	 37.18	+1	1155910..1156974	-	354	154148727	fbaA	CHAB381_1220	-	fructose-bisphosphate aldolase
1153	 32.48	0	1156986..1157801	-	271	154148403	-	CHAB381_1221	-	foldase protein PrsA
1154	 33.80	0	1157875..1158513	+	212	154149294	nth	CHAB381_1222	-	endonuclease III
1155	 33.86	0	1158525..1159094	-	189	154148140	-	CHAB381_1223	-	signal-transduction sensor protein
1156	 29.22	0	1159195..1159632	+	145	154149014	-	CHAB381_1224	-	hypothetical protein
1157	 33.24	0	1159849..1161999	+	716	154149036	-	CHAB381_1225	-	penicillin-binding protein
1158	 29.57	0	1162046..1167073	+	1675	154149147	-	CHAB381_1226	-	alpha-2-macroglobulin family protein
1159	 34.97	0	1167147..1169771	+	874	154148039	valS	CHAB381_1227	-	valyl-tRNA synthetase
1160	 24.94	-1	1169774..1170595	+	273	154148956	-	CHAB381_1228	-	restriction endonuclease R.IB
1161	 30.39	0	1170588..1171403	+	271	154148672	-	CHAB381_1229	-	DNA methylase
1162	 29.00	0	1171400..1171768	+	122	154148792	-	CHAB381_1230	-	transmembrane signal peptide protein
1163	 33.72	0	1173284..1174306	+	340	154148200	-	CHAB381_1233	-	methionine import ATP-binding protein MetN
1164	 37.35	+1	1174309..1174980	+	223	154148490	-	CHAB381_1234	-	D-methionine transport system permease protein MetI
1165	 36.79	0	1175576..1175893	-	105	154148228	-	CHAB381_1235	-	cytochrome c553
1166	 33.70	0	1176011..1177114	-	367	154149137	-	CHAB381_1236	-	ubiquinol--cytochrome c reductase, cytochrome c1 subunit
1167	 33.10	0	1177117..1178376	-	419	154148978	-	CHAB381_1237	-	cytochrome B
1168	 42.21	+1	1178386..1178892	-	168	154148257	petA	CHAB381_1238	-	ubiquinol-cytochrome c reductase, iron-sulfur subunit
1169	 20.75	-2	1179337..1179495	+	52	154148665	-	CHAB381_1240	-	hypothetical protein
1170	 36.95	0	1179613..1180911	+	432	154148011	-	CHAB381_1241	-	proton/sodium-glutamate symport protein (glutamate-aspartate carrierprotein)
1171	 22.69	-1	1181521..1182018	+	165	154149412	-	CHAB381_1242	-	hypothetical protein
1172	 38.39	+1	1182444..1183472	-	342	154148386	asd	CHAB381_1243	-	aspartate-semialdehyde dehydrogenase
1173	 35.62	0	1183459..1186086	-	875	154147908	gyrA	CHAB381_1244	-	DNA gyrase subunit A
1174	 33.71	0	1186296..1187102	+	268	154148664	-	CHAB381_1245	-	amino acid
1175	 32.49	0	1187281..1189305	-	674	154148492	glyS	CHAB381_1246	-	glycyl-tRNA synthetase subunit beta
1176	 29.45	0	1189319..1190632	-	437	154149223	-	CHAB381_1247	-	putative endonuclease/exonuclease/phosphatase
1177	 39.09	+1	1190629..1191114	-	161	154148507	-	CHAB381_1248	-	RNA methyltransferase
1178	 32.98	0	1191114..1191953	-	279	154149406	purU	CHAB381_1249	-	formyltetrahydrofolate deformylase
1179	 29.48	0	1192100..1193398	+	432	154148637	-	CHAB381_1250	-	hypothetical protein
1180	 32.84	0	1193408..1194016	+	202	154148920	gmk	CHAB381_1251	-	guanylate kinase
1181	 34.90	0	1194026..1194217	+	63	154147975	-	CHAB381_1252	-	twin argininte translocase protein A
1182	 35.90	0	1194244..1194438	+	64	154148926	-	CHAB381_1253	-	twin-arginine translocation protein TatA/E
1183	 33.08	0	1194442..1196019	+	525	154148135	argS	CHAB381_1254	-	arginyl-tRNA synthetase
1184	 33.40	0	1196019..1197599	+	526	154147958	-	CHAB381_1255	-	DNA polymerase III subunit gamma/tau
1185	 38.78	+1	1197649..1198584	+	311	154148714	-	CHAB381_1256	-	ribose-phosphate pyrophosphokinase
1186	 15.08	-2	1198983..1199108	+	41	154149432	-	CHAB381_1257	-	hypothetical protein
1187	 32.52	0	1199121..1199735	+	204	154148067	-	CHAB381_1258	-	hypothetical protein
1188	 38.13	+1	1200143..1200871	-	242	154148825	-	CHAB381_1259	-	hypothetical protein
1189	 27.35	0	1201087..1201203	-	38	154148241	-	CHAB381_1260	-	hypothetical protein
1190	 33.16	0	1201309..1202457	-	382	154148647	-	CHAB381_1261	-	polyA polymerase family protein
1191	 28.73	0	1202417..1203046	-	209	154149190	-	CHAB381_1262	-	hypothetical protein
1192	 31.28	0	1203043..1203285	-	80	154148035	-	CHAB381_1263	-	hypothetical protein
1193	 40.54	+1	1203285..1204352	-	355	154149000	leuB	CHAB381_1264	-	3-isopropylmalate dehydrogenase
1194	 34.58	0	1204362..1204841	-	159	154148307	-	CHAB381_1265	-	3-isopropylmalate dehydratase small subunit
1195	 29.98	0	1204896..1205492	-	198	154148847	-	CHAB381_1266	-	homogentisate export protein
1196	 30.04	0	1205588..1206073	+	161	154148510	-	CHAB381_1267	-	hypothetical protein
1197	 35.00	0	1206120..1207142	+	340	154149184	hemE	CHAB381_1268	-	uroporphyrinogen decarboxylase
1198	 32.89	0	1207139..1208041	+	300	154149425	-	CHAB381_1270	-	radical SAM domain-containing protein
1199	 36.61	0	1208038..1208526	-	162	154148711	-	CHAB381_1269	-	flavodoxin FldA
1200	 26.36	-1	1208531..1209247	-	238	154148805	-	CHAB381_1271	-	hypothetical protein
1201	 35.56	0	1209238..1209552	-	104	154147925	-	CHAB381_1272	-	hypothetical protein
1202	 29.51	0	1209657..1210283	+	208	154148886	trpF	CHAB381_1273	-	N-(5'phosphoribosyl)anthranilate isomerase
1203	 38.58	+1	1210334..1211515	+	393	154148171	trpB	CHAB381_1274	-	tryptophan synthase subunit beta
1204	 33.47	0	1211508..1212251	+	247	154148065	trpA	CHAB381_1275	-	tryptophan synthase subunit alpha
1205	 27.20	0	1212254..1213231	+	325	154149083	-	CHAB381_1276	-	hypothetical protein
1206	 33.08	0	1213690..1215693	-	667	154148694	-	CHAB381_1277	-	5-methylaminomethyl-2-thiouridine methyltransferase
1207	 34.11	0	1215693..1216976	-	427	154149400	-	CHAB381_1278	-	N-acetylmuramoyl-L-alanine amidase
1208	 39.93	+1	1216960..1218051	-	363	154149069	-	CHAB381_1279	-	2-nitropropane dioxygenase family oxidoreductase
1209	 33.25	0	1218061..1219272	-	403	154147934	tyrS	CHAB381_1280	-	tyrosyl-tRNA synthetase
1210	 33.10	0	1219283..1221469	-	728	154148413	-	CHAB381_1281	-	GTP pyrophosphokinase (ATP:GTP 3'-pyrophosphotransferase)(ppGpp synthetase I) ((P)ppGpp synthetase)
1211	 33.33	0	1221441..1221665	-	74	154148131	rpoZ	CHAB381_1282	-	DNA-directed RNA polymerase, omega subunit
1212	 36.83	0	1221678..1222391	-	237	154149434	pyrH	CHAB381_1283	-	uridylate kinase
1213	 30.12	0	1222442..1223749	-	435	154148671	-	CHAB381_1284	-	M24/M37 family peptidase
1214	 31.37	0	1223746..1224561	-	271	154148196	-	CHAB381_1285	-	cell division protein FtsX
1215	 37.68	+1	1224558..1225247	-	229	154149504	-	CHAB381_1286	-	lipoprotein-releasing system ATP-binding protein LolD
1216	 31.04	0	1225235..1226410	-	391	154148836	-	CHAB381_1287	-	tRNA (guanine-N(7))-methyltransferase
1217	 36.46	0	1226410..1227594	-	394	154148293	-	CHAB381_1288	-	fibronectin type III domain-containing protein
1218	 31.94	0	1227560..1228633	-	357	154148379	-	CHAB381_1289	-	RluA family pseudouridine synthase
1219	 32.97	0	1228654..1229754	+	366	154149191	-	CHAB381_1290	-	cell cycle protein
1220	 32.79	0	1229774..1230142	-	122	154149367	-	CHAB381_1291	-	HIT family protein
1221	 35.74	0	1230233..1231312	-	359	154148378	serC	CHAB381_1292	-	phosphoserine aminotransferase
1222	 34.45	0	1231322..1232485	-	387	154148736	xseA	CHAB381_1293	-	exodeoxyribonuclease VII large subunit
1223	 33.89	0	1232556..1233272	-	238	154147990	-	CHAB381_1294	-	ubiquinone/menaquinone biosynthesis methyltransferase
1224	 24.83	-1	1233272..1234471	-	399	154149183	-	CHAB381_1295	-	hypothetical protein
1225	 34.55	0	1234519..1234929	-	136	154149103	-	CHAB381_1296	-	FUR family transcriptional regulator
1226	 38.60	+1	1234997..1236820	-	607	154148341	dxs	CHAB381_1297	-	1-deoxy-D-xylulose-5-phosphate synthase
1227	 33.15	0	1236825..1237925	-	366	154149281	hisC	CHAB381_1298	-	histidinol-phosphate aminotransferase
1228	 35.28	0	1237922..1239001	-	359	154149332	pheA	CHAB381_1299	-	chorismate mutase/prephenate dehydratase
1229	 33.59	0	1238985..1239770	-	261	154149021	-	CHAB381_1300	-	HAD family hydrolase
1230	 36.24	0	1239767..1241005	-	412	154147876	lysA	CHAB381_1301	-	diaminopimelate decarboxylase
1231	 29.19	0	1241162..1242223	-	353	154148833	-	CHAB381_1302	-	permease YjgP/YjgQ
1232	 31.07	0	1242220..1242882	-	220	154148461	pth	CHAB381_1303	-	peptidyl-tRNA hydrolase
1233	 32.96	0	1242891..1243427	-	178	154149398	-	CHAB381_1304	-	50S ribosomal protein L25/general stress protein Ctc
1234	 36.72	0	1243493..1244701	-	402	154148593	-	CHAB381_1305	-	twitching mobility protein
1235	 33.43	0	1244704..1245708	-	334	154148986	tal	CHAB381_1306	-	transaldolase
1236	 36.54	0	1245701..1246324	-	207	154148188	serB	CHAB381_1307	-	phosphoserine phosphatase SerB
1237	 25.28	-1	1246342..1247061	-	239	154149080	-	CHAB381_1308	-	metallophosphoesterase
1238	 36.61	0	1247051..1248058	-	335	154148300	argC	CHAB381_1309	-	N-acetyl-gamma-glutamyl-phosphate reductase
1239	 35.38	0	1248069..1248557	-	162	154149289	-	CHAB381_1310	-	transcription elongation factor GreA
1240	 34.49	0	1248659..1249693	-	344	154148546	lpxB	CHAB381_1311	-	lipid-A-disaccharide synthase
1241	 30.98	0	1249768..1250277	+	169	154149497	-	CHAB381_1312	-	hypothetical protein
1242	 35.40	0	1250274..1251047	+	257	154148884	surE	CHAB381_1313	-	stationary phase survival protein SurE
1243	 35.39	0	1251032..1251712	+	226	154148006	-	CHAB381_1314	-	ThiF family protein
1244	 26.04	-1	1251864..1252055	-	63	154148781	-	CHAB381_1315	-	ABC-type dipeptide/oligopeptide/nickel transport system, permease component
1245	 24.67	-1	1252555..1252704	-	49	154148264	-	CHAB381_1317	-	hypothetical protein
31.82	MEAN

5.24	STD DEV
