IslandPathversion 1.0

IslandPath Analysis: Campylobacter hominis ATCC BAA-381

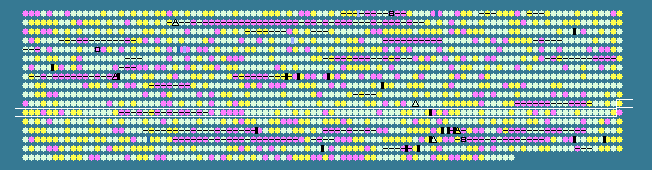

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.82 STD DEV: 5.24
Campylobacter hominis ATCC BAA-381, complete genome - 1..1711273
1682 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1100	 36.72	0	1102638..1103582	+	314	154149221	lpxD	CHAB381_1167	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1101	 39.77	+1	1104072..1105190	+	372	154148454	-	CHAB381_1168	-	putative acyl-coa dehydrogenase
1102	 35.73	0	1105203..1105994	+	263	154148910	-	CHAB381_1169	-	hypothetical protein
1103	 35.90	0	1105998..1107164	+	388	154147921	-	CHAB381_1170	-	5-methyltetrahydropteroyltriglutamate-- homocystei ne methyltransferase
1104	 27.63	0	1107157..1107594	+	145	154149185	-	CHAB381_1171	-	hypothetical protein
1105	 38.43	+1	1107713..1108831	-	372	154148217	tgt	CHAB381_1172	-	queuine tRNA-ribosyltransferase
1106	 37.65	+1	1109019..1110686	+	555	154148509	dcuB	CHAB381_1173	-	anaerobic C4-dicarboxylate membrane transporter
1107	 24.00	-1	1110638..1110787	+	49	154149138	-	CHAB381_1174	-	hypothetical protein
1108	 30.09	0	1111448..1112032	-	194	154149524	-	CHAB381_1175	-	putative thiamine-phosphate pyrophosphorylase
1109	 35.53	0	1112025..1113164	-	379	154148527	thiH	CHAB381_1176	-	thiamine biosynthesis protein ThiH
1110	 39.61	+1	1113168..1113932	-	254	154148481	thiG	CHAB381_1177	-	thiazole synthase
1111	 33.46	0	1113934..1114737	-	267	154149197	thiF	CHAB381_1178	-	thiamine biosynthesis protein ThiF
1112	 31.37	0	1114734..1114937	-	67	154148508	thiS	CHAB381_1179	-	thiamine biosynthesis protein ThiS
1113	 28.59	0	1114930..1115709	-	259	154148166	-	CHAB381_1180	-	hypothetical protein
1114	 33.75	0	1115709..1116920	-	403	154148079	-	CHAB381_1181	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase DapD
1115	 33.48	0	1117035..1118357	+	440	154148788	brnQ	CHAB381_1182	-	branched-chain amino acid transport system II carrier protein
1116	 39.36	+1	1118587..1119930	+	447	154148562	radA	CHAB381_1183	-	DNA repair protein RadA
1117	 21.71	-1	1120484..1121386	-	300	154149277	-	CHAB381_1184	-	hypothetical protein
1118	 22.11	-1	1121551..1122468	-	305	154148640	-	CHAB381_1185	-	hypothetical protein
1119	 32.53	0	1122603..1124459	-	618	154148416	-	CHAB381_1186	-	type I secretion target GGXGXDXXX repeat-containing protein
1120	 22.99	-1	1124509..1125291	-	260	154149167	-	CHAB381_1187	-	hypothetical protein
1121	 30.59	0	1125303..1125521	-	72	154149037	-	CHAB381_1188	-	TPR repeat-containing protein
1122	 39.03	+1	1125624..1126325	-	233	154149349	-	CHAB381_1189	-	RTX toxins and related Ca2+-binding protein
1123	 19.68	-2	1126337..1127083	-	248	154148834	-	CHAB381_1190	-	hypothetical protein
1124	 34.97	0	1127329..1128615	-	428	154148269	-	CHAB381_1191	-	ApxIVA Var3
1125	 22.66	-1	1129405..1130163	-	252	154148501	-	CHAB381_1193	-	hypothetical protein
1126	 32.83	0	1130280..1133066	-	928	154149211	-	CHAB381_1194	-	type I secretion target GGXGXDXXX repeat-containing protein
1127	 26.31	-1	1133063..1133902	-	279	154149320	-	CHAB381_1195	-	hypothetical protein
1128	 27.43	0	1133908..1134618	-	236	154148393	-	CHAB381_1196	-	hypothetical protein
1129	 33.41	0	1134790..1136178	-	462	154148905	-	CHAB381_1197	-	hypothetical protein
1130	 27.55	0	1136178..1137110	-	310	154148613	-	CHAB381_1198	-	hypothetical protein
1131	 34.40	0	1137212..1138810	-	532	154149115	-	CHAB381_1199	-	hemolysin-type calcium binding protein
1132	 23.32	-1	1138823..1139551	-	242	154147963	-	CHAB381_1200	-	hypothetical protein
1133	 34.48	0	1139662..1140795	-	377	154148928	-	CHAB381_1201	-	type I secretion target GGXGXDXXX repeat-containing protein
1134	 25.64	-1	1140813..1141007	-	64	154148020	-	CHAB381_1202	-	hypothetical protein
1135	 27.27	0	1141109..1141735	-	208	154148327	-	CHAB381_1203	-	hypothetical protein
1136	 19.05	-2	1142075..1142263	-	62	154148213	-	CHAB381_1204	-	hypothetical protein
1137	 20.83	-2	1142742..1143029	-	95	154148274	-	CHAB381_1205	-	hypothetical protein
1138	 32.97	0	1143063..1144169	-	368	154149044	trmU	CHAB381_1206	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1139	 31.82	0	1144166..1144759	-	197	154147894	-	CHAB381_1207	-	hypothetical protein
1140	 30.96	0	1144769..1145527	-	252	154149023	-	CHAB381_1208	-	ParaA family ATPase
1141	 31.56	0	1145530..1146036	-	168	154148891	folK	CHAB381_1209	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
1142	 34.10	0	1146033..1147070	-	345	154148164	-	CHAB381_1210	-	Xaa-Pro peptidase
1143	 37.61	+1	1147063..1147530	-	155	154149541	aroQ	CHAB381_1211	-	3-dehydroquinate dehydratase, type II
1144	 32.76	0	1147616..1148839	+	407	154147920	-	CHAB381_1212	-	chlorohydrolase
1145	 34.82	0	1148827..1149702	+	291	154148512	sppA	CHAB381_1213	-	signal peptide peptidase SppA, 36K type
1146	 39.09	+1	1149751..1150323	+	190	154149456	-	CHAB381_1214	-	hypothetical protein
1147	 32.34	0	1150320..1151021	+	233	154149003	-	CHAB381_1215	-	transformation system protein
1148	 38.31	+1	1151542..1152828	-	428	154148194	hisD	CHAB381_1216	-	histidinol dehydrogenase
1149	 34.72	0	1152853..1153719	-	288	154148206	-	CHAB381_1217	-	1-aminocyclopropane-1-carboxylate deaminase
1150	 30.37	0	1153725..1154738	-	337	154148493	-	CHAB381_1218	-	putative chemotaxis protein MotB
1151	 25.83	-1	1154728..1155900	-	390	154149236	-	CHAB381_1219	-	hypothetical protein
1152	 37.18	+1	1155910..1156974	-	354	154148727	fbaA	CHAB381_1220	-	fructose-bisphosphate aldolase
1153	 32.48	0	1156986..1157801	-	271	154148403	-	CHAB381_1221	-	foldase protein PrsA
1154	 33.80	0	1157875..1158513	+	212	154149294	nth	CHAB381_1222	-	endonuclease III
1155	 33.86	0	1158525..1159094	-	189	154148140	-	CHAB381_1223	-	signal-transduction sensor protein
1156	 29.22	0	1159195..1159632	+	145	154149014	-	CHAB381_1224	-	hypothetical protein
1157	 33.24	0	1159849..1161999	+	716	154149036	-	CHAB381_1225	-	penicillin-binding protein
1158	 29.57	0	1162046..1167073	+	1675	154149147	-	CHAB381_1226	-	alpha-2-macroglobulin family protein
1159	 34.97	0	1167147..1169771	+	874	154148039	valS	CHAB381_1227	-	valyl-tRNA synthetase
1160	 24.94	-1	1169774..1170595	+	273	154148956	-	CHAB381_1228	-	restriction endonuclease R.IB
1161	 30.39	0	1170588..1171403	+	271	154148672	-	CHAB381_1229	-	DNA methylase
1162	 29.00	0	1171400..1171768	+	122	154148792	-	CHAB381_1230	-	transmembrane signal peptide protein
1163	 33.72	0	1173284..1174306	+	340	154148200	-	CHAB381_1233	-	methionine import ATP-binding protein MetN
1164	 37.35	+1	1174309..1174980	+	223	154148490	-	CHAB381_1234	-	D-methionine transport system permease protein MetI
1165	 36.79	0	1175576..1175893	-	105	154148228	-	CHAB381_1235	-	cytochrome c553
1166	 33.70	0	1176011..1177114	-	367	154149137	-	CHAB381_1236	-	ubiquinol--cytochrome c reductase, cytochrome c1 subunit
1167	 33.10	0	1177117..1178376	-	419	154148978	-	CHAB381_1237	-	cytochrome B
1168	 42.21	+1	1178386..1178892	-	168	154148257	petA	CHAB381_1238	-	ubiquinol-cytochrome c reductase, iron-sulfur subunit
1169	 20.75	-2	1179337..1179495	+	52	154148665	-	CHAB381_1240	-	hypothetical protein
1170	 36.95	0	1179613..1180911	+	432	154148011	-	CHAB381_1241	-	proton/sodium-glutamate symport protein (glutamate-aspartate carrierprotein)
1171	 22.69	-1	1181521..1182018	+	165	154149412	-	CHAB381_1242	-	hypothetical protein
1172	 38.39	+1	1182444..1183472	-	342	154148386	asd	CHAB381_1243	-	aspartate-semialdehyde dehydrogenase
1173	 35.62	0	1183459..1186086	-	875	154147908	gyrA	CHAB381_1244	-	DNA gyrase subunit A
1174	 33.71	0	1186296..1187102	+	268	154148664	-	CHAB381_1245	-	amino acid
1175	 32.49	0	1187281..1189305	-	674	154148492	glyS	CHAB381_1246	-	glycyl-tRNA synthetase subunit beta
1176	 29.45	0	1189319..1190632	-	437	154149223	-	CHAB381_1247	-	putative endonuclease/exonuclease/phosphatase
1177	 39.09	+1	1190629..1191114	-	161	154148507	-	CHAB381_1248	-	RNA methyltransferase
1178	 32.98	0	1191114..1191953	-	279	154149406	purU	CHAB381_1249	-	formyltetrahydrofolate deformylase
1179	 29.48	0	1192100..1193398	+	432	154148637	-	CHAB381_1250	-	hypothetical protein
1180	 32.84	0	1193408..1194016	+	202	154148920	gmk	CHAB381_1251	-	guanylate kinase
1181	 34.90	0	1194026..1194217	+	63	154147975	-	CHAB381_1252	-	twin argininte translocase protein A
1182	 35.90	0	1194244..1194438	+	64	154148926	-	CHAB381_1253	-	twin-arginine translocation protein TatA/E
1183	 33.08	0	1194442..1196019	+	525	154148135	argS	CHAB381_1254	-	arginyl-tRNA synthetase
1184	 33.40	0	1196019..1197599	+	526	154147958	-	CHAB381_1255	-	DNA polymerase III subunit gamma/tau
1185	 38.78	+1	1197649..1198584	+	311	154148714	-	CHAB381_1256	-	ribose-phosphate pyrophosphokinase
1186	 15.08	-2	1198983..1199108	+	41	154149432	-	CHAB381_1257	-	hypothetical protein
1187	 32.52	0	1199121..1199735	+	204	154148067	-	CHAB381_1258	-	hypothetical protein
1188	 38.13	+1	1200143..1200871	-	242	154148825	-	CHAB381_1259	-	hypothetical protein
1189	 27.35	0	1201087..1201203	-	38	154148241	-	CHAB381_1260	-	hypothetical protein
1190	 33.16	0	1201309..1202457	-	382	154148647	-	CHAB381_1261	-	polyA polymerase family protein
1191	 28.73	0	1202417..1203046	-	209	154149190	-	CHAB381_1262	-	hypothetical protein
1192	 31.28	0	1203043..1203285	-	80	154148035	-	CHAB381_1263	-	hypothetical protein
1193	 40.54	+1	1203285..1204352	-	355	154149000	leuB	CHAB381_1264	-	3-isopropylmalate dehydrogenase
1194	 34.58	0	1204362..1204841	-	159	154148307	-	CHAB381_1265	-	3-isopropylmalate dehydratase small subunit
1195	 29.98	0	1204896..1205492	-	198	154148847	-	CHAB381_1266	-	homogentisate export protein
1196	 30.04	0	1205588..1206073	+	161	154148510	-	CHAB381_1267	-	hypothetical protein
1197	 35.00	0	1206120..1207142	+	340	154149184	hemE	CHAB381_1268	-	uroporphyrinogen decarboxylase
1198	 32.89	0	1207139..1208041	+	300	154149425	-	CHAB381_1270	-	radical SAM domain-containing protein
1199	 36.61	0	1208038..1208526	-	162	154148711	-	CHAB381_1269	-	flavodoxin FldA
31.82	MEAN

5.24	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
