IslandPath Analysis: Campylobacter concisus 13826

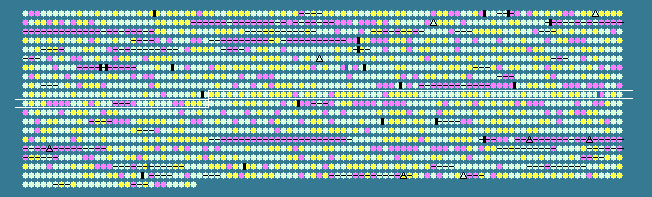

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.18 STD DEV: 5.26
Campylobacter concisus 13826, complete genome - 1..2052007
1929 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
932	 44.38	0	1006131..1006682	+	183	157165444	-	CCC13826_1269	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
933	 43.31	0	1006679..1007149	+	156	157165743	coaD	CCC13826_1270	-	phosphopantetheine adenylyltransferase
934	 37.07	0	1007151..1007738	+	195	157165350	tmk	CCC13826_1271	-	thymidylate kinase
935	 42.71	0	1007768..1008994	+	408	157165317	hisS	CCC13826_1272	-	histidyl-tRNA synthetase
936	 42.43	0	1008991..1010826	+	611	157165425	speA	CCC13826_1273	-	arginine decarboxylase
937	 43.34	0	1010838..1012016	+	392	157164956	-	CCC13826_1274	-	aspartate aminotransferase
938	 37.25	0	1012016..1012219	+	67	157164798	thiS	CCC13826_1275	-	thiamine biosynthesis protein ThiS
939	 44.37	0	1012227..1013078	+	283	157163881	thiF	CCC13826_1276	-	thiamine biosynthesis protein ThiF
940	 44.68	+1	1013843..1014997	+	384	157165154	thiH	CCC13826_1278	-	thiamine biosynthesis protein ThiH
941	 39.84	0	1014990..1015604	+	204	157164124	-	CCC13826_1279	-	thiamine monophosphate synthase
942	 43.46	0	1015706..1020406	-	1566	157164674	-	CCC13826_1280	-	HAD-superfamily hydrolase, subfamily IA, variant 1 family protein
943	 44.06	0	1020726..1021583	-	285	157164881	-	CCC13826_1281	-	hypothetical protein
944	 42.96	0	1021586..1022551	-	321	157165688	-	CCC13826_1282	-	O-acetylhomoserine (thiol)-lyase
945	 46.17	+1	1022561..1024399	-	612	157164353	-	CCC13826_1283	-	succinate dehydrogenase flavoprotein subunit
946	 21.21	-2	1024626..1024757	+	43	157163921	-	CCC13826_1284	-	hypothetical protein
947	 38.86	0	1024799..1025812	-	337	157165166	-	CCC13826_1285	-	periplasmic binding protein
948	 42.99	0	1025824..1026600	-	258	157164772	-	CCC13826_1286	-	sensor histidine kinase
949	 45.80	+1	1026597..1027607	-	336	157164676	ompR	CCC13826_1287	-	response regulator
950	 40.60	0	1027600..1028439	-	279	157164270	htrA	CCC13826_1288	-	serine protease
951	 39.15	0	1028530..1030713	-	727	157165561	-	CCC13826_1289	-	TonB-dependent receptor domain-containing protein
952	 31.70	-1	1030921..1031349	-	142	157164993	hspR	CCC13826_1291	-	putative heat shock protein
953	 46.74	+1	1031390..1031941	-	183	157164864	-	CCC13826_1292	-	2-oxoglutarate-acceptor oxidoreductase subunit OorC
954	 48.11	+1	1031938..1032783	-	281	157164572	-	CCC13826_1293	-	2-oxoglutarate-acceptor oxidoreductase subunit OorB
955	 44.47	+1	1032773..1033903	-	376	157164286	-	CCC13826_1294	-	2-oxoglutarate-acceptor oxidoreductase subunit OorA
956	 50.32	+2	1033900..1034211	-	103	157164733	-	CCC13826_1295	-	2-oxoglutarate-acceptor oxidoreductase subunit OorD
957	 43.96	0	1034220..1035113	-	297	157165072	-	CCC13826_2254	-	malate dehydrogenase
958	 41.70	0	1035117..1037291	-	724	157164999	-	CCC13826_1088	-	monomeric isocitrate dehydrogenase
959	 42.22	0	1037343..1038287	-	314	157165543	-	CCC13826_1089	-	hypothetical protein
960	 38.81	0	1038361..1040826	+	821	157163883	-	CCC13826_1090	-	hypothetical protein
961	 31.64	-1	1040894..1041307	-	137	157164413	-	CCC13826_1091	-	ATPase
962	 44.15	0	1041500..1041841	-	113	157165308	hypA	CCC13826_1092	-	hydrogenase nickel insertion protein HypA
963	 45.82	+1	1041841..1042833	-	330	157165645	hypE	CCC13826_1093	-	hydrogenase expression/formation protein HypE
964	 45.82	+1	1042842..1043930	-	362	157164117	hypD	CCC13826_1094	-	hydrogenase expression/formation protein HypD
965	 44.17	0	1043930..1044169	-	79	157165680	hypC	CCC13826_1095	-	hydrogenase assembly chaperone HypC/HupF
966	 44.65	+1	1044169..1044981	-	270	157165110	hypB	CCC13826_1096	-	hydrogenase accessory protein HypB
967	 35.79	0	1045106..1045756	-	216	157164555	-	CCC13826_1097	-	hypothetical protein
968	 41.81	0	1045753..1047015	-	420	157165654	-	CCC13826_1098	-	hypothetical protein
969	 39.22	0	1047129..1047332	+	67	157164221	-	CCC13826_2255	-	hypothetical protein
970	 40.82	0	1047378..1047791	-	137	157164777	-	CCC13826_0355	-	nickel responsive regulator
971	 38.86	0	1047837..1050062	-	741	157165419	hypF	CCC13826_0356	-	[NiFe] hydrogenase maturation protein HypF
972	 38.63	0	1050046..1051518	-	490	157164024	-	CCC13826_0097	-	hypothetical protein
973	 41.62	0	1051515..1052057	-	180	157164536	-	CCC13826_0098	-	hydrogenase maturation protease HydD
974	 43.34	0	1052747..1054465	-	572	157164490	pabC	CCC13826_0100	-	aminodeoxychorismate lyase
975	 44.03	0	1054475..1055680	-	401	157164810	-	CCC13826_0101	-	putative periplasmic protein
976	 43.79	0	1055962..1056669	-	235	157165376	flgH	CCC13826_0102	-	flagellar basal body L-ring protein
977	 40.86	0	1056736..1058103	+	455	157164211	-	CCC13826_0103	-	hydrogenase expression/synthesis, HypA
978	 46.15	+1	1058105..1059298	+	397	157164759	ackA	CCC13826_0104	-	acetate kinase
979	 40.28	0	1059301..1060365	+	354	157165114	hypD	CCC13826_0105	-	hydrogenase expression/formation protein
980	 39.47	0	1060412..1060639	+	75	157165637	-	CCC13826_0106	-	hypothetical protein
981	 40.00	0	1061149..1061598	-	149	157165360	-	CCC13826_0108	-	hypothetical protein
982	 39.51	0	1061595..1063019	-	474	157165282	-	CCC13826_0109	-	Mur ligase middle domain-containing protein
983	 41.13	0	1063791..1064021	-	76	157165517	-	CCC13826_0111	-	hypothetical protein
984	 43.60	0	1065138..1065692	-	184	157164589	ruvA	CCC13826_0113	-	holliday junction DNA helicase RuvA
985	 41.72	0	1069133..1070527	+	464	157165603	cysS	CCC13826_0116	-	cysteinyl-tRNA synthetase
986	 40.75	0	1070520..1072244	+	574	157165032	-	CCC13826_0117	-	lipid A export ATP-binding/permease protein MsbA
987	 40.78	0	1072298..1073371	+	357	157164619	pyrD	CCC13826_0118	-	dihydroorotate dehydrogenase 2
988	 38.73	0	1073383..1074624	+	413	157164188	-	CCC13826_0119	-	cytochrome c551 peroxidase (cytochrome cperoxidase)
989	 43.85	0	1074627..1075520	+	297	157165445	dapA	CCC13826_0120	-	dihydrodipicolinate synthase
990	 45.75	+1	1075520..1076308	+	262	157163926	-	CCC13826_0121	-	7-alpha-hydroxysteroid dehydrogenase
991	 42.33	0	1076286..1076885	+	199	157164350	pgsA	CCC13826_0122	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
992	 48.48	+1	1076888..1077904	+	338	157165001	-	CCC13826_0123	-	hypothetical protein
993	 44.50	+1	1077926..1079035	+	369	157164061	rseP	CCC13826_0124	-	RIP metalloprotease RseP
994	 40.53	0	1079032..1079670	+	212	157164475	-	CCC13826_0125	-	hypothetical protein
995	 38.67	0	1079781..1080323	+	180	157165149	-	CCC13826_0126	-	putative cytochrome c-type haem-binding periplasmic protein
996	 38.33	0	1080429..1081529	+	366	157165588	-	CCC13826_0127	-	flagellar basal-body rod protein FlgG (Distal rod protein)
997	 33.04	-1	1088099..1089439	-	446	157165258	-	CCC13826_1306	-	hypothetical protein
998	 39.47	0	1089436..1090005	-	189	157164921	yihK	CCC13826_1307	-	GTP-binding protein
999	 43.74	0	1090608..1092125	-	505	157163995	-	CCC13826_1309	-	phosphodiesterase
1000	 36.59	0	1092082..1092726	-	214	157164367	-	CCC13826_1310	-	5,10-methenyltetrahydrofolate synthetase
1001	 40.57	0	1092776..1093411	+	211	157165054	-	CCC13826_1311	-	transporter
1002	 46.83	+1	1093411..1094277	+	288	157164288	ftsY	CCC13826_1312	-	signal recognition particle-docking protein FtsY
1003	 36.09	0	1094270..1094632	+	120	157164718	nrfG	CCC13826_1313	-	TPR repeat-containing protein
1004	 46.31	+1	1094607..1095947	+	446	157165585	radA	CCC13826_1314	-	DNA repair protein RadA
1005	 30.95	-1	1095961..1096128	+	55	157165137	-	CCC13826_1315	-	hypothetical protein
1006	 26.98	-2	1096166..1096291	-	41	157164990	-	CCC13826_1316	-	activator of (R)-2-hydroxyglutaryl-CoA dehydratase
1007	 34.24	0	1096550..1097101	-	183	157164529	-	CCC13826_1317	-	2-hydroxyglutaryl-CoA dehydratase, D-component
1008	 28.96	-1	1097173..1097790	-	205	157164720	-	CCC13826_1318	-	hypothetical protein
1009	 40.29	0	1097898..1098242	-	114	157164276	acpS	CCC13826_1319	-	holo-(acyl-carrier-protein) synthase
1010	 39.66	0	1098239..1098775	-	178	157165347	fliL	CCC13826_1320	-	flagellar basal body-associated protein FliL
1011	 44.51	+1	1098834..1099316	+	160	157165053	ybaK	CCC13826_1378	-	YbaK/ebsC protein
1012	 34.95	0	1099305..1100291	-	328	157164918	-	CCC13826_1377	-	dihydrodipicolinate reductase (dhpr)
1013	 44.83	+1	1100288..1100896	-	202	157165399	-	CCC13826_1380	-	thioredoxin reductase (trxr)
1014	 38.59	0	1101014..1101679	+	221	157164198	-	CCC13826_1381	-	hypothetical protein
1015	 40.48	0	1101790..1101999	-	69	157164471	-	CCC13826_1382	-	hypothetical protein
1016	 31.77	-1	1102150..1102596	+	148	157164764	-	CCC13826_1383	-	FUR family transcriptional regulator
1017	 33.02	-1	1102699..1103022	+	107	157165427	-	CCC13826_1384	-	hypothetical protein
1018	 34.87	0	1103015..1103665	+	216	157165066	-	CCC13826_1385	-	aminotransferase
1019	 35.33	0	1103658..1104008	+	116	157164660	-	CCC13826_1386	-	hypothetical protein
1020	 41.27	0	1104018..1104332	+	104	157164455	-	CCC13826_1387	-	hypothetical protein
1021	 39.56	0	1104332..1104652	+	106	157164086	-	CCC13826_1388	-	RNA methyltransferase
1022	 44.56	+1	1104636..1106711	+	691	157165391	-	CCC13826_1389	-	tetrapyrrole methylase family protein
1023	 42.64	0	1106729..1108189	+	486	157164880	-	CCC13826_1390	-	hypothetical protein
1024	 39.92	0	1108200..1108457	+	85	157164683	-	CCC13826_1391	-	hypothetical protein
1025	 41.37	0	1108459..1109292	+	277	157164151	modD	CCC13826_1392	-	ModD protein
1026	 28.99	-1	1109817..1109954	+	45	157165715	-	CCC13826_1393	-	hypothetical protein
1027	 34.04	0	1110019..1111989	-	656	157165318	-	CCC13826_1394	-	putative 6-pyruvoyl tetrahydrobiopterin synthase (ptps; ptp synthase)
1028	 45.05	+1	1112312..1114879	-	855	157165471	-	CCC13826_1395	-	radical SAM domain-containing protein
1029	 45.33	+1	1115124..1117631	-	835	157163991	-	CCC13826_1396	-	molybdenum cofactor biosynthesis protein A
1030	 51.14	+2	1117787..1118005	+	72	157164546	-	CCC13826_1397	-	hypothetical protein
1031	 42.01	0	1118231..1118806	-	191	157165180	-	CCC13826_1398	-	putative cytochrome C-type haem-binding periplasmic protein
39.18	MEAN

5.26	STD DEV
