IslandPathversion 1.0

IslandPath Analysis: Campylobacter concisus 13826

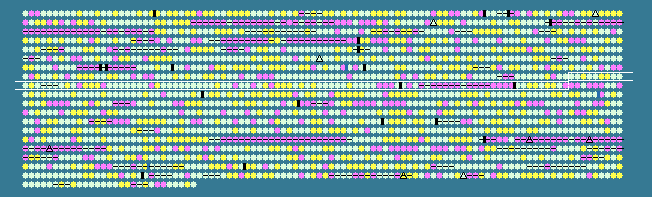

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.18 STD DEV: 5.26
Campylobacter concisus 13826, complete genome - 1..2052007
1929 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
792	 40.76	0	851301..853172	+	623	157164728	flgK	CCC13826_0708	-	flagellar hook-associated protein FlgK
793	 37.76	0	853169..853936	+	255	157165731	-	CCC13826_0709	-	hypothetical protein
794	 46.74	+1	854003..854539	+	178	157165326	sodC	CCC13826_0161	-	copper/zinc superoxide dismutase
795	 41.34	0	854684..855445	+	253	157164354	-	CCC13826_0160	-	hypothetical protein
796	 40.50	0	855511..856194	+	227	157164001	atpB	CCC13826_0159	-	F0F1 ATP synthase subunit A
797	 43.89	0	857124..858506	-	460	157164157	-	CCC13826_0157	-	cytosine/purines/uracil/thiamine/allantoin family permease
798	 43.84	0	861041..862096	+	351	157165607	-	CCC13826_0154	-	glycoside hydrolase family 3 protein
799	 39.96	0	862206..862658	-	150	157165144	-	CCC13826_0153	-	arylsulfate sulfotransferase
800	 41.52	0	862651..863481	-	276	157164409	rarD	CCC13826_0152	-	RarD protein
801	 39.98	0	863522..864409	-	295	157163998	rarD	CCC13826_0151	-	RarD protein
802	 45.41	+1	864554..865894	+	446	157165316	-	CCC13826_0150	-	3-deoxy-7-phosphoheptulonate synthase
803	 40.08	0	865918..866880	+	320	157164867	-	CCC13826_0149	-	pyridine nucleotide-disulphide oxidoreductase
804	 37.06	0	866877..869129	+	750	157164197	-	CCC13826_0148	-	hypothetical protein
805	 39.55	0	869126..869833	+	235	157165717	-	CCC13826_0147	-	methyltransferase small domain-containing protein
806	 40.16	0	869830..870195	+	121	157165139	-	CCC13826_0146	-	hypothetical protein
807	 39.59	0	870174..871436	+	420	157165562	-	CCC13826_0145	-	TPR repeat-containing protein
808	 45.27	+1	872218..872703	+	161	157164691	-	CCC13826_0143	-	histidine triad domain-containing protein
809	 41.77	0	872690..873697	+	335	157164708	ybbB	CCC13826_0142	-	tRNA 2-selenouridine synthase
810	 19.38	-2	873923..874051	+	42	157165269	-	CCC13826_0141	-	hypothetical protein
811	 45.70	+1	874141..875838	+	565	157163882	ilvB	CCC13826_0140	-	acetolactate synthase 3 catalytic subunit
812	 45.09	+1	875835..876302	+	155	157164404	ilvN	CCC13826_0139	-	acetolactate synthase 3 regulatory subunit
813	 44.65	+1	876302..877255	+	317	157164571	lpxD	CCC13826_0138	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
814	 34.75	0	877412..877552	-	46	157164823	atpD	CCC13826_0137	-	ATP synthase F1 sector beta subunit
815	 37.07	0	877745..878413	-	222	157164163	atpC	CCC13826_0136	-	ATP synthase F1, subunit epsilon
816	 38.76	0	878400..879707	-	435	157164435	-	CCC13826_0135	-	putative periplasmic protein
817	 42.19	0	879701..880366	-	221	157165019	purQ	CCC13826_0134	-	phosphoribosylformylglycinamidine synthase subunit I
818	 41.77	0	880363..880599	-	78	157164871	purS	CCC13826_0133	-	phosphoribosylformylglycinamidine synthase, PurS protein
819	 39.10	0	880608..881318	-	236	157165429	purC	CCC13826_0132	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
820	 39.68	0	881335..882642	-	435	157164709	omp	CCC13826_0131	-	peptidoglycan associated lipoprotein
821	 40.95	0	882862..885435	+	857	157165320	-	CCC13826_0095	-	chaperone ClpB 1
822	 33.48	-1	885486..886184	-	232	157164730	slyD	CCC13826_0094	-	fkbp-type peptidyl-prolyl cis-trans isomerases 2
823	 45.53	+1	886174..887304	-	376	157164323	tgt	CCC13826_0093	-	queuine tRNA-ribosyltransferase
824	 41.28	0	887383..888489	+	368	157165030	-	CCC13826_0092	-	MTA/SAH nucleosidase
825	 40.89	0	888486..889226	+	246	157164261	-	CCC13826_0091	-	PP-loop family protein
826	 38.00	0	889227..890168	+	313	157164450	-	CCC13826_0090	-	mce related protein
827	 39.04	0	890165..890725	+	186	157165007	-	CCC13826_0089	-	hypothetical protein
828	 38.55	0	890829..892247	+	472	157165111	-	CCC13826_0088	-	TrkA domain-containing protein
829	 39.21	0	892251..893288	+	345	157165643	aroB	CCC13826_0087	-	3-dehydroquinate synthase
830	 39.94	0	893285..894874	+	529	157164128	-	CCC13826_0086	-	small conductance mechanosensitive ion channel (MscS) family protein
831	 41.81	0	894874..896112	+	412	157164712	-	CCC13826_0085	-	hypothetical protein
832	 42.22	0	896075..897751	+	558	157164271	-	CCC13826_1351	-	M41 family peptidase
833	 47.59	+1	897765..898304	+	179	157164710	-	CCC13826_1350	-	molybdenum cofactor synthesis domain-containing protein
834	 37.37	0	898305..898874	+	189	157164907	nifR	CCC13826_1349	-	nitrogen regulation protein nifR3
835	 39.31	0	899798..901654	+	618	157164405	-	CCC13826_1348	-	heat shock protein 90
836	 31.40	-1	901760..901966	-	68	157165303	-	CCC13826_1347	-	hypothetical protein
837	 38.55	0	902102..903232	-	376	157165610	-	CCC13826_1346	-	TrkA domain-containing protein
838	 36.98	0	903255..903446	-	63	157163889	rpmB	CCC13826_1345	-	50S ribosomal protein L28
839	 34.94	0	903597..904343	+	248	157164396	-	CCC13826_1344	-	hypothetical protein
840	 37.19	0	904340..905713	+	457	157165223	tyrA	CCC13826_1343	-	prephenate dehydrogenase
841	 42.79	0	906367..907170	+	267	157165763	-	CCC13826_1341	-	DNA polymerase III subunit epsilon
842	 33.33	-1	907456..907638	+	60	157164853	-	CCC13826_1339	-	hypothetical protein
843	 48.05	+1	907614..907844	+	76	157165681	-	CCC13826_1338	-	hypothetical protein
844	 46.47	+1	907904..909022	-	372	157165274	-	CCC13826_1337	-	carboxypeptidase G2
845	 46.27	+1	909032..909487	-	151	157164596	-	CCC13826_1336	-	hypothetical protein
846	 42.50	0	909491..910123	-	210	157164637	-	CCC13826_1335	-	putative endonuclease
847	 42.98	0	910381..912474	-	697	157164100	ppk	CCC13826_1334	-	polyphosphate kinase
848	 41.88	0	912662..913246	-	194	157165757	-	CCC13826_1333	-	NUDIX family hydrolase
849	 43.27	0	913231..914598	-	455	157165418	mgtE	CCC13826_1332	-	magnesium transporter
850	 40.34	0	914608..915777	-	389	157164560	-	CCC13826_1331	-	M23 peptidase domain-containing protein
851	 41.49	0	915892..916614	+	240	157163941	-	CCC13826_1330	-	hypothetical protein
852	 39.78	0	916618..917439	+	273	157165667	moeA	CCC13826_1329	-	putative molybdopterin biosynthesis protein
853	 40.82	0	917514..918542	-	342	157165143	-	CCC13826_1328	-	hypothetical protein
854	 40.80	0	918523..919245	-	240	157164825	-	CCC13826_1327	-	Ser/Thr protein phosphatase family protein
855	 45.80	+1	919372..920847	-	491	157165518	-	CCC13826_1326	-	elongation factor P (EF-P)
856	 37.61	0	920974..922143	-	389	157164130	-	CCC13826_1325	-	hypothetical protein
857	 39.97	0	922136..922798	-	220	157164687	-	CCC13826_1324	-	extracellular solute-binding protein
858	 35.95	0	922808..923113	-	101	157165219	pyk	CCC13826_1323	-	pyruvate kinase
859	 41.28	0	923177..924082	-	301	157165738	-	CCC13826_1322	-	auxin efflux carrier (AEC) family protein
860	 33.67	-1	924177..925937	-	586	157164551	ompR	CCC13826_0026	-	response regulator
861	 28.11	-2	926492..927085	-	197	157165023	-	CCC13826_0025	-	hypothetical protein
862	 33.78	-1	927078..928199	-	373	157164143	-	CCC13826_0024	-	recombination protein RecR
863	 42.59	0	928277..928492	-	71	157164171	-	CCC13826_0023	-	anthranilate synthase component II
864	 38.61	0	929815..930117	-	100	157164945	-	CCC13826_0021	-	DNA-binding protein HU 1 (DNA-binding protein II; HB)
865	 30.51	-1	933479..933655	-	58	157163945	-	CCC13826_1301	-	hypothetical protein
866	 42.46	0	933624..935693	+	689	157165698	-	CCC13826_1302	-	FtsK/SpoIIIE family protein
867	 34.93	0	935728..936480	+	250	157165291	-	CCC13826_1303	-	hypothetical protein
868	 37.40	0	937147..937269	+	40	157165474	-	CCC13826_2247	-	hypothetical protein
869	 28.57	-2	937483..937692	+	69	157165041	-	CCC13826_1200	-	hypothetical protein
870	 25.81	-2	937689..937967	+	92	157164377	-	CCC13826_1201	-	addiction module antidote protein
871	 27.56	-2	938283..938750	-	155	157164470	-	CCC13826_1203	-	two-component regulator
872	 22.36	-2	938747..938983	-	78	157164902	-	CCC13826_1204	-	SNF7 family protein
873	 34.03	0	939158..939586	+	142	157164715	-	CCC13826_1205	-	hypothetical protein
874	 39.64	0	939681..939902	+	73	157164897	-	CCC13826_1206	-	hypothetical protein
875	 33.33	-1	940179..940298	+	39	157165449	-	CCC13826_2248	-	hypothetical protein
876	 33.33	-1	940312..940431	+	39	157164053	ahpC	CCC13826_2249	-	alkyl hydroperoxide reductase
877	 33.49	-1	941167..941817	+	216	157165120	-	CCC13826_1208	-	3-oxoacyl-[acyl-carrier-protein] synthase 3
878	 30.22	-1	941821..942237	+	138	157165674	plsX	CCC13826_1209	-	fatty acid/phospholipid synthesis protein
879	 28.71	-1	942241..943365	+	374	157164212	-	CCC13826_1210	-	hypothetical protein
880	 32.37	-1	943316..944458	+	380	157163960	-	CCC13826_1211	-	type II and III secretion system protein
881	 33.04	-1	944687..946027	+	446	157165145	-	CCC13826_1212	-	nucleoside diphosphate kinase (NDK; NDP kinase; nucleoside-2-P kinase)
882	 27.10	-2	946035..946901	+	288	157164811	-	CCC13826_1213	-	ferredoxin, 4Fe-4S
883	 41.44	0	947318..947749	-	143	157165203	-	CCC13826_1216	-	excinuclease ABC subunit A
884	 39.23	0	947801..948682	-	293	157164756	walN	CCC13826_1217	-	WalN protein
885	 42.69	0	948813..950351	+	512	157163864	-	CCC13826_1218	-	phosphate transporter family protein
886	 43.87	0	950534..951757	+	407	157165398	argG	CCC13826_1219	-	argininosuccinate synthase
887	 40.94	0	951781..952227	+	148	157164966	rplI	CCC13826_1220	-	ribosomal protein L9
888	 42.88	0	952228..952761	+	177	157164513	rplU	CCC13826_1221	-	ATP-dependent protease peptidase subunit
889	 42.86	0	952770..954092	+	440	157165582	hslU	CCC13826_1222	-	ATP-dependent protease ATP-binding subunit
890	 37.47	0	954089..954958	+	289	157165568	era	CCC13826_1223	-	GTP-binding protein Era
891	 32.08	-1	955019..956539	+	506	157163937	dcuA	CCC13826_1224	-	anaerobic C4-dicarboxylate transporter DcuA
39.18	MEAN

5.26	STD DEV
