IslandPath Analysis: Campylobacter concisus 13826

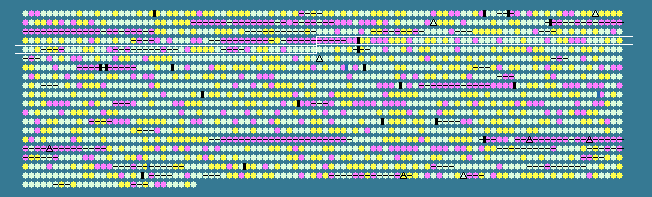

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.18 STD DEV: 5.26
Campylobacter concisus 13826, complete genome - 1..2052007
1929 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
350	 34.85	0	373698..374027	-	109	157165608	-	CCC13826_0948	-	ATPase
351	 33.48	-1	374099..375454	-	451	157164722	thiD	CCC13826_0950	-	phosphomethylpyrimidine kinase
352	 31.53	-1	375752..377524	+	590	157164852	-	CCC13826_0951	-	thiamine-phosphate pyrophosphorylase
353	 33.33	-1	377505..378830	+	441	157164216	-	CCC13826_0952	-	hypothetical protein
354	 33.15	-1	379223..380851	+	542	157165240	-	CCC13826_0953	-	hypothetical protein
355	 30.35	-1	380993..381562	+	189	157165584	-	CCC13826_0954	-	GTP-binding protein
356	 22.96	-2	382323..382457	+	44	157164158	-	CCC13826_0955	-	putative ATP
357	 44.00	0	382675..383733	-	352	157163978	-	CCC13826_0957	-	metal-activated pyridoxal enzyme
358	 44.72	+1	383867..385069	+	400	157164015	-	CCC13826_0958	-	trimethylamine-n-oxide reductase 1 (tmaoreductase 1; trimethylamine oxidase 1)
359	 35.34	0	385111..388350	-	1079	157165176	-	CCC13826_0959	-	hypothetical protein
360	 25.69	-2	389094..389237	-	47	157164300	-	CCC13826_0961	-	hypothetical protein
361	 28.68	-1	389238..389903	-	221	157164303	-	CCC13826_0962	-	hypothetical protein
362	 43.60	0	390018..391079	-	353	157165273	-	CCC13826_0963	-	CjaC
363	 45.45	+1	391172..392623	+	483	157164006	pyk	CCC13826_0964	-	pyruvate kinase
364	 43.92	0	393506..394648	-	380	157165410	dnaJ	CCC13826_0965	-	chaperone protein DnaJ
365	 18.70	-2	394657..394779	+	40	157165091	-	CCC13826_2226	-	hypothetical protein
366	 38.69	0	394772..395443	+	223	157165656	-	CCC13826_0966	-	His/Glu/Gln/Arg/opine amino acid ABC transporter permease
367	 41.69	0	395440..396696	+	418	157163989	putP	CCC13826_0967	-	proline permease
368	 44.68	+1	396693..397265	+	190	157164121	recR	CCC13826_0968	-	recombination protein RecR
369	 44.34	0	397349..398965	+	538	157164235	-	CCC13826_0969	-	anthranilate synthase/para-aminobenzoate synthase glutamine amidotransferase subunit
370	 41.79	0	398952..399566	+	204	157165676	trpF	CCC13826_0970	-	N-(5'phosphoribosyl)anthranilate isomerase
371	 48.22	+1	399556..400737	+	393	157164360	trpB	CCC13826_0972	-	tryptophan synthase subunit beta
372	 42.40	0	400730..401479	+	249	157165000	trpA	CCC13826_0973	-	tryptophan synthase subunit alpha
373	 35.48	0	401557..401976	+	139	157165750	-	CCC13826_0974	-	Mrr restriction system protein (EcoKMrr)
374	 36.79	0	401973..402290	+	105	157164107	fliN	CCC13826_0975	-	flagellar motor switch protein
375	 36.75	0	402287..403165	+	292	157163901	-	CCC13826_0976	-	hypothetical protein
376	 31.25	-1	403185..403328	-	47	157164434	-	CCC13826_0977	-	fumarate reductase flavoprotein subunit
377	 40.92	0	404145..405593	-	482	157164963	frdC	CCC13826_0978	-	fumarate reductase
378	 38.98	0	405597..406817	-	406	157165522	-	CCC13826_0979	-	prolipoprotein diacylglyceryl transferase
379	 40.48	0	406853..407524	-	223	157164291	-	CCC13826_0980	-	response regulator receiver domain-containing protein
380	 34.56	0	407601..407927	-	108	157164726	folB	CCC13826_0981	-	dihydroneopterin aldolase
381	 42.48	0	407924..408535	-	203	157164453	-	CCC13826_0982	-	putative glycerol-3-phosphate acyltransferase PlsY
382	 41.81	0	408595..410883	-	762	157165103	-	CCC13826_0983	-	hypothetical protein
383	 40.72	0	410892..411974	-	360	157164559	-	CCC13826_0984	-	type IV pilus assembly protein PilZ
384	 43.83	0	412097..412696	-	199	157164012	-	CCC13826_0985	-	2-cys peroxiredoxin BAS1, (Thiol-specific antioxidant protein)
385	 41.89	0	412894..413898	-	334	157165417	-	CCC13826_0986	-	3-oxoacyl-(acyl carrier protein) synthase III
386	 39.39	0	413902..414891	-	329	157164231	plsX	CCC13826_0987	-	putative glycerol-3-phosphate acyltransferase PlsX
387	 40.82	0	414895..415041	-	48	157164792	rpmF	CCC13826_0988	-	50S ribosomal protein L32
388	 30.00	-1	415053..415412	-	119	157164284	-	CCC13826_0989	-	hypothetical protein
389	 37.68	0	415427..415840	-	137	157163948	-	CCC13826_0990	-	nucleoside diphosphate kinase (NDK; NDP kinase; nucleoside-2-P kinase)
390	 47.02	+1	415943..416227	-	94	157165682	-	CCC13826_0991	-	CDP-diacylglycerol--serine O-phosphatidyltransferase (phosphatidylserine synthase)
391	 43.83	0	416401..419229	+	942	157165157	uvrA	CCC13826_0992	-	excinuclease ABC subunit A
392	 34.16	0	419275..420357	+	360	157164102	-	CCC13826_0993	-	putative cell division protease FtsH-like protein
393	 29.73	-1	420354..421628	+	424	157164639	-	CCC13826_0994	-	ribosomal protein L11 methyltransferase (L11 Mtase)
394	 28.00	-2	421632..422738	+	368	157164426	-	CCC13826_0995	-	CheY protein
395	 39.15	0	422784..423041	-	85	157164978	rpmA	CCC13826_0996	-	50S ribosomal protein L27
396	 39.05	0	423053..423367	-	104	157165737	rplU	CCC13826_0997	-	50S ribosomal protein L21
397	 40.29	0	423475..424437	-	320	157163855	-	CCC13826_0998	-	hypothetical protein
398	 43.11	0	424581..425654	+	357	157164760	flhB	CCC13826_0999	-	flagellar biosynthesis protein FlhB
399	 40.89	0	425745..427424	-	559	157165181	yvfE	CCC13826_1000	-	pyridoxal phosphate-dependent enzyme
400	 42.93	0	427630..428880	+	416	157165526	-	CCC13826_1001	-	general glycosylation pathway protein
401	 40.47	0	428883..430073	+	396	157165590	-	CCC13826_1002	-	hypothetical protein
402	 42.64	0	430045..430818	+	257	157165563	-	CCC13826_1003	-	hypothetical protein
403	 46.59	+1	430815..431561	+	248	157164856	-	CCC13826_1004	-	ncair mutase
404	 37.89	0	431666..432916	+	416	157164386	-	CCC13826_1005	-	hypothetical protein
405	 50.67	+2	432928..433827	+	299	157164721	-	CCC13826_1006	-	tartrate dehydratase subunit alpha
406	 48.69	+1	433824..434435	+	203	157165768	-	CCC13826_1007	-	L(+)-tartrate dehydratase subunit beta
407	 34.24	0	434486..435145	-	219	157165102	wlaD	CCC13826_1008	-	putative glycosyltransferase
408	 38.14	0	435218..436195	-	325	157164527	ansB	CCC13826_1009	-	L-asparaginase II
409	 39.87	0	436368..437606	+	412	157163985	-	CCC13826_1010	-	hypothetical protein
410	 40.18	0	441550..441885	+	111	157165475	tviB	CCC13826_0348	-	UDP-glucose/GDP-mannose dehydrogenase family protein
411	 43.71	0	441902..442807	+	301	157164905	fmt	CCC13826_0347	-	methionyl-tRNA formyltransferase
412	 44.49	+1	442824..443612	+	262	157164775	thiD	CCC13826_0361	-	phosphomethylpyrimidine kinase
413	 41.98	0	443614..444249	+	211	157164230	-	CCC13826_0360	-	biotin--protein ligase
414	 39.46	0	444246..445028	+	260	157164247	-	CCC13826_0359	-	sporulation initiation inhibitor protein soj
415	 35.19	0	445044..445904	+	286	157165662	-	CCC13826_0358	-	stage 0 sporulation protein J
416	 35.22	0	446000..446422	+	140	157165108	-	CCC13826_0912	-	F0F1 ATP synthase subunit B'
417	 35.87	0	446432..446944	+	170	157164079	-	CCC13826_0913	-	F0F1 ATP synthase subunit B
418	 34.65	0	446944..447474	+	176	157163953	atpH	CCC13826_0914	-	F0F1 ATP synthase subunit delta
419	 41.77	0	447489..449006	+	505	157165459	atpA	CCC13826_0915	-	F0F1 ATP synthase subunit alpha
420	 36.60	0	449016..449903	+	295	157164986	atpG	CCC13826_0916	-	F0F1 ATP synthase subunit gamma
421	 42.13	0	449915..451312	+	465	157164647	atpD	CCC13826_0917	-	F0F1 ATP synthase subunit beta
422	 37.95	0	451331..451720	+	129	157163910	atpC	CCC13826_0918	-	F0F1 ATP synthase subunit epsilon
423	 39.74	0	451838..452305	+	155	157165553	-	CCC13826_0919	-	ExbB\TolQ family transport protein
424	 32.58	-1	452306..452704	+	132	157165712	-	CCC13826_0920	-	putative polysaccharide deacetylase
425	 36.08	0	452706..453653	+	315	157164433	-	CCC13826_0921	-	putative periplasmic protein
426	 36.99	0	453678..454934	+	418	157164610	-	CCC13826_0922	-	translocation protein TolB
427	 39.25	0	454999..455505	+	168	157164304	-	CCC13826_0923	-	Omp18
428	 34.40	0	455519..456361	+	280	157164370	rfaF	CCC13826_0924	-	ADP-heptose-LPS heptosyltransferase II
429	 43.01	0	456423..457001	+	192	157164071	-	CCC13826_0925	-	putative peptidyl-prolyl cis-trans isomerase, fkbp-type
430	 42.69	0	457011..457940	+	309	157164479	fabD	CCC13826_0926	-	malonyl CoA-acyl carrier protein transacylase
431	 43.86	0	457937..458620	+	227	157164087	mtnN	CCC13826_0927	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
432	 44.66	+1	458617..459375	+	252	157165487	-	CCC13826_0928	-	PP-loop family protein
433	 36.68	0	459511..460614	+	367	157164822	-	CCC13826_0929	-	glutamyl-tRNA synthetase (glutamate--tRNA ligase; GluRS)
434	 39.22	0	460684..461397	+	237	157164821	-	CCC13826_0930	-	DNA polymerase III subunit alpha
435	 34.85	0	461470..461865	+	131	157164292	-	CCC13826_0931	-	hypothetical protein
436	 34.19	0	461878..462690	+	270	157165755	-	CCC13826_0932	-	putative surface protein
437	 35.96	0	462772..463608	-	278	157165070	pnp	CCC13826_0933	-	polyribonucleotide nucleotidyltransferase
438	 30.16	-1	463660..463785	+	41	157165261	-	CCC13826_0934	-	hypothetical protein
439	 36.03	0	463809..464957	+	382	157164879	-	CCC13826_0936	-	hypothetical protein
440	 43.58	0	464954..465568	-	204	157165659	-	CCC13826_0935	-	hypothetical protein
441	 44.05	0	465569..466492	-	307	157165335	-	CCC13826_0937	-	phosphoribosylamine--glycine ligase
442	 38.84	0	466489..467487	-	332	157164763	-	CCC13826_0938	-	uroporphyrinogen III synthase HEM4
443	 39.22	0	467497..467853	-	118	157165088	-	CCC13826_0939	-	TraR/DksA family transcriptional regulator
444	 35.53	0	467865..468320	-	151	157165650	-	CCC13826_0940	-	hypothetical protein
445	 40.05	0	468323..469141	-	272	157164004	accD	CCC13826_0941	-	acetyl-CoA carboxylase subunit beta
446	 38.16	0	469370..471625	-	751	157164533	yaeT	CCC13826_0942	-	outer membrane protein assembly complex, YaeT protein
447	 41.88	0	471715..472545	+	276	157164840	-	CCC13826_0943	-	prephenate dehydrogenase
448	 39.97	0	472607..473977	+	456	157164338	tyrS	CCC13826_1296	-	tyrosyl-tRNA synthetase
449	 40.11	0	474038..474922	+	294	157165022	lpxC	CCC13826_1297	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
39.18	MEAN

5.26	STD DEV
