IslandPath Analysis: Campylobacter concisus 13826

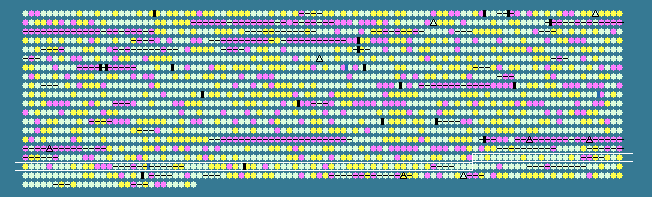

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.18 STD DEV: 5.26
Campylobacter concisus 13826, complete genome - 1..2052007
1929 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1676	 42.31	0	1784641..1786455	+	604	157165438	-	CCC13826_2196	-	methyl-accepting chemotaxis protein
1677	 37.94	0	1786527..1787849	+	440	157163885	-	CCC13826_2197	-	Hsp12 variant C
1678	 46.20	+1	1787852..1788193	+	113	157164019	-	CCC13826_2198	-	hypothetical protein
1679	 41.84	0	1788482..1789057	+	191	157164965	-	CCC13826_2199	-	putative transport-associated
1680	 39.90	0	1789060..1791510	-	816	157164665	-	CCC13826_2200	-	hypothetical protein
1681	 36.32	0	1791510..1792112	-	200	157164142	ttg2D	CCC13826_2201	-	toluene tolerance protein Ttg2D
1682	 40.93	0	1792115..1792825	-	236	157165770	-	CCC13826_2202	-	ABC transporter ATPase
1683	 38.70	0	1792980..1793762	+	260	157165486	-	CCC13826_2203	-	molybdenum-pterin binding domain-containing protein
1684	 43.12	0	1793763..1794518	+	251	157164768	modA	CCC13826_2204	-	molybdate ABC transporter, periplasmic molybdate-binding protein
1685	 38.72	0	1794515..1794904	+	129	157164347	-	CCC13826_2205	-	beta-lactamase HcpA
1686	 40.79	0	1794907..1795764	+	285	157164060	-	CCC13826_2281	-	RNA pseudouridine synthase
1687	 43.41	0	1795764..1796438	+	224	157165201	modB	CCC13826_2282	-	molybdate ABC transporter, permease protein
1688	 39.76	0	1796475..1796972	+	165	157164976	-	CCC13826_2283	-	putative BcpB
1689	 37.25	0	1796982..1798538	+	518	157164979	-	CCC13826_2284	-	dimethyladenosine transferase
1690	 38.28	0	1798540..1799004	+	154	157164899	-	CCC13826_2285	-	DNA helicase related protein
1691	 40.17	0	1799007..1799810	-	267	157165331	-	CCC13826_2286	-	protein CysQ
1692	 46.48	+1	1799807..1801084	-	425	157164090	gltA	CCC13826_2287	-	citrate (Si)-synthase
1693	 42.10	0	1801087..1802250	-	387	157164493	-	CCC13826_2288	-	radical SAM protein
1694	 27.35	-2	1802278..1802394	+	38	157165532	-	CCC13826_2289	-	RNA pseudouridine synthase
1695	 33.75	-1	1802367..1802849	+	160	157164119	-	CCC13826_2290	-	hypothetical protein
1696	 42.74	0	1802860..1802976	+	38	157164689	-	CCC13826_2291	-	hypothetical protein
1697	 40.40	0	1803451..1803804	-	117	157165249	crcB	CCC13826_2292	-	CrcB protein
1698	 47.62	+1	1803804..1804643	-	279	157165117	-	CCC13826_2293	-	biotin synthase
1699	 37.18	0	1804899..1805054	+	51	157165666	nrdD	CCC13826_2294	-	oxygen-sensitive ribonucleoside-triphosphate reductase
1700	 44.31	0	1805317..1806036	-	239	157164127	-	CCC13826_2295	-	hypothetical protein
1701	 44.96	+1	1806096..1808210	-	704	157164552	topA	CCC13826_2296	-	DNA topoisomerase I
1702	 39.60	0	1808412..1809911	+	499	157164988	-	CCC13826_2297	-	flagellin B
1703	 37.61	0	1810187..1810957	-	256	157165433	-	CCC13826_2298	-	flagellin modification protein A
1704	 36.58	0	1810944..1811651	-	235	157163906	-	CCC13826_2299	-	N-acylneuraminate cytidylyltransferase
1705	 35.66	0	1811644..1812546	-	300	157165259	-	CCC13826_2300	-	oxidoreductase family protein
1706	 38.87	0	1812560..1813606	-	348	157164273	-	CCC13826_2301	-	nucleotidyl transferase
1707	 37.30	0	1813603..1814763	-	386	157165593	-	CCC13826_2302	-	UDP-N-acetylglucosamine 2-epimerase
1708	 40.22	0	1814760..1815761	-	333	157165127	-	CCC13826_2303	-	general stress protein 14 (GSP14)
1709	 42.97	0	1815786..1816397	-	203	157164184	-	CCC13826_2304	-	hypothetical protein
1710	 42.62	0	1816400..1817551	-	383	157164585	-	CCC13826_2305	-	DegT/DnrJ/EryC1/StrS aminotransferase family protein
1711	 45.99	+1	1820904..1821464	-	186	157165301	dcd	CCC13826_2308	-	deoxycytidine triphosphate deaminase
1712	 42.94	0	1821588..1822430	+	280	157164358	-	CCC13826_2309	-	hydrogenase-4 component C
1713	 35.65	0	1822451..1823011	+	186	157163949	hyfB	CCC13826_2310	-	hydrogenase-4 component B
1714	 34.67	0	1823280..1823876	+	198	157164145	-	CCC13826_2311	-	electron transport protein HydN
1715	 33.94	0	1823879..1825027	-	382	157165052	-	CCC13826_2312	-	hypothetical protein
1716	 36.58	0	1826222..1827115	+	297	157164701	-	CCC13826_2314	-	hypothetical protein
1717	 41.45	0	1827138..1829429	+	763	157165411	-	CCC13826_2315	-	putative anaerobic dehydrogenase
1718	 42.39	0	1829441..1829992	+	183	157163871	fbcH	CCC13826_2316	-	ubiquinol cytochrome c oxidoreductase, cytochrome b subunit
1719	 35.35	0	1830003..1830647	+	214	157164082	fbcF	CCC13826_2317	-	ubiquinol cytochrome c oxidoreductase, Rieske 2Fe-2S subunit
1720	 39.66	0	1830651..1831535	+	294	157164510	-	CCC13826_2318	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
1721	 43.42	0	1831591..1832145	-	184	157165134	-	CCC13826_2319	-	2-acylglycerophosphoethanolamine acyltransferase
1722	 41.63	0	1838221..1842981	-	1586	157165566	yckK	CCC13826_1696	-	amino acid ABC transporter, periplasmic binding protein
1723	 39.54	0	1843068..1843502	-	144	157164885	-	CCC13826_1697	-	putative endoribonuclease L-PSP
1724	 39.45	0	1843537..1844010	+	157	157163870	-	CCC13826_1699	-	L-cystine permease protein TcyB
1725	 38.89	0	1843988..1844527	-	179	157165547	-	CCC13826_1698	-	L-cystine-binding protein TcyA
1726	 47.24	+1	1844570..1845130	-	186	157164667	-	CCC13826_1700	-	L-cystine import ATP-binding protein TcyC
1727	 45.39	+1	1845140..1845985	-	281	157164497	-	CCC13826_1701	-	fumarate hydratase
1728	 38.30	0	1846144..1846707	+	187	157165571	-	CCC13826_1702	-	LemA protein
1729	 40.40	0	1846718..1847608	+	296	157165375	-	CCC13826_1703	-	hypothetical protein
1730	 40.12	0	1847618..1848265	+	215	157163958	-	CCC13826_1704	-	sugar efflux transporter B
1731	 42.58	0	1848721..1850061	-	446	157165241	-	CCC13826_1705	-	pyruvate-ferredoxin oxidoreductase
1732	 43.76	0	1850232..1851545	+	437	157165764	-	CCC13826_1706	-	sodium/neurotransmitter symporter family protein
1733	 45.33	+1	1851585..1852034	-	149	157164111	-	CCC13826_1707	-	hypothetical protein
1734	 44.17	0	1852141..1853109	+	322	157164675	-	CCC13826_1709	-	putative transporter
1735	 33.33	-1	1853391..1853543	+	50	157164459	-	CCC13826_1710	-	hypothetical protein
1736	 48.51	+1	1853575..1854378	+	267	157164424	-	CCC13826_1711	-	M48 family peptidase
1737	 42.65	0	1854381..1854863	+	160	157163892	-	CCC13826_1712	-	acetyltransferase
1738	 46.79	+1	1855025..1856599	+	524	157165153	-	CCC13826_1715	-	Na+/H+ antiporter
1739	 42.88	0	1856596..1857108	-	170	157164243	-	CCC13826_1714	-	hypothetical protein
1740	 37.97	0	1859288..1860388	-	366	157165466	-	CCC13826_1718	-	PepSY-associated TM helix family protein
1741	 22.67	-2	1860788..1860937	+	49	157164478	-	CCC13826_1719	-	hypothetical protein
1742	 39.46	0	1861182..1861589	-	135	157163970	-	CCC13826_1720	-	Sel1 repeat-containing protein
1743	 43.24	0	1861722..1862549	-	275	157165384	-	CCC13826_1721	-	ABC transporter
1744	 38.99	0	1862542..1863195	-	217	157164724	-	CCC13826_1722	-	methionine import ATP-binding protein MetN
1745	 40.89	0	1863205..1864104	-	299	157164330	-	CCC13826_1723	-	NapH/MauN family ferredoxin-type protein
1746	 42.86	0	1864107..1864568	-	153	157164694	-	CCC13826_1724	-	hypothetical protein
1747	 40.04	0	1864565..1865116	-	183	157164281	-	CCC13826_1725	-	hypothetical protein
1748	 41.45	0	1865783..1867039	-	418	157165136	-	CCC13826_1727	-	nitrous oxidase accessory protein
1749	 43.25	0	1867032..1867787	-	251	157164958	-	CCC13826_1728	-	hypothetical protein
1750	 42.37	0	1867869..1870457	-	862	157164517	-	CCC13826_1729	-	methyl-accepting chemotaxis protein
1751	 34.68	0	1870470..1871288	-	272	157164028	-	CCC13826_1730	-	ATP-dependent protease La 1
1752	 45.15	+1	1871710..1872183	+	157	157165431	moaC	CCC13826_1731	-	molybdenum cofactor biosynthesis protein C
1753	 36.33	0	1872158..1872424	+	88	157165210	yviF	CCC13826_1732	-	hypothetical protein
1754	 38.50	0	1872434..1873672	+	412	157164742	-	CCC13826_1733	-	hypothetical protein
1755	 44.28	0	1873742..1874536	-	264	157163971	-	CCC13826_1734	-	putative undecaprenol kinase
1756	 46.68	+1	1874596..1876506	-	636	157165524	tkt	CCC13826_1735	-	transketolase
1757	 44.56	+1	1876614..1877513	-	299	157165525	-	CCC13826_1736	-	geranyltranstransferase (farnesyl-diphosphate synthase; FPP synthase)
1758	 42.07	0	1877510..1878619	-	369	157164944	-	CCC13826_1737	-	sigma 54 modulation protein/ribosomal protein S30EA
1759	 43.81	0	1878616..1878930	-	104	157164170	-	CCC13826_1738	-	hypothetical protein
1760	 39.08	0	1878934..1879281	-	115	157165611	panD	CCC13826_1739	-	aspartate alpha-decarboxylase
1761	 45.56	+1	1879284..1880567	-	427	157164782	-	CCC13826_1740	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
1762	 37.66	0	1880545..1881099	-	184	157163891	-	CCC13826_1741	-	two-component sensor kinase CzcS
1763	 43.48	0	1881086..1881361	-	91	157165751	-	CCC13826_1742	-	hypothetical protein
1764	 44.41	0	1881498..1882418	-	306	157165190	-	CCC13826_1743	-	nitrogenase cofactor biosynthesis protein NifB
1765	 40.84	0	1882494..1883186	-	230	157164636	-	CCC13826_1745	-	putative ABC transporter, ATP-binding protein
1766	 44.00	0	1883183..1883932	-	249	157164093	modA	CCC13826_1746	-	putative molybdenum ABC transporter, solute-binding protein
1767	 41.01	0	1883929..1884540	-	203	157165745	-	CCC13826_1747	-	hypothetical protein
1768	 43.47	0	1884645..1885631	-	328	157165252	-	CCC13826_1748	-	hypothetical protein
1769	 27.35	-2	1885633..1885749	-	38	157164397	-	CCC13826_1749	-	hypothetical protein
1770	 40.00	0	1886540..1886839	-	99	157163877	rplQ	CCC13826_1750	-	ribosomal protein L17
1771	 37.36	0	1886908..1887924	-	338	157165509	rpoA	CCC13826_1751	-	DNA-directed RNA polymerase subunit alpha
1772	 40.19	0	1887939..1888565	-	208	157164972	rpsD	CCC13826_1752	-	30S ribosomal protein S4
1773	 39.44	0	1888591..1888983	-	130	157165683	rpsK	CCC13826_1753	-	30S ribosomal protein S11
1774	 40.38	0	1889006..1889374	-	122	157164203	rpsM	CCC13826_1754	-	30S ribosomal protein S13
1775	 36.99	0	1889681..1889899	-	72	157163853	infA	CCC13826_1755	-	translation initiation factor IF-1
39.18	MEAN

5.26	STD DEV
