IslandPath Analysis: Campylobacter concisus 13826

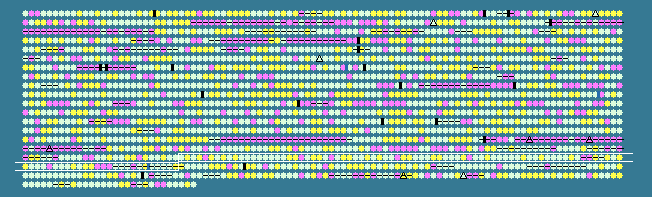

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.18 STD DEV: 5.26
Campylobacter concisus 13826, complete genome - 1..2052007
1929 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1627	 37.40	0	1732508..1733368	+	286	157164620	-	CCC13826_2132	-	ATP phosphoribosyltransferase regulatory subunit
1628	 45.16	+1	1733371..1734621	+	416	157165191	purA	CCC13826_2131	-	adenylosuccinate synthetase
1629	 38.30	0	1734618..1735040	+	140	157164985	-	CCC13826_2130	-	hypothetical protein
1630	 42.91	0	1735040..1735603	+	187	157165534	-	CCC13826_2129	-	ATPase, AAA family protein
1631	 34.36	0	1735692..1736273	+	193	157164088	-	CCC13826_2128	-	hypothetical protein
1632	 45.75	+1	1736326..1739586	-	1086	157164628	carB	CCC13826_2127	-	carbamoyl phosphate synthase large subunit
1633	 40.14	0	1739586..1740305	-	239	157164160	-	CCC13826_2126	-	putative hemagglutinin/hemolysin-related protein
1634	 44.61	+1	1740331..1741368	-	345	157165639	-	CCC13826_2125	-	cell shape determining protein MreB
1635	 42.58	0	1741378..1742610	-	410	157165299	clpX	CCC13826_2124	-	ATP-dependent protease ATP-binding subunit
1636	 44.97	+1	1743423..1743869	-	148	157165313	fabZ	CCC13826_2122	-	(3R)-hydroxymyristoyl-ACP dehydratase
1637	 42.62	0	1743980..1745056	-	358	157164337	-	CCC13826_2121	-	putative orphan protein
1638	 37.60	0	1745083..1745832	-	249	157163939	-	CCC13826_2120	-	putative ABC transporter, ATP-binding protein
1639	 41.56	0	1745829..1746509	-	226	157165480	-	CCC13826_2119	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
1640	 41.07	0	1746506..1747306	-	266	157165589	-	CCC13826_2118	-	peptide ABC transporter, permease protein
1641	 40.04	0	1747303..1748241	-	312	157164487	pepD	CCC13826_2117	-	dipeptidase
1642	 39.27	0	1748254..1749786	-	510	157164930	-	CCC13826_2116	-	hypothetical protein
1643	 37.95	0	1749961..1753299	+	1112	157165048	-	CCC13826_2114	-	diaminopimelate epimerase (DAP epimerase)
1644	 37.78	0	1753296..1753700	-	134	157164436	rplT	CCC13826_2115	-	50S ribosomal protein L20
1645	 43.63	0	1753815..1754018	+	67	157165773	-	CCC13826_2113	-	hypothetical protein
1646	 43.57	0	1754015..1754512	+	165	157163950	-	CCC13826_2112	-	anti-oxidant AhpCTSA family protein
1647	 31.47	-1	1754521..1756236	+	571	157164581	-	CCC13826_2111	-	phosphoribosylformylglycinamidine cyclo-ligase
1648	 40.19	0	1756263..1756904	+	213	157165280	-	CCC13826_2110	-	hypothetical protein
1649	 43.39	0	1757005..1757919	+	304	157165029	ilvE	CCC13826_2109	-	branched-chain amino acid aminotransferase
1650	 44.03	0	1757936..1759048	+	370	157165488	-	CCC13826_2108	-	SPFH domain-containing protein
1651	 40.95	0	1759051..1759785	+	244	157164332	-	CCC13826_2107	-	hydrolase
1652	 33.52	-1	1759775..1760305	+	176	157165716	-	CCC13826_2106	-	putative integral membrane protein
1653	 38.32	0	1760296..1760856	+	186	157165289	-	CCC13826_2105	-	DNA gyrase subunit B
1654	 45.42	+1	1761014..1762345	-	443	157164344	accC	CCC13826_2104	-	biotin carboxylase
1655	 43.05	0	1762345..1762797	-	150	157163904	accB	CCC13826_2103	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
1656	 41.82	0	1762883..1763542	-	219	157165456	modB	CCC13826_2102	-	molybdate ABC transporter, permease protein
1657	 39.91	0	1763551..1764249	-	232	157165002	modA	CCC13826_2101	-	molybdate ABC transporter, periplasmic molybdate-binding protein
1658	 42.88	0	1764377..1765465	+	362	157164098	-	CCC13826_2100	-	nicotinate phosphoribosyltransferase
1659	 37.95	0	1765474..1765971	+	165	157165729	tlpA	CCC13826_2099	-	methyl-accepting chemotaxis protein
1660	 43.76	0	1766027..1766899	+	290	157165250	-	CCC13826_2098	-	S-ribosylhomocysteine lyase (autoinducer-2 productionprotein LuxS; AI-2 synthesis protein)
1661	 40.45	0	1766899..1767165	+	88	157164876	fliQ	CCC13826_2097	-	flagellar biosynthesis protein FliQ
1662	 42.61	0	1767162..1767959	+	265	157164383	murB	CCC13826_2096	-	UDP-N-acetylenolpyruvoylglucosamine reductase
1663	 32.11	-1	1767968..1768456	+	162	157164278	-	CCC13826_2095	-	addiction module antitoxin
1664	 46.63	+1	1768519..1769616	+	365	157164266	recA	CCC13826_2094	-	recombinase A
1665	 47.56	+1	1769616..1770866	+	416	157164833	eno	CCC13826_2093	-	phosphopyruvate hydratase
1666	 39.18	0	1770863..1771153	+	96	157164412	-	CCC13826_2092	-	hypothetical protein
1667	 37.17	0	1771159..1772019	+	286	157164078	-	CCC13826_2091	-	putative periplasmic protein
1668	 40.40	0	1772086..1773147	+	353	157164045	-	CCC13826_2090	-	transport protein
1669	 45.84	+1	1773883..1776873	-	996	157165618	-	CCC13826_2089	-	orotate phosphoribosyltransferase (oprt; oprtase)
1670	 45.66	+1	1776887..1777624	-	245	157165183	-	CCC13826_2088	-	methyl-accepting chemotaxis sensory transducer
1671	 40.19	0	1780499..1781461	-	320	157164974	-	CCC13826_2191	-	putative two-component sensor
1672	 39.54	0	1781454..1782017	-	187	157164201	-	CCC13826_2192	-	hypothetical protein
1673	 41.09	0	1782242..1782499	+	85	157164632	-	CCC13826_2193	-	hypothetical protein
1674	 47.24	+1	1782820..1784085	-	421	157164713	leuC	CCC13826_2194	-	3-isopropylmalate dehydratase large subunit
1675	 29.63	-1	1784433..1784567	-	44	157165138	-	CCC13826_2195	-	hypothetical protein
1676	 42.31	0	1784641..1786455	+	604	157165438	-	CCC13826_2196	-	methyl-accepting chemotaxis protein
1677	 37.94	0	1786527..1787849	+	440	157163885	-	CCC13826_2197	-	Hsp12 variant C
1678	 46.20	+1	1787852..1788193	+	113	157164019	-	CCC13826_2198	-	hypothetical protein
1679	 41.84	0	1788482..1789057	+	191	157164965	-	CCC13826_2199	-	putative transport-associated
1680	 39.90	0	1789060..1791510	-	816	157164665	-	CCC13826_2200	-	hypothetical protein
1681	 36.32	0	1791510..1792112	-	200	157164142	ttg2D	CCC13826_2201	-	toluene tolerance protein Ttg2D
1682	 40.93	0	1792115..1792825	-	236	157165770	-	CCC13826_2202	-	ABC transporter ATPase
1683	 38.70	0	1792980..1793762	+	260	157165486	-	CCC13826_2203	-	molybdenum-pterin binding domain-containing protein
1684	 43.12	0	1793763..1794518	+	251	157164768	modA	CCC13826_2204	-	molybdate ABC transporter, periplasmic molybdate-binding protein
1685	 38.72	0	1794515..1794904	+	129	157164347	-	CCC13826_2205	-	beta-lactamase HcpA
1686	 40.79	0	1794907..1795764	+	285	157164060	-	CCC13826_2281	-	RNA pseudouridine synthase
1687	 43.41	0	1795764..1796438	+	224	157165201	modB	CCC13826_2282	-	molybdate ABC transporter, permease protein
1688	 39.76	0	1796475..1796972	+	165	157164976	-	CCC13826_2283	-	putative BcpB
1689	 37.25	0	1796982..1798538	+	518	157164979	-	CCC13826_2284	-	dimethyladenosine transferase
1690	 38.28	0	1798540..1799004	+	154	157164899	-	CCC13826_2285	-	DNA helicase related protein
1691	 40.17	0	1799007..1799810	-	267	157165331	-	CCC13826_2286	-	protein CysQ
1692	 46.48	+1	1799807..1801084	-	425	157164090	gltA	CCC13826_2287	-	citrate (Si)-synthase
1693	 42.10	0	1801087..1802250	-	387	157164493	-	CCC13826_2288	-	radical SAM protein
1694	 27.35	-2	1802278..1802394	+	38	157165532	-	CCC13826_2289	-	RNA pseudouridine synthase
1695	 33.75	-1	1802367..1802849	+	160	157164119	-	CCC13826_2290	-	hypothetical protein
1696	 42.74	0	1802860..1802976	+	38	157164689	-	CCC13826_2291	-	hypothetical protein
1697	 40.40	0	1803451..1803804	-	117	157165249	crcB	CCC13826_2292	-	CrcB protein
1698	 47.62	+1	1803804..1804643	-	279	157165117	-	CCC13826_2293	-	biotin synthase
1699	 37.18	0	1804899..1805054	+	51	157165666	nrdD	CCC13826_2294	-	oxygen-sensitive ribonucleoside-triphosphate reductase
1700	 44.31	0	1805317..1806036	-	239	157164127	-	CCC13826_2295	-	hypothetical protein
1701	 44.96	+1	1806096..1808210	-	704	157164552	topA	CCC13826_2296	-	DNA topoisomerase I
1702	 39.60	0	1808412..1809911	+	499	157164988	-	CCC13826_2297	-	flagellin B
1703	 37.61	0	1810187..1810957	-	256	157165433	-	CCC13826_2298	-	flagellin modification protein A
1704	 36.58	0	1810944..1811651	-	235	157163906	-	CCC13826_2299	-	N-acylneuraminate cytidylyltransferase
1705	 35.66	0	1811644..1812546	-	300	157165259	-	CCC13826_2300	-	oxidoreductase family protein
1706	 38.87	0	1812560..1813606	-	348	157164273	-	CCC13826_2301	-	nucleotidyl transferase
1707	 37.30	0	1813603..1814763	-	386	157165593	-	CCC13826_2302	-	UDP-N-acetylglucosamine 2-epimerase
1708	 40.22	0	1814760..1815761	-	333	157165127	-	CCC13826_2303	-	general stress protein 14 (GSP14)
1709	 42.97	0	1815786..1816397	-	203	157164184	-	CCC13826_2304	-	hypothetical protein
1710	 42.62	0	1816400..1817551	-	383	157164585	-	CCC13826_2305	-	DegT/DnrJ/EryC1/StrS aminotransferase family protein
1711	 45.99	+1	1820904..1821464	-	186	157165301	dcd	CCC13826_2308	-	deoxycytidine triphosphate deaminase
1712	 42.94	0	1821588..1822430	+	280	157164358	-	CCC13826_2309	-	hydrogenase-4 component C
1713	 35.65	0	1822451..1823011	+	186	157163949	hyfB	CCC13826_2310	-	hydrogenase-4 component B
1714	 34.67	0	1823280..1823876	+	198	157164145	-	CCC13826_2311	-	electron transport protein HydN
1715	 33.94	0	1823879..1825027	-	382	157165052	-	CCC13826_2312	-	hypothetical protein
1716	 36.58	0	1826222..1827115	+	297	157164701	-	CCC13826_2314	-	hypothetical protein
1717	 41.45	0	1827138..1829429	+	763	157165411	-	CCC13826_2315	-	putative anaerobic dehydrogenase
1718	 42.39	0	1829441..1829992	+	183	157163871	fbcH	CCC13826_2316	-	ubiquinol cytochrome c oxidoreductase, cytochrome b subunit
1719	 35.35	0	1830003..1830647	+	214	157164082	fbcF	CCC13826_2317	-	ubiquinol cytochrome c oxidoreductase, Rieske 2Fe-2S subunit
1720	 39.66	0	1830651..1831535	+	294	157164510	-	CCC13826_2318	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
1721	 43.42	0	1831591..1832145	-	184	157165134	-	CCC13826_2319	-	2-acylglycerophosphoethanolamine acyltransferase
1722	 41.63	0	1838221..1842981	-	1586	157165566	yckK	CCC13826_1696	-	amino acid ABC transporter, periplasmic binding protein
1723	 39.54	0	1843068..1843502	-	144	157164885	-	CCC13826_1697	-	putative endoribonuclease L-PSP
1724	 39.45	0	1843537..1844010	+	157	157163870	-	CCC13826_1699	-	L-cystine permease protein TcyB
1725	 38.89	0	1843988..1844527	-	179	157165547	-	CCC13826_1698	-	L-cystine-binding protein TcyA
1726	 47.24	+1	1844570..1845130	-	186	157164667	-	CCC13826_1700	-	L-cystine import ATP-binding protein TcyC
39.18	MEAN

5.26	STD DEV
