IslandPath Analysis: Campylobacter concisus 13826

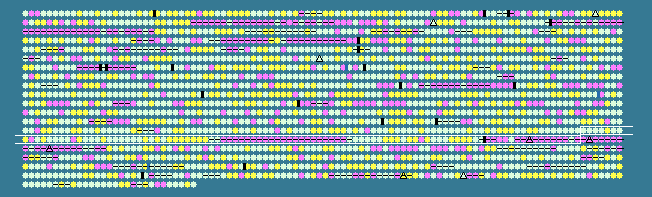

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.18 STD DEV: 5.26
Campylobacter concisus 13826, complete genome - 1..2052007
1929 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1394	 38.67	0	1484087..1485136	-	349	157163857	-	CCC13826_0477	-	glycosyl transferase, group 1 family protein
1395	 39.92	0	1485326..1486357	+	343	157165171	-	CCC13826_0478	-	glycosyl transferase, group 1 family protein
1396	 38.47	0	1486354..1487307	+	317	157163923	rfaF	CCC13826_0479	-	lipopolysaccharide heptosyltransferase II
1397	 41.49	0	1487690..1488241	+	183	157164576	-	CCC13826_0481	-	DJ-1 family protein
1398	 45.45	+1	1488515..1488712	+	65	157163899	-	CCC13826_0482	-	HIT family protein
1399	 39.47	0	1488720..1489583	+	287	157165112	-	CCC13826_0484	-	phenylalanyl-tRNA synthetase beta chain (phenylalanine--tRNA ligase beta chain; PheRS)
1400	 40.68	0	1489569..1490276	-	235	157165651	-	CCC13826_0483	-	phenylalanyl-tRNA synthetase alpha chain (phenylalanine--tRNA ligase alpha chain; PheRS)
1401	 44.55	+1	1490292..1493903	-	1203	157165237	-	CCC13826_0485	-	DNA polymerase III subunit alpha
1402	 33.33	-1	1493877..1494029	+	50	157164692	-	CCC13826_0486	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
1403	 40.85	0	1494574..1495425	-	283	157165357	-	CCC13826_0487	-	ribosomal protein S1
1404	 43.43	0	1495444..1497642	-	732	157164996	-	CCC13826_0488	-	polynucleotide phosphorylase/polyadenylase
1405	 39.77	0	1497632..1498330	-	232	157165468	serA	CCC13826_0489	-	phosphoglycerate dehydrogenase
1406	 39.39	0	1498343..1500505	-	720	157164962	-	CCC13826_0490	-	elongation factor P (EF-P)
1407	 37.11	0	1500498..1500947	-	149	157164767	-	CCC13826_0491	-	RDD family protein
1408	 41.85	0	1500944..1502188	-	414	157163965	purD	CCC13826_0492	-	phosphoribosylamine--glycine ligase
1409	 35.21	0	1502421..1503059	-	212	157165648	hemD	CCC13826_0493	-	uroporphyrinogen-III synthase
1410	 43.15	0	1503052..1504212	-	386	157165228	moeB	CCC13826_0494	-	molybdopterin biosynthesis protein
1411	 41.24	0	1504323..1504967	-	214	157165045	-	CCC13826_0495	-	5'-nucleotidase SurE
1412	 41.32	0	1505041..1506906	-	621	157164134	lpxB	CCC13826_0496	-	5-methylaminomethyl-2-thiouridine methyltransferase
1413	 42.57	0	1506903..1508342	-	479	157165276	-	CCC13826_0497	-	transcription elongation factor GreA
1414	 44.51	+1	1508339..1509430	-	363	157165756	-	CCC13826_0498	-	2-nitropropane dioxygenase family oxidoreductase
1415	 40.53	0	1509431..1510639	-	402	157164866	tyrS	CCC13826_0499	-	tyrosyl-tRNA synthetase
1416	 40.00	0	1510649..1512838	-	729	157164439	-	CCC13826_0500	-	GTP pyrophosphokinase
1417	 42.13	0	1512825..1513040	-	71	157164342	rpoZ	CCC13826_0501	-	DNA-directed RNA polymerase subunit omega
1418	 42.26	0	1513059..1513775	-	238	157164034	pyrH	CCC13826_0502	-	uridylate kinase
1419	 40.72	0	1513849..1515066	-	405	157165489	-	CCC13826_0503	-	transaldolase
1420	 39.34	0	1515063..1515878	-	271	157164680	-	CCC13826_0504	-	cell division protein FtsX
1421	 44.79	+1	1515865..1516536	-	223	157164682	-	CCC13826_0505	-	50S ribosomal protein L25 (general stress protein Ctc)
1422	 38.55	0	1516520..1517707	-	395	157164138	-	CCC13826_0506	-	tRNA (guanine-N(7))-methyltransferase
1423	 45.79	+1	1518239..1518784	-	181	157164287	lysA	CCC13826_0508	-	diaminopimelate decarboxylase dap decarboxylase
1424	 40.33	0	1518846..1519817	-	323	157164896	-	CCC13826_0509	-	P-protein
1425	 44.88	+1	1519981..1520976	+	331	157164567	-	CCC13826_0511	-	histidinol-phosphate aminotransferase (imidazole acetol-phosphate transaminase)
1426	 49.33	+1	1521507..1522175	-	222	157165581	-	CCC13826_0512	-	hypothetical protein
1427	 48.11	+1	1522254..1523072	-	272	157165165	fliG	CCC13826_0513	-	enoyl-(acyl carrier protein) reductase
1428	 45.76	+1	1523241..1523924	-	227	157165161	tpiA	CCC13826_0514	-	triosephosphate isomerase
1429	 46.00	+1	1523928..1525127	-	399	157164697	pgk	CCC13826_0515	-	phosphoglycerate kinase
1430	 46.15	+1	1525144..1526142	-	332	157164277	gap	CCC13826_0516	-	glyceraldehyde-3-phosphate dehydrogenase, type I
1431	 43.42	0	1526222..1527103	+	293	157164140	gerC	CCC13826_0518	-	gerC2 protein
1432	 42.38	0	1527087..1528070	-	327	157165450	-	CCC13826_0517	-	hypothetical protein
1433	 40.17	0	1528174..1529109	+	311	157165551	-	CCC13826_0519	-	exodeoxyribonuclease 7 large subunit
1434	 28.11	-2	1529110..1530315	-	401	157165735	-	CCC13826_0520	-	phosphoserine aminotransferase, (psat)
1435	 33.90	-1	1530308..1531372	-	354	157164094	-	CCC13826_0521	-	UDP-N-acetylglucosamine 2-epimerase
1436	 26.61	-2	1531374..1532399	-	341	157164389	-	CCC13826_0522	-	hypothetical protein
1437	 28.80	-1	1532414..1533493	-	359	157165216	trpE	CCC13826_0523	-	anthranilate synthase, component I
1438	 29.70	-1	1533511..1535298	-	595	157165540	asnB	CCC13826_0524	-	asparagine synthase (glutamine-hydrolyzing)
1439	 28.94	-1	1535347..1535961	-	204	157163887	-	CCC13826_0525	-	phosphatidylserine decarboxylase proenzyme
1440	 29.45	-1	1536402..1537277	-	291	157164125	gtp	CCC13826_0526	-	GTP-binding protein
1441	 29.10	-1	1537912..1539306	-	464	157164657	-	CCC13826_0528	-	cytosol aminopeptidase
1442	 28.59	-2	1539316..1540602	-	428	157165312	-	CCC13826_0529	-	DedA family protein
1443	 30.85	-1	1540599..1541606	-	335	157164456	-	CCC13826_0530	-	adenine phosphoribosyltransferase (aprt)
1444	 28.08	-2	1542931..1543596	-	221	157165765	-	CCC13826_0532	-	hypothetical protein
1445	 32.44	-1	1543593..1544603	-	336	157165141	-	CCC13826_0533	-	putative carbamoyl phosphate synthase large subunit
1446	 27.05	-2	1544593..1545276	-	227	157164711	-	CCC13826_0534	-	Ser/Thr protein phosphatase family protein
1447	 25.79	-2	1545273..1546412	-	379	157165047	-	CCC13826_0535	-	hypothetical protein
1448	 30.52	-1	1546427..1548415	-	662	157165663	asnB	CCC13826_0536	-	asparagine synthase (glutamine-hydrolyzing)
1449	 33.25	-1	1548417..1549631	-	404	157163982	-	CCC13826_0537	-	putative integral membrane protein
1450	 27.50	-2	1549594..1550502	-	302	157164522	-	CCC13826_0538	-	hypothetical protein
1451	 33.74	-1	1550606..1551592	-	328	157164630	-	CCC13826_0539	-	hypothetical protein
1452	 32.87	-1	1551606..1552694	-	362	157164115	-	CCC13826_0540	-	thioesterase family protein
1453	 34.55	0	1552698..1553273	-	191	157164668	-	CCC13826_0541	-	hexapaptide repeat-containing transferase
1454	 33.13	-1	1553273..1554238	-	321	157165229	-	CCC13826_0542	-	uracil-DNA glycosylase superfamily protein
1455	 38.32	0	1554271..1555854	-	527	157165706	argS	CCC13826_0543	-	arginyl-tRNA synthetase
1456	 40.54	0	1555864..1556085	-	73	157163974	-	CCC13826_0544	-	twin arginine-targeting protein translocase
1457	 39.71	0	1556137..1556748	-	203	157164565	gmk	CCC13826_0545	-	guanylate kinase
1458	 38.60	0	1556749..1558305	-	518	157164841	-	CCC13826_0546	-	hypothetical protein
1459	 40.03	0	1558362..1559123	-	253	157165085	fliR	CCC13826_0547	-	flagellar biosynthesis protein FliR
1460	 37.98	0	1559214..1559858	-	214	157164016	mda	CCC13826_0548	-	modulator of drug activity
1461	 43.27	0	1559858..1560904	-	348	157164319	tsf	CCC13826_0550	-	elongation factor Ts
1462	 43.73	0	1560922..1561710	-	262	157164805	rpsB	CCC13826_0551	-	30S ribosomal protein S2
1463	 45.35	+1	1561901..1563040	-	379	157164258	iadA	CCC13826_0552	-	isoaspartyl dipeptidase
1464	 35.71	0	1563051..1563260	-	69	157165658	-	CCC13826_0553	-	hypothetical protein
1465	 44.17	0	1563250..1563969	-	239	157165537	-	CCC13826_0554	-	hypothetical protein
1466	 47.15	+1	1563980..1564594	-	204	157165754	ribE	CCC13826_0555	-	riboflavin synthase subunit alpha
1467	 34.19	0	1564907..1565023	+	38	157164037	-	CCC13826_0557	-	hypothetical protein
1468	 48.16	+1	1565020..1565862	-	280	157164442	-	CCC13826_0556	-	peptide methionine sulfoxide reductase MsrA/msrB
1469	 39.85	0	1566932..1567867	-	311	157165124	accA	CCC13826_0559	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
1470	 42.00	0	1567869..1569080	-	403	157164063	fabF	CCC13826_0560	-	3-oxoacyl-(acyl carrier protein) synthase II
1471	 36.32	0	1569115..1569348	-	77	157164884	acpP	CCC13826_0561	-	acyl carrier protein
1472	 44.22	0	1569435..1570178	-	247	157164484	fabG	CCC13826_0562	-	3-ketoacyl-(acyl-carrier-protein) reductase
1473	 42.76	0	1570215..1571678	-	487	157164042	gpmI	CCC13826_0563	-	phosphoglyceromutase
1474	 43.22	0	1572826..1573341	+	171	157163994	-	CCC13826_0565	-	hypothetical protein
1475	 43.10	0	1573346..1574563	+	405	157165724	murD	CCC13826_0566	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1476	 40.39	0	1574735..1576618	+	627	157165086	-	CCC13826_0567	-	hypothetical protein
1477	 42.24	0	1576686..1581986	+	1766	157163912	-	CCC13826_0568	-	hypothetical protein
1478	 28.19	-2	1582376..1583269	-	297	157164325	-	CCC13826_0638	-	lipoprotein
1479	 30.56	-1	1583269..1583880	-	203	157165013	-	CCC13826_2272	-	glutathionylspermidine synthase family protein
1480	 32.74	-1	1583895..1585235	-	446	157165548	-	CCC13826_2273	-	bacteriophage replication gene A protein
1481	 30.49	-1	1585467..1585853	-	128	157165775	-	CCC13826_2274	-	protein yitk
1482	 40.54	0	1585894..1586115	-	73	157164240	-	CCC13826_1101	-	putative phosphonate uptake transporter
1483	 26.58	-2	1586807..1587043	+	78	157164047	-	CCC13826_1102	-	sensory box protein
1484	 26.27	-2	1587044..1587496	+	150	157164666	-	CCC13826_2275	-	hypothetical protein
1485	 27.97	-2	1587598..1588380	-	260	157164933	-	CCC13826_2082	-	site-specific recombinase, phage integrase family protein
1486	 31.44	-1	1588755..1589966	-	403	157165333	-	CCC13826_1099	-	radical SAM domain-containing protein
1487	 30.60	-1	1590015..1591184	-	389	157164249	-	CCC13826_1100	-	ABC transporter ATP-binding protein YojI
1488	 28.53	-2	1591228..1592352	-	374	157164938	-	CCC13826_2276	-	zonular occludens toxin (Zot) family protein
1489	 32.21	-1	1592354..1592800	-	148	157165126	-	CCC13826_2277	-	hypothetical protein
1490	 31.92	-1	1592797..1594923	-	708	157164149	-	CCC13826_0183	-	hypothetical protein
1491	 29.08	-1	1594955..1595095	+	46	157164684	-	CCC13826_0184	-	hypothetical protein
1492	 40.54	0	1595477..1595698	-	73	157165292	-	CCC13826_2278	-	putative phosphonate uptake transporter
1493	 27.00	-2	1596412..1596648	+	78	157165246	-	CCC13826_0164	-	hypothetical protein
39.18	MEAN

5.26	STD DEV
