IslandPath Analysis: Campylobacter concisus 13826

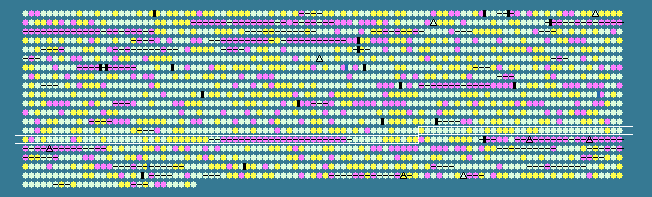

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.18 STD DEV: 5.26
Campylobacter concisus 13826, complete genome - 1..2052007
1929 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1367	 45.69	+1	1456076..1456666	-	196	157165164	-	CCC13826_0449	-	general glycosylation pathway protein
1368	 42.24	0	1456653..1457258	-	201	157165748	-	CCC13826_0450	-	Cpp29
1369	 41.67	0	1457251..1458366	-	371	157164213	-	CCC13826_0451	-	iron compounds ABC transporter, ATP-binding protein
1370	 41.00	0	1458369..1460468	-	699	157164391	fecD	CCC13826_0452	-	iron chelatin ABC transporter, permease protein
1371	 40.89	0	1460461..1461585	-	374	157164824	fecB	CCC13826_0453	-	iron chelatin ABC transporter, substrate binding protein
1372	 41.67	0	1461582..1462625	-	347	157165514	-	CCC13826_0454	-	nitric oxide reductase large subunit
1373	 41.36	0	1462622..1463680	-	352	157164017	-	CCC13826_0455	-	glycosyl transferase, group 1 family protein
1374	 41.48	0	1463677..1464609	-	310	157165185	-	CCC13826_0456	-	glycosyl transferase, group 2 family protein
1375	 43.04	0	1464610..1465371	-	253	157164803	-	CCC13826_0457	-	ExsB
1376	 41.44	0	1465372..1466889	-	505	157165148	-	CCC13826_0458	-	polysaccharide biosynthesis protein
1377	 36.43	0	1466889..1469018	-	709	157165576	-	CCC13826_0460	-	hydroxylamine reductase (hybrid-cluster protein; HCP)
1378	 43.07	0	1469027..1470259	-	410	157165142	-	CCC13826_0461	-	nucleotide sugar dehydrogenase subfamily protein
1379	 37.81	0	1470256..1470702	-	148	157165626	-	CCC13826_0462	-	hypothetical protein
1380	 44.07	0	1470699..1472021	-	440	157164543	-	CCC13826_0463	-	nucleotide sugar dehydrogenase subfamily protein
1381	 44.21	0	1472030..1473013	-	327	157164925	galE	CCC13826_0464	-	UDP-glucose 4-epimerase
1382	 45.24	+1	1473204..1474244	+	346	157164327	-	CCC13826_0466	-	putative soluble lytic murein transglycosylase
1383	 42.03	0	1474241..1475068	-	275	157165377	-	CCC13826_0465	-	DNA ligase
1384	 41.80	0	1475089..1475667	-	192	157164696	-	CCC13826_0467	-	yggt family protein
1385	 44.76	+1	1475668..1476726	-	352	157164041	-	CCC13826_0468	-	glutamyl-tRNA synthetase (glutamate--tRNA ligase; GluRS)
1386	 42.73	0	1476747..1477757	-	336	157164466	-	CCC13826_0469	-	large-conductance mechanosensitive channel
1387	 39.79	0	1477821..1478795	+	324	157164075	rfaC	CCC13826_0470	-	lipopolysaccharide heptosyltransferase I
1388	 39.04	0	1478788..1479681	+	297	157165600	-	CCC13826_0471	-	lipid A biosynthesis lauroyl acyltransferase
1389	 40.85	0	1479675..1480379	+	234	157165188	-	CCC13826_0472	-	glycosyl transferase, group 2 family protein
1390	 41.36	0	1480376..1481446	+	356	157164774	-	CCC13826_0473	-	putative lipopolysaccharide heptosyltransferase III
1391	 39.29	0	1481443..1482516	+	357	157164306	-	CCC13826_0474	-	phosphatidylserine decarboxylase proenzyme
1392	 37.34	0	1482513..1483310	+	265	157163933	-	CCC13826_0475	-	GMP synthase [glutamine-hydrolyzing] (glutamineamidotransferase; GMP synthetase)
1393	 39.17	0	1483320..1484090	-	256	157165458	-	CCC13826_0476	-	NhaD
1394	 38.67	0	1484087..1485136	-	349	157163857	-	CCC13826_0477	-	glycosyl transferase, group 1 family protein
1395	 39.92	0	1485326..1486357	+	343	157165171	-	CCC13826_0478	-	glycosyl transferase, group 1 family protein
1396	 38.47	0	1486354..1487307	+	317	157163923	rfaF	CCC13826_0479	-	lipopolysaccharide heptosyltransferase II
1397	 41.49	0	1487690..1488241	+	183	157164576	-	CCC13826_0481	-	DJ-1 family protein
1398	 45.45	+1	1488515..1488712	+	65	157163899	-	CCC13826_0482	-	HIT family protein
1399	 39.47	0	1488720..1489583	+	287	157165112	-	CCC13826_0484	-	phenylalanyl-tRNA synthetase beta chain (phenylalanine--tRNA ligase beta chain; PheRS)
1400	 40.68	0	1489569..1490276	-	235	157165651	-	CCC13826_0483	-	phenylalanyl-tRNA synthetase alpha chain (phenylalanine--tRNA ligase alpha chain; PheRS)
1401	 44.55	+1	1490292..1493903	-	1203	157165237	-	CCC13826_0485	-	DNA polymerase III subunit alpha
1402	 33.33	-1	1493877..1494029	+	50	157164692	-	CCC13826_0486	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
1403	 40.85	0	1494574..1495425	-	283	157165357	-	CCC13826_0487	-	ribosomal protein S1
1404	 43.43	0	1495444..1497642	-	732	157164996	-	CCC13826_0488	-	polynucleotide phosphorylase/polyadenylase
1405	 39.77	0	1497632..1498330	-	232	157165468	serA	CCC13826_0489	-	phosphoglycerate dehydrogenase
1406	 39.39	0	1498343..1500505	-	720	157164962	-	CCC13826_0490	-	elongation factor P (EF-P)
1407	 37.11	0	1500498..1500947	-	149	157164767	-	CCC13826_0491	-	RDD family protein
1408	 41.85	0	1500944..1502188	-	414	157163965	purD	CCC13826_0492	-	phosphoribosylamine--glycine ligase
1409	 35.21	0	1502421..1503059	-	212	157165648	hemD	CCC13826_0493	-	uroporphyrinogen-III synthase
1410	 43.15	0	1503052..1504212	-	386	157165228	moeB	CCC13826_0494	-	molybdopterin biosynthesis protein
1411	 41.24	0	1504323..1504967	-	214	157165045	-	CCC13826_0495	-	5'-nucleotidase SurE
1412	 41.32	0	1505041..1506906	-	621	157164134	lpxB	CCC13826_0496	-	5-methylaminomethyl-2-thiouridine methyltransferase
1413	 42.57	0	1506903..1508342	-	479	157165276	-	CCC13826_0497	-	transcription elongation factor GreA
1414	 44.51	+1	1508339..1509430	-	363	157165756	-	CCC13826_0498	-	2-nitropropane dioxygenase family oxidoreductase
1415	 40.53	0	1509431..1510639	-	402	157164866	tyrS	CCC13826_0499	-	tyrosyl-tRNA synthetase
1416	 40.00	0	1510649..1512838	-	729	157164439	-	CCC13826_0500	-	GTP pyrophosphokinase
1417	 42.13	0	1512825..1513040	-	71	157164342	rpoZ	CCC13826_0501	-	DNA-directed RNA polymerase subunit omega
1418	 42.26	0	1513059..1513775	-	238	157164034	pyrH	CCC13826_0502	-	uridylate kinase
1419	 40.72	0	1513849..1515066	-	405	157165489	-	CCC13826_0503	-	transaldolase
1420	 39.34	0	1515063..1515878	-	271	157164680	-	CCC13826_0504	-	cell division protein FtsX
1421	 44.79	+1	1515865..1516536	-	223	157164682	-	CCC13826_0505	-	50S ribosomal protein L25 (general stress protein Ctc)
1422	 38.55	0	1516520..1517707	-	395	157164138	-	CCC13826_0506	-	tRNA (guanine-N(7))-methyltransferase
1423	 45.79	+1	1518239..1518784	-	181	157164287	lysA	CCC13826_0508	-	diaminopimelate decarboxylase dap decarboxylase
1424	 40.33	0	1518846..1519817	-	323	157164896	-	CCC13826_0509	-	P-protein
1425	 44.88	+1	1519981..1520976	+	331	157164567	-	CCC13826_0511	-	histidinol-phosphate aminotransferase (imidazole acetol-phosphate transaminase)
1426	 49.33	+1	1521507..1522175	-	222	157165581	-	CCC13826_0512	-	hypothetical protein
1427	 48.11	+1	1522254..1523072	-	272	157165165	fliG	CCC13826_0513	-	enoyl-(acyl carrier protein) reductase
1428	 45.76	+1	1523241..1523924	-	227	157165161	tpiA	CCC13826_0514	-	triosephosphate isomerase
1429	 46.00	+1	1523928..1525127	-	399	157164697	pgk	CCC13826_0515	-	phosphoglycerate kinase
1430	 46.15	+1	1525144..1526142	-	332	157164277	gap	CCC13826_0516	-	glyceraldehyde-3-phosphate dehydrogenase, type I
1431	 43.42	0	1526222..1527103	+	293	157164140	gerC	CCC13826_0518	-	gerC2 protein
1432	 42.38	0	1527087..1528070	-	327	157165450	-	CCC13826_0517	-	hypothetical protein
1433	 40.17	0	1528174..1529109	+	311	157165551	-	CCC13826_0519	-	exodeoxyribonuclease 7 large subunit
1434	 28.11	-2	1529110..1530315	-	401	157165735	-	CCC13826_0520	-	phosphoserine aminotransferase, (psat)
1435	 33.90	-1	1530308..1531372	-	354	157164094	-	CCC13826_0521	-	UDP-N-acetylglucosamine 2-epimerase
1436	 26.61	-2	1531374..1532399	-	341	157164389	-	CCC13826_0522	-	hypothetical protein
1437	 28.80	-1	1532414..1533493	-	359	157165216	trpE	CCC13826_0523	-	anthranilate synthase, component I
1438	 29.70	-1	1533511..1535298	-	595	157165540	asnB	CCC13826_0524	-	asparagine synthase (glutamine-hydrolyzing)
1439	 28.94	-1	1535347..1535961	-	204	157163887	-	CCC13826_0525	-	phosphatidylserine decarboxylase proenzyme
1440	 29.45	-1	1536402..1537277	-	291	157164125	gtp	CCC13826_0526	-	GTP-binding protein
1441	 29.10	-1	1537912..1539306	-	464	157164657	-	CCC13826_0528	-	cytosol aminopeptidase
1442	 28.59	-2	1539316..1540602	-	428	157165312	-	CCC13826_0529	-	DedA family protein
1443	 30.85	-1	1540599..1541606	-	335	157164456	-	CCC13826_0530	-	adenine phosphoribosyltransferase (aprt)
1444	 28.08	-2	1542931..1543596	-	221	157165765	-	CCC13826_0532	-	hypothetical protein
1445	 32.44	-1	1543593..1544603	-	336	157165141	-	CCC13826_0533	-	putative carbamoyl phosphate synthase large subunit
1446	 27.05	-2	1544593..1545276	-	227	157164711	-	CCC13826_0534	-	Ser/Thr protein phosphatase family protein
1447	 25.79	-2	1545273..1546412	-	379	157165047	-	CCC13826_0535	-	hypothetical protein
1448	 30.52	-1	1546427..1548415	-	662	157165663	asnB	CCC13826_0536	-	asparagine synthase (glutamine-hydrolyzing)
1449	 33.25	-1	1548417..1549631	-	404	157163982	-	CCC13826_0537	-	putative integral membrane protein
1450	 27.50	-2	1549594..1550502	-	302	157164522	-	CCC13826_0538	-	hypothetical protein
1451	 33.74	-1	1550606..1551592	-	328	157164630	-	CCC13826_0539	-	hypothetical protein
1452	 32.87	-1	1551606..1552694	-	362	157164115	-	CCC13826_0540	-	thioesterase family protein
1453	 34.55	0	1552698..1553273	-	191	157164668	-	CCC13826_0541	-	hexapaptide repeat-containing transferase
1454	 33.13	-1	1553273..1554238	-	321	157165229	-	CCC13826_0542	-	uracil-DNA glycosylase superfamily protein
1455	 38.32	0	1554271..1555854	-	527	157165706	argS	CCC13826_0543	-	arginyl-tRNA synthetase
1456	 40.54	0	1555864..1556085	-	73	157163974	-	CCC13826_0544	-	twin arginine-targeting protein translocase
1457	 39.71	0	1556137..1556748	-	203	157164565	gmk	CCC13826_0545	-	guanylate kinase
1458	 38.60	0	1556749..1558305	-	518	157164841	-	CCC13826_0546	-	hypothetical protein
1459	 40.03	0	1558362..1559123	-	253	157165085	fliR	CCC13826_0547	-	flagellar biosynthesis protein FliR
1460	 37.98	0	1559214..1559858	-	214	157164016	mda	CCC13826_0548	-	modulator of drug activity
1461	 43.27	0	1559858..1560904	-	348	157164319	tsf	CCC13826_0550	-	elongation factor Ts
1462	 43.73	0	1560922..1561710	-	262	157164805	rpsB	CCC13826_0551	-	30S ribosomal protein S2
1463	 45.35	+1	1561901..1563040	-	379	157164258	iadA	CCC13826_0552	-	isoaspartyl dipeptidase
1464	 35.71	0	1563051..1563260	-	69	157165658	-	CCC13826_0553	-	hypothetical protein
1465	 44.17	0	1563250..1563969	-	239	157165537	-	CCC13826_0554	-	hypothetical protein
1466	 47.15	+1	1563980..1564594	-	204	157165754	ribE	CCC13826_0555	-	riboflavin synthase subunit alpha
39.18	MEAN

5.26	STD DEV
