IslandPath Analysis: Campylobacter concisus 13826

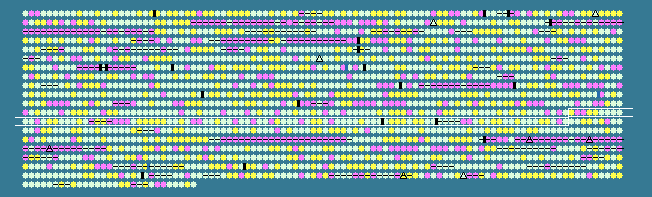

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 39.18 STD DEV: 5.26
Campylobacter concisus 13826, complete genome - 1..2052007
1929 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1192	 42.82	0	1269867..1271594	+	575	157164820	-	CCC13826_2056	-	divalent cation transporter
1193	 28.85	-1	1271697..1271852	-	51	157164545	-	CCC13826_2055	-	hypothetical protein
1194	 32.48	-1	1272146..1272262	-	38	157163988	-	CCC13826_2054	-	hypothetical protein
1195	 44.30	0	1272259..1272969	-	236	157165128	kdsB	CCC13826_2053	-	3-deoxy-manno-octulosonate cytidylyltransferase
1196	 43.37	0	1272966..1274429	-	487	157164363	thrC	CCC13826_2052	-	threonine synthase
1197	 38.90	0	1275704..1276834	-	376	157164603	-	CCC13826_2049	-	DegT/DnrJ/EryC1/StrS aminotransferase family protein
1198	 39.47	0	1277703..1278305	+	200	157164252	dnaQ	CCC13826_2047	-	DNA polymerase III epsilon subunit
1199	 42.41	0	1278454..1280325	-	623	157164553	dnaK	CCC13826_2046	-	molecular chaperone DnaK
1200	 41.44	0	1280357..1280899	-	180	157165150	grpE	CCC13826_2045	-	co-chaperone GrpE
1201	 36.82	0	1280896..1281699	-	267	157164960	-	CCC13826_2044	-	heat-inducible transcription repressor
1202	 36.99	0	1282059..1282304	+	81	157165536	-	CCC13826_2043	-	hypothetical protein
1203	 31.67	-1	1282305..1282484	+	59	157163872	-	CCC13826_2042	-	hypothetical protein
1204	 37.31	0	1282725..1283051	+	108	157164400	-	CCC13826_2041	-	aminoacyl-histidine dipeptidase
1205	 45.93	+1	1283140..1284417	-	425	157165043	-	CCC13826_2040	-	chaperone protein HtpG (heat shock protein htpG; high temperatureprotein G)
1206	 44.41	0	1284420..1285349	-	309	157165632	pyrB	CCC13826_2039	-	aspartate carbamoyltransferase
1207	 40.15	0	1285367..1285777	-	136	157165037	mog	CCC13826_2038	-	molybdopterin biosynthesis protein
1208	 40.79	0	1285787..1286014	-	75	157165520	ftsH	CCC13826_2037	-	cell division protein
1209	 37.91	0	1286011..1287036	-	341	157163897	-	CCC13826_2036	-	hypothetical protein
1210	 45.67	+1	1287046..1289241	-	731	157164390	flhA	CCC13826_2035	-	flagellar biosynthesis protein FlhA
1211	 38.52	0	1289244..1289648	-	134	157165239	-	CCC13826_2034	-	Rrf2 family protein (putative transcriptional regulator)
1212	 32.60	-1	1289795..1290067	+	90	157165733	rpsO	CCC13826_2033	-	30S ribosomal protein S15
1213	 45.15	+1	1290428..1290850	+	140	157164751	-	CCC13826_2032	-	molybdopterin oxidoreductase Fe4S4 subunit
1214	 45.22	+1	1290947..1292704	+	585	157164301	-	CCC13826_2031	-	putative Myb2 protein
1215	 29.65	-1	1292732..1293925	-	397	157165504	-	CCC13826_2030	-	hypothetical protein
1216	 28.97	-1	1293946..1294656	-	236	157165234	-	CCC13826_2029	-	hypothetical protein
1217	 31.92	-1	1294669..1295586	-	305	157164183	-	CCC13826_2028	-	hypothetical protein
1218	 26.32	-2	1295596..1296237	-	213	157164340	-	CCC13826_2027	-	pTet43
1219	 41.70	0	1296328..1297032	-	234	157165059	-	CCC13826_2026	-	putative methyltransferase
1220	 45.41	+1	1297029..1297922	-	297	157165726	ribF	CCC13826_2025	-	bifunctional riboflavin kinase/FMN adenylyltransferase
1221	 43.14	0	1297888..1298601	-	237	157164345	rrmJ	CCC13826_2024	-	ribosomal RNA large subunit methyltransferase J
1222	 47.22	+1	1298591..1300534	-	647	157164612	ligA	CCC13826_2023	-	NAD-dependent DNA ligase LigA
1223	 43.21	0	1300576..1301436	-	286	157165319	-	CCC13826_2022	-	hypothetical protein
1224	 43.33	0	1301460..1302599	-	379	157165428	-	CCC13826_2021	-	putative dihydropteroate synthase
1225	 38.49	0	1302596..1303216	-	206	157164770	-	CCC13826_2020	-	DNA polymerase III subunit delta'
1226	 40.93	0	1303217..1303756	-	179	157164563	-	CCC13826_2019	-	hypothetical protein
1227	 44.00	0	1303756..1304955	-	399	157163983	-	CCC13826_2018	-	aspartate kinase
1228	 36.56	0	1304955..1305419	-	154	157164282	-	CCC13826_2017	-	dinucleoside polyphosphate hydrolase
1229	 35.62	0	1305483..1306574	-	363	157164586	-	CCC13826_2016	-	PepSY-associated TM helix family protein
1230	 30.43	-1	1310582..1310719	-	45	157163992	-	CCC13826_2012	-	metal-sulfur cluster biosynthetic enzyme
1231	 38.85	0	1310685..1311083	+	132	157164845	-	CCC13826_2010	-	sec-independent translocase
1232	 38.62	0	1312868..1313662	+	264	157164969	-	CCC13826_2006	-	hypothetical protein
1233	 44.49	+1	1314037..1314807	-	256	157165513	dprA	CCC13826_2005	-	DNA protecting protein DprA
1234	 38.02	0	1314804..1316255	-	483	157163961	-	CCC13826_2004	-	ferric-uptake regulator
1235	 41.35	0	1316259..1317281	-	340	157164268	ilvC	CCC13826_2003	-	ketol-acid reductoisomerase
1236	 27.78	-2	1317293..1317436	+	47	157164452	-	CCC13826_2002	-	hypothetical protein
1237	 37.24	0	1317429..1318247	+	272	157165151	-	CCC13826_2001	-	HDOD domain-contain protein
1238	 40.89	0	1318244..1320163	+	639	157164705	-	CCC13826_2000	-	hypothetical protein
1239	 34.23	0	1320156..1321154	+	332	157164878	-	CCC13826_1999	-	DNA polymerase III subunit delta
1240	 37.62	0	1321232..1321651	+	139	157165390	rpsF	CCC13826_1998	-	30S ribosomal protein S6
1241	 40.15	0	1321665..1322192	+	175	157165454	-	CCC13826_1997	-	amino acid carrier protein AlsT
1242	 34.87	0	1322209..1322469	+	86	157164150	rpsR	CCC13826_1996	-	30S ribosomal protein S18
1243	 43.75	0	1322694..1324517	-	607	157164806	mrdA	CCC13826_1995	-	penicillin-binding protein 2
1244	 38.41	0	1324514..1325005	-	163	157165255	-	CCC13826_1994	-	hypothetical protein
1245	 39.19	0	1325007..1325621	-	204	157164919	tlpA	CCC13826_1993	-	GTPase EngB
1246	 38.36	0	1325618..1326094	-	158	157165382	yhbN	CCC13826_1992	-	cell envelope biogenesis protein YhbN
1247	 34.85	0	1326067..1326594	-	175	157163880	-	CCC13826_1991	-	hypothetical protein
1248	 40.08	0	1326585..1327073	-	162	157165559	-	CCC13826_1990	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
1249	 43.20	0	1327070..1327657	-	195	157163859	hisB	CCC13826_1989	-	imidazoleglycerol-phosphate dehydratase
1250	 42.97	0	1327661..1328521	-	286	157164643	-	CCC13826_1988	-	drug/metabolite exporter (DME) family protein
1251	 35.89	0	1328508..1329719	-	403	157164429	-	CCC13826_1987	-	Dyp-type peroxidase
1252	 35.09	0	1329703..1329816	-	37	157164995	-	CCC13826_1986	-	hypothetical protein
1253	 36.22	0	1329785..1330546	-	253	157165550	-	CCC13826_1985	-	glyoxalase II
1254	 37.47	0	1330567..1331823	-	418	157164317	-	CCC13826_1984	-	threonine dehydratase
1255	 39.77	0	1331912..1333417	-	501	157163888	-	CCC13826_1983	-	tRNA (uracil-5-)-methyltransferase
1256	 39.73	0	1333425..1334300	-	291	157165192	-	CCC13826_1982	-	Na+/H+ antiporter family protein
1257	 43.17	0	1334393..1336150	+	585	157165623	aspS	CCC13826_1981	-	aspartyl-tRNA synthetase
1258	 42.28	0	1336334..1336903	+	189	157164741	-	CCC13826_1980	-	adenylate kinase
1259	 38.05	0	1337010..1337348	+	112	157164154	-	CCC13826_1979	-	protein YgiW
1260	 40.85	0	1337418..1337936	+	172	157164858	ppa	CCC13826_1978	-	inorganic diphosphatase
1261	 38.55	0	1338255..1341932	-	1225	157164495	prrB	CCC13826_1975	-	anti-codon nuclease masking agent
1262	 46.23	+1	1342258..1343118	+	286	157164077	hsdM	CCC13826_1974	-	type I restriction-modification system, M subunit
1263	 45.14	+1	1343111..1343923	+	270	157164237	-	CCC13826_1973	-	riboflavin biosynthesis protein ribAB
1264	 49.64	+1	1343923..1344750	+	275	157165730	-	CCC13826_1972	-	radical SAM domain-containing protein
1265	 36.75	0	1344794..1344910	+	38	157165325	-	CCC13826_1971	-	hypothetical protein
1266	 42.89	0	1345172..1346521	-	449	157164392	-	CCC13826_1970	-	hypothetical protein
1267	 46.97	+1	1346505..1347164	-	219	157165503	-	CCC13826_1969	-	response regulator receiver domain-containing protein
1268	 36.17	0	1347206..1347874	-	222	157164625	-	CCC13826_1968	-	hypothetical protein
1269	 40.95	0	1347919..1348404	-	161	157164181	-	CCC13826_1967	-	peptidase propeptide/YPEB domain-containing protein
1270	 38.64	0	1348859..1349386	-	175	157165597	-	CCC13826_1965	-	CRISPR-associated protein Cas2
1271	 42.30	0	1349467..1349901	-	144	157163874	-	CCC13826_1964	-	hypothetical protein
1272	 38.32	0	1349901..1350842	-	313	157164407	-	CCC13826_1963	-	prepilin-type N-terminal cleavage/methylation domain-containing protein
1273	 41.86	0	1350839..1351483	-	214	157165426	-	CCC13826_1962	-	prepilin-type N- terminal cleavage/methylation domain-containing protein
1274	 35.61	0	1351477..1355691	-	1404	157163981	-	CCC13826_1961	-	hypothetical protein
1275	 34.90	0	1355745..1356128	-	127	157164573	-	CCC13826_1960	-	flagellar assembly protein FliW
1276	 39.04	0	1356241..1356888	+	215	157164633	-	CCC13826_1959	-	tRNA (guanine-N(1)-)-methyltransferase
1277	 44.91	+1	1356897..1359314	+	805	157164570	lon	CCC13826_1958	-	ATP-dependent protease La
1278	 37.30	0	1359859..1361823	-	654	157164011	-	CCC13826_1957	-	methyl-accepting chemotaxis protein
1279	 42.86	0	1361972..1362790	-	272	157165077	-	CCC13826_1956	-	phosphomethylpyrimidine kinase
1280	 42.73	0	1362794..1363708	-	304	157164348	ffh	CCC13826_1012	-	signal recognition particle protein
1281	 42.42	0	1363698..1364720	-	340	157165236	hemE	CCC13826_1013	-	uroporphyrinogen decarboxylase
1282	 40.04	0	1364813..1365319	-	168	157165772	-	CCC13826_1014	-	hypothetical protein
1283	 44.62	+1	1365705..1366634	-	309	157164147	-	CCC13826_1015	-	ribose-phosphate pyrophosphokinase
1284	 36.36	0	1366808..1367170	+	120	157165638	-	CCC13826_1017	-	glycyl-tRNA synthetase alpha chain (glycine--tRNA ligasealpha chain; GlyRS)
1285	 41.45	0	1367157..1368179	-	340	157165469	trmU	CCC13826_1016	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1286	 38.07	0	1368226..1368816	-	196	157164105	-	CCC13826_1018	-	hypothetical protein
1287	 43.74	0	1368816..1369670	-	284	157164750	-	CCC13826_1019	-	flagellar motor switch protein FliY
1288	 43.03	0	1369660..1370763	-	367	157164910	fliM	CCC13826_1020	-	flagellar motor switch protein FliM
1289	 40.57	0	1370763..1371467	-	234	157165349	yegQ	CCC13826_1021	-	flagellar biosynthesis sigma factor
1290	 33.91	-1	1371439..1371783	-	114	157165342	-	CCC13826_1022	-	hypothetical protein
1291	 41.18	0	1371797..1372663	-	288	157165759	-	CCC13826_0366	-	histidinol phosphatase
39.18	MEAN

5.26	STD DEV
