IslandPath Analysis: Burkholderia thailandensis E264

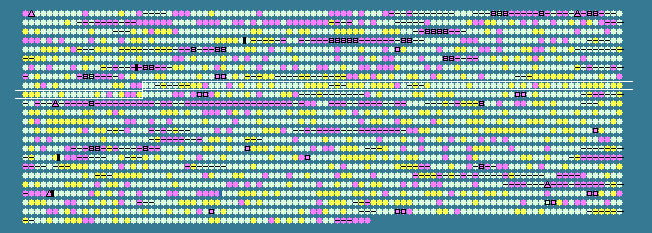

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
821	 67.09	0	965790..967199	-	469	83717333	-	BTH_II0826	-	type III secretion system protein BsaM
822	 64.95	0	967469..968227	+	252	83716503	-	BTH_II0827	-	type III secretion system transcriptional regulator BsaN
823	 69.78	0	968241..970100	+	619	83717183	-	BTH_II0828	-	type III secretion system protein BsaO
824	 73.92	+1	970016..971242	+	408	83716244	-	BTH_II0829	-	type III secretion system protein BsaP
825	 66.33	0	971242..973350	+	702	83717923	-	BTH_II0830	-	type III secretion system protein BsaQ
826	 67.16	0	973362..973769	+	135	83718086	-	BTH_II0831	-	type III secretion system protein BsaR
827	 71.70	0	973766..975076	+	436	83717980	-	BTH_II0832	-	ATP synthase SpaL
828	 75.05	+1	975073..975537	+	154	83717463	spaM	BTH_II0833	-	surface presentation of antigens protein
829	 76.73	+2	975515..976726	+	403	83717637	-	BTH_II0834	-	BsaU protein
830	 73.73	+1	976723..977685	+	320	83717115	-	BTH_II0835	-	type III secretion system protein BsaV
831	 62.48	-1	977675..978367	+	230	83718329	spaP	BTH_II0836	-	surface presentation of antigens protein SpaP
832	 65.10	0	978402..978656	+	84	83716660	-	BTH_II0837	-	type III secretion system protein BsaX
833	 68.12	0	978680..979435	+	251	83716221	-	BTH_II0838	-	type III secretion system protein BsaY
834	 67.02	0	979439..980584	+	381	83716929	-	BTH_II0839	-	surface presentation of antigens protein SpaS
835	 63.76	0	980710..981225	+	171	83716418	-	BTH_II0840	-	type III secretion chaperone BicA
836	 69.07	0	981244..983118	+	624	83717078	-	BTH_II0841	-	BipB protein
837	 71.46	0	983160..984389	+	409	83718166	-	BTH_II0842	-	type III secretion target BipC
838	 65.98	0	984515..984805	+	96	83717611	-	BTH_II0843	-	DNA-binding protein BprA
839	 65.15	0	984941..985798	+	285	83716730	-	BTH_II0844	-	BprD protein
840	 74.91	+1	985857..988502	+	881	83717805	-	BTH_II0845	-	hypothetical protein
841	 70.21	0	988499..988780	+	93	83717282	-	BTH_II0846	-	BapB protein
842	 71.58	0	988777..989325	+	182	83716468	-	BTH_II0847	-	BapC protein
843	 69.59	0	989822..990607	-	261	83718310	-	BTH_II0848	-	type III secretion target BopE
844	 68.10	0	991240..992778	+	512	83717606	-	BTH_II0849	-	BopA protein
845	 66.89	0	992960..993415	+	151	83718111	-	BTH_II0850	-	type III secretion chaperone BicP
846	 68.90	0	993650..994321	+	223	83716526	-	BTH_II0851	-	DNA-binding response regulator
847	 65.54	0	994546..994989	+	147	83717070	-	BTH_II0852	-	hypothetical protein
848	 72.73	+1	995098..996285	+	395	83717752	-	BTH_II0853	-	AraC family transcriptional regulator
849	 73.03	+1	996276..997595	-	439	83717089	-	BTH_II0854	-	ubiquitin-specific proteinase 31, putative
850	 75.58	+1	997685..1001575	-	1296	83716079	-	BTH_II0855	-	putative lipoprotein
851	 71.22	0	1001572..1002252	-	226	83716722	-	BTH_II0856	-	hypothetical protein
852	 71.04	0	1002249..1003643	-	464	83716919	-	BTH_II0857	-	hypothetical protein
853	 73.98	+1	1003676..1004482	-	268	83717233	-	BTH_II0858	-	hypothetical protein
854	 66.11	0	1004492..1004851	-	119	83716426	-	BTH_II0859	-	hypothetical protein
855	 76.73	+2	1004913..1005707	-	264	83716769	-	BTH_II0860	-	putative lipoprotein
856	 71.17	0	1005686..1006750	-	354	83717467	-	BTH_II0861	-	pentapeptide repeat-containing protein
857	 74.68	+1	1006768..1009386	-	872	83717943	-	BTH_II0862	-	pentapeptide repeat-containing protein
858	 68.54	0	1009425..1012463	-	1012	83717090	-	BTH_II0863	-	Rhs element Vgr protein
859	 73.38	+1	1012489..1015365	-	958	83717809	-	BTH_II0864	-	ATP-dependent Clp protease, ATP-binding subunit ClpB
860	 72.35	+1	1015352..1016407	-	351	83717117	-	BTH_II0865	-	hypothetical protein
861	 72.17	+1	1016371..1018113	-	580	83716626	-	BTH_II0866	-	hypothetical protein
862	 71.70	0	1018142..1018618	-	158	83717481	-	BTH_II0867	-	hypothetical protein
863	 61.96	-1	1018597..1019085	-	162	83716550	-	BTH_II0868	-	hcp protein
864	 64.96	0	1019268..1020794	-	508	83716783	-	BTH_II0869	-	hypothetical protein
865	 65.66	0	1020791..1021285	-	164	83717451	-	BTH_II0870	-	hypothetical protein
866	 72.19	+1	1021668..1023368	+	566	83717576	-	BTH_II0871	-	sensor histidine kinase
867	 66.26	0	1023365..1024099	+	244	83718212	-	BTH_II0872	-	DNA-binding response regulator
868	 73.96	+1	1024090..1025886	+	598	83716378	-	BTH_II0873	-	ImpA-like N-terminal family protein
869	 69.75	0	1026177..1026500	-	107	83717096	-	BTH_II0874	-	hypothetical protein
870	 69.29	0	1026584..1028185	-	533	83716561	-	BTH_II0875	-	Hep_Hag family protein
871	 69.42	0	1028324..1029595	-	423	83717327	-	BTH_II0876	-	hypothetical protein
872	 67.88	0	1029806..1030957	-	383	83716723	-	BTH_II0877	-	N-acetylmuramoyl-L-alanine amidase domain-containing protein
873	 67.68	0	1030900..1032477	+	525	83717789	-	BTH_II0878	-	hemagglutinin domain-containing protein
874	 69.52	0	1032594..1033223	-	209	83718169	-	BTH_II0879	-	SCO1/SenC family protein
875	 72.32	+1	1033226..1034056	-	276	83716090	-	BTH_II0880	-	hypothetical protein
876	 68.21	0	1034081..1035631	-	516	83716714	-	BTH_II0881	-	mulitcopper oxidase domain-containing protein
877	 64.17	0	1036040..1036480	-	146	83717701	-	BTH_II0882	-	hypothetical protein
878	 67.85	0	1036526..1037368	-	280	83718352	-	BTH_II0883	-	hypothetical protein
879	 69.29	0	1037371..1038588	-	405	83718368	-	BTH_II0884	-	hypothetical protein
880	 70.97	0	1038589..1039611	+	340	83716742	-	BTH_II0885	-	TetR family transcriptional regulator
881	 69.94	0	1039845..1040699	-	284	83717269	nadE	BTH_II0886	-	NAD synthetase
882	 74.83	+1	1040822..1041727	-	301	83718263	-	BTH_II0887	-	hypothetical protein
883	 66.67	0	1041813..1041998	-	61	83717757	-	BTH_II0888	-	hypothetical protein
884	 73.45	+1	1042103..1043149	+	348	83716949	-	BTH_II0889	-	DeoR family transcriptional regulator
885	 70.88	0	1043703..1045505	+	600	83717000	-	BTH_II0890	-	hypothetical protein
886	 62.58	-1	1045929..1046564	-	211	83716343	-	BTH_II0891	-	TetR family transcriptional regulator
887	 71.21	0	1046680..1048065	-	461	83718361	-	BTH_II0892	-	oxidoreductase, FAD-binding
888	 71.88	0	1048235..1048579	-	114	83717928	-	BTH_II0893	-	addiction module antitoxin
889	 70.63	0	1048640..1049548	-	302	83716907	-	BTH_II0894	-	LysR family transcriptional regulator
890	 68.93	0	1049551..1050744	+	397	83716157	-	BTH_II0895	-	hypothetical protein
891	 74.04	+1	1050800..1052020	+	406	83718242	-	BTH_II0896	-	aminotransferase family protein
892	 64.52	0	1052055..1052147	+	30	83717610	-	BTH_II0897	-	hypothetical protein
893	 69.25	0	1052158..1053669	+	503	83717237	-	BTH_II0898	-	piperideine-6-carboxylate dehydrogenase
894	 71.77	0	1053701..1054798	-	365	83718059	-	BTH_II0899	-	ApbE family protein
895	 72.70	+1	1054779..1057049	-	756	83716381	-	BTH_II0900	-	nitrate reductase/sulfite reductase flavoprotein alpha-component, putative
896	 72.36	+1	1057071..1057790	-	239	83717066	-	BTH_II0901	-	hypothetical protein
897	 71.71	0	1057901..1058356	-	151	83717697	-	BTH_II0902	-	hypothetical protein
898	 67.42	0	1058501..1059160	+	219	83718337	-	BTH_II0903	-	DNA-binding response regulator
899	 73.63	+1	1059163..1060527	+	454	83716897	-	BTH_II0904	-	sensor histidine kinase
900	 72.65	+1	1060648..1061649	-	333	83717472	-	BTH_II0905	-	LacI family transcription regulator
901	 73.85	+1	1061555..1064422	+	955	83716398	-	BTH_II0906	-	PTS system, glucose-specific EIIA/HPr/phosphoenolpyruvate-protein phosphotransferase components
902	 75.33	+1	1064419..1065468	+	349	83716437	pfkB	BTH_II0907	-	1-phosphofructokinase
903	 72.09	+1	1065491..1067278	+	595	83717371	-	BTH_II0908	-	protein-N p-phosphohistidine-sugar phosphotransferase
904	 68.82	0	1067508..1068344	+	278	83716855	-	BTH_II0909	-	acetyltransferase
905	 68.78	0	1068844..1070262	+	472	83716697	-	BTH_II0910	-	major facilitator family transporter
906	 70.41	0	1070596..1071663	-	355	83716160	-	BTH_II0911	-	hypothetical protein
907	 73.71	+1	1071727..1072365	-	212	83718282	-	BTH_II0912	-	hypothetical protein
908	 65.32	0	1072704..1073369	-	221	83717774	-	BTH_II0913	-	O-methyltransferase
909	 66.35	0	1073462..1074094	+	210	83718003	-	BTH_II0914	-	transcriptional regulatory protein
910	 70.09	0	1074260..1074376	+	38	83717493	-	BTH_II0915	-	hypothetical protein
911	 70.64	0	1074440..1076074	-	544	83716688	groL-2	BTH_II0916	-	chaperonin GroEL
912	 70.10	0	1076498..1077574	+	358	83717100	-	BTH_II0917	-	hypothetical protein
913	 71.53	0	1077552..1078538	-	328	83717322	-	BTH_II0918	-	ribose-phosphate pyrophosphokinase
914	 70.07	0	1078629..1081037	-	802	83717316	nadE	BTH_II0919	-	NAD synthetase
915	 64.00	0	1081227..1081676	+	149	83717973	-	BTH_II0920	-	CBS domain-containing protein
916	 70.37	0	1081799..1082122	+	107	83716283	-	BTH_II0921	-	hypothetical protein
917	 72.04	+1	1082116..1083231	+	371	83717586	ald	BTH_II0922	-	alanine dehydrogenase
918	 62.36	-1	1083510..1083857	+	115	83718251	-	BTH_II0923	-	hypothetical protein
919	 62.62	-1	1084196..1084738	-	180	83716486	-	BTH_II0924	-	heat shock protein
920	 73.20	+1	1084895..1087267	-	790	83716176	-	BTH_II0925	-	beta-lactamase, putative
67.58	MEAN

4.44	STD DEV
