IslandPath Analysis: Burkholderia thailandensis E264

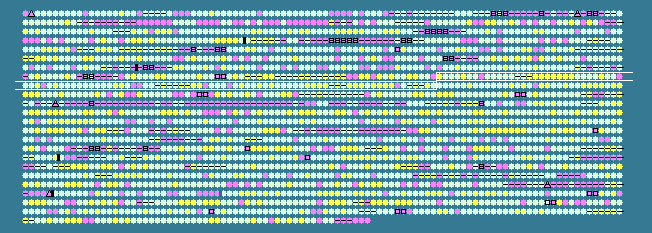

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 67.58   STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
770	 71.67	0	904612..905091	+	159	83717716	-	BTH_II0775	-	hypothetical protein
771	 67.68	0	905091..906773	+	560	83716262	-	BTH_II0776	-	type IV prepilin
772	 68.92	0	906894..908711	+	605	83717709	-	BTH_II0777	-	type II/III secretion system protein
773	 66.98	0	908785..909432	-	215	83718362	-	BTH_II0778	-	hypothetical protein
774	 75.12	+1	909676..909876	+	66	83716921	-	BTH_II0779	-	hypothetical protein
775	 67.97	0	909798..910028	-	76	83717863	-	BTH_II0780	-	hypothetical protein
776	 68.16	0	910307..911107	-	266	83716968	-	BTH_II0781	-	hypothetical protein
777	 61.99	-1	911187..911528	+	113	83717335	-	BTH_II0782	-	hypothetical protein
778	 67.31	0	911859..913421	-	520	83717857	-	BTH_II0783	-	hypothetical protein
779	 70.23	0	913547..914500	-	317	83718365	-	BTH_II0784	-	agmatinase, putative
780	 69.73	0	914654..915568	+	304	83716507	-	BTH_II0785	-	LysR family transcriptional regulator
781	 68.61	0	915736..916302	+	188	83717485	-	BTH_II0786	-	hypothetical protein
782	 69.45	0	916388..918973	+	861	83717793	-	BTH_II0787	-	ATP-dependent protease
783	 68.16	0	918966..919502	+	178	83717265	-	BTH_II0788	-	hypothetical protein
784	 70.94	0	919600..920067	-	155	83716721	-	BTH_II0789	-	HipB domain-containing protein
785	 71.39	0	920428..920808	-	126	83716131	-	BTH_II0790	-	hypothetical protein
786	 72.01	0	921076..923397	+	773	161723113	-	BTH_II0791	-	cellulose synthase regulator protein
787	 74.90	+1	923402..924883	+	493	83717569	-	BTH_II0792	-	endo-1,4-D-glucanase
788	 75.41	+1	924850..929265	+	1471	83717474	-	BTH_II0793	-	cellulose synthase operon protein C
789	 75.02	+1	929396..931525	+	709	83716931	-	BTH_II0794	-	hypothetical protein
790	 71.83	0	931522..931734	+	70	83716096	-	BTH_II0795	-	hypothetical protein
791	 75.06	+1	931731..932516	+	261	83716489	-	BTH_II0796	-	cellulose biosynthesis protein, putative
792	 71.39	0	932513..935050	+	845	83718202	-	BTH_II0797	-	glycosyl transferase, group 2 family protein
793	 68.65	0	935084..936649	+	521	83716905	-	BTH_II0798	-	hypothetical protein
794	 67.03	0	936952..937785	-	277	161723124	tauD	BTH_II0799	-	taurine dioxygenase
795	 70.62	0	938089..939099	+	336	83716789	tauA	BTH_II0800	-	taurine ABC transporter, periplasmic binding protein
796	 69.48	0	939120..939902	+	260	83716100	-	BTH_II0801	-	taurine ABC transporter, ATP-binding protein
797	 71.95	0	939905..940756	+	283	83716597	-	BTH_II0802	-	taurine ABC transporter, permease protein
798	 68.33	0	940832..942157	-	441	83718117	-	BTH_II0803	-	oxidoreductase, FAD/FMN-binding
799	 70.76	0	942512..943318	-	268	83717744	-	BTH_II0804	-	N-acyl homoserine lactone synthase
800	 63.49	0	943432..944124	-	230	83716740	-	BTH_II0805	-	LuxR family transcriptional regulator
801	 68.22	0	944779..945549	-	256	83716806	-	BTH_II0806	-	hypothetical protein
802	 69.00	0	945695..947281	-	528	83716288	-	BTH_II0807	-	phosphate transporter family protein
803	 75.23	+1	947410..947958	-	182	83717346	-	BTH_II0808	-	hypothetical protein
804	 63.43	0	947963..948487	-	174	83718390	-	BTH_II0809	-	AsnC family transcriptional regulator
805	 68.46	0	948463..949188	+	241	83717667	-	BTH_II0810	-	LysE family protein
806	 72.55	+1	949294..951162	+	622	83716631	-	BTH_II0811	-	serine protease, kumamolysin
807	 66.01	0	951669..953333	+	554	83716854	-	BTH_II0812	-	serine-type carboxypeptidase family protein
808	 70.59	0	953453..954676	-	407	83717219	-	BTH_II0813	-	FMN-dependent family dehydrogenase
809	 69.93	0	954779..955666	+	295	83716983	-	BTH_II0814	-	LysR family transcriptional regulator
810	 66.06	0	955989..957308	-	439	83717389	-	BTH_II0815	-	metabolite:proton symporter family protein
811	 68.32	0	957819..959516	-	565	83718299	-	BTH_II0816	-	thermolysin metallopeptidase
812	 68.48	0	959709..959873	+	54	83716474	-	BTH_II0817	-	hypothetical protein
813	 64.61	0	960508..960993	-	161	83716611	-	BTH_II0818	-	hypothetical protein
814	 64.31	0	960960..961892	-	310	83717154	-	BTH_II0819	-	transcriptional regulator, putative
815	 70.09	0	962607..962723	-	38	83718024	-	BTH_II0820	-	hypothetical protein
816	 73.28	+1	962902..963687	-	261	83717498	-	BTH_II0821	-	hypothetical protein
817	 71.77	0	963656..964243	-	195	83716971	-	BTH_II0822	-	oxygen-regulated invasion protein OrgA
818	 70.68	0	964240..965187	-	315	83716456	-	BTH_II0823	-	type III secretion system BasJ
819	 63.04	-1	965192..965494	-	100	83717438	-	BTH_II0824	-	type III secretion system protein BsaK
820	 58.15	-2	965524..965793	-	89	83716658	yscF	BTH_II0825	-	type III secretion system needle protein
821	 67.09	0	965790..967199	-	469	83717333	-	BTH_II0826	-	type III secretion system protein BsaM
822	 64.95	0	967469..968227	+	252	83716503	-	BTH_II0827	-	type III secretion system transcriptional regulator BsaN
823	 69.78	0	968241..970100	+	619	83717183	-	BTH_II0828	-	type III secretion system protein BsaO
824	 73.92	+1	970016..971242	+	408	83716244	-	BTH_II0829	-	type III secretion system protein BsaP
825	 66.33	0	971242..973350	+	702	83717923	-	BTH_II0830	-	type III secretion system protein BsaQ
826	 67.16	0	973362..973769	+	135	83718086	-	BTH_II0831	-	type III secretion system protein BsaR
827	 71.70	0	973766..975076	+	436	83717980	-	BTH_II0832	-	ATP synthase SpaL
828	 75.05	+1	975073..975537	+	154	83717463	spaM	BTH_II0833	-	surface presentation of antigens protein
829	 76.73	+2	975515..976726	+	403	83717637	-	BTH_II0834	-	BsaU protein
830	 73.73	+1	976723..977685	+	320	83717115	-	BTH_II0835	-	type III secretion system protein BsaV
831	 62.48	-1	977675..978367	+	230	83718329	spaP	BTH_II0836	-	surface presentation of antigens protein SpaP
832	 65.10	0	978402..978656	+	84	83716660	-	BTH_II0837	-	type III secretion system protein BsaX
833	 68.12	0	978680..979435	+	251	83716221	-	BTH_II0838	-	type III secretion system protein BsaY
834	 67.02	0	979439..980584	+	381	83716929	-	BTH_II0839	-	surface presentation of antigens protein SpaS
835	 63.76	0	980710..981225	+	171	83716418	-	BTH_II0840	-	type III secretion chaperone BicA
836	 69.07	0	981244..983118	+	624	83717078	-	BTH_II0841	-	BipB protein
837	 71.46	0	983160..984389	+	409	83718166	-	BTH_II0842	-	type III secretion target BipC
838	 65.98	0	984515..984805	+	96	83717611	-	BTH_II0843	-	DNA-binding protein BprA
839	 65.15	0	984941..985798	+	285	83716730	-	BTH_II0844	-	BprD protein
840	 74.91	+1	985857..988502	+	881	83717805	-	BTH_II0845	-	hypothetical protein
841	 70.21	0	988499..988780	+	93	83717282	-	BTH_II0846	-	BapB protein
842	 71.58	0	988777..989325	+	182	83716468	-	BTH_II0847	-	BapC protein
843	 69.59	0	989822..990607	-	261	83718310	-	BTH_II0848	-	type III secretion target BopE
844	 68.10	0	991240..992778	+	512	83717606	-	BTH_II0849	-	BopA protein
845	 66.89	0	992960..993415	+	151	83718111	-	BTH_II0850	-	type III secretion chaperone BicP
846	 68.90	0	993650..994321	+	223	83716526	-	BTH_II0851	-	DNA-binding response regulator
847	 65.54	0	994546..994989	+	147	83717070	-	BTH_II0852	-	hypothetical protein
848	 72.73	+1	995098..996285	+	395	83717752	-	BTH_II0853	-	AraC family transcriptional regulator
849	 73.03	+1	996276..997595	-	439	83717089	-	BTH_II0854	-	ubiquitin-specific proteinase 31, putative
850	 75.58	+1	997685..1001575	-	1296	83716079	-	BTH_II0855	-	putative lipoprotein
851	 71.22	0	1001572..1002252	-	226	83716722	-	BTH_II0856	-	hypothetical protein
852	 71.04	0	1002249..1003643	-	464	83716919	-	BTH_II0857	-	hypothetical protein
853	 73.98	+1	1003676..1004482	-	268	83717233	-	BTH_II0858	-	hypothetical protein
854	 66.11	0	1004492..1004851	-	119	83716426	-	BTH_II0859	-	hypothetical protein
855	 76.73	+2	1004913..1005707	-	264	83716769	-	BTH_II0860	-	putative lipoprotein
856	 71.17	0	1005686..1006750	-	354	83717467	-	BTH_II0861	-	pentapeptide repeat-containing protein
857	 74.68	+1	1006768..1009386	-	872	83717943	-	BTH_II0862	-	pentapeptide repeat-containing protein
858	 68.54	0	1009425..1012463	-	1012	83717090	-	BTH_II0863	-	Rhs element Vgr protein
859	 73.38	+1	1012489..1015365	-	958	83717809	-	BTH_II0864	-	ATP-dependent Clp protease, ATP-binding subunit ClpB
860	 72.35	+1	1015352..1016407	-	351	83717117	-	BTH_II0865	-	hypothetical protein
861	 72.17	+1	1016371..1018113	-	580	83716626	-	BTH_II0866	-	hypothetical protein
862	 71.70	0	1018142..1018618	-	158	83717481	-	BTH_II0867	-	hypothetical protein
863	 61.96	-1	1018597..1019085	-	162	83716550	-	BTH_II0868	-	hcp protein
864	 64.96	0	1019268..1020794	-	508	83716783	-	BTH_II0869	-	hypothetical protein
865	 65.66	0	1020791..1021285	-	164	83717451	-	BTH_II0870	-	hypothetical protein
866	 72.19	+1	1021668..1023368	+	566	83717576	-	BTH_II0871	-	sensor histidine kinase
867	 66.26	0	1023365..1024099	+	244	83718212	-	BTH_II0872	-	DNA-binding response regulator
868	 73.96	+1	1024090..1025886	+	598	83716378	-	BTH_II0873	-	ImpA-like N-terminal family protein
869	 69.75	0	1026177..1026500	-	107	83717096	-	BTH_II0874	-	hypothetical protein
67.58	MEAN

4.44	STD DEV
