IslandPath Analysis: Burkholderia thailandensis E264

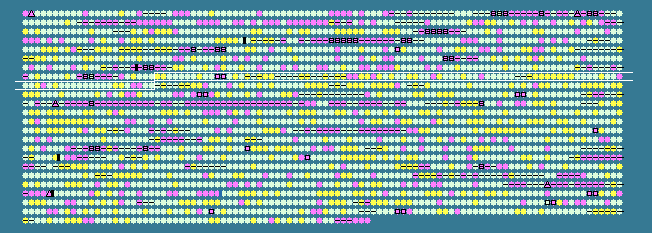

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 67.58   STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
723	 72.47	+1	857460..858062	-	200	83716878	-	BTH_II0728	-	hypothetical protein
724	 71.12	0	858049..858564	-	171	83717220	-	BTH_II0729	-	hypothetical protein
725	 66.01	0	858567..860987	-	806	83717900	-	BTH_II0730	-	lectin repeat-containing protein
726	 67.92	0	861415..862845	+	476	83718153	-	BTH_II0731	-	response regulator
727	 68.65	0	862936..864096	+	386	83716238	-	BTH_II0732	-	hypothetical protein
728	 65.74	0	864182..865258	+	358	83717824	-	BTH_II0733	-	sensory box sensor histidine kinase
729	 66.92	0	865411..865809	-	132	83718388	-	BTH_II0734	-	hypothetical protein
730	 71.19	0	865806..867221	-	471	83716233	-	BTH_II0735	-	EmrB/QacA family drug resistance transporter
731	 69.60	0	867312..868232	+	306	83717658	-	BTH_II0736	-	LysR family transcriptional regulator
732	 66.67	0	868443..868574	+	43	83716285	-	BTH_II0737	-	syringomycin biosynthesis enzyme, putative
733	 58.53	-2	868587..868967	-	126	83716618	-	BTH_II0738	-	IS4 family transposase
734	 55.88	-2	868937..869344	-	135	83716543	-	BTH_II0739	-	transposase, putative
735	 70.83	0	869475..870338	-	287	83717312	-	BTH_II0740	-	hypothetical protein
736	 72.60	+1	870381..872369	-	662	83717837	-	BTH_II0741	-	hypothetical protein
737	 65.76	0	872725..873717	-	330	83717347	-	BTH_II0742	-	type III secretion inner membrane protein SctT, putative
738	 76.49	+2	873714..874232	-	172	83716635	-	BTH_II0743	-	putative type III secretory pathway protein
739	 70.65	0	874229..875557	-	442	83717873	-	BTH_II0744	-	type III secretion system ATPase
740	 74.48	+1	875554..876270	-	238	83716301	-	BTH_II0745	-	type III secretion system protein HrpB
741	 77.20	+2	876255..876947	-	230	83716816	-	BTH_II0746	-	hypothetical protein
742	 72.14	+1	876944..877801	-	285	83716240	-	BTH_II0747	-	lipoprotein transmembrane protein
743	 69.78	0	877804..878220	-	138	83717925	-	BTH_II0748	-	HrpB2-like protein
744	 70.81	0	878234..878788	-	184	83716126	-	BTH_II0749	-	hypothetical protein
745	 68.79	0	879024..880106	+	360	83717264	-	BTH_II0750	-	type III secretion system protein HrcU
746	 69.27	0	880103..882175	+	690	83717211	-	BTH_II0751	-	type III secretion inner membrane protein SctV
747	 75.37	+1	882172..882780	+	202	83717503	-	BTH_II0752	-	type III secretion inner membrane protein SctQ
748	 75.00	+1	882815..884086	+	423	83716524	-	BTH_II0753	-	surface presentation of antigens domain-containing protein
749	 65.13	0	884073..884723	+	216	83718233	-	BTH_II0754	-	type III secretion system protein
750	 66.29	0	884771..885034	+	87	83716881	-	BTH_II0755	-	type III secretion inner membrane protein SctS
751	 76.88	+2	885181..885924	+	247	83717953	-	BTH_II0756	-	hypothetical protein
752	 65.03	0	885925..886107	+	60	83717725	-	BTH_II0757	-	hypothetical protein
753	 75.40	+1	886118..887125	+	335	83717370	-	BTH_II0758	-	serine protease
754	 71.83	0	887154..887405	+	83	83716593	-	BTH_II0759	-	hypothetical protein
755	 62.03	-1	887429..887773	+	114	83718271	-	BTH_II0760	-	hypothetical protein
756	 62.72	-1	887864..888319	+	151	83717955	-	BTH_II0761	-	hypothetical protein
757	 72.79	+1	888623..890059	+	478	83716867	-	BTH_II0762	-	regulatory protein HrpB
758	 71.85	0	890417..891091	-	224	83718277	-	BTH_II0763	-	hrp protein, putative
759	 63.93	0	891187..891735	+	182	83717792	-	BTH_II0764	-	hypothetical protein
760	 73.04	+1	891924..892958	+	344	83717116	-	BTH_II0765	-	sensor histidine kinase
761	 68.80	0	893001..893750	+	249	83717570	-	BTH_II0766	-	DNA-binding response regulator
762	 77.78	+2	893747..895546	+	599	83717241	-	BTH_II0767	-	type II/III secretion system family protein
763	 66.67	0	895729..896760	-	343	83716520	-	BTH_II0768	-	twitching motility protein PilT, putative
764	 68.98	0	896846..899482	+	878	83716256	-	BTH_II0769	-	type IV pilus biogenesis protein PilN, putative
765	 72.56	+1	899494..900783	+	429	83716420	-	BTH_II0770	-	pilO family protein
766	 74.14	+1	900773..901294	+	173	83717669	-	BTH_II0771	-	hypothetical protein
767	 70.81	0	901291..902907	+	538	83718165	-	BTH_II0772	-	type II/IV secretion system protein
768	 69.17	0	902897..903973	+	358	83717653	-	BTH_II0773	-	type IV pilus biogenesis protein
769	 62.50	-1	904021..904572	+	183	83718181	-	BTH_II0774	-	type IV pilus biogenesis protein, putative
770	 71.67	0	904612..905091	+	159	83717716	-	BTH_II0775	-	hypothetical protein
771	 67.68	0	905091..906773	+	560	83716262	-	BTH_II0776	-	type IV prepilin
772	 68.92	0	906894..908711	+	605	83717709	-	BTH_II0777	-	type II/III secretion system protein
773	 66.98	0	908785..909432	-	215	83718362	-	BTH_II0778	-	hypothetical protein
774	 75.12	+1	909676..909876	+	66	83716921	-	BTH_II0779	-	hypothetical protein
775	 67.97	0	909798..910028	-	76	83717863	-	BTH_II0780	-	hypothetical protein
776	 68.16	0	910307..911107	-	266	83716968	-	BTH_II0781	-	hypothetical protein
777	 61.99	-1	911187..911528	+	113	83717335	-	BTH_II0782	-	hypothetical protein
778	 67.31	0	911859..913421	-	520	83717857	-	BTH_II0783	-	hypothetical protein
779	 70.23	0	913547..914500	-	317	83718365	-	BTH_II0784	-	agmatinase, putative
780	 69.73	0	914654..915568	+	304	83716507	-	BTH_II0785	-	LysR family transcriptional regulator
781	 68.61	0	915736..916302	+	188	83717485	-	BTH_II0786	-	hypothetical protein
782	 69.45	0	916388..918973	+	861	83717793	-	BTH_II0787	-	ATP-dependent protease
783	 68.16	0	918966..919502	+	178	83717265	-	BTH_II0788	-	hypothetical protein
784	 70.94	0	919600..920067	-	155	83716721	-	BTH_II0789	-	HipB domain-containing protein
785	 71.39	0	920428..920808	-	126	83716131	-	BTH_II0790	-	hypothetical protein
786	 72.01	0	921076..923397	+	773	161723113	-	BTH_II0791	-	cellulose synthase regulator protein
787	 74.90	+1	923402..924883	+	493	83717569	-	BTH_II0792	-	endo-1,4-D-glucanase
788	 75.41	+1	924850..929265	+	1471	83717474	-	BTH_II0793	-	cellulose synthase operon protein C
789	 75.02	+1	929396..931525	+	709	83716931	-	BTH_II0794	-	hypothetical protein
790	 71.83	0	931522..931734	+	70	83716096	-	BTH_II0795	-	hypothetical protein
791	 75.06	+1	931731..932516	+	261	83716489	-	BTH_II0796	-	cellulose biosynthesis protein, putative
792	 71.39	0	932513..935050	+	845	83718202	-	BTH_II0797	-	glycosyl transferase, group 2 family protein
793	 68.65	0	935084..936649	+	521	83716905	-	BTH_II0798	-	hypothetical protein
794	 67.03	0	936952..937785	-	277	161723124	tauD	BTH_II0799	-	taurine dioxygenase
795	 70.62	0	938089..939099	+	336	83716789	tauA	BTH_II0800	-	taurine ABC transporter, periplasmic binding protein
796	 69.48	0	939120..939902	+	260	83716100	-	BTH_II0801	-	taurine ABC transporter, ATP-binding protein
797	 71.95	0	939905..940756	+	283	83716597	-	BTH_II0802	-	taurine ABC transporter, permease protein
798	 68.33	0	940832..942157	-	441	83718117	-	BTH_II0803	-	oxidoreductase, FAD/FMN-binding
799	 70.76	0	942512..943318	-	268	83717744	-	BTH_II0804	-	N-acyl homoserine lactone synthase
800	 63.49	0	943432..944124	-	230	83716740	-	BTH_II0805	-	LuxR family transcriptional regulator
801	 68.22	0	944779..945549	-	256	83716806	-	BTH_II0806	-	hypothetical protein
802	 69.00	0	945695..947281	-	528	83716288	-	BTH_II0807	-	phosphate transporter family protein
803	 75.23	+1	947410..947958	-	182	83717346	-	BTH_II0808	-	hypothetical protein
804	 63.43	0	947963..948487	-	174	83718390	-	BTH_II0809	-	AsnC family transcriptional regulator
805	 68.46	0	948463..949188	+	241	83717667	-	BTH_II0810	-	LysE family protein
806	 72.55	+1	949294..951162	+	622	83716631	-	BTH_II0811	-	serine protease, kumamolysin
807	 66.01	0	951669..953333	+	554	83716854	-	BTH_II0812	-	serine-type carboxypeptidase family protein
808	 70.59	0	953453..954676	-	407	83717219	-	BTH_II0813	-	FMN-dependent family dehydrogenase
809	 69.93	0	954779..955666	+	295	83716983	-	BTH_II0814	-	LysR family transcriptional regulator
810	 66.06	0	955989..957308	-	439	83717389	-	BTH_II0815	-	metabolite:proton symporter family protein
811	 68.32	0	957819..959516	-	565	83718299	-	BTH_II0816	-	thermolysin metallopeptidase
812	 68.48	0	959709..959873	+	54	83716474	-	BTH_II0817	-	hypothetical protein
813	 64.61	0	960508..960993	-	161	83716611	-	BTH_II0818	-	hypothetical protein
814	 64.31	0	960960..961892	-	310	83717154	-	BTH_II0819	-	transcriptional regulator, putative
815	 70.09	0	962607..962723	-	38	83718024	-	BTH_II0820	-	hypothetical protein
816	 73.28	+1	962902..963687	-	261	83717498	-	BTH_II0821	-	hypothetical protein
817	 71.77	0	963656..964243	-	195	83716971	-	BTH_II0822	-	oxygen-regulated invasion protein OrgA
818	 70.68	0	964240..965187	-	315	83716456	-	BTH_II0823	-	type III secretion system BasJ
819	 63.04	-1	965192..965494	-	100	83717438	-	BTH_II0824	-	type III secretion system protein BsaK
820	 58.15	-2	965524..965793	-	89	83716658	yscF	BTH_II0825	-	type III secretion system needle protein
821	 67.09	0	965790..967199	-	469	83717333	-	BTH_II0826	-	type III secretion system protein BsaM
822	 64.95	0	967469..968227	+	252	83716503	-	BTH_II0827	-	type III secretion system transcriptional regulator BsaN
67.58	MEAN

4.44	STD DEV
