IslandPathversion 1.0

IslandPath Analysis: Burkholderia thailandensis E264

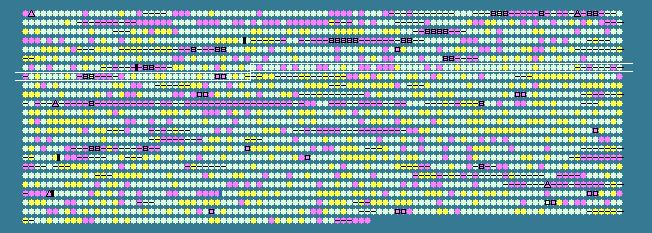

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
639	 66.76	0	750383..751495	+	370	83717491	-	BTH_II0642	-	spermidine/putrescine ABC transporter, ATP-binding protein
640	 63.59	0	751513..752616	+	367	83716052	-	BTH_II0643	-	spermidine/putrescine ABC transporter, periplasmic spermidine/putrescine-binding protein
641	 66.75	0	752717..753976	+	419	83716853	-	BTH_II0644	-	spermidine/putrescine ABC transporter, permease protein
642	 65.71	0	754008..754847	+	279	83717787	-	BTH_II0645	-	polyamine ABC transporter, permease protein
643	 65.60	0	754925..756613	-	562	83717912	-	BTH_II0646	-	serine protease
644	 62.32	-1	757033..757308	-	91	83718018	-	BTH_II0647	-	hypothetical protein
645	 69.04	0	758130..758762	+	210	83716989	-	BTH_II0648	-	hypothetical protein
646	 63.00	-1	759043..760650	+	535	83717810	-	BTH_II0649	-	tyrosinase (monophenol monooxygenase)
647	 65.29	0	760766..761200	+	144	83717490	-	BTH_II0650	-	hypothetical protein
648	 68.53	0	761384..761758	+	124	83718029	-	BTH_II0651	-	hypothetical protein
649	 68.63	0	762115..763644	+	509	83717174	-	BTH_II0652	-	cytochrome c family protein
650	 63.87	0	763887..764279	+	130	83716501	-	BTH_II0653	-	cytochrome c
651	 64.09	0	764638..767355	-	905	83718192	acnA	BTH_II0654	-	aconitate hydratase
652	 68.25	0	767403..768854	-	483	83717372	prpD	BTH_II0655	-	2-methylcitrate dehydratase
653	 67.06	0	768933..769442	-	169	83716886	-	BTH_II0656	-	hypothetical protein
654	 73.53	+1	769599..770618	-	339	83716056	-	BTH_II0657	-	lyase, putative
655	 66.97	0	770816..771799	-	327	83717804	-	BTH_II0658	-	malate dehydrogenase
656	 64.63	0	771768..772898	+	376	83716990	-	BTH_II0659	-	GntR family transcriptional regulator
657	 58.03	-2	773097..773513	+	138	83716452	-	BTH_II0660	-	succinate dehydrogenase, cytochrome b556 subunit
658	 62.60	-1	773518..773886	+	122	83716544	-	BTH_II0661	-	succinate dehydrogenase, hydrophobic membrane anchor protein
659	 66.39	0	773890..775665	+	591	83718253	sdhA	BTH_II0662	-	succinate dehydrogenase flavoprotein subunit
660	 63.68	0	775687..776388	+	233	83718183	sdhB	BTH_II0663	-	succinate dehydrogenase iron-sulfur subunit
661	 64.10	0	776390..776662	+	90	83717674	-	BTH_II0664	-	TPR repeat-containing protein
662	 62.90	-1	776715..778016	+	433	83716217	gltA	BTH_II0665	-	type II citrate synthase
663	 73.58	+1	778127..779095	-	322	83718069	-	BTH_II0666	-	AraC family transcriptional regulator
664	 66.41	0	779171..779560	+	129	83716675	-	BTH_II0667	-	glyoxalase family protein family
665	 68.99	0	780146..780274	+	42	83716608	-	BTH_II0668	-	hypothetical protein
666	 70.76	0	780375..781619	+	414	83717523	-	BTH_II0669	-	dioxygenase, putative
667	 70.77	0	782223..784973	-	916	83718151	-	BTH_II0670	-	2-oxoacid dehydrogenase subunit E1
668	 62.75	-1	784972..785661	+	229	83716630	-	BTH_II0671	-	bkd operon transcriptional regulator
669	 67.59	0	785855..787264	+	469	83717109	leuC	BTH_II0672	-	isopropylmalate isomerase large subunit
670	 62.98	-1	787488..788138	+	216	83717288	leuD	BTH_II0673	-	isopropylmalate isomerase small subunit
671	 66.39	0	788252..789319	+	355	83718087	leuB	BTH_II0674	-	3-isopropylmalate dehydrogenase
672	 65.33	0	789691..790812	+	373	83716286	asd	BTH_II0675	-	aspartate-semialdehyde dehydrogenase
673	 74.48	+1	790948..793482	+	844	83716450	-	BTH_II0676	-	transmembrane protein
674	 68.27	0	793482..794294	+	270	83718190	truA	BTH_II0677	-	tRNA pseudouridine synthase A
675	 70.31	0	794294..795034	+	246	161723119	-	BTH_II0678	-	N-(5'-phosphoribosyl)anthranilate isomerase
676	 66.75	0	795104..796297	+	397	83717275	trpB	BTH_II0679	-	tryptophan synthase subunit beta
677	 65.38	0	796386..797165	+	259	83716900	-	BTH_II0680	-	N-6 adenine-specific DNA methylase
678	 70.22	0	797208..798023	+	271	83717517	trpA	BTH_II0681	-	tryptophan synthase subunit alpha
679	 66.21	0	798103..798975	+	290	83716718	accD	BTH_II0682	-	acetyl-CoA carboxylase subunit beta
680	 67.81	0	799088..800401	+	437	83716186	-	BTH_II0683	-	folylpolyglutamate synthase/dihydrofolate synthase
681	 73.28	+1	800431..801246	+	271	83717746	-	BTH_II0684	-	sporulation repeat-containing protein
682	 67.88	0	801253..801747	+	164	83716941	cvpA	BTH_II0685	-	CvpA family protein
683	 66.08	0	801800..803335	+	511	83716414	purF	BTH_II0686	-	amidophosphoribosyltransferase
684	 66.34	0	803558..804775	+	405	83718046	metZ	BTH_II0687	-	O-succinylhomoserine sulfhydrylase
685	 65.09	0	804868..805248	+	126	83716142	-	BTH_II0688	-	hypothetical protein
686	 71.72	0	805233..806201	-	322	83717405	-	BTH_II0689	-	GDP-6-deoxy-D-lyxo-4-hexulose reductase, putative
687	 64.37	0	806188..807231	-	347	83716887	gmd-2	BTH_II0690	-	GDP-mannose 4,6-dehydratase
688	 69.82	0	807267..808406	-	379	83718391	-	BTH_II0691	-	acyltransferase family protein
689	 67.53	0	808499..808729	+	76	83718060	-	BTH_II0692	-	hypothetical protein
690	 70.01	0	808877..811060	+	727	83717381	-	BTH_II0693	-	hypothetical protein
691	 67.35	0	811112..812578	+	488	83717047	-	BTH_II0694	-	polysaccharide biosynthesis family protein
692	 70.44	0	812467..815040	+	857	83716384	-	BTH_II0695	-	glycosyl transferase, group 1 family protein
693	 72.22	+1	815109..815216	+	35	83716556	-	BTH_II0696	-	hypothetical protein
694	 66.91	0	815753..816985	-	410	83718201	-	BTH_II0697	-	O-antigen acetylase, putative
695	 56.25	-2	817143..817286	+	47	83716220	-	BTH_II0698	-	hypothetical protein
696	 64.41	0	817564..818448	+	294	83717901	galU-3	BTH_II0699	-	UTP-glucose-1-phosphate uridylyltransferase
697	 66.51	0	818848..820161	-	437	83718215	-	BTH_II0700	-	acyltransferase family protein
698	 64.64	0	820250..820693	+	147	83717539	-	BTH_II0701	-	DNA-binding protein BpH2
699	 60.62	-1	821822..823393	-	523	83716254	-	BTH_II0702	-	outer membrane porin OpcP
700	 68.81	0	823442..824419	-	325	83718267	-	BTH_II0703	-	YihY family protein
701	 63.25	0	824608..824841	-	77	83716644	-	BTH_II0704	-	hypothetical protein
702	 69.92	0	825393..826160	+	255	83718016	-	BTH_II0705	-	hypothetical protein
703	 71.61	0	826157..826924	+	255	83717478	-	BTH_II0706	-	hypothetical protein
704	 65.56	0	827701..830772	+	1023	83716383	-	BTH_II0707	-	formate dehydrogenase, alpha subunit, selenocysteine-containing
705	 66.56	0	830783..831697	+	304	83716728	fdxH	BTH_II0708	-	formate dehydrogenase, beta subunit
706	 64.59	0	831694..832320	+	208	83716667	-	BTH_II0709	-	formate dehydrogenase, gamma subunit
707	 70.30	0	832507..833469	+	320	83717858	fdhE	BTH_II0710	-	formate dehydrogenase accessory protein FdhE
708	 72.51	+1	833421..834908	+	495	83717313	selA	BTH_II0711	-	selenocysteine synthase
709	 70.77	0	834905..836830	+	641	83717712	selB	BTH_II0712	-	selenocysteine-specific translation elongation factor
710	 56.12	-2	838211..839395	-	394	83717063	-	BTH_II0715	-	hypothetical protein
711	 58.60	-2	839851..840036	+	61	83716227	-	BTH_II0716	-	transposase
712	 65.25	0	840112..840819	+	235	83718105	-	BTH_II0717	-	transposase
713	 57.52	-2	841121..841459	-	112	83717445	-	BTH_II0718	-	hypothetical protein
714	 55.77	-2	842385..842852	-	155	83717507	-	BTH_II0719	-	streptavidin, putative
715	 59.10	-1	843661..844413	-	250	83716684	-	BTH_II0720	-	hypothetical protein
716	 66.11	0	845217..846821	-	534	83716519	-	BTH_II0721	-	glutamyl-tRNA, putative
717	 61.38	-1	847168..847659	-	163	83717935	-	BTH_II0722	-	hypothetical protein
718	 65.89	0	848397..850592	-	731	83717177	bglB	BTH_II0723	-	beta-glucosidase
719	 71.93	0	851070..851981	-	303	83716528	-	BTH_II0724	-	IclR family transcriptional regulator
720	 69.90	0	852095..854446	+	783	83718232	-	BTH_II0725	-	cytochrome P450
721	 69.88	0	854508..855875	+	455	83717560	-	BTH_II0726	-	4-hydroxybenzoate transporter
722	 66.27	0	856385..857386	+	333	83716246	-	BTH_II0727	-	patatin-like phospholipase
723	 72.47	+1	857460..858062	-	200	83716878	-	BTH_II0728	-	hypothetical protein
724	 71.12	0	858049..858564	-	171	83717220	-	BTH_II0729	-	hypothetical protein
725	 66.01	0	858567..860987	-	806	83717900	-	BTH_II0730	-	lectin repeat-containing protein
726	 67.92	0	861415..862845	+	476	83718153	-	BTH_II0731	-	response regulator
727	 68.65	0	862936..864096	+	386	83716238	-	BTH_II0732	-	hypothetical protein
728	 65.74	0	864182..865258	+	358	83717824	-	BTH_II0733	-	sensory box sensor histidine kinase
729	 66.92	0	865411..865809	-	132	83718388	-	BTH_II0734	-	hypothetical protein
730	 71.19	0	865806..867221	-	471	83716233	-	BTH_II0735	-	EmrB/QacA family drug resistance transporter
731	 69.60	0	867312..868232	+	306	83717658	-	BTH_II0736	-	LysR family transcriptional regulator
732	 66.67	0	868443..868574	+	43	83716285	-	BTH_II0737	-	syringomycin biosynthesis enzyme, putative
733	 58.53	-2	868587..868967	-	126	83716618	-	BTH_II0738	-	IS4 family transposase
734	 55.88	-2	868937..869344	-	135	83716543	-	BTH_II0739	-	transposase, putative
735	 70.83	0	869475..870338	-	287	83717312	-	BTH_II0740	-	hypothetical protein
736	 72.60	+1	870381..872369	-	662	83717837	-	BTH_II0741	-	hypothetical protein
737	 65.76	0	872725..873717	-	330	83717347	-	BTH_II0742	-	type III secretion inner membrane protein SctT, putative
738	 76.49	+2	873714..874232	-	172	83716635	-	BTH_II0743	-	putative type III secretory pathway protein
67.58	MEAN

4.44	STD DEV
