IslandPathversion 1.0

IslandPath Analysis: Burkholderia thailandensis E264

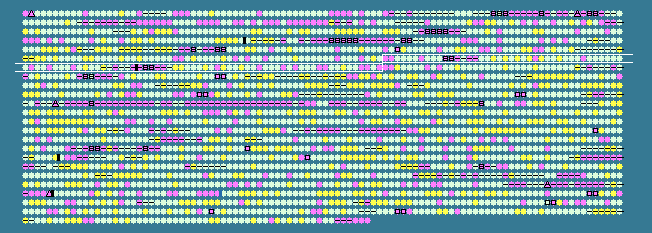

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
561	 61.30	-1	667331..667591	+	86	83716143	-	BTH_II0563	-	peptide synthetase, putative
562	 62.58	-1	667687..668592	+	301	83718031	-	BTH_II0564	-	BarB2
563	 67.31	0	668611..669393	+	260	83717512	-	BTH_II0565	-	BarC
564	 66.81	0	669401..670084	+	227	83716952	-	BTH_II0566	-	demethylmenaquinone methyltransferase
565	 66.67	0	670099..671043	+	314	83718030	ilvE-2	BTH_II0567	-	branched-chain amino acid aminotransferase
566	 68.33	0	671040..671882	+	280	83718278	-	BTH_II0568	-	BarC
567	 63.76	0	671879..672772	+	297	83717768	mhpF	BTH_II0569	-	acetaldehyde dehydrogenase
568	 67.24	0	672769..673812	+	347	83717692	mhpE	BTH_II0570	-	4-hydroxy-2-ketovalerate aldolase
569	 66.67	0	673854..674270	+	138	83717243	-	BTH_II0571	-	pectin degradation protein kdgF
570	 64.76	0	674334..674909	+	191	83717127	-	BTH_II0572	-	LysE family protein, putative
571	 58.53	-2	675008..675388	-	126	83716980	-	BTH_II0573	-	IS4 family transposase
572	 55.88	-2	675358..675765	-	135	83717497	-	BTH_II0574	-	transposase, putative
573	 58.43	-2	675807..676838	-	343	83716893	-	BTH_II0575	-	hypothetical protein
574	 64.68	0	677602..678456	-	284	83716446	-	BTH_II0576	-	AraC family transcriptional regulator
575	 61.11	-1	678552..679145	+	197	83718320	-	BTH_II0577	-	hypothetical protein
576	 62.26	-1	679390..679866	-	158	83717702	-	BTH_II0578	-	hypothetical protein
577	 64.73	0	680053..681291	+	412	83716716	-	BTH_II0579	-	FMN-dependent dehydrogenase
578	 65.11	0	681347..682117	-	256	83716172	-	BTH_II0580	-	ebsC protein, putative
579	 71.43	0	682124..682837	-	237	83718290	-	BTH_II0581	-	hypothetical protein
580	 70.26	0	683111..684754	+	547	83717780	-	BTH_II0582	-	alpha amylase family protein
581	 72.76	+1	684908..685498	-	196	83716807	-	BTH_II0583	-	thiamine-phosphate pyrophosphorylase ThiE, putative
582	 66.29	0	685534..686874	-	446	83716148	-	BTH_II0584	-	CBS domain-containing protein
583	 75.26	+1	686960..687739	-	259	83717830	-	BTH_II0585	-	sensor histidine kinase
584	 70.78	0	687819..688742	-	307	83717290	-	BTH_II0586	-	hypothetical protein
585	 76.03	+1	688810..689685	-	291	83716791	-	BTH_II0587	-	LysR family transcriptional regulator
586	 61.72	-1	689783..690166	+	127	83716317	-	BTH_II0588	-	tautomerase enzyme family protein
587	 73.13	+1	690373..692106	+	577	83716444	-	BTH_II0589	-	CHAD domain-contain protein
588	 69.73	0	692141..692989	+	282	83718285	-	BTH_II0590	-	transcriptional regulator ModE
589	 68.23	0	693323..694024	-	233	83717859	-	BTH_II0591	-	molybdenum ABC transporter, ATP-binding protein
590	 72.00	0	694026..694700	-	224	83717363	modB	BTH_II0592	-	molybdate ABC transporter, permease protein
591	 69.01	0	694713..695777	-	354	83717151	-	BTH_II0593	-	molybdenum ABC transporter, periplasmic molybdate-binding protein
592	 69.96	0	695826..696524	-	232	83717687	-	BTH_II0594	-	PAP2 family protein
593	 69.77	0	696818..697912	+	364	83716634	-	BTH_II0595	-	polyhydroxybutyrate depolymerase domain-containing protein
594	 59.12	-1	698009..698167	+	52	83717010	-	BTH_II0596	-	hypothetical protein
595	 65.95	0	698281..698700	-	139	83717550	-	BTH_II0597	-	organic hydroperoxide resistance protein
596	 64.93	0	698839..699642	-	267	83718044	-	BTH_II0598	-	MarR family transcriptional regulator
597	 66.17	0	699777..700589	-	270	83717861	-	BTH_II0599	-	hypothetical protein
598	 68.37	0	700580..701575	-	331	83716177	thrB	BTH_II0600	-	homoserine kinase
599	 67.67	0	701670..702068	-	132	83716496	-	BTH_II0601	-	hypothetical protein
600	 65.82	0	702224..703750	+	508	83717216	amn	BTH_II0602	-	AMP nucleosidase
601	 66.27	0	703877..704383	-	168	83716705	-	BTH_II0603	-	hypothetical protein
602	 62.53	-1	704549..705298	-	249	83718275	-	BTH_II0604	-	decarboxylase family protein
603	 66.38	0	705300..708080	+	926	83716432	-	BTH_II0605	-	DNA polymerase I
604	 69.78	0	708397..709779	+	460	83717883	-	BTH_II0606	-	NADH dehydrogenase
605	 63.71	0	709776..710012	-	78	83716323	-	BTH_II0607	-	hypothetical protein
606	 68.73	0	710092..711888	-	598	83716874	-	BTH_II0608	-	hypothetical protein
607	 66.78	0	712653..713525	+	290	83717529	-	BTH_II0609	-	carboxymethylenebutenolidase
608	 68.62	0	713567..714436	-	289	83718316	-	BTH_II0610	-	rhodanese domain-containing protein
609	 62.24	-1	714584..715690	-	368	83717172	-	BTH_II0611	-	Rieske family iron-sulfur cluster-binding protein
610	 65.40	0	715939..716253	+	104	83717831	-	BTH_II0612	-	exodeoxyribonuclease VII small subunit
611	 71.19	0	716250..717134	+	294	83716251	-	BTH_II0613	-	geranyltranstransferase
612	 67.14	0	717219..719123	+	634	83717976	dxs	BTH_II0614	-	1-deoxy-D-xylulose-5-phosphate synthase
613	 65.47	0	719239..720072	+	277	83717706	-	BTH_II0615	-	putative GTP cyclohydrolase
614	 71.09	0	720487..721527	-	346	83717849	-	BTH_II0616	-	O-sialoglycoprotein endopeptidase
615	 70.18	0	721658..722881	+	407	83718330	-	BTH_II0617	-	hypothetical protein
616	 59.62	-1	722961..723173	+	70	83716896	rpsU	BTH_II0618	-	30S ribosomal protein S21
617	 67.79	0	723340..723786	+	148	83716247	-	BTH_II0619	-	GatB/Yqey family protein
618	 66.56	0	723883..725760	+	625	83717428	dnaG	BTH_II0620	-	DNA primase
619	 63.67	0	725844..728246	+	800	83716798	-	BTH_II0621	-	RNA polymerase sigma factor RpoD
620	 55.46	-2	728472..729542	-	356	83716149	-	BTH_II0623	-	Bbp50
621	 63.50	0	729772..731604	+	610	83717847	-	BTH_II0624	-	transposase
622	 61.40	-1	730781..731653	+	290	83717189	-	BTH_II0625	-	transposase mutator family protein
623	 52.22	-2	731844..733061	-	405	83716529	-	BTH_II0626	-	acyltransferase
624	 50.51	-2	733078..734055	-	325	83716057	-	BTH_II0627	-	hypothetical protein
625	 67.16	0	734575..735999	+	474	83717130	-	BTH_II0628	-	cytosine/purines/uracil/thiamine/allantoin permease family protein
626	 71.47	0	735996..736931	+	311	83716580	-	BTH_II0629	-	NAD-dependent deacetylase
627	 71.24	0	736894..737571	+	225	83718125	-	BTH_II0630	-	hypothetical protein
628	 66.03	0	738026..739441	+	471	83717630	gnd	BTH_II0631	-	6-phosphogluconate dehydrogenase
629	 67.87	0	739640..739972	+	110	83717812	-	BTH_II0632	-	hypothetical protein
630	 66.67	0	740366..740728	+	120	83716117	-	BTH_II0633	-	hypothetical protein
631	 71.16	0	740913..741758	+	281	83716815	-	BTH_II0634	-	lipoprotein NlpD, putative
632	 64.47	0	741874..742509	-	211	83717326	-	BTH_II0635	-	hypothetical protein
633	 63.33	0	742611..743300	+	229	83718187	-	BTH_II0636	-	cytochrome b561, putative
634	 73.74	+1	743461..743856	+	131	83717006	-	BTH_II0637	-	hypothetical protein
635	 68.21	0	743943..746204	+	753	83717103	-	BTH_II0638	-	TonB-dependent copper receptor
636	 67.03	0	746531..747625	+	364	83717248	-	BTH_II0639	-	lipase
637	 71.40	0	747629..748663	+	344	83716591	-	BTH_II0640	-	lipase chaperone
638	 69.03	0	748745..750265	-	506	83716848	-	BTH_II0641	-	GntR family transcriptional regulator
639	 66.76	0	750383..751495	+	370	83717491	-	BTH_II0642	-	spermidine/putrescine ABC transporter, ATP-binding protein
640	 63.59	0	751513..752616	+	367	83716052	-	BTH_II0643	-	spermidine/putrescine ABC transporter, periplasmic spermidine/putrescine-binding protein
641	 66.75	0	752717..753976	+	419	83716853	-	BTH_II0644	-	spermidine/putrescine ABC transporter, permease protein
642	 65.71	0	754008..754847	+	279	83717787	-	BTH_II0645	-	polyamine ABC transporter, permease protein
643	 65.60	0	754925..756613	-	562	83717912	-	BTH_II0646	-	serine protease
644	 62.32	-1	757033..757308	-	91	83718018	-	BTH_II0647	-	hypothetical protein
645	 69.04	0	758130..758762	+	210	83716989	-	BTH_II0648	-	hypothetical protein
646	 63.00	-1	759043..760650	+	535	83717810	-	BTH_II0649	-	tyrosinase (monophenol monooxygenase)
647	 65.29	0	760766..761200	+	144	83717490	-	BTH_II0650	-	hypothetical protein
648	 68.53	0	761384..761758	+	124	83718029	-	BTH_II0651	-	hypothetical protein
649	 68.63	0	762115..763644	+	509	83717174	-	BTH_II0652	-	cytochrome c family protein
650	 63.87	0	763887..764279	+	130	83716501	-	BTH_II0653	-	cytochrome c
651	 64.09	0	764638..767355	-	905	83718192	acnA	BTH_II0654	-	aconitate hydratase
652	 68.25	0	767403..768854	-	483	83717372	prpD	BTH_II0655	-	2-methylcitrate dehydratase
653	 67.06	0	768933..769442	-	169	83716886	-	BTH_II0656	-	hypothetical protein
654	 73.53	+1	769599..770618	-	339	83716056	-	BTH_II0657	-	lyase, putative
655	 66.97	0	770816..771799	-	327	83717804	-	BTH_II0658	-	malate dehydrogenase
656	 64.63	0	771768..772898	+	376	83716990	-	BTH_II0659	-	GntR family transcriptional regulator
657	 58.03	-2	773097..773513	+	138	83716452	-	BTH_II0660	-	succinate dehydrogenase, cytochrome b556 subunit
658	 62.60	-1	773518..773886	+	122	83716544	-	BTH_II0661	-	succinate dehydrogenase, hydrophobic membrane anchor protein
659	 66.39	0	773890..775665	+	591	83718253	sdhA	BTH_II0662	-	succinate dehydrogenase flavoprotein subunit
660	 63.68	0	775687..776388	+	233	83718183	sdhB	BTH_II0663	-	succinate dehydrogenase iron-sulfur subunit
67.58	MEAN

4.44	STD DEV
