IslandPath Analysis: Burkholderia thailandensis E264

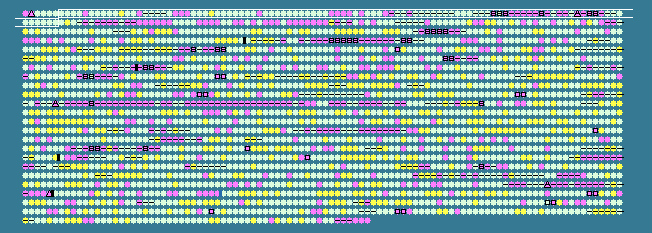

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
7	 67.40	0	6192..6740	-	182	83716553	-	BTH_II0007	-	K+-transporting ATPase, A subunit
8	 67.75	0	7282..7929	-	215	83716185	-	BTH_II0008	-	acetyltransferase
9	 67.59	0	8103..8753	-	216	83717640	-	BTH_II0009	-	YceI like family protein
10	 70.71	0	8841..9458	+	205	83716975	-	BTH_II0010	-	TetR family transcriptional regulator
11	 63.12	-1	9559..10038	+	159	83716431	-	BTH_II0011	-	hypothetical protein
12	 67.27	0	10250..11242	-	330	83718129	-	BTH_II0012	-	succinylglutamate desuccinylase / aspartoacylase family protein
13	 67.31	0	11347..12432	-	361	83716883	-	BTH_II0013	-	tartrate dehydrogenase
14	 66.07	0	12508..13515	+	335	83716204	-	BTH_II0014	-	LysR family transcriptional regulator
15	 68.14	0	13881..14558	+	225	83716058	-	BTH_II0015	-	hypothetical protein
16	 65.22	0	14702..15325	+	207	83718040	-	BTH_II0016	-	glutathione S-transferase
17	 72.06	+1	15743..16150	-	135	83717723	-	BTH_II0017	-	hypothetical protein
18	 66.07	0	16272..17444	-	390	83716725	-	BTH_II0018	-	patatin-like phospholipase
19	 65.01	0	17507..18292	-	261	83716951	-	BTH_II0019	-	3-hydroxybutyrate dehydrogenase
20	 63.43	0	18342..19082	-	246	161723122	-	BTH_II0020	-	acetoacetate decarboxylase
21	 68.93	0	19493..20155	+	220	83717506	-	BTH_II0021	-	PAP2 family protein
22	 66.93	0	20184..20936	-	250	83716363	-	BTH_II0022	-	sperm-specific protein Phi-1
23	 68.60	0	21248..22075	-	275	83718028	-	BTH_II0023	-	siderophore-interacting protein
24	 70.06	0	22115..22822	-	235	83716422	-	BTH_II0024	-	PadR family transcriptional regulator
25	 66.07	0	22928..23764	+	278	83717790	-	BTH_II0025	-	hypothetical protein
26	 61.98	-1	23761..25167	+	468	83717311	-	BTH_II0026	-	cytochrome P450-related protein
27	 53.73	-2	25319..25519	+	66	83717046	-	BTH_II0027	-	hypothetical protein
28	 63.15	0	25689..26540	+	283	83717823	-	BTH_II0028	-	hypothetical protein
29	 65.59	0	26537..27370	+	277	83716380	-	BTH_II0029	-	hypothetical protein
30	 65.33	0	27367..29310	+	647	83716330	-	BTH_II0030	-	radical SAM domain/B12 binding domain-containing protein
31	 67.17	0	29327..30313	+	328	83716836	-	BTH_II0031	-	hypothetical protein
32	 72.99	+1	30548..30721	-	57	83717645	-	BTH_II0032	-	hypothetical protein
33	 68.60	0	30758..31378	-	206	83716961	-	BTH_II0033	-	LysE family protein
34	 68.46	0	31486..32379	+	297	83717763	-	BTH_II0034	-	chromosome replication initiation inhibitor protein
35	 66.67	0	32430..33185	-	251	83718260	-	BTH_II0035	-	Crp/FNR family transcriptional regulator
36	 66.45	0	33335..33802	-	155	83716863	-	BTH_II0036	-	universal stress protein
37	 68.93	0	33968..34453	+	161	83718345	-	BTH_II0037	-	hypothetical protein
38	 70.40	0	34530..36110	+	526	83717221	-	BTH_II0038	-	aldehyde dehydrogenase
39	 69.94	0	36511..37029	-	172	83717944	-	BTH_II0039	-	hypothetical protein
40	 61.18	-1	37196..37432	+	78	83716545	-	BTH_II0040	-	hypothetical protein
41	 66.20	0	37402..38469	+	355	83717197	-	BTH_II0041	-	serine O-acetyltransferase
42	 66.16	0	38576..39367	-	263	83717598	-	BTH_II0042	-	short chain dehydrogenase/reductase family oxidoreductase
43	 65.12	0	39380..40156	-	258	83716218	folE	BTH_II0043	-	GTP cyclohydrolase I
44	 68.18	0	40253..41176	-	307	83716497	-	BTH_II0044	-	LysR family transcriptional regulator
45	 67.73	0	41385..42608	+	407	83718203	-	BTH_II0045	-	4-hydroxybenzoate 3-monooxygenase
46	 65.83	0	42817..43530	+	237	83717527	-	BTH_II0046	-	3-oxoadipate CoA-transferase, alpha subunit
47	 65.30	0	43549..44205	+	218	83716778	-	BTH_II0047	-	3-oxoadipate CoA-succinyl transferase beta subunit
48	 70.89	0	44305..45702	+	465	83718206	-	BTH_II0048	-	3-carboxy-cis,cis-muconate cycloisomerase
49	 67.56	0	45715..46500	+	261	83717956	-	BTH_II0049	-	3-oxoadipate enol-lactone hydrolase/4-carboxymuconolactone decarboxylase
50	 64.60	0	46516..46902	+	128	83717458	pcaC	BTH_II0050	-	4-carboxymuconolactone decarboxylase
51	 68.43	0	47070..48428	+	452	83716573	-	BTH_II0051	-	4-hydroxybenzoate transporter
52	 63.45	0	48490..48738	-	82	83717951	-	BTH_II0052	-	hypothetical protein
53	 59.91	-1	48839..49681	-	280	83717614	-	BTH_II0053	-	LysE family protein
54	 63.40	0	50436..50864	-	142	83716298	-	BTH_II0054	-	thioredoxin, putative
55	 61.79	-1	50926..52197	-	423	83716337	-	BTH_II0055	-	sulfide:quinone oxidoreductase
56	 66.23	0	52289..53671	-	460	83718196	-	BTH_II0056	-	porin (omp) ABC transporter protein
57	 61.43	-1	53700..53909	-	69	83717693	-	BTH_II0057	-	hypothetical protein
58	 66.35	0	53920..57123	-	1067	83717160	-	BTH_II0058	-	AcrB/AcrD/AcrF family transporter
59	 68.37	0	57145..58380	-	411	83716325	-	BTH_II0059	-	RND family efflux transporter MFP subunit
60	 65.06	0	58594..59277	-	227	83717890	-	BTH_II0060	-	transcription regulator ArsR
61	 63.38	0	59237..60088	-	283	83716687	-	BTH_II0061	-	hypothetical protein
62	 63.40	0	60069..60773	+	234	83718229	-	BTH_II0062	-	ABC transporter, ATP-binding protein
63	 65.27	0	60767..63136	+	789	83716847	-	BTH_II0063	-	permease domain-containing protein
64	 65.84	0	63133..64701	+	522	83717102	-	BTH_II0064	-	RND family efflux transporter MFP subunit
65	 61.11	-1	65260..65745	-	161	83717621	-	BTH_II0065	-	creA protein, putative
66	 64.83	0	65881..66696	+	271	83718385	-	BTH_II0066	-	hypothetical protein
67	 66.86	0	66721..67770	+	349	83716551	-	BTH_II0067	-	CybP
68	 65.88	0	67795..69069	+	424	83717402	-	BTH_II0068	-	DNA-binding response regulator
69	 64.26	0	69165..70121	+	318	83716050	-	BTH_II0069	-	cation efflux family protein
70	 66.43	0	70850..71278	+	142	83716693	-	BTH_II0070	-	PalA
71	 66.73	0	71434..73059	+	541	83717342	-	BTH_II0071	-	hemagglutinin-related protein
72	 64.75	0	73128..74012	+	294	83718366	-	BTH_II0072	-	HlyB family hemolysin activator protein
73	 66.75	0	74419..75609	-	396	83718333	chrA	BTH_II0073	-	chromate resistance transport protein
74	 69.83	0	75606..76427	-	273	83716357	-	BTH_II0074	-	chromate resistance protein ChrB
75	 69.12	0	77021..83086	+	2021	83717990	-	BTH_II0075	-	excinuclease ABC, subunit A, form 2
76	 66.92	0	83335..83736	-	133	83717794	-	BTH_II0076	-	hypothetical protein
77	 67.34	0	84140..86077	+	645	83716947	-	BTH_II0077	-	hypothetical protein
78	 67.64	0	86573..88822	+	749	83717554	-	BTH_II0078	-	phospholipase C
79	 59.30	-1	88930..89187	+	85	83717169	-	BTH_II0079	-	IS407A, transposase OrfA
80	 67.39	0	89295..89432	-	45	83716515	-	BTH_II0080	-	transposase subunit
81	 62.50	-1	89575..89862	-	95	83716123	-	BTH_II0081	-	transposase subunit
82	 51.03	-2	90537..91553	-	338	83716909	-	BTH_II0082	-	hypothetical protein
83	 53.64	-2	91572..92024	-	150	83718089	-	BTH_II0083	-	acetyltransferase
84	 57.34	-2	92677..93405	+	242	83717284	-	BTH_II0084	-	putrescine ABC transporter, permease protein
85	 55.79	-2	93392..94246	+	284	83716817	potC	BTH_II0085	-	ABC transporter, permease protein
86	 53.78	-2	94243..95274	+	343	83716306	-	BTH_II0086	-	putrescine ABC transporter, periplasmic putrescine-binding protein, putative
87	 61.81	-1	95823..96893	-	356	83717871	-	BTH_II0087	-	transposase
88	 57.19	-2	97053..97358	+	101	83716402	-	BTH_II0088	-	DNA-binding protein BprA
89	 67.46	0	97680..100460	+	926	83716745	-	BTH_II0089	-	Rhs element Vgr protein, putative
90	 62.60	-1	100528..102714	+	728	83716109	-	BTH_II0090	-	hypothetical protein
91	 60.04	-1	102853..104391	+	512	83718104	-	BTH_II0091	-	hypothetical protein
92	 67.80	0	104401..104664	+	87	83717026	-	BTH_II0092	-	PAAR motif-containing protein
93	 56.51	-2	104684..104998	-	104	83717557	-	BTH_II0093	-	integrase, putative
94	 58.82	-1	104962..105687	+	241	83718341	-	BTH_II0094	-	hypothetical protein
95	 62.84	-1	105871..106236	+	121	83717732	-	BTH_II0095	-	transposase
96	 62.50	-1	106194..107081	+	295	83716991	-	BTH_II0096	-	transposase
97	 60.03	-1	107167..108702	+	511	83717375	-	BTH_II0097	-	hypothetical protein
98	 67.80	0	108712..108975	+	87	83717867	-	BTH_II0098	-	PAAR motif-containing protein
99	 65.24	0	109390..109809	-	139	83716293	-	BTH_II0099	-	hypothetical protein
100	 66.97	0	109829..110155	-	108	83716191	trx	BTH_II0100	-	thioredoxin
101	 67.68	0	110628..111320	+	230	83716565	-	BTH_II0101	-	putative lipoprotein
102	 69.19	0	112130..112486	-	118	83717520	-	BTH_II0102	-	hypothetical protein
103	 65.37	0	112964..114199	-	411	83717969	-	BTH_II0103	-	outer membrane porin OpcP
104	 65.40	0	114738..115682	-	314	83716532	-	BTH_II0104	-	LysR family transcriptional regulator
105	 67.90	0	116223..116546	-	107	83718096	-	BTH_II0105	-	hypothetical protein
106	 67.39	0	117174..117449	-	91	83717555	-	BTH_II0106	-	hypothetical protein
67.58	MEAN

4.44	STD DEV
