IslandPath Analysis: Burkholderia thailandensis E264

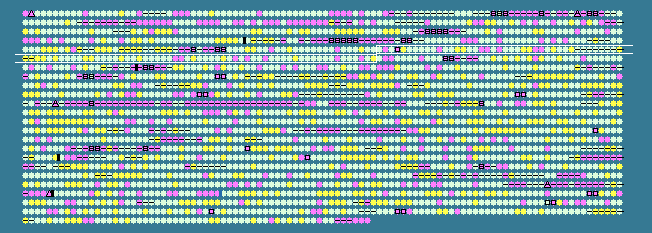

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
460	 68.36	0	550008..551777	-	589	83717528	-	BTH_II0462	-	metallo-beta-lactamase family protein
461	 62.80	-1	552049..552954	+	301	83717745	-	BTH_II0463	-	hypothetical protein
462	 65.77	0	553484..555046	+	520	83718231	-	BTH_II0464	-	lysine-specific permease
463	 62.57	-1	555210..556430	+	406	83717294	-	BTH_II0465	-	ISBma1, transposase
464	 74.93	+1	556535..557587	-	350	83717829	-	BTH_II0466	-	hypothetical protein
465	 70.68	0	557610..558182	-	190	83717162	-	BTH_II0467	-	isochorismatase family protein
466	 67.43	0	558179..558700	-	173	83717549	-	BTH_II0468	-	MarR family transcriptional regulator
467	 70.68	0	558690..559910	+	406	83718221	-	BTH_II0469	-	carboxylesterase family protein
468	 70.69	0	559965..560759	-	264	83716228	benD	BTH_II0470	-	1,6-dihydroxycyclohexa-2,4-diene-1-carboxylate dehydrogenase
469	 70.60	0	560759..561775	-	338	83716877	-	BTH_II0471	-	benzoate 1,2-dioxygenase, ferredoxin reductase component
470	 60.57	-1	561819..562310	-	163	83717254	-	BTH_II0472	-	benzoate 1,2-dioxygenase beta subunit
471	 65.42	0	562307..563674	-	455	83716643	-	BTH_II0473	-	benzoate 1,2-dioxygenase, alpha subunit
472	 65.91	0	563891..564811	+	306	83717471	-	BTH_II0474	-	transcriptional regulator CatR
473	 76.64	+2	564831..565532	+	233	83717898	-	BTH_II0476	-	LysR family transcriptional regulator
474	 74.58	+1	564971..565147	-	58	83716821	-	BTH_II0475	-	hypothetical protein
475	 70.30	0	565486..566586	-	366	83716310	-	BTH_II0477	-	AraC family transcriptional regulator
476	 68.60	0	566647..568716	+	689	83717551	-	BTH_II0478	-	2,4-dienoyl-CoA reductase
477	 63.96	0	569228..570115	+	295	83716196	-	BTH_II0479	-	ubiquinol oxidase, subunit II
478	 63.08	-1	570119..572125	+	668	83718236	-	BTH_II0480	-	ubiquinol oxidase, subunit I
479	 66.99	0	572125..572739	+	204	83716302	-	BTH_II0481	-	cytochrome c oxidase subunit III
480	 62.76	-1	572740..573072	+	110	83718186	-	BTH_II0482	-	ubiquinol oxidase, subunit IV
481	 64.26	0	573189..573479	-	96	83718355	-	BTH_II0483	-	muconolactone delta-isomerase
482	 67.11	0	573517..574419	-	300	83717464	-	BTH_II0484	-	catechol 1,2-dioxygenase
483	 70.55	0	574451..575584	-	377	83716982	-	BTH_II0485	-	muconate cycloisomerase
484	 71.28	0	575674..576561	+	295	83716464	-	BTH_II0486	-	transcriptional regulator CatR
485	 71.54	0	576599..577624	-	341	83718301	-	BTH_II0487	-	AraC family transcriptional regulator
486	 63.54	0	577827..579104	+	425	83717772	-	BTH_II0488	-	ortho-halobenzoate 1,2-dioxygenase alpha-ISP protein OhbB
487	 63.17	0	579119..579604	+	161	83716696	-	BTH_II0489	-	ortho-halobenzoate 1,2-dioxygenase beta-ISP protein OhbA
488	 66.97	0	579626..579955	+	109	83716182	-	BTH_II0490	-	Rieske family iron-sulfur cluster-binding protein
489	 74.07	+1	579942..581183	+	413	83717085	-	BTH_II0491	-	ferredoxin reductase
490	 66.91	0	581383..581799	+	138	83717878	-	BTH_II0492	-	HIT family protein
491	 69.07	0	581905..583566	-	553	83716779	-	BTH_II0493	-	phospholipase D, putative
492	 73.58	+1	583694..584272	+	192	83718141	-	BTH_II0494	-	acetyltransferase
493	 67.29	0	584302..585588	+	428	83716225	-	BTH_II0495	-	hypothetical protein
494	 69.64	0	585766..587346	+	526	83717628	-	BTH_II0496	-	Na+/H+ antiporter
495	 64.84	0	587644..589284	+	546	83718177	-	BTH_II0497	-	acetolactate synthase
496	 67.09	0	589350..590783	+	477	83716596	-	BTH_II0498	-	aldehyde dehydrogenase
497	 66.41	0	590927..591313	-	128	83717143	-	BTH_II0499	-	hypothetical protein
498	 68.77	0	592176..593270	+	364	83717649	-	BTH_II0500	-	sensor histidine kinase/response regulator
499	 67.08	0	593440..595116	+	558	83716541	-	BTH_II0501	-	methyl-accepting chemotaxis protein, putative
500	 73.60	+1	595148..595666	+	172	83717195	-	BTH_II0502	-	cheW domain-containing protein
501	 74.84	+1	595663..597729	+	688	83717558	-	BTH_II0503	-	CheR methyltransferase SAM binding/TPR domain-containing protein
502	 71.67	0	597710..598429	+	239	83718252	-	BTH_II0504	-	chemotaxis protein cheW
503	 71.59	0	598426..600924	+	832	83716826	-	BTH_II0505	-	chemotaxis sensor histidine kinase, putative
504	 72.30	+1	600931..601959	+	342	83717477	-	BTH_II0506	-	chemotaxis-specific methylesterase
505	 70.54	0	602303..603025	+	240	83717933	dehII-2	BTH_II0507	-	haloacid dehalogenase, type II
506	 71.41	0	603294..604601	+	435	83716137	-	BTH_II0508	-	voltage-gated chloride channel
507	 70.74	0	604744..606045	-	433	83717198	-	BTH_II0509	-	CAAX amino terminal protease family protein
508	 70.51	0	606029..606340	-	103	83717258	-	BTH_II0510	-	hypothetical protein
509	 68.58	0	606823..607449	-	208	83717242	-	BTH_II0511	-	hypothetical protein
510	 68.11	0	607770..608810	-	346	161723123	trpS	BTH_II0512	-	tryptophanyl-tRNA synthetase II
511	 72.59	+1	608979..610142	-	387	83718053	-	BTH_II0513	-	AraC family transcriptional regulator
512	 73.50	+1	610157..610873	+	238	83716777	-	BTH_II0514	-	DJ-1/PfpI family protein
513	 70.63	0	610959..612950	-	663	83716063	-	BTH_II0515	-	ABC transporter, permease protein/ATP-binding protein
514	 69.20	0	613178..614635	+	485	83717561	-	BTH_II0516	-	dyp-type peroxidase family protein
515	 67.25	0	615489..616691	+	400	83717841	-	BTH_II0517	-	hypothetical protein
516	 69.70	0	616862..617323	-	153	83717314	-	BTH_II0518	-	OsmC-like protein superfamily protein
517	 71.41	0	617354..618343	-	329	83716260	-	BTH_II0519	-	LysR family transcriptional regulator
518	 70.72	0	618443..619675	+	410	83717585	-	BTH_II0520	-	acyl-CoA dehydrogenase domain-containing protein
519	 70.75	0	619672..620748	+	358	83717166	-	BTH_II0521	-	phosphotransferase enzyme family protein
520	 75.94	+1	620745..621434	+	229	83716509	-	BTH_II0522	-	phosphoglycerate mutase family protein
521	 68.74	0	621468..622238	+	256	83717913	-	BTH_II0523	-	short chain dehydrogenase
522	 69.82	0	622553..623344	+	263	83717225	-	BTH_II0524	-	short chain dehydrogenase
523	 70.50	0	623602..624618	+	338	83717218	-	BTH_II0525	-	oxidoreductase, zinc-binding dehydrogenase family protein
524	 71.03	0	624835..626346	-	503	83716672	-	BTH_II0526	-	major facilitator family transporter
525	 70.34	0	626274..628451	+	725	83717289	-	BTH_II0527	-	TonB-dependent receptor
526	 63.17	0	628598..629026	+	142	83717699	-	BTH_II0528	-	putative lipoprotein
527	 63.93	0	629222..630280	-	352	83718340	-	BTH_II0529	-	hypothetical protein
528	 69.57	0	630509..631093	-	194	83717035	-	BTH_II0530	-	putative lipoprotein
529	 71.65	0	631142..631522	-	126	83717511	-	BTH_II0531	-	hypothetical protein
530	 69.72	0	632099..633967	-	622	83718276	-	BTH_II0532	-	extracellular nuclease, putative
531	 66.95	0	634336..634689	+	117	83717338	-	BTH_II0533	-	DGPF domain-containing protein
532	 65.46	0	634855..635268	+	137	83718174	-	BTH_II0534	-	DGPF domain-containing protein
533	 68.52	0	635290..635829	+	179	83717891	-	BTH_II0535	-	hypothetical protein
534	 72.89	+1	635826..637094	+	422	83717364	-	BTH_II0536	-	ECF subfamily RNA polymerase sigma factor
535	 68.67	0	637783..638730	+	315	83716809	-	BTH_II0537	-	N-acetylmuramoyl-L-alanine amidase domain-containing protein
536	 63.59	0	639001..639423	+	140	83716289	-	BTH_II0538	-	rubrerythrin
537	 66.59	0	639534..640871	+	445	83717548	-	BTH_II0539	-	hypothetical protein
538	 62.89	-1	640897..641478	+	193	83717076	-	BTH_II0540	-	hypothetical protein
539	 68.46	0	641899..643071	+	390	83716481	-	BTH_II0541	-	hypothetical protein
540	 67.52	0	643144..644658	-	504	83716616	-	BTH_II0542	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
541	 63.56	0	645087..646469	+	460	83717008	-	BTH_II0543	-	hypothetical protein
542	 68.50	0	646516..647937	+	473	83717367	-	BTH_II0544	-	UDP-glucose 6-dehydrogenase
543	 64.83	0	647959..648393	+	144	83717591	-	BTH_II0545	-	low molecular weight protein-tyrosine-phosphatase wzb
544	 66.25	0	648372..649562	+	396	83718244	-	BTH_II0546	-	capsular polysaccharide biosynthesis/export periplasmic protein
545	 67.75	0	649613..651832	+	739	83716548	-	BTH_II0547	-	exopolysaccharide tyrosine-protein kinase, putative
546	 71.20	0	651872..652819	+	315	83717741	-	BTH_II0548	-	glycosyl transferase, group 2 family protein
547	 69.74	0	652863..654002	+	379	83716146	-	BTH_II0549	-	hypothetical protein
548	 65.51	0	654014..655489	+	491	83716802	-	BTH_II0550	-	hypothetical protein
549	 68.52	0	655486..656670	+	394	83716811	-	BTH_II0551	-	glycosyltransferase
550	 70.95	0	656670..657836	+	388	83716361	-	BTH_II0552	-	lipopolysaccharide biosynthesis protein, putative
551	 70.57	0	657897..658664	-	255	83716648	-	BTH_II0553	-	AraC family transcriptional regulator
552	 66.67	0	658713..659054	-	113	83716167	fbp	BTH_II0554	-	FK506-binding protein
553	 63.70	0	659537..660445	+	302	83717797	-	BTH_II0555	-	hypothetical protein
554	 67.10	0	660465..661388	+	307	83716720	-	BTH_II0556	-	hypothetical protein
555	 69.21	0	661379..662086	+	235	83716623	-	BTH_II0557	-	hypothetical protein
556	 70.07	0	662217..662951	-	244	83718158	-	BTH_II0558	-	serine/threonine protein phosphatase 1
557	 62.84	-1	663073..663726	+	217	83717989	-	BTH_II0559	-	hypothetical protein
558	 64.94	0	663892..664353	+	153	83717461	-	BTH_II0560	-	hypothetical protein
559	 71.58	0	664337..664702	+	121	83717119	-	BTH_II0561	-	ArsR family transcriptional regulator
67.58	MEAN

4.44	STD DEV
