IslandPathversion 1.0

IslandPath Analysis: Burkholderia thailandensis E264

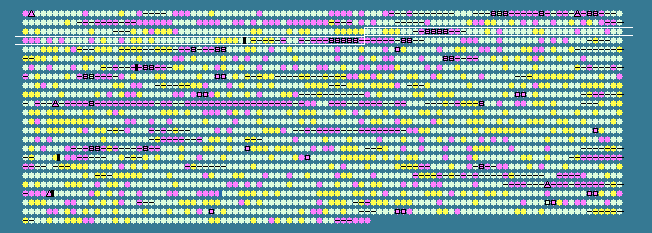

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
258	 66.67	0	317322..317903	+	193	83717683	-	BTH_II0258	-	hypothetical protein
259	 65.81	0	317896..319404	+	502	83717013	-	BTH_II0259	-	hypothetical protein
260	 64.63	0	319462..319953	+	163	83717048	-	BTH_II0260	-	hypothetical protein
261	 74.15	+1	319972..320532	+	186	83716379	-	BTH_II0261	-	hypothetical protein
262	 71.21	0	320537..322408	+	623	83717522	-	BTH_II0262	-	hypothetical protein
263	 74.14	+1	322405..323688	+	427	83716780	-	BTH_II0263	-	hypothetical protein
264	 70.58	0	323701..326358	+	885	83717896	-	BTH_II0264	-	ClpA/B type protease
265	 64.75	0	326364..328559	+	731	83717324	-	BTH_II0265	-	Rhs element Vgr protein
266	 66.51	0	328575..329840	+	421	83716814	-	BTH_II0266	-	hypothetical protein
267	 61.32	-1	329863..334482	+	1539	83716862	-	BTH_II0267	-	rhsD protein
268	 52.25	-2	334616..334726	-	36	83718106	-	BTH_II0268	-	isrso7-transposase protein
269	 61.75	-1	334727..334909	-	60	83716429	-	BTH_II0269	-	transposase
270	 59.10	-1	334964..335452	-	162	83716583	-	BTH_II0270	-	putative transposase
271	 61.07	-1	335205..336473	-	422	83717124	-	BTH_II0271	-	transposase mutator family protein
272	 63.36	0	336667..337332	-	221	83717766	-	BTH_II0272	-	HAD-superfamily hydrolase
273	 62.59	-1	337540..338127	-	195	83716564	-	BTH_II0273	-	hypothetical protein
274	 69.43	0	338605..339510	-	301	83717145	-	BTH_II0274	-	hypothetical protein
275	 65.71	0	339583..340002	-	139	83716805	-	BTH_II0275	-	comA operon protein 2
276	 69.08	0	340016..341878	-	620	83717253	-	BTH_II0276	-	AMP-binding domain-containing protein
277	 67.93	0	341875..342900	-	341	83716261	-	BTH_II0277	-	amidohydrolase
278	 72.53	+1	342941..343981	-	346	83717126	-	BTH_II0278	-	JamB
279	 65.49	0	343978..344913	-	311	83716784	-	BTH_II0279	-	methoxy mycolic acid synthase 2
280	 60.70	-1	344926..345210	-	94	83716295	-	BTH_II0280	-	polyketide synthase, putative
281	 68.21	0	345236..346270	-	344	83717334	-	BTH_II0281	-	JamB
282	 69.48	0	346913..347941	-	342	83716794	-	BTH_II0282	-	AraC family transcriptional regulator
283	 69.28	0	348017..348667	+	216	83716304	-	BTH_II0283	-	isochorismatase family protein family
284	 69.98	0	348926..350587	-	553	83718025	-	BTH_II0284	-	long-chain-fatty-acid-CoA ligase, putative
285	 68.81	0	350911..351795	-	294	83716978	-	BTH_II0285	-	hypothetical protein
286	 73.51	+1	351829..353802	-	657	83716445	-	BTH_II0286	-	acetyl-/propionyl-coenzyme a carboxylase alpha chain
287	 74.38	+1	353853..354695	-	280	83718289	-	BTH_II0287	-	enoyl-CoA hydratase/isomerase family protein
288	 66.32	0	354702..355853	-	383	83717376	-	BTH_II0288	-	acyl-CoA dehydrogenase
289	 69.57	0	355866..357482	-	538	83716733	-	BTH_II0289	-	acetyl-CoA carboxylase carboxyltransferase
290	 70.15	0	357484..358344	-	286	83716072	-	BTH_II0291	-	2-deoxy-D-gluconate 3-dehydrogenase
291	 67.77	0	358650..359822	+	390	83718162	-	BTH_II0292	-	acyl-CoA dehydrogenase
292	 67.69	0	360119..360799	+	226	83717366	-	BTH_II0293	-	TetR family transcriptional regulator
293	 59.30	-1	361305..362363	-	352	83717135	-	BTH_II0294	-	putative transcription regulator protein
294	 68.43	0	362716..364413	-	565	83716351	-	BTH_II0295	-	EmrB/QacA family drug resistance transporter
295	 65.43	0	364459..365592	-	377	83717278	-	BTH_II0296	-	hypothetical protein
296	 66.88	0	365714..366634	-	306	83717710	-	BTH_II0297	-	lpqC, putative
297	 67.29	0	366739..367383	-	214	83716232	-	BTH_II0298	-	hypothetical protein
298	 62.32	-1	367699..369171	-	490	83718156	-	BTH_II0299	-	putative coproporphyrinogen III oxidase
299	 70.24	0	369277..369864	-	195	83717450	-	BTH_II0300	-	hypothetical protein
300	 67.31	0	370681..371454	+	257	83717297	-	BTH_II0301	-	UbiE/COQ5 family methlytransferase
301	 63.46	0	371832..372299	+	155	83717778	-	BTH_II0302	-	hypothetical protein
302	 63.67	0	372337..373170	+	277	83718283	-	BTH_II0303	-	hypothetical protein
303	 59.11	-1	373217..373507	+	96	83716430	-	BTH_II0304	-	ThiS domain-containing protein
304	 67.31	0	373513..374748	+	411	83717632	-	BTH_II0305	-	isovaleryl-CoA dehydrogenase, putative
305	 63.66	0	374752..375582	+	276	83717771	-	BTH_II0306	-	hypothetical protein
306	 68.33	0	375597..377522	+	641	83717761	-	BTH_II0307	-	carbohydrate kinase
307	 58.33	-2	377553..377732	+	59	83718268	-	BTH_II0308	-	hypothetical protein
308	 66.53	0	377857..379278	+	473	83716086	-	BTH_II0309	-	sphingosine-1-phosphate lyase
309	 64.65	0	379615..380307	-	230	83716914	-	BTH_II0310	-	antifungal protein precursor, putative
310	 65.19	0	380699..382120	+	473	83718034	-	BTH_II0311	-	sphingosine-1-phosphate lyase
311	 69.26	0	382415..382993	-	192	83717056	-	BTH_II0312	-	hypothetical protein
312	 63.89	0	383053..383376	-	107	83717747	-	BTH_II0313	-	hypothetical protein
313	 65.34	0	383482..384237	-	251	83718284	-	BTH_II0314	-	inner membrane protein
314	 72.74	+1	384348..385253	+	301	83718121	nhaR	BTH_II0315	-	transcriptional activator protein NhaR
315	 70.17	0	385281..385823	-	180	83717921	hpaC	BTH_II0316	-	4-hydroxyphenylacetate 3-monooxygenase, reductase component
316	 64.81	0	386078..386830	+	250	83716609	-	BTH_II0317	-	LuxR family DNA-binding response regulator
317	 62.60	-1	386893..388368	-	491	83716889	-	BTH_II0318	-	putative oxidoreductase, oxygen dependent, FAD-dependent protein
318	 68.82	0	388614..389357	-	247	83717431	-	BTH_II0319	-	3-oxoacyl-acyl carrier protein reductase
319	 73.32	+1	389432..390559	-	375	83718103	-	BTH_II0320	-	pyrazinamidase/nicotinamidase
320	 71.59	0	390590..391117	-	175	83716970	-	BTH_II0321	-	hypothetical protein
321	 68.75	0	391315..391698	-	127	83717676	-	BTH_II0322	-	hypothetical protein
322	 73.02	+1	391819..393015	-	398	83718348	-	BTH_II0323	-	phenol hydroxylase, putative
323	 70.12	0	393427..394728	+	433	83717193	-	BTH_II0324	-	sensory box histidine kinase, putative
324	 69.78	0	394773..395222	-	149	83716956	-	BTH_II0325	-	putative tautomerase
325	 67.66	0	395235..395735	-	166	83717595	-	BTH_II0326	-	ring hydroxylating beta subunit
326	 66.51	0	395732..397015	-	427	83718159	-	BTH_II0327	-	benzoate 1,2-dioxygenase, alpha subunit
327	 68.95	0	397170..398090	+	306	83716312	-	BTH_II0328	-	LysR family transcriptional regulator
328	 68.84	0	398524..399489	-	321	83717111	-	BTH_II0329	-	oxidoreductase
329	 66.33	0	399978..401465	-	495	83717643	pad	BTH_II0330	-	phenylacetaldehyde dehydrogenase
330	 67.80	0	401482..403155	-	557	83716139	-	BTH_II0331	-	GMC oxidoreductase
331	 68.00	0	403444..404871	-	475	83716652	-	BTH_II0332	-	major facilitator superfamily transporter phthalate permease
332	 68.12	0	405234..406331	+	365	83716188	-	BTH_II0333	-	outer membrane porin, putative
333	 71.78	0	406328..407383	-	351	83716999	-	BTH_II0334	-	LysR family transcriptional regulator
334	 73.88	+1	407380..408447	-	355	83716335	-	BTH_II0335	-	AraC family transcriptional regulator
335	 71.82	0	408633..409739	+	368	83718389	-	BTH_II0336	-	hypothetical protein
336	 71.30	0	409751..410743	+	330	83717842	-	BTH_II0337	-	3-hydroxybutyryl-CoA dehydrogenase
337	 70.12	0	410887..412188	-	433	83717302	-	BTH_II0338	-	major facilitator family transporter
338	 68.27	0	413300..414730	-	476	83717331	wecB	BTH_II0340	-	UDP-N-acetylglucosamine 2-epimerase
339	 75.98	+1	414927..415130	-	67	83717001	-	BTH_II0341	-	ribosomal protein L15
340	 68.51	0	415448..417349	+	633	83716324	-	BTH_II0342	-	glycosyl transferase, group 2 family protein, putative
341	 72.83	+1	417389..418345	+	318	83718335	-	BTH_II0343	-	hypothetical protein
342	 71.46	0	418359..419609	+	416	83718247	-	BTH_II0344	-	putative lipoprotein
343	 67.67	0	419621..420421	+	266	83717541	-	BTH_II0345	-	hypothetical protein
344	 63.59	0	420745..422892	+	715	83716510	-	BTH_II0346	-	hypothetical protein
345	 69.82	0	422889..424061	+	390	83717196	-	BTH_II0347	-	hypothetical protein
346	 67.66	0	424106..425923	+	605	83716539	glmS-2	BTH_II0348	-	glucosamine--fructose-6-phosphate aminotransferase, isomerizing
347	 62.14	-1	426274..427047	-	257	83717950	-	BTH_II0349	-	short chain dehydrogenase/reductase family oxidoreductase
348	 66.22	0	427198..428085	+	295	83717454	-	BTH_II0350	-	LysR family transcriptional regulator
349	 62.96	-1	428174..428308	+	44	83716904	-	BTH_II0351	-	hypothetical protein
350	 55.62	-2	428980..429486	+	168	83716382	-	BTH_II0352	-	thermoresistant gluconokinase
351	 53.89	-2	429534..430832	+	432	83718367	-	BTH_II0353	-	major facilitator family transporter
352	 55.88	-2	430917..431324	+	135	83717099	-	BTH_II0354	-	transposase, putative
353	 58.53	-2	431294..431674	+	126	83716690	-	BTH_II0355	-	IS4 family transposase
354	 59.18	-1	431951..432217	+	88	83717032	-	BTH_II0356	-	IS407A, transposase OrfA
355	 60.08	-1	432031..432531	+	166	83716746	-	BTH_II0357	-	putative transposase
356	 62.22	-1	432555..433814	+	419	83717711	-	BTH_II0358	-	transposase mutator family protein
357	 57.47	-2	434146..434721	-	191	83716303	-	BTH_II0359	-	hypothetical protein
67.58	MEAN

4.44	STD DEV
