IslandPath Analysis: Burkholderia thailandensis E264

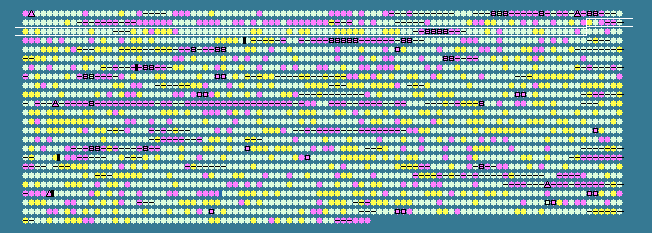

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 67.58   STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
195	 72.10	+1	226471..227538	+	355	83717252	-	BTH_II0195	-	hypothetical protein
196	 66.92	0	227653..228054	+	133	83716355	-	BTH_II0196	-	hypothetical protein
197	 63.28	0	228094..228861	-	255	83716239	-	BTH_II0197	-	transcriptional regulator, putative
198	 57.72	-2	231062..231754	+	230	83717719	-	BTH_II0198	-	DNA-binding response regulator
199	 58.50	-2	231957..232250	-	97	83718376	-	BTH_II0199	-	H-NS histone family protein
200	 68.48	0	232965..234290	+	441	83716102	-	BTH_II0200	-	major facilitator family transporter
201	 75.61	+1	234365..235549	+	394	83716231	-	BTH_II0201	-	glycerate kinase
202	 70.72	0	235608..237062	+	484	83718223	pyk-2	BTH_II0202	-	pyruvate kinase
203	 71.55	0	237154..238362	+	402	83717559	-	BTH_II0203	-	carbohydrate diacid regulator
204	 68.16	0	239300..242251	+	983	83716490	-	BTH_II0204	-	peptide synthetase, putative
205	 69.43	0	242291..243268	+	325	83717292	-	BTH_II0205	-	hypothetical protein
206	 68.43	0	243292..243687	+	131	83717817	-	BTH_II0206	-	hypothetical protein
207	 68.13	0	243841..244866	+	341	83716646	-	BTH_II0207	-	hypothetical protein
208	 68.68	0	244934..246322	-	462	83716280	-	BTH_II0208	-	GGDEF domain-containing protein
209	 65.08	0	247314..248258	-	314	83718224	-	BTH_II0209	-	ribose ABC transporter, periplasmic ribose-binding protein
210	 69.90	0	248338..249357	-	339	83717568	-	BTH_II0210	-	ribose ABC transporter, permease protein
211	 69.82	0	249412..250965	-	517	83717329	-	BTH_II0211	-	ribose ABC transporter, ATP-binding protein
212	 71.54	0	250952..252202	-	416	83716917	-	BTH_II0212	-	transcription regulator ROK family protein
213	 67.08	0	253045..255690	-	881	83717267	-	BTH_II0213	-	glucan 1,4- a-glucosidase
214	 68.88	0	256014..257411	-	465	161723115	-	BTH_II0214	-	ATP-dependent RNA helicase DbpA
215	 64.58	0	257620..258768	-	382	83716388	-	BTH_II0215	-	outer membrane porin OpcP
216	 70.85	0	259034..260347	-	437	83717150	-	BTH_II0216	-	major facilitator family transporter
217	 70.19	0	260388..261578	-	396	83717682	-	BTH_II0217	-	hippurate hydolase
218	 68.77	0	261762..262664	+	300	83716129	-	BTH_II0218	-	LysR family transcriptional regulator
219	 74.19	+1	262935..263771	-	278	83716638	-	BTH_II0219	-	hypothetical protein
220	 68.88	0	263907..265079	+	390	83716134	-	BTH_II0220	-	fatty acid desaturase domain-containing protein
221	 71.78	0	265156..265977	+	273	83716856	-	BTH_II0221	-	hypothetical protein
222	 62.67	-1	266516..267415	-	299	83717385	-	BTH_II0222	-	glutamate/aspartate ABC transporter, periplasmic glutamate/aspartate-binding protein
223	 71.67	0	267561..268898	-	445	83717946	-	BTH_II0223	-	D-amino acid dehydrogenase, small subunit
224	 72.04	+1	268931..269860	-	309	83717418	-	BTH_II0224	-	LysR family transcriptional regulator
225	 71.15	0	269956..270891	-	311	83718093	-	BTH_II0225	-	short chain dehydrogenase
226	 62.84	-1	271109..271474	+	121	83716349	-	BTH_II0226	-	hypothetical protein
227	 65.96	0	271634..273769	+	711	83717737	-	BTH_II0227	-	hypothetical protein
228	 67.98	0	274067..276961	+	964	83718372	-	BTH_II0228	-	alpha-1,2-mannosidase family protein
229	 66.01	0	277580..278641	+	353	83716637	-	BTH_II0229	-	pyoverdine chromophore biosynthetic protein PvcA
230	 68.31	0	278638..279549	+	303	83718140	pvcB	BTH_II0230	-	pyoverdine biosynthesis protein PvcB
231	 66.73	0	279575..281080	+	501	83717205	-	BTH_II0231	-	pyoverdin chromophore biosynthetic protein PvcC
232	 69.18	0	281105..282973	+	622	83718070	asnB-1	BTH_II0232	-	asparagine synthase (glutamine-hydrolyzing)
233	 70.47	0	283002..283973	+	323	83717308	-	BTH_II0233	-	quinone oxidoreductase
234	 68.34	0	283921..284937	+	338	83718071	-	BTH_II0234	-	class III extradiol-type catecholic dioxygenase, putative
235	 64.91	0	284996..286360	-	454	83717382	-	BTH_II0235	-	LysR family transcriptional regulator
236	 65.23	0	287110..287526	+	138	83717038	-	BTH_II0236	-	hypothetical protein
237	 70.16	0	288326..289414	+	362	83716405	-	BTH_II0237	-	hypothetical protein
238	 70.13	0	289407..290387	+	326	83718382	-	BTH_II0238	-	pyruvate dehydrogenase E1 beta subunit
239	 73.01	+1	290392..291495	+	367	83717179	-	BTH_II0239	-	branched-chain alpha-keto acid dehydrogenase subunit E2
240	 74.01	+1	291420..292127	-	235	83717582	-	BTH_II0240	-	L-lactate dehydrogenase
241	 68.13	0	292278..293852	-	524	83716340	-	BTH_II0241	-	major facilitator family transporter
242	 66.57	0	294046..295089	-	347	83716683	-	BTH_II0242	-	isochorismatase
243	 65.35	0	295181..296089	+	302	83716184	-	BTH_II0243	-	LysR family transcriptional regulator
244	 69.60	0	296377..297330	-	317	83718032	-	BTH_II0244	-	LysR family transcriptional regulator
245	 72.66	+1	297421..298755	+	444	83717457	dsdA	BTH_II0245	-	D-serine dehydratase
246	 70.68	0	299015..299911	-	298	83716438	-	BTH_II0246	-	LysR family transcriptional regulator
247	 71.63	0	300115..300819	+	234	83717769	-	BTH_II0247	-	short chain dehydrogenase/reductase family oxidoreductase
248	 71.72	0	301071..303068	+	665	83717274	-	BTH_II0248	-	putative lipoprotein
249	 70.86	0	303044..304426	-	460	83717306	-	BTH_II0249	-	FHA domain-containing protein
250	 64.16	0	304544..304942	-	132	83717834	-	BTH_II0250	-	putative lipoprotein
251	 66.28	0	305598..306116	+	172	83716922	-	BTH_II0251	-	putative lipoprotein
252	 69.51	0	306113..307519	+	468	83717553	-	BTH_II0252	-	hypothetical protein
253	 73.29	+1	307535..308848	+	437	83718191	-	BTH_II0253	-	hypothetical protein
254	 71.10	0	308851..312480	+	1209	83716527	-	BTH_II0254	-	putative lipoprotein
255	 73.13	+1	312486..313352	+	288	83716732	-	BTH_II0255	-	hypothetical protein
256	 73.54	+1	313510..316143	+	877	83716861	-	BTH_II0256	-	serine/threonine protein kinase
257	 74.08	+1	316196..317260	+	354	83717862	-	BTH_II0257	-	ImpA-like N-terminal family protein
258	 66.67	0	317322..317903	+	193	83717683	-	BTH_II0258	-	hypothetical protein
259	 65.81	0	317896..319404	+	502	83717013	-	BTH_II0259	-	hypothetical protein
260	 64.63	0	319462..319953	+	163	83717048	-	BTH_II0260	-	hypothetical protein
261	 74.15	+1	319972..320532	+	186	83716379	-	BTH_II0261	-	hypothetical protein
262	 71.21	0	320537..322408	+	623	83717522	-	BTH_II0262	-	hypothetical protein
263	 74.14	+1	322405..323688	+	427	83716780	-	BTH_II0263	-	hypothetical protein
264	 70.58	0	323701..326358	+	885	83717896	-	BTH_II0264	-	ClpA/B type protease
265	 64.75	0	326364..328559	+	731	83717324	-	BTH_II0265	-	Rhs element Vgr protein
266	 66.51	0	328575..329840	+	421	83716814	-	BTH_II0266	-	hypothetical protein
267	 61.32	-1	329863..334482	+	1539	83716862	-	BTH_II0267	-	rhsD protein
268	 52.25	-2	334616..334726	-	36	83718106	-	BTH_II0268	-	isrso7-transposase protein
269	 61.75	-1	334727..334909	-	60	83716429	-	BTH_II0269	-	transposase
270	 59.10	-1	334964..335452	-	162	83716583	-	BTH_II0270	-	putative transposase
271	 61.07	-1	335205..336473	-	422	83717124	-	BTH_II0271	-	transposase mutator family protein
272	 63.36	0	336667..337332	-	221	83717766	-	BTH_II0272	-	HAD-superfamily hydrolase
273	 62.59	-1	337540..338127	-	195	83716564	-	BTH_II0273	-	hypothetical protein
274	 69.43	0	338605..339510	-	301	83717145	-	BTH_II0274	-	hypothetical protein
275	 65.71	0	339583..340002	-	139	83716805	-	BTH_II0275	-	comA operon protein 2
276	 69.08	0	340016..341878	-	620	83717253	-	BTH_II0276	-	AMP-binding domain-containing protein
277	 67.93	0	341875..342900	-	341	83716261	-	BTH_II0277	-	amidohydrolase
278	 72.53	+1	342941..343981	-	346	83717126	-	BTH_II0278	-	JamB
279	 65.49	0	343978..344913	-	311	83716784	-	BTH_II0279	-	methoxy mycolic acid synthase 2
280	 60.70	-1	344926..345210	-	94	83716295	-	BTH_II0280	-	polyketide synthase, putative
281	 68.21	0	345236..346270	-	344	83717334	-	BTH_II0281	-	JamB
282	 69.48	0	346913..347941	-	342	83716794	-	BTH_II0282	-	AraC family transcriptional regulator
283	 69.28	0	348017..348667	+	216	83716304	-	BTH_II0283	-	isochorismatase family protein family
284	 69.98	0	348926..350587	-	553	83718025	-	BTH_II0284	-	long-chain-fatty-acid-CoA ligase, putative
285	 68.81	0	350911..351795	-	294	83716978	-	BTH_II0285	-	hypothetical protein
286	 73.51	+1	351829..353802	-	657	83716445	-	BTH_II0286	-	acetyl-/propionyl-coenzyme a carboxylase alpha chain
287	 74.38	+1	353853..354695	-	280	83718289	-	BTH_II0287	-	enoyl-CoA hydratase/isomerase family protein
288	 66.32	0	354702..355853	-	383	83717376	-	BTH_II0288	-	acyl-CoA dehydrogenase
289	 69.57	0	355866..357482	-	538	83716733	-	BTH_II0289	-	acetyl-CoA carboxylase carboxyltransferase
290	 70.15	0	357484..358344	-	286	83716072	-	BTH_II0291	-	2-deoxy-D-gluconate 3-dehydrogenase
291	 67.77	0	358650..359822	+	390	83718162	-	BTH_II0292	-	acyl-CoA dehydrogenase
292	 67.69	0	360119..360799	+	226	83717366	-	BTH_II0293	-	TetR family transcriptional regulator
293	 59.30	-1	361305..362363	-	352	83717135	-	BTH_II0294	-	putative transcription regulator protein
294	 68.43	0	362716..364413	-	565	83716351	-	BTH_II0295	-	EmrB/QacA family drug resistance transporter
67.58	MEAN

4.44	STD DEV
