IslandPathversion 1.0

IslandPath Analysis: Burkholderia thailandensis E264

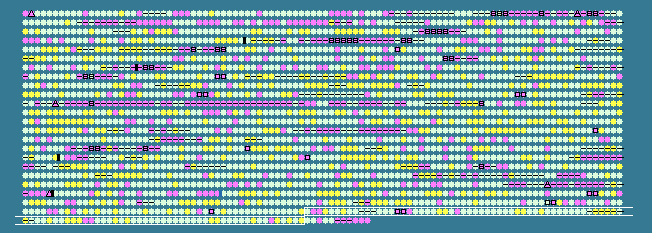

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2248	 69.96	0	2775346..2776590	-	414	83716743	-	BTH_II2262	-	hypothetical protein
2249	 55.56	-2	2777694..2777864	+	56	83717167	-	BTH_II2263	-	PilA-related protein
2250	 63.93	0	2777972..2778190	+	72	83717974	-	BTH_II2264	-	Flp/Fap pilin component superfamily protein
2251	 72.96	+1	2778282..2778821	+	179	83718194	-	BTH_II2265	-	peptidase, putative
2252	 70.35	0	2778863..2780245	+	460	83718049	-	BTH_II2266	-	ATPase with chaperone activity, putative
2253	 70.24	0	2780291..2781130	+	279	83717368	-	BTH_II2267	-	pilus assembly protein
2254	 74.07	+1	2781243..2783282	+	679	83716099	-	BTH_II2268	-	type II and III secretion system protein
2255	 69.28	0	2783304..2783609	+	101	83718384	-	BTH_II2269	-	hypothetical protein
2256	 67.14	0	2783635..2784891	+	418	83717579	-	BTH_II2270	-	hypothetical protein
2257	 66.67	0	2784915..2785457	+	180	83717072	-	BTH_II2271	-	hypothetical protein
2258	 68.40	0	2785454..2785915	+	153	83716499	-	BTH_II2272	-	hypothetical protein
2259	 70.55	0	2785938..2787146	+	402	83717074	cpaE	BTH_II2273	-	putative pilus assembly protein CpaE
2260	 67.25	0	2787168..2788535	+	455	83716156	-	BTH_II2274	-	type II secretion system protein
2261	 66.97	0	2788546..2789523	+	325	83716413	-	BTH_II2275	-	Flp pilus assembly protein TadB
2262	 69.92	0	2789647..2790537	+	296	83718164	-	BTH_II2276	-	hypothetical protein
2263	 55.88	-2	2790943..2791350	+	135	83718380	-	BTH_II2277	-	transposase, putative
2264	 58.53	-2	2791320..2791700	+	126	83718101	-	BTH_II2278	-	IS4 family transposase
2265	 63.43	0	2791713..2792237	-	174	83717383	-	BTH_II2279	-	AsnC family transcriptional regulator
2266	 70.28	0	2792427..2793644	+	405	161723125	-	BTH_II2280	-	aromatic amino acid aminotransferase
2267	 70.95	0	2793704..2794333	+	209	83718315	-	BTH_II2281	-	translation initiation inhibitor
2268	 68.90	0	2794498..2795571	+	357	83717499	-	BTH_II2282	-	porin
2269	 67.65	0	2795654..2797084	+	476	83717889	-	BTH_II2283	-	amino acid permease
2270	 73.26	+1	2797145..2798464	-	439	83717416	-	BTH_II2284	-	GntR family transcriptional regulator
2271	 71.54	0	2798582..2800120	-	512	83716744	-	BTH_II2285	-	MlrC C-terminus family protein
2272	 65.98	0	2800117..2801424	-	435	83716803	-	BTH_II2286	-	major facilitator family transporter
2273	 63.13	-1	2801535..2802467	+	310	83716081	-	BTH_II2287	-	nitrogen assimilation regulatory protein Nac, putative
2274	 65.30	0	2802796..2804922	-	708	83718075	-	BTH_II2288	-	hypothetical protein
2275	 70.08	0	2805466..2805993	+	175	83717392	-	BTH_II2289	-	hypothetical protein
2276	 70.23	0	2806395..2807291	-	298	83716367	-	BTH_II2290	-	MipA family MltA-interacting protein
2277	 67.42	0	2807591..2808250	-	219	83716222	-	BTH_II2292	-	hypothetical protein
2278	 70.54	0	2808858..2809193	-	111	83718139	-	BTH_II2293	-	phosphatidylserine decarboxylase, putative
2279	 69.22	0	2809190..2810089	-	299	83717791	-	BTH_II2294	-	2-hydroxy-3-oxopropionate reductase
2280	 66.89	0	2810208..2811557	-	449	83718304	-	BTH_II2295	-	nitrilotriacetate monooxygenase component A
2281	 69.73	0	2811820..2812635	-	271	83716738	-	BTH_II2296	-	4-phosphopantetheinyl transferase family protein
2282	 69.19	0	2812761..2814347	-	528	83717983	-	BTH_II2297	-	hypothetical protein
2283	 73.72	+1	2814378..2815058	-	226	83717442	-	BTH_II2298	-	flavin reductase domain-containing protein
2284	 72.44	+1	2815058..2815438	-	126	83716930	-	BTH_II2299	-	hypothetical protein
2285	 68.55	0	2815767..2817095	-	442	83717004	-	BTH_II2300	-	hypothetical protein
2286	 70.38	0	2817575..2818975	-	466	83717960	lpdA-2	BTH_II2301	-	dihydrolipoamide dehydrogenase
2287	 71.97	0	2818980..2820431	-	483	83716049	-	BTH_II2302	-	branched-chain alpha-keto acid dehydrogenase subunit E2
2288	 67.91	0	2820433..2821476	-	347	83716737	-	BTH_II2303	-	2-oxoisovalerate dehydrogenase, E1 component, beta subunit
2289	 67.07	0	2821482..2822714	-	410	83717236	-	BTH_II2304	-	2-oxoisovalerate dehydrogenase, E1 component, alpha subunit
2290	 69.61	0	2823191..2824480	+	429	83718009	-	BTH_II2305	-	hypothetical protein
2291	 64.40	0	2824799..2825371	+	190	83717538	-	BTH_II2306	-	hypothetical protein
2292	 68.10	0	2825622..2826737	-	371	83718347	-	BTH_II2307	-	hypothetical protein
2293	 67.74	0	2827041..2827976	+	311	83717619	-	BTH_II2308	-	LysR family transcriptional regulator
2294	 69.15	0	2828407..2830497	+	696	83718281	-	BTH_II2309	-	iron-sulfur cluster-binding domain-containing protein
2295	 69.79	0	2830711..2832984	-	757	83716250	-	BTH_II2310	-	pyridine nucleotide-disulphide oxidoreductase family protein
2296	 71.46	0	2833036..2833431	-	131	83716934	-	BTH_II2311	-	C4-type zinc finger DksA/TraR family protein
2297	 73.35	+1	2834374..2835645	+	423	83717460	-	BTH_II2312	-	intracellular polyhydroxyalkanoate depolymerase
2298	 74.68	+1	2835700..2837547	+	615	83717836	-	BTH_II2313	-	hypothetical protein
2299	 73.62	+1	2837585..2839426	+	613	83716385	-	BTH_II2314	-	hypothetical protein
2300	 70.64	0	2839740..2840771	+	343	83716810	-	BTH_II2315	-	hypothetical protein
2301	 73.93	+1	2840768..2842585	+	605	83718381	-	BTH_II2316	-	sulfate permease family protein
2302	 68.44	0	2842617..2843066	-	149	83716336	-	BTH_II2317	-	CBS domain-containing protein
2303	 70.34	0	2843391..2844044	+	217	83717255	-	BTH_II2318	-	hypothetical protein
2304	 67.68	0	2844115..2844312	+	65	83716873	-	BTH_II2319	-	hypothetical protein
2305	 72.40	+1	2844339..2844530	+	63	83717533	-	BTH_II2320	-	hypothetical protein
2306	 68.42	0	2844523..2846064	-	513	83716278	-	BTH_II2321	-	stress response protein
2307	 70.53	0	2846158..2847090	+	310	83716498	-	BTH_II2322	-	polysaccharide deacetylase family protein
2308	 71.21	0	2847404..2848789	+	461	83717223	-	BTH_II2323	-	hypothetical protein
2309	 71.11	0	2848811..2851174	-	787	83716830	-	BTH_II2324	-	1A family penicillin-binding protein
2310	 74.21	+1	2851592..2852002	-	136	83716326	-	BTH_II2325	-	putative lipoprotein
2311	 58.40	-2	2852169..2852870	-	233	83716827	-	BTH_II2326	-	hypothetical protein
2312	 57.66	-2	2852873..2853316	-	147	83716224	-	BTH_II2327	-	hypothetical protein
2313	 66.03	0	2853351..2853824	-	157	83716601	-	BTH_II2328	-	hypothetical protein
2314	 70.00	0	2853817..2854326	-	169	83718144	-	BTH_II2329	-	hypothetical protein
2315	 70.42	0	2854323..2854748	-	141	83717234	-	BTH_II2330	-	PAAR motif-containing protein
2316	 73.38	+1	2855425..2857047	-	540	83717180	-	BTH_II2331	-	amidase
2317	 66.95	0	2857097..2857801	+	234	83716124	-	BTH_II2332	-	putative lipoprotein
2318	 71.72	0	2857767..2858300	-	177	83716662	-	BTH_II2333	-	hydrophobe/amphiphile efflux family protein
2319	 68.86	0	2858348..2859760	+	470	83717988	-	BTH_II2334	-	sensor histidine kinase
2320	 67.90	0	2859757..2860404	+	215	83717466	-	BTH_II2335	-	LuxR family DNA-binding response regulator
2321	 66.50	0	2860542..2861138	-	198	83716763	-	BTH_II2336	-	Ttg2 family toluene tolerance protein
2322	 66.13	0	2861429..2862169	-	246	83717556	-	BTH_II2337	-	hypothetical protein
2323	 65.92	0	2862202..2864604	-	800	83718235	-	BTH_II2338	-	sensory box protein
2324	 67.39	0	2864960..2866063	-	367	83716483	-	BTH_II2339	-	lipase
2325	 70.87	0	2866151..2866816	-	221	83717678	-	BTH_II2340	-	4-phosphopantetheinyl transferase family protein
2326	 66.92	0	2866987..2867385	-	132	83717897	-	BTH_II2341	-	hypothetical protein
2327	 70.52	0	2867424..2868722	-	432	83716037	-	BTH_II2342	-	hypothetical protein
2328	 66.03	0	2868719..2869501	-	260	83716674	-	BTH_II2343	-	hypothetical protein
2329	 69.04	0	2869558..2870991	-	477	83717341	-	BTH_II2344	-	ABC transporter, permease protein, putative
2330	 69.37	0	2870991..2871692	-	233	83718017	-	BTH_II2345	-	ABC transporter, ATP-binding protein
2331	 67.63	0	2871692..2873140	-	482	83718128	-	BTH_II2346	-	monooxygenase flavin-binding family protein
2332	 72.12	+1	2873173..2877315	-	1380	83717534	-	BTH_II2347	-	cytochrome P450-related protein
2333	 71.28	0	2877312..2883725	-	2137	83716192	-	BTH_II2348	-	polyketide synthase, putative
2334	 65.74	0	2883827..2885443	-	538	83716857	-	BTH_II2349	-	acyl transferase domain-containing protein
2335	 70.43	0	2886029..2888662	+	877	83718007	-	BTH_II2350	-	hypothetical protein
2336	 70.29	0	2888664..2889629	+	321	83717052	-	BTH_II2351	-	lipoprotein VacJ
2337	 68.44	0	2889754..2890317	-	187	83717813	-	BTH_II2352	-	hypothetical protein
2338	 69.71	0	2890354..2891700	-	448	83718291	-	BTH_II2353	-	hypothetical protein
2339	 72.42	+1	2891697..2892686	-	329	83717206	-	BTH_II2354	-	hypothetical protein
2340	 65.02	0	2892780..2893508	-	242	83716664	glnQ	BTH_II2355	-	glutamine ABC transporter ATP-binding protein
2341	 64.21	0	2893505..2894197	-	230	83718147	glnP	BTH_II2356	-	glutamine ABC transporter permease protein
2342	 63.52	0	2894226..2894987	-	253	83717600	glnH	BTH_II2357	-	glutamine ABC transporter periplasmic protein
2343	 76.27	+1	2895429..2896136	-	235	83717788	-	BTH_II2358	-	hypothetical protein
2344	 69.40	0	2896143..2898116	-	657	83716953	shc	BTH_II2359	-	squalene-hopene cyclase
2345	 78.51	+2	2898146..2898508	-	120	83716140	-	BTH_II2360	-	hypothetical protein
2346	 68.09	0	2898483..2899676	-	397	83718303	-	BTH_II2361	-	phytoene synthase, putative
2347	 72.74	+1	2899868..2900773	+	301	83716578	-	BTH_II2362	-	esterase EstC
67.58	MEAN

4.44	STD DEV
