IslandPath Analysis: Burkholderia thailandensis E264

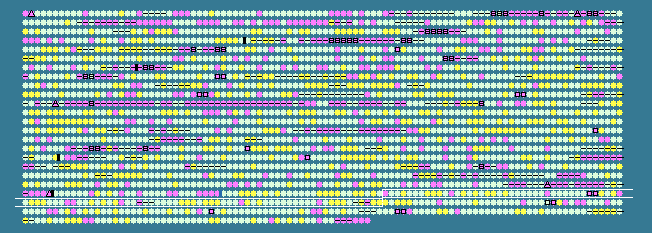

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2061	 58.65	-2	2530743..2531054	-	103	83717679	-	BTH_II2075	-	hypothetical protein
2062	 69.11	0	2531437..2531559	-	40	83717214	-	BTH_II2076	-	hypothetical protein
2063	 69.11	0	2531579..2533300	-	573	83716397	-	BTH_II2077	-	lactate permease family protein
2064	 75.45	+1	2533610..2534338	-	242	83717357	-	BTH_II2078	-	hypothetical protein
2065	 69.50	0	2534335..2535783	-	482	83716547	-	BTH_II2079	-	iron-sulfur cluster binding protein
2066	 70.76	0	2535780..2536586	-	268	83716055	-	BTH_II2080	-	hypothetical protein
2067	 68.85	0	2536585..2537685	+	366	83717887	-	BTH_II2081	-	GntR family transcriptional regulator
2068	 71.38	0	2537974..2538801	+	275	83716761	-	BTH_II2082	-	hypothetical protein
2069	 72.80	+1	2538883..2540154	-	423	83717758	-	BTH_II2083	-	monoxygenase
2070	 75.09	+1	2540712..2540984	-	90	83718298	-	BTH_II2084	-	hypothetical protein
2071	 68.39	0	2541005..2542399	-	464	83716472	-	BTH_II2085	-	monoxygenase
2072	 63.70	0	2542420..2542992	-	190	83717011	-	BTH_II2086	-	D-methionine ABC transporter, periplasmic D-methionine-binding protein
2073	 67.61	0	2543245..2544522	-	425	83716463	-	BTH_II2087	-	ATP-dependent transcription regulator LuxR
2074	 73.91	+1	2545193..2553571	+	2792	83718314	-	BTH_II2088	-	thiotemplate mechanism natural product synthetase
2075	 66.86	0	2553671..2554189	+	172	83716692	-	BTH_II2089	-	hypothetical protein
2076	 71.90	0	2554346..2555740	+	464	83717350	-	BTH_II2090	-	syringomycin synthesis regulator SyrP, putative
2077	 70.25	0	2555749..2557170	+	473	83717738	-	BTH_II2091	-	hypothetical protein
2078	 72.05	+1	2557164..2558576	+	470	83717226	-	BTH_II2092	-	gamma-aminobutyraldehyde dehydrogenase
2079	 72.40	+1	2558633..2570779	+	4048	83717907	-	BTH_II2093	-	polyketide synthase, putative
2080	 70.34	0	2570785..2571846	+	353	83717037	ilvC-2	BTH_II2094	-	ketol-acid reductoisomerase
2081	 73.05	+1	2571743..2574466	+	907	83716834	-	BTH_II2095	-	diaminopimelate decarboxylase, putative
2082	 69.07	0	2574496..2576364	+	622	83716457	-	BTH_II2096	-	long-chain-fatty-acid--CoA ligase, putative
2083	 64.12	0	2576437..2576868	+	143	83716966	-	BTH_II2097	-	putative lipoprotein
2084	 70.78	0	2576869..2577768	+	299	83717685	fabD-2	BTH_II2098	-	malonyl CoA-acyl carrier protein transacylase
2085	 70.14	0	2577785..2579653	+	622	83718033	-	BTH_II2099	-	AMP-binding domain-containing protein
2086	 69.67	0	2580041..2580940	+	299	83718072	-	BTH_II2100	-	auxin efflux carrier, putative
2087	 66.67	0	2581139..2581624	-	161	83716098	-	BTH_II2101	-	acetyltransferase
2088	 61.52	-1	2581765..2582424	+	219	83716347	-	BTH_II2102	-	GntR family transcriptional regulator
2089	 66.51	0	2582408..2583649	+	413	83717139	-	BTH_II2103	-	sodium:dicarboxylate symporter family protein
2090	 70.65	0	2584453..2585985	-	510	83717404	-	BTH_II2104	-	RND efflux system outer membrane lipoprotein
2091	 66.45	0	2585996..2589181	-	1061	83718161	-	BTH_II2105	-	hydrophobe/amphiphile efflux family protein
2092	 70.99	0	2589243..2590469	-	408	83717393	-	BTH_II2106	-	RND family efflux transporter MFP subunit
2093	 70.87	0	2590519..2591469	-	316	83718043	-	BTH_II2107	-	hypothetical protein
2094	 65.77	0	2591562..2592566	+	334	83716061	-	BTH_II2108	-	LysR family transcriptional regulator
2095	 55.88	-2	2592616..2593023	+	135	83717159	-	BTH_II2109	-	transposase, putative
2096	 58.53	-2	2592993..2593373	+	126	83716701	-	BTH_II2110	-	IS4 family transposase
2097	 74.83	+1	2594043..2594336	+	97	83717002	-	BTH_II2111	-	hypothetical protein
2098	 66.67	0	2594540..2595601	-	353	83718193	-	BTH_II2112	-	putative lipoprotein
2099	 75.39	+1	2595679..2596125	-	148	83716094	-	BTH_II2113	-	hypothetical protein
2100	 63.54	0	2596303..2596494	-	63	83716482	-	BTH_II2114	-	putative 4-oxalocrotonate tautomerase
2101	 70.63	0	2596595..2597503	+	302	83717422	-	BTH_II2115	-	LysR family transcriptional regulator
2102	 72.14	+1	2597687..2598856	-	389	83718102	selD	BTH_II2116	-	selenophosphate synthetase
2103	 72.58	+1	2598914..2599792	+	292	83716665	-	BTH_II2117	-	hypothetical protein
2104	 72.76	+1	2600064..2601752	-	562	83717504	-	BTH_II2118	-	GntR family transcriptional regulator
2105	 69.55	0	2601894..2603177	+	427	83718286	gabT	BTH_II2119	-	4-aminobutyrate aminotransferase
2106	 68.10	0	2603271..2604740	+	489	83716627	-	BTH_II2120	-	succinate-semialdehyde dehydrogenase
2107	 70.90	0	2606460..2607452	+	330	83718255	-	BTH_II2121	-	Rieske (2Fe-2S) domain-containing protein
2108	 64.10	0	2608034..2608189	+	51	83718287	-	BTH_II2122	-	hypothetical protein
2109	 62.35	-1	2608235..2608489	+	84	83716948	-	BTH_II2123	-	hypothetical protein
2110	 64.87	0	2608589..2609704	+	371	83716284	-	BTH_II2124	-	O-methyltransferase family protein
2111	 69.19	0	2609998..2611542	-	514	83717972	-	BTH_II2125	-	methyl-accepting chemotaxis protein
2112	 71.82	0	2612307..2613509	-	400	161723114	-	BTH_II2126	-	beta-ketoadipyl CoA thiolase
2113	 67.37	0	2613673..2614530	+	285	83716226	-	BTH_II2127	-	IclR family transcriptional regulator
2114	 72.09	+1	2614820..2615575	+	251	83716895	-	BTH_II2128	-	TetR family transcriptional regulator
2115	 69.80	0	2615855..2616301	-	148	83717245	-	BTH_II2129	-	major facilitator family transporter
2116	 71.38	0	2616216..2616788	+	190	83717228	-	BTH_II2130	-	LysR family transcriptional regulator
2117	 62.74	-1	2617010..2617798	+	262	83717417	-	BTH_II2131	-	amino acid ABC transporter, periplasmic amino acid-binding protein
2118	 68.55	0	2617985..2620267	-	760	83717571	-	BTH_II2132	-	O-antigen acetylase, putative
2119	 68.67	0	2620286..2621482	+	398	83717173	-	BTH_II2133	-	succinylglutamate desuccinylase/aspartoacylase family protein
2120	 64.09	0	2621744..2622637	-	297	83716401	-	BTH_II2134	-	D-methionine-binding lipoprotein metQ
2121	 64.70	0	2622737..2624005	+	422	83717961	-	BTH_II2135	-	porin
2122	 65.86	0	2624101..2624472	+	123	83716205	-	BTH_II2136	-	hypothetical protein
2123	 66.45	0	2624837..2625292	+	151	83716443	-	BTH_II2137	-	hypothetical protein
2124	 64.91	0	2625807..2626034	+	75	83718152	-	BTH_II2138	-	hypothetical protein
2125	 68.80	0	2626527..2628827	+	766	83717803	-	BTH_II2139	-	TonB-dependent heme/hemoglobin receptor family protein
2126	 69.64	0	2628827..2630035	+	402	83717128	-	BTH_II2140	-	hemin transport protein HmuS
2127	 74.54	+1	2630032..2630958	+	308	83717872	-	BTH_II2141	-	hemin ABC transporter, periplasmic hemin-binding protein
2128	 76.25	+1	2631089..2632309	+	406	83716313	-	BTH_II2142	-	hemin ABC transporter, permease protein
2129	 73.63	+1	2632470..2633288	+	272	83717874	-	BTH_II2143	-	hemin importer ATP-binding subunit
2130	 69.46	0	2633314..2633922	-	202	83716309	-	BTH_II2144	-	hypothetical protein
2131	 71.59	0	2633935..2636067	-	710	83716831	-	BTH_II2145	-	1A family penicillin-binding protein
2132	 71.91	0	2636250..2637221	+	323	83718200	-	BTH_II2146	-	chromosome replication initiation inhibitor protein
2133	 71.21	0	2637190..2638575	-	461	83717655	-	BTH_II2147	-	L-allo-threonine aldolase
2134	 65.16	0	2638558..2640219	+	553	83716617	-	BTH_II2148	-	ubiquinol oxidase family protein
2135	 66.37	0	2640255..2641262	+	335	83717283	cydB-2	BTH_II2149	-	cytochrome d ubiquinol oxidase, subunit II
2136	 66.08	0	2641234..2641404	+	56	83717822	-	BTH_II2150	-	hypothetical protein
2137	 63.59	0	2641622..2641816	-	64	83716691	-	BTH_II2151	-	hypothetical protein
2138	 71.51	0	2642188..2643303	-	371	83718257	-	BTH_II2152	-	oxidoreductase, FMN-binding
2139	 68.65	0	2643373..2644179	-	268	83716234	dkgB	BTH_II2153	-	2,5-diketo-D-gluconate reductase B
2140	 71.24	0	2644206..2645408	-	400	83717642	-	BTH_II2154	-	major facilitator family transporter
2141	 68.72	0	2645512..2646438	+	308	83716924	-	BTH_II2155	-	LysR family transcriptional regulator
2142	 69.14	0	2646485..2648179	-	564	83717902	-	BTH_II2156	-	squalene/phytoene synthase family protein
2143	 64.20	0	2648923..2649813	-	296	83717276	-	BTH_II2157	-	transcriptional regulator
2144	 65.37	0	2650194..2650808	+	204	83717170	-	BTH_II2158	-	NAD(P)H nitroreductase
2145	 66.14	0	2650757..2652091	+	444	83716549	-	BTH_II2159	-	hypothetical protein
2146	 65.60	0	2652134..2653261	+	375	83717998	-	BTH_II2160	-	LysR family transcriptional regulator
2147	 66.61	0	2653326..2655092	+	588	83717453	-	BTH_II2161	-	choline dehydrogenase
2148	 69.34	0	2655112..2656569	+	485	83717965	-	BTH_II2162	-	aldehyde dehydrogenase (NAD) family protein superfamily
2149	 64.43	0	2656665..2657558	+	297	83717434	-	BTH_II2163	-	amidohydrolase
2150	 63.64	0	2658071..2658334	+	87	83716642	-	BTH_II2164	-	hypothetical protein
2151	 68.93	0	2658347..2662495	-	1382	83716151	-	BTH_II2165	-	hypothetical protein
2152	 74.36	+1	2662434..2663888	-	484	83718322	-	BTH_II2166	-	putative lipoprotein
2153	 74.70	+1	2664332..2665588	-	418	83717801	-	BTH_II2167	-	hypothetical protein
2154	 74.59	+1	2665683..2668598	+	971	83716339	-	BTH_II2168	-	copper-translocating P-type ATPase
2155	 69.34	0	2668803..2669213	+	136	83717095	-	BTH_II2169	-	hypothetical protein
2156	 65.42	0	2669436..2669915	-	159	83716395	-	BTH_II2170	-	acetyltransferase
2157	 73.73	+1	2670167..2670520	+	117	83716765	-	BTH_II2171	-	hypothetical protein
2158	 62.82	-1	2670794..2670949	-	51	83716040	-	BTH_II2172	-	hypothetical protein
2159	 75.53	+1	2671147..2672985	-	612	83718078	-	BTH_II2174	-	hypothetical protein
2160	 74.07	+1	2671601..2671816	+	71	83717437	-	BTH_II2173	-	hypothetical protein
67.58	MEAN

4.44	STD DEV
