IslandPathversion 1.0

IslandPath Analysis: Burkholderia thailandensis E264

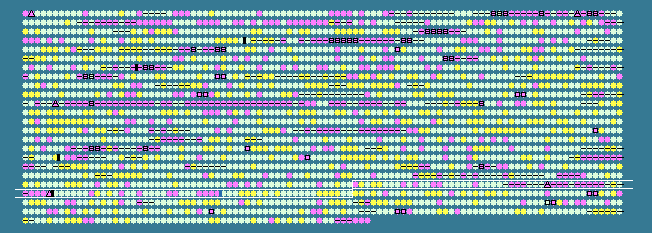

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1956	 63.90	0	2391056..2392177	+	373	83717156	-	BTH_II1964	-	D-alanyl-D-alanine carboxypeptidase family protein
1957	 76.39	+1	2392177..2392320	+	47	83716823	-	BTH_II1965	-	hypothetical protein
1958	 68.44	0	2392490..2393110	-	206	83717328	-	BTH_II1966	-	DJ-1/PfpI family protein, putative
1959	 73.56	+1	2393196..2394530	+	444	83717880	-	BTH_II1967	-	aminotransferase family protein
1960	 73.29	+1	2394909..2395814	-	301	83716614	-	BTH_II1968	-	hypothetical protein
1961	 66.12	0	2395890..2396615	-	241	83717131	-	BTH_II1969	-	hypothetical protein
1962	 65.75	0	2396445..2397644	+	399	83717647	-	BTH_II1970	-	LysR family transcriptional regulator
1963	 68.52	0	2397731..2397946	+	71	83718184	-	BTH_II1971	-	hypothetical protein
1964	 56.91	-2	2398500..2398622	+	40	83716307	-	BTH_II1972	-	hypothetical protein
1965	 65.72	0	2398681..2399634	+	317	83716846	-	BTH_II1973	-	hypothetical protein
1966	 60.95	-1	2399895..2400944	-	349	83717300	-	BTH_II1974	-	hypothetical protein
1967	 66.00	0	2400948..2401994	-	348	83717263	-	BTH_II1975	-	hypothetical protein
1968	 67.02	0	2402007..2402576	-	189	83716440	-	BTH_II1976	-	galactoside O-acetyltransferase
1969	 62.93	-1	2402569..2403666	-	365	83716955	-	BTH_II1977	-	lipopolysaccharide core biosynthesis heptosyltransferase, putative
1970	 59.97	-1	2403530..2404738	-	402	83716375	-	BTH_II1978	-	lipopolysaccharide heptosyltransferase II rfaC2
1971	 64.18	0	2404962..2406005	-	347	83716957	-	BTH_II1979	-	glycosyl transferase family protein
1972	 65.41	0	2406021..2407376	-	451	83718256	-	BTH_II1980	-	hypothetical protein
1973	 65.88	0	2407655..2409430	-	591	83718011	-	BTH_II1981	-	perosamine synthetase
1974	 66.22	0	2409441..2410793	-	450	83716159	rfbH	BTH_II1982	-	lipopolysaccharide biosynthesis protein (O-antigen-related)
1975	 69.74	0	2410797..2411870	-	357	83716161	rfbG	BTH_II1983	-	CDP-glucose 4,6-dehydratase (O-antigen-related)
1976	 62.16	-1	2411873..2412649	-	258	83717121	rfbF	BTH_II1984	-	glucose-1-phosphate cytidylyltransferase (O-antigen-related)
1977	 67.49	0	2412646..2413863	-	405	83718074	-	BTH_II1985	-	chain length determinant domain-containing protein
1978	 67.35	0	2413868..2416501	-	877	83717486	-	BTH_II1986	-	polysaccharide biosynthesis protein, putative
1979	 66.92	0	2417537..2418319	+	260	83718006	-	BTH_II1987	-	hypothetical protein
1980	 67.11	0	2418390..2421308	+	972	83716206	o698	BTH_II1988	-	otnG protein
1981	 65.48	0	2421667..2423514	-	615	83716876	-	BTH_II1989	-	acetolactate synthase II, large subunit
1982	 57.35	-2	2423607..2424014	-	135	83716751	-	BTH_II1990	-	hypothetical protein
1983	 64.10	0	2424391..2424819	+	142	83716281	-	BTH_II1991	-	hypothetical protein
1984	 60.75	-1	2424935..2425627	+	230	83717401	-	BTH_II1992	-	hypothetical protein
1985	 64.76	0	2425760..2429323	+	1187	83716535	-	BTH_II1993	-	hypothetical protein
1986	 65.74	0	2429307..2441705	+	4132	83716175	-	BTH_II1994	-	LysM domain-containing protein
1987	 67.89	0	2441696..2442430	+	244	83716130	-	BTH_II1995	-	hypothetical protein
1988	 54.45	-2	2442483..2443055	+	190	83717581	-	BTH_II1996	-	bacteriophage integrase family protein
1989	 51.81	-2	2443674..2444171	+	165	83716698	-	BTH_II1997	-	hypothetical protein
1990	 54.68	-2	2444600..2445016	-	138	83717087	-	BTH_II1998	-	hypothetical protein
1991	 52.78	-2	2445060..2445239	-	59	83718197	-	BTH_II1999	-	hypothetical protein
1992	 64.20	0	2445519..2446046	+	175	83716506	-	BTH_II2000	-	hypothetical protein
1993	 60.41	-1	2446043..2446777	+	244	83717994	-	BTH_II2001	-	gp30
1994	 61.93	-1	2446910..2447902	+	330	83717469	-	BTH_II2002	-	gp31
1995	 57.25	-2	2447973..2448641	-	222	83716663	-	BTH_II2003	-	transposon Tn2501 resolvase
1996	 53.32	-2	2450618..2452303	-	561	83716069	-	BTH_II2004	-	adenylosuccinate synthase
1997	 58.45	-2	2453278..2454384	+	368	83718307	-	BTH_II2005	-	hypothetical protein
1998	 66.21	0	2454477..2454695	+	72	83716059	-	BTH_II2006	-	prophage regulatory protein AlpA family protein
1999	 71.98	0	2454942..2455148	+	68	83717796	-	BTH_II2007	-	splicing coactivator subunit-like protein
2000	 67.64	0	2455275..2458142	+	955	83717727	-	BTH_II2008	-	DNA primase
2001	 56.72	-2	2458273..2458473	-	66	83717192	-	BTH_II2009	-	DNA-binding protein
2002	 57.33	-2	2458778..2459077	+	99	83717865	-	BTH_II2010	-	H-NS histone family protein
2003	 57.43	-2	2459227..2459529	+	100	83717360	-	BTH_II2011	-	hypothetical protein
2004	 55.88	-2	2459661..2459864	-	67	83717317	-	BTH_II2012	-	DNA-binding protein
2005	 61.87	-1	2460611..2461840	-	409	83716799	-	BTH_II2013	-	integrase
2006	 65.82	0	2462155..2464170	-	671	83716273	-	BTH_II2015	-	sodium:solute symporter family protein
2007	 66.40	0	2464164..2464544	-	126	83718176	-	BTH_II2016	-	hypothetical protein
2008	 67.93	0	2464642..2466624	-	660	83717525	acsA	BTH_II2017	-	acetyl-CoA synthetase
2009	 67.00	0	2466914..2467813	+	299	83716871	-	BTH_II2018	-	hypothetical protein
2010	 64.68	0	2467948..2468652	+	234	83717639	-	BTH_II2019	-	hypothetical protein
2011	 65.69	0	2468692..2470227	+	511	83717018	-	BTH_II2020	-	tartrate/fumarate family Fe-S type hydro-lyase
2012	 53.33	-2	2470185..2470859	+	224	83717287	-	BTH_II2021	-	bacterioferritin
2013	 71.97	0	2470905..2471771	+	288	83716465	murI	BTH_II2022	-	glutamate racemase
2014	 64.17	0	2471906..2472145	+	79	83718020	-	BTH_II2023	-	bacterioferritin-associated ferredoxin, putative
2015	 71.70	0	2472373..2473107	+	244	83716958	-	BTH_II2024	-	TonB protein, putative
2016	 64.53	0	2473168..2473869	+	233	83716181	-	BTH_II2025	-	MotA/TolQ/ExbB proton channel family protein
2017	 63.40	0	2473883..2474311	+	142	83716621	-	BTH_II2026	-	biopolymer ExbD/TolR family transporter
2018	 65.42	0	2474677..2475642	-	321	83718146	-	BTH_II2027	-	LysR family transcriptional regulator
2019	 64.69	0	2475625..2476638	+	337	83718085	-	BTH_II2028	-	pirin family protein
2020	 61.90	-1	2476697..2477242	+	181	83716459	-	BTH_II2029	-	hypothetical protein
2021	 65.54	0	2477386..2477652	+	88	83717134	-	BTH_II2030	-	hypothetical protein
2022	 67.88	0	2477949..2478359	-	136	83717909	-	BTH_II2031	-	glcG protein
2023	 66.24	0	2478419..2479819	-	466	83717092	-	BTH_II2032	-	hypothetical protein
2024	 66.07	0	2479816..2480658	-	280	83716902	-	BTH_II2033	-	FTR1 family iron permease
2025	 62.73	-1	2480718..2481047	-	109	83716087	-	BTH_II2034	-	hypothetical protein
2026	 63.59	0	2481107..2481658	-	183	83718227	-	BTH_II2035	-	antigen, putative
2027	 64.28	0	2481881..2483971	-	696	83717423	uvrB	BTH_II2036	-	excinuclease ABC subunit B
2028	 66.33	0	2484260..2485459	+	399	83717885	-	BTH_II2037	-	aromatic amino acid aminotransferase
2029	 65.15	0	2485665..2486453	-	262	83716677	-	BTH_II2038	-	3-hydroxybutyrate dehydrogenase
2030	 61.52	-1	2486641..2487612	+	323	83716170	-	BTH_II2039	-	aldo/keto reductase family oxidoreductase
2031	 57.92	-2	2487691..2488605	+	304	83718004	-	BTH_II2040	-	hypothetical protein
2032	 58.52	-2	2489453..2489857	-	134	83717479	cueR	BTH_II2041	-	Cu(I)-responsive transcriptional regulator
2033	 61.07	-1	2490052..2490426	-	124	83717602	-	BTH_II2042	-	TnpC protein
2034	 68.32	0	2496382..2496927	-	181	83717963	-	BTH_II2048	-	hypothetical protein
2035	 68.80	0	2496932..2498386	-	484	83716266	-	BTH_II2049	-	glyceraldehyde-3-phosphate dehydrogenase, NADP-dependent
2036	 70.21	0	2498383..2499624	-	413	83716649	phnA-2	BTH_II2050	-	phosphonoacetate hydrolase
2037	 76.14	+1	2499722..2500576	-	284	83716753	-	BTH_II2051	-	ABC transporter, permease protein
2038	 72.05	+1	2500566..2501513	-	315	83717094	-	BTH_II2052	-	ABC transporter, permease protein
2039	 72.39	+1	2501491..2502504	-	337	83717012	-	BTH_II2053	-	ABC transporter, ATP-binding protein
2040	 65.65	0	2502649..2503731	-	360	83716448	-	BTH_II2054	-	ABC transporter, periplasmic substrate-binding protein
2041	 72.16	+1	2503970..2505079	+	369	83717456	phnW	BTH_II2055	-	2-aminoethylphosphonate--pyruvate transaminase
2042	 67.71	0	2505168..2506514	-	448	83716801	-	BTH_II2056	-	major facilitator superfamily transporter phthalate permease
2043	 72.63	+1	2506561..2507415	-	284	83716706	-	BTH_II2057	-	shikimate 5-dehydrogenase
2044	 64.95	0	2507412..2507993	-	193	83716203	-	BTH_II2058	-	3-dehydroquinate dehydratase
2045	 70.20	0	2508127..2510190	+	687	83718326	-	BTH_II2059	-	4-hydroxyphenylpyruvate dioxygenase, putative
2046	 68.30	0	2510258..2511907	-	549	83717222	-	BTH_II2060	-	L-lactate transporter
2047	 69.70	0	2511998..2514172	-	724	83717677	glcB	BTH_II2061	-	malate synthase G
2048	 66.30	0	2514623..2514892	+	89	83718219	-	BTH_II2062	-	hypothetical protein
2049	 68.70	0	2515096..2516031	-	311	83717821	-	BTH_II2063	-	AraC family transcriptional regulator
2050	 77.58	+2	2516071..2517408	-	445	83717149	-	BTH_II2064	-	oxidoreductase, putative
2051	 71.68	0	2517360..2517758	-	132	83716808	-	BTH_II2065	-	NAD-dependent formate dehydrogenase, alpha subunit
2052	 74.25	+1	2517590..2518723	-	377	83716292	-	BTH_II2066	-	oxidoreductase, FAD-binding family protein
2053	 72.56	+1	2518720..2519652	-	310	83718189	-	BTH_II2067	-	proline racemase, putative
2054	 66.75	0	2519651..2520823	+	390	83717672	-	BTH_II2068	-	dihydrodipicolinate synthetase family protein
2055	 68.76	0	2521302..2522927	+	541	83717321	-	BTH_II2069	-	amino acid permease
67.58	MEAN

4.44	STD DEV
