IslandPathversion 1.0

IslandPath Analysis: Burkholderia thailandensis E264

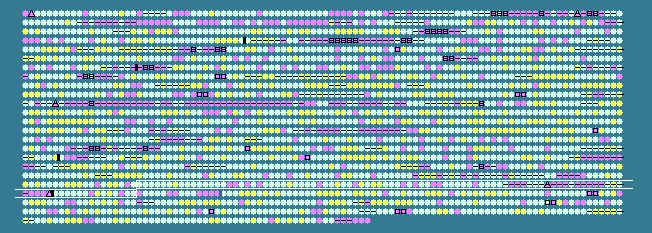

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1920	 65.86	0	2343254..2343625	-	123	83718110	-	BTH_II1928	-	transmembrane protein
1921	 69.99	0	2343975..2346110	-	711	83716758	-	BTH_II1929	-	hypothetical protein
1922	 70.27	0	2346124..2350095	-	1323	83717455	-	BTH_II1930	-	AMP-binding domain-containing protein
1923	 69.68	0	2350152..2351048	-	298	83717835	-	BTH_II1931	-	metallo-beta-lactamase domain-containing protein
1924	 70.57	0	2351063..2352061	-	332	83716602	fabH	BTH_II1932	-	3-oxoacyl-(acyl carrier protein) synthase III
1925	 69.65	0	2352051..2353157	-	368	83717776	-	BTH_II1933	-	hypothetical protein
1926	 72.34	+1	2353157..2354038	-	293	83716903	-	BTH_II1934	-	hypothetical protein
1927	 69.74	0	2354118..2355743	-	541	83716442	-	BTH_II1935	-	acetyl-CoA synthetase, putative
1928	 67.88	0	2356823..2359468	-	881	83717926	-	BTH_II1936	-	ribonucleotide reductase system
1929	 64.16	0	2359857..2360414	+	185	83717249	-	BTH_II1937	-	hypothetical protein
1930	 67.09	0	2360812..2362452	-	546	83716843	groEL	BTH_II1938	-	chaperonin GroEL
1931	 64.60	0	2362465..2362755	-	96	83716291	groES	BTH_II1939	-	co-chaperonin GroES
1932	 64.73	0	2362917..2363330	-	137	83717828	-	BTH_II1940	-	hypothetical protein
1933	 66.98	0	2363388..2364350	-	320	83717304	-	BTH_II1941	-	agmatinase
1934	 68.08	0	2364482..2365972	-	496	83717700	-	BTH_II1942	-	aldehyde dehydrogenase family protein
1935	 62.63	-1	2366090..2366659	-	189	83717911	-	BTH_II1943	-	Cro/CI family transcriptional regulator putative
1936	 62.21	-1	2366923..2367348	-	141	83718288	-	BTH_II1944	-	hypothetical protein
1937	 69.00	0	2367439..2368380	+	313	83717081	-	BTH_II1945	-	glutamine amidotransferase, class I
1938	 63.60	0	2368407..2369741	+	444	83716572	-	BTH_II1946	-	glutamine synthetase family protein
1939	 66.60	0	2369777..2371210	+	477	83717599	-	BTH_II1947	-	putative aminotransferase
1940	 62.92	-1	2371278..2372399	+	373	83718182	-	BTH_II1948	-	putrescine ABC transporter, periplasmic putrescine-binding protein
1941	 64.59	0	2372590..2373744	+	384	83718054	-	BTH_II1949	-	putrescine ABC transporter, ATP-binding protein
1942	 64.93	0	2373741..2374721	+	326	83716200	-	BTH_II1950	-	putrescine ABC transporter, permease protein
1943	 65.05	0	2374718..2375647	+	309	83716719	-	BTH_II1951	-	putrescine ABC transporter, permease protein
1944	 65.97	0	2375713..2377293	+	526	83717238	-	BTH_II1952	-	hypothetical protein
1945	 71.70	0	2377398..2378729	+	443	83718209	-	BTH_II1953	-	oxidoreductase, FAD-binding
1946	 69.45	0	2378797..2380089	+	430	83717016	-	BTH_II1954	-	oxidoreductase, FAD-binding
1947	 65.99	0	2380267..2382324	-	685	83717565	-	BTH_II1955	-	methyl-accepting chemotaxis protein
1948	 70.68	0	2382350..2383297	-	315	83718099	-	BTH_II1956	-	copper resistance protein, putative
1949	 67.80	0	2383297..2383737	-	146	83716127	-	BTH_II1957	-	copper resistance protein, putative
1950	 62.64	-1	2383734..2384081	-	115	83716689	-	BTH_II1958	-	RND family efflux transporter MFP subunit
1951	 66.28	0	2384177..2385478	-	433	83717420	-	BTH_II1959	-	multicopper oxidase
1952	 70.39	0	2385475..2387085	-	536	83717855	-	BTH_II1960	-	copper tolerance protein
1953	 73.67	+1	2387082..2387381	-	99	83716136	-	BTH_II1961	-	hypothetical protein
1954	 68.48	0	2387475..2388137	-	220	83716435	-	BTH_II1962	-	hypothetical protein
1955	 69.00	0	2388143..2389987	-	614	83716502	-	BTH_II1963	-	phosphotransferase domain-containing protein
1956	 63.90	0	2391056..2392177	+	373	83717156	-	BTH_II1964	-	D-alanyl-D-alanine carboxypeptidase family protein
1957	 76.39	+1	2392177..2392320	+	47	83716823	-	BTH_II1965	-	hypothetical protein
1958	 68.44	0	2392490..2393110	-	206	83717328	-	BTH_II1966	-	DJ-1/PfpI family protein, putative
1959	 73.56	+1	2393196..2394530	+	444	83717880	-	BTH_II1967	-	aminotransferase family protein
1960	 73.29	+1	2394909..2395814	-	301	83716614	-	BTH_II1968	-	hypothetical protein
1961	 66.12	0	2395890..2396615	-	241	83717131	-	BTH_II1969	-	hypothetical protein
1962	 65.75	0	2396445..2397644	+	399	83717647	-	BTH_II1970	-	LysR family transcriptional regulator
1963	 68.52	0	2397731..2397946	+	71	83718184	-	BTH_II1971	-	hypothetical protein
1964	 56.91	-2	2398500..2398622	+	40	83716307	-	BTH_II1972	-	hypothetical protein
1965	 65.72	0	2398681..2399634	+	317	83716846	-	BTH_II1973	-	hypothetical protein
1966	 60.95	-1	2399895..2400944	-	349	83717300	-	BTH_II1974	-	hypothetical protein
1967	 66.00	0	2400948..2401994	-	348	83717263	-	BTH_II1975	-	hypothetical protein
1968	 67.02	0	2402007..2402576	-	189	83716440	-	BTH_II1976	-	galactoside O-acetyltransferase
1969	 62.93	-1	2402569..2403666	-	365	83716955	-	BTH_II1977	-	lipopolysaccharide core biosynthesis heptosyltransferase, putative
1970	 59.97	-1	2403530..2404738	-	402	83716375	-	BTH_II1978	-	lipopolysaccharide heptosyltransferase II rfaC2
1971	 64.18	0	2404962..2406005	-	347	83716957	-	BTH_II1979	-	glycosyl transferase family protein
1972	 65.41	0	2406021..2407376	-	451	83718256	-	BTH_II1980	-	hypothetical protein
1973	 65.88	0	2407655..2409430	-	591	83718011	-	BTH_II1981	-	perosamine synthetase
1974	 66.22	0	2409441..2410793	-	450	83716159	rfbH	BTH_II1982	-	lipopolysaccharide biosynthesis protein (O-antigen-related)
1975	 69.74	0	2410797..2411870	-	357	83716161	rfbG	BTH_II1983	-	CDP-glucose 4,6-dehydratase (O-antigen-related)
1976	 62.16	-1	2411873..2412649	-	258	83717121	rfbF	BTH_II1984	-	glucose-1-phosphate cytidylyltransferase (O-antigen-related)
1977	 67.49	0	2412646..2413863	-	405	83718074	-	BTH_II1985	-	chain length determinant domain-containing protein
1978	 67.35	0	2413868..2416501	-	877	83717486	-	BTH_II1986	-	polysaccharide biosynthesis protein, putative
1979	 66.92	0	2417537..2418319	+	260	83718006	-	BTH_II1987	-	hypothetical protein
1980	 67.11	0	2418390..2421308	+	972	83716206	o698	BTH_II1988	-	otnG protein
1981	 65.48	0	2421667..2423514	-	615	83716876	-	BTH_II1989	-	acetolactate synthase II, large subunit
1982	 57.35	-2	2423607..2424014	-	135	83716751	-	BTH_II1990	-	hypothetical protein
1983	 64.10	0	2424391..2424819	+	142	83716281	-	BTH_II1991	-	hypothetical protein
1984	 60.75	-1	2424935..2425627	+	230	83717401	-	BTH_II1992	-	hypothetical protein
1985	 64.76	0	2425760..2429323	+	1187	83716535	-	BTH_II1993	-	hypothetical protein
1986	 65.74	0	2429307..2441705	+	4132	83716175	-	BTH_II1994	-	LysM domain-containing protein
1987	 67.89	0	2441696..2442430	+	244	83716130	-	BTH_II1995	-	hypothetical protein
1988	 54.45	-2	2442483..2443055	+	190	83717581	-	BTH_II1996	-	bacteriophage integrase family protein
1989	 51.81	-2	2443674..2444171	+	165	83716698	-	BTH_II1997	-	hypothetical protein
1990	 54.68	-2	2444600..2445016	-	138	83717087	-	BTH_II1998	-	hypothetical protein
1991	 52.78	-2	2445060..2445239	-	59	83718197	-	BTH_II1999	-	hypothetical protein
1992	 64.20	0	2445519..2446046	+	175	83716506	-	BTH_II2000	-	hypothetical protein
1993	 60.41	-1	2446043..2446777	+	244	83717994	-	BTH_II2001	-	gp30
1994	 61.93	-1	2446910..2447902	+	330	83717469	-	BTH_II2002	-	gp31
1995	 57.25	-2	2447973..2448641	-	222	83716663	-	BTH_II2003	-	transposon Tn2501 resolvase
1996	 53.32	-2	2450618..2452303	-	561	83716069	-	BTH_II2004	-	adenylosuccinate synthase
1997	 58.45	-2	2453278..2454384	+	368	83718307	-	BTH_II2005	-	hypothetical protein
1998	 66.21	0	2454477..2454695	+	72	83716059	-	BTH_II2006	-	prophage regulatory protein AlpA family protein
1999	 71.98	0	2454942..2455148	+	68	83717796	-	BTH_II2007	-	splicing coactivator subunit-like protein
2000	 67.64	0	2455275..2458142	+	955	83717727	-	BTH_II2008	-	DNA primase
2001	 56.72	-2	2458273..2458473	-	66	83717192	-	BTH_II2009	-	DNA-binding protein
2002	 57.33	-2	2458778..2459077	+	99	83717865	-	BTH_II2010	-	H-NS histone family protein
2003	 57.43	-2	2459227..2459529	+	100	83717360	-	BTH_II2011	-	hypothetical protein
2004	 55.88	-2	2459661..2459864	-	67	83717317	-	BTH_II2012	-	DNA-binding protein
2005	 61.87	-1	2460611..2461840	-	409	83716799	-	BTH_II2013	-	integrase
2006	 65.82	0	2462155..2464170	-	671	83716273	-	BTH_II2015	-	sodium:solute symporter family protein
2007	 66.40	0	2464164..2464544	-	126	83718176	-	BTH_II2016	-	hypothetical protein
2008	 67.93	0	2464642..2466624	-	660	83717525	acsA	BTH_II2017	-	acetyl-CoA synthetase
2009	 67.00	0	2466914..2467813	+	299	83716871	-	BTH_II2018	-	hypothetical protein
2010	 64.68	0	2467948..2468652	+	234	83717639	-	BTH_II2019	-	hypothetical protein
2011	 65.69	0	2468692..2470227	+	511	83717018	-	BTH_II2020	-	tartrate/fumarate family Fe-S type hydro-lyase
2012	 53.33	-2	2470185..2470859	+	224	83717287	-	BTH_II2021	-	bacterioferritin
2013	 71.97	0	2470905..2471771	+	288	83716465	murI	BTH_II2022	-	glutamate racemase
2014	 64.17	0	2471906..2472145	+	79	83718020	-	BTH_II2023	-	bacterioferritin-associated ferredoxin, putative
2015	 71.70	0	2472373..2473107	+	244	83716958	-	BTH_II2024	-	TonB protein, putative
2016	 64.53	0	2473168..2473869	+	233	83716181	-	BTH_II2025	-	MotA/TolQ/ExbB proton channel family protein
2017	 63.40	0	2473883..2474311	+	142	83716621	-	BTH_II2026	-	biopolymer ExbD/TolR family transporter
2018	 65.42	0	2474677..2475642	-	321	83718146	-	BTH_II2027	-	LysR family transcriptional regulator
2019	 64.69	0	2475625..2476638	+	337	83718085	-	BTH_II2028	-	pirin family protein
67.58	MEAN

4.44	STD DEV
