IslandPathversion 1.0

IslandPath Analysis: Burkholderia thailandensis E264

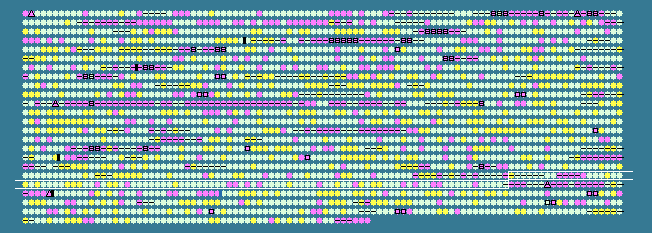

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1882	 72.11	+1	2289895..2290611	-	238	83716070	-	BTH_II1890	-	hypothetical protein
1883	 68.72	0	2290614..2291684	-	356	83716702	-	BTH_II1891	-	pentapeptide repeat-containing protein
1884	 68.34	0	2291684..2293834	-	716	83717521	-	BTH_II1892	-	hypothetical protein
1885	 64.74	0	2293904..2296192	-	762	83716389	-	BTH_II1893	-	Rhs element Vgr protein
1886	 64.66	0	2296361..2298652	-	763	83717067	-	BTH_II1894	-	Rhs element Vgr protein
1887	 70.64	0	2298643..2301486	-	947	83717751	-	BTH_II1895	-	ATP-dependent Clp protease, ATP-binding subunit ClpB
1888	 68.38	0	2301489..2302478	-	329	83718279	-	BTH_II1896	-	hypothetical protein
1889	 70.10	0	2302475..2304337	-	620	83716407	-	BTH_II1897	-	hypothetical protein
1890	 62.04	-1	2304351..2304782	-	143	83717049	-	BTH_II1898	-	hypothetical protein
1891	 61.55	-1	2304861..2305388	-	175	83718015	-	BTH_II1899	-	hypothetical protein
1892	 62.88	-1	2305532..2307037	-	501	83718249	-	BTH_II1900	-	hypothetical protein
1893	 62.14	-1	2307040..2307591	-	183	83717753	-	BTH_II1901	-	hypothetical protein
1894	 62.65	-1	2307625..2308569	-	314	83717202	-	BTH_II1902	-	ImpA-like N-terminal family protein
1895	 65.47	0	2310190..2312109	-	639	83716517	-	BTH_II1903	-	coenzyme A transferase
1896	 70.11	0	2312067..2312762	+	231	83717914	-	BTH_II1904	-	CDP-alcohol phosphatidyltransferase family protein
1897	 66.28	0	2312759..2313532	+	257	83717482	-	BTH_II1905	-	2OG-Fe(II) oxygenase family oxidoreductase
1898	 74.67	+1	2313544..2314530	+	328	83716792	-	BTH_II1906	-	hypothetical protein
1899	 68.62	0	2314569..2315336	+	255	83716352	-	BTH_II1907	-	hypothetical protein
1900	 67.79	0	2315333..2317021	+	562	83716879	-	BTH_II1908	-	phosphoenolpyruvate phosphomutase
1901	 73.43	+1	2317018..2318199	+	393	83717922	-	BTH_II1909	-	3-phosphonopyruvate decarboxylase
1902	 70.22	0	2318214..2319281	+	355	83717353	-	BTH_II1910	-	2-aminoethylphosphonate-pyruvate transaminase
1903	 72.93	+1	2319411..2320001	-	196	83717212	-	BTH_II1911	-	DJ-1/PfpI family protein
1904	 69.91	0	2319931..2320578	+	215	83718243	-	BTH_II1912	-	AraC family transcriptional regulator
1905	 68.16	0	2320826..2321899	+	357	83717625	-	BTH_II1913	-	hypothetical protein
1906	 67.62	0	2322254..2322985	+	243	83716536	-	BTH_II1914	-	alpha/beta fold family hydrolase
1907	 66.99	0	2323172..2324407	-	411	83718120	-	BTH_II1915	-	Bcr/CflA subfamily drug resistance transporter
1908	 71.19	0	2324513..2326015	+	500	83718048	-	BTH_II1916	-	GntR family transcriptional regulator
1909	 72.74	+1	2326149..2327186	-	345	83717161	-	BTH_II1917	-	transglutaminase domain-containing protein
1910	 71.58	0	2327177..2329783	-	868	83717695	-	BTH_II1918	-	u1937b; B1937_F1_4
1911	 69.58	0	2330075..2333512	-	1145	83716604	-	BTH_II1919	-	transglutaminase domain-containing protein
1912	 69.91	0	2333637..2334593	-	318	83716850	-	BTH_II1920	-	transglutaminase-like domain-containing protein
1913	 63.48	0	2334602..2335543	-	313	83717377	-	BTH_II1921	-	hypothetical protein
1914	 65.89	0	2335638..2337053	-	471	83716427	-	BTH_II1922	-	u1937b; B1937_F1_4
1915	 71.31	0	2337783..2338406	+	207	83716954	-	BTH_II1923	-	nitroreductase family protein
1916	 71.40	0	2338471..2338956	+	161	83716125	-	BTH_II1924	-	hypothetical protein
1917	 67.70	0	2339057..2340406	+	449	83716748	-	BTH_II1925	-	chitin binding domain-containing protein
1918	 62.77	-1	2340662..2341225	+	187	83717689	-	BTH_II1926	-	alkyl hydroperoxide reductase, subunit c
1919	 68.99	0	2341168..2342973	+	601	83718356	ahpF	BTH_II1927	-	alkyl hydroperoxide reductase subunit
1920	 65.86	0	2343254..2343625	-	123	83718110	-	BTH_II1928	-	transmembrane protein
1921	 69.99	0	2343975..2346110	-	711	83716758	-	BTH_II1929	-	hypothetical protein
1922	 70.27	0	2346124..2350095	-	1323	83717455	-	BTH_II1930	-	AMP-binding domain-containing protein
1923	 69.68	0	2350152..2351048	-	298	83717835	-	BTH_II1931	-	metallo-beta-lactamase domain-containing protein
1924	 70.57	0	2351063..2352061	-	332	83716602	fabH	BTH_II1932	-	3-oxoacyl-(acyl carrier protein) synthase III
1925	 69.65	0	2352051..2353157	-	368	83717776	-	BTH_II1933	-	hypothetical protein
1926	 72.34	+1	2353157..2354038	-	293	83716903	-	BTH_II1934	-	hypothetical protein
1927	 69.74	0	2354118..2355743	-	541	83716442	-	BTH_II1935	-	acetyl-CoA synthetase, putative
1928	 67.88	0	2356823..2359468	-	881	83717926	-	BTH_II1936	-	ribonucleotide reductase system
1929	 64.16	0	2359857..2360414	+	185	83717249	-	BTH_II1937	-	hypothetical protein
1930	 67.09	0	2360812..2362452	-	546	83716843	groEL	BTH_II1938	-	chaperonin GroEL
1931	 64.60	0	2362465..2362755	-	96	83716291	groES	BTH_II1939	-	co-chaperonin GroES
1932	 64.73	0	2362917..2363330	-	137	83717828	-	BTH_II1940	-	hypothetical protein
1933	 66.98	0	2363388..2364350	-	320	83717304	-	BTH_II1941	-	agmatinase
1934	 68.08	0	2364482..2365972	-	496	83717700	-	BTH_II1942	-	aldehyde dehydrogenase family protein
1935	 62.63	-1	2366090..2366659	-	189	83717911	-	BTH_II1943	-	Cro/CI family transcriptional regulator putative
1936	 62.21	-1	2366923..2367348	-	141	83718288	-	BTH_II1944	-	hypothetical protein
1937	 69.00	0	2367439..2368380	+	313	83717081	-	BTH_II1945	-	glutamine amidotransferase, class I
1938	 63.60	0	2368407..2369741	+	444	83716572	-	BTH_II1946	-	glutamine synthetase family protein
1939	 66.60	0	2369777..2371210	+	477	83717599	-	BTH_II1947	-	putative aminotransferase
1940	 62.92	-1	2371278..2372399	+	373	83718182	-	BTH_II1948	-	putrescine ABC transporter, periplasmic putrescine-binding protein
1941	 64.59	0	2372590..2373744	+	384	83718054	-	BTH_II1949	-	putrescine ABC transporter, ATP-binding protein
1942	 64.93	0	2373741..2374721	+	326	83716200	-	BTH_II1950	-	putrescine ABC transporter, permease protein
1943	 65.05	0	2374718..2375647	+	309	83716719	-	BTH_II1951	-	putrescine ABC transporter, permease protein
1944	 65.97	0	2375713..2377293	+	526	83717238	-	BTH_II1952	-	hypothetical protein
1945	 71.70	0	2377398..2378729	+	443	83718209	-	BTH_II1953	-	oxidoreductase, FAD-binding
1946	 69.45	0	2378797..2380089	+	430	83717016	-	BTH_II1954	-	oxidoreductase, FAD-binding
1947	 65.99	0	2380267..2382324	-	685	83717565	-	BTH_II1955	-	methyl-accepting chemotaxis protein
1948	 70.68	0	2382350..2383297	-	315	83718099	-	BTH_II1956	-	copper resistance protein, putative
1949	 67.80	0	2383297..2383737	-	146	83716127	-	BTH_II1957	-	copper resistance protein, putative
1950	 62.64	-1	2383734..2384081	-	115	83716689	-	BTH_II1958	-	RND family efflux transporter MFP subunit
1951	 66.28	0	2384177..2385478	-	433	83717420	-	BTH_II1959	-	multicopper oxidase
1952	 70.39	0	2385475..2387085	-	536	83717855	-	BTH_II1960	-	copper tolerance protein
1953	 73.67	+1	2387082..2387381	-	99	83716136	-	BTH_II1961	-	hypothetical protein
1954	 68.48	0	2387475..2388137	-	220	83716435	-	BTH_II1962	-	hypothetical protein
1955	 69.00	0	2388143..2389987	-	614	83716502	-	BTH_II1963	-	phosphotransferase domain-containing protein
1956	 63.90	0	2391056..2392177	+	373	83717156	-	BTH_II1964	-	D-alanyl-D-alanine carboxypeptidase family protein
1957	 76.39	+1	2392177..2392320	+	47	83716823	-	BTH_II1965	-	hypothetical protein
1958	 68.44	0	2392490..2393110	-	206	83717328	-	BTH_II1966	-	DJ-1/PfpI family protein, putative
1959	 73.56	+1	2393196..2394530	+	444	83717880	-	BTH_II1967	-	aminotransferase family protein
1960	 73.29	+1	2394909..2395814	-	301	83716614	-	BTH_II1968	-	hypothetical protein
1961	 66.12	0	2395890..2396615	-	241	83717131	-	BTH_II1969	-	hypothetical protein
1962	 65.75	0	2396445..2397644	+	399	83717647	-	BTH_II1970	-	LysR family transcriptional regulator
1963	 68.52	0	2397731..2397946	+	71	83718184	-	BTH_II1971	-	hypothetical protein
1964	 56.91	-2	2398500..2398622	+	40	83716307	-	BTH_II1972	-	hypothetical protein
1965	 65.72	0	2398681..2399634	+	317	83716846	-	BTH_II1973	-	hypothetical protein
1966	 60.95	-1	2399895..2400944	-	349	83717300	-	BTH_II1974	-	hypothetical protein
1967	 66.00	0	2400948..2401994	-	348	83717263	-	BTH_II1975	-	hypothetical protein
1968	 67.02	0	2402007..2402576	-	189	83716440	-	BTH_II1976	-	galactoside O-acetyltransferase
1969	 62.93	-1	2402569..2403666	-	365	83716955	-	BTH_II1977	-	lipopolysaccharide core biosynthesis heptosyltransferase, putative
1970	 59.97	-1	2403530..2404738	-	402	83716375	-	BTH_II1978	-	lipopolysaccharide heptosyltransferase II rfaC2
1971	 64.18	0	2404962..2406005	-	347	83716957	-	BTH_II1979	-	glycosyl transferase family protein
1972	 65.41	0	2406021..2407376	-	451	83718256	-	BTH_II1980	-	hypothetical protein
1973	 65.88	0	2407655..2409430	-	591	83718011	-	BTH_II1981	-	perosamine synthetase
1974	 66.22	0	2409441..2410793	-	450	83716159	rfbH	BTH_II1982	-	lipopolysaccharide biosynthesis protein (O-antigen-related)
1975	 69.74	0	2410797..2411870	-	357	83716161	rfbG	BTH_II1983	-	CDP-glucose 4,6-dehydratase (O-antigen-related)
1976	 62.16	-1	2411873..2412649	-	258	83717121	rfbF	BTH_II1984	-	glucose-1-phosphate cytidylyltransferase (O-antigen-related)
1977	 67.49	0	2412646..2413863	-	405	83718074	-	BTH_II1985	-	chain length determinant domain-containing protein
1978	 67.35	0	2413868..2416501	-	877	83717486	-	BTH_II1986	-	polysaccharide biosynthesis protein, putative
1979	 66.92	0	2417537..2418319	+	260	83718006	-	BTH_II1987	-	hypothetical protein
1980	 67.11	0	2418390..2421308	+	972	83716206	o698	BTH_II1988	-	otnG protein
1981	 65.48	0	2421667..2423514	-	615	83716876	-	BTH_II1989	-	acetolactate synthase II, large subunit
67.58	MEAN

4.44	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
