IslandPath Analysis: Burkholderia thailandensis E264

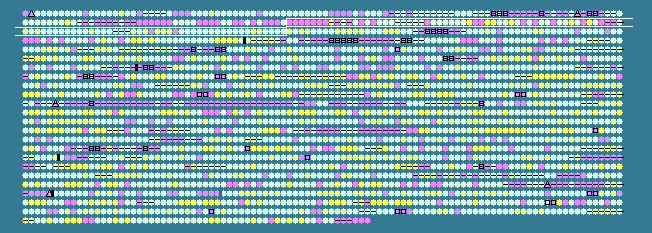

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
145	 63.93	0	179572..181395	+	607	83716112	-	BTH_II0145	-	glycosyl transferase group 2 family protein
146	 60.47	-1	181392..182327	+	311	83716750	-	BTH_II0146	-	hypothetical protein
147	 60.58	-1	182320..183108	+	262	83717240	-	BTH_II0147	-	hypothetical protein
148	 57.80	-2	183105..183713	+	202	83718026	-	BTH_II0148	-	HAD family hydrolase
149	 58.94	-1	183689..184348	+	219	83716512	-	BTH_II0149	-	hypothetical protein
150	 60.26	-1	184329..185483	+	384	83716668	-	BTH_II0150	-	hypothetical protein
151	 63.86	0	185596..186486	+	296	83717540	-	BTH_II0151	-	flagellin D
152	 71.19	0	186543..186719	-	58	83718295	-	BTH_II0152	-	hypothetical protein
153	 62.09	-1	186899..187750	+	283	83717992	-	BTH_II0153	-	flagellar motor protein MotA
154	 67.95	0	187769..188704	+	311	83717140	-	BTH_II0154	-	chemotaxis lafU protein
155	 61.71	-1	188721..189083	+	120	83717918	-	BTH_II0155	-	chemotaxis response regulator
156	 66.76	0	189128..191371	+	747	83716091	-	BTH_II0156	-	chemotaxis protein CheA
157	 63.92	0	191381..191854	+	157	83717542	-	BTH_II0157	-	chemotaxis protein CheW
158	 66.41	0	191935..194274	+	779	83717148	-	BTH_II0158	-	chemotaxis protein
159	 63.63	0	194385..195206	+	273	83716910	-	BTH_II0159	-	chemotaxis protein methyltransferase CheR
160	 66.67	0	195211..195798	+	195	83716255	-	BTH_II0160	-	chemotaxis protein CheD
161	 69.78	0	195743..196930	+	395	83717224	-	BTH_II0161	-	protein-glutamate methylesterase CheB
162	 65.65	0	196955..198037	+	360	83716866	-	BTH_II0162	-	protein-glutamate methylesterase CheB
163	 66.43	0	198126..200216	-	696	83716612	-	BTH_II0163	-	flagellar biosynthesis protein FlhA
164	 67.02	0	200213..201352	-	379	83716504	flhB	BTH_II0164	-	flagellar biosynthesis protein FlhB
165	 66.54	0	201345..202121	-	258	83718195	-	BTH_II0165	-	flagellar biosynthetic protein FliR, putative
166	 65.93	0	202126..202398	-	90	83717562	-	BTH_II0166	-	flagellar biosynthetic protein FliQ, putative
167	 66.15	0	202398..203165	-	255	83716894	fliP	BTH_II0167	-	flagellar biosynthesis protein FliP
168	 63.79	0	203162..203509	-	115	83716202	-	BTH_II0168	-	flagellar motor switch protein FliN
169	 70.73	0	203513..204472	-	319	83717892	-	BTH_II0169	-	hypothetical protein
170	 64.26	0	205230..205562	+	110	83716521	fliE-2	BTH_II0170	-	flagellar hook-basal body complex protein FliE
171	 68.06	0	205598..207253	+	551	83718135	fliF	BTH_II0171	-	flagellar MS-ring protein
172	 65.98	0	207234..208247	+	337	83717505	fliG	BTH_II0172	-	flagellar motor switch protein G
173	 69.28	0	208244..208969	+	241	83717320	fliH	BTH_II0173	-	flagellar assembly protein H
174	 70.03	0	208966..210273	+	435	83716747	fliI	BTH_II0174	-	flagellum-specific ATP synthase
175	 73.29	+1	210270..210707	+	145	83716277	-	BTH_II0175	-	hypothetical protein
176	 61.96	-1	210784..212100	+	438	83717962	-	BTH_II0176	-	flagellar hook-associated protein, putative
177	 64.08	0	212134..212520	+	128	83718213	fliS-2	BTH_II0177	-	flagellar protein FliS
178	 72.42	+1	212507..212836	+	109	83717532	-	BTH_II0178	-	hypothetical protein
179	 72.34	+1	212833..213978	+	381	83717155	-	BTH_II0179	-	flagellar hook-length control protein, putative
180	 64.77	0	214074..215183	+	369	83716542	-	BTH_II0180	-	RNA polymerase sigma factor for flagellar operon FliA
181	 68.42	0	215232..215516	+	94	83717908	-	BTH_II0181	-	hypothetical protein
182	 72.08	+1	215925..216719	+	264	83717866	-	BTH_II0182	-	flagellar protein FlgJ
183	 70.80	0	216661..217434	-	257	83717277	-	BTH_II0183	-	flagella basal body P-ring formation protein FlgA
184	 63.73	0	217553..217927	+	124	83716884	flgB-2	BTH_II0184	-	flagellar basal-body rod protein FlgB
185	 64.75	0	217964..218380	+	138	83716764	flgC-2	BTH_II0185	-	flagellar basal-body rod protein FlgC
186	 63.79	0	218407..219102	+	231	83716169	flgD	BTH_II0186	-	flagellar basal body rod modification protein
187	 66.08	0	219099..220286	+	395	83718065	flgE	BTH_II0187	-	flagellar hook protein flgE
188	 68.46	0	220290..221015	+	241	83717394	-	BTH_II0188	-	flagellar basal-body rod protein FlgF
189	 63.24	0	221047..221835	+	262	83716996	flgG	BTH_II0189	-	flagellar basal body rod protein FlgG
190	 65.75	0	221835..222488	+	217	83716377	flgH	BTH_II0190	-	flagellar basal body L-ring protein
191	 68.13	0	222488..223651	+	387	83718393	flgI	BTH_II0191	-	flagellar basal body P-ring protein
192	 72.95	+1	223665..224030	+	121	83717917	-	BTH_II0192	-	peptidoglycan hydrolase
193	 65.12	0	224165..225523	+	452	83716869	flgK	BTH_II0193	-	flagellar hook-associated protein FlgK
194	 62.95	-1	225541..226455	+	304	83716911	flgL	BTH_II0194	-	flagellar hook-associated protein FlgL
195	 72.10	+1	226471..227538	+	355	83717252	-	BTH_II0195	-	hypothetical protein
196	 66.92	0	227653..228054	+	133	83716355	-	BTH_II0196	-	hypothetical protein
197	 63.28	0	228094..228861	-	255	83716239	-	BTH_II0197	-	transcriptional regulator, putative
198	 57.72	-2	231062..231754	+	230	83717719	-	BTH_II0198	-	DNA-binding response regulator
199	 58.50	-2	231957..232250	-	97	83718376	-	BTH_II0199	-	H-NS histone family protein
200	 68.48	0	232965..234290	+	441	83716102	-	BTH_II0200	-	major facilitator family transporter
201	 75.61	+1	234365..235549	+	394	83716231	-	BTH_II0201	-	glycerate kinase
202	 70.72	0	235608..237062	+	484	83718223	pyk-2	BTH_II0202	-	pyruvate kinase
203	 71.55	0	237154..238362	+	402	83717559	-	BTH_II0203	-	carbohydrate diacid regulator
204	 68.16	0	239300..242251	+	983	83716490	-	BTH_II0204	-	peptide synthetase, putative
205	 69.43	0	242291..243268	+	325	83717292	-	BTH_II0205	-	hypothetical protein
206	 68.43	0	243292..243687	+	131	83717817	-	BTH_II0206	-	hypothetical protein
207	 68.13	0	243841..244866	+	341	83716646	-	BTH_II0207	-	hypothetical protein
208	 68.68	0	244934..246322	-	462	83716280	-	BTH_II0208	-	GGDEF domain-containing protein
209	 65.08	0	247314..248258	-	314	83718224	-	BTH_II0209	-	ribose ABC transporter, periplasmic ribose-binding protein
210	 69.90	0	248338..249357	-	339	83717568	-	BTH_II0210	-	ribose ABC transporter, permease protein
211	 69.82	0	249412..250965	-	517	83717329	-	BTH_II0211	-	ribose ABC transporter, ATP-binding protein
212	 71.54	0	250952..252202	-	416	83716917	-	BTH_II0212	-	transcription regulator ROK family protein
213	 67.08	0	253045..255690	-	881	83717267	-	BTH_II0213	-	glucan 1,4- a-glucosidase
214	 68.88	0	256014..257411	-	465	161723115	-	BTH_II0214	-	ATP-dependent RNA helicase DbpA
215	 64.58	0	257620..258768	-	382	83716388	-	BTH_II0215	-	outer membrane porin OpcP
216	 70.85	0	259034..260347	-	437	83717150	-	BTH_II0216	-	major facilitator family transporter
217	 70.19	0	260388..261578	-	396	83717682	-	BTH_II0217	-	hippurate hydolase
218	 68.77	0	261762..262664	+	300	83716129	-	BTH_II0218	-	LysR family transcriptional regulator
219	 74.19	+1	262935..263771	-	278	83716638	-	BTH_II0219	-	hypothetical protein
220	 68.88	0	263907..265079	+	390	83716134	-	BTH_II0220	-	fatty acid desaturase domain-containing protein
221	 71.78	0	265156..265977	+	273	83716856	-	BTH_II0221	-	hypothetical protein
222	 62.67	-1	266516..267415	-	299	83717385	-	BTH_II0222	-	glutamate/aspartate ABC transporter, periplasmic glutamate/aspartate-binding protein
223	 71.67	0	267561..268898	-	445	83717946	-	BTH_II0223	-	D-amino acid dehydrogenase, small subunit
224	 72.04	+1	268931..269860	-	309	83717418	-	BTH_II0224	-	LysR family transcriptional regulator
225	 71.15	0	269956..270891	-	311	83718093	-	BTH_II0225	-	short chain dehydrogenase
226	 62.84	-1	271109..271474	+	121	83716349	-	BTH_II0226	-	hypothetical protein
227	 65.96	0	271634..273769	+	711	83717737	-	BTH_II0227	-	hypothetical protein
228	 67.98	0	274067..276961	+	964	83718372	-	BTH_II0228	-	alpha-1,2-mannosidase family protein
229	 66.01	0	277580..278641	+	353	83716637	-	BTH_II0229	-	pyoverdine chromophore biosynthetic protein PvcA
230	 68.31	0	278638..279549	+	303	83718140	pvcB	BTH_II0230	-	pyoverdine biosynthesis protein PvcB
231	 66.73	0	279575..281080	+	501	83717205	-	BTH_II0231	-	pyoverdin chromophore biosynthetic protein PvcC
232	 69.18	0	281105..282973	+	622	83718070	asnB-1	BTH_II0232	-	asparagine synthase (glutamine-hydrolyzing)
233	 70.47	0	283002..283973	+	323	83717308	-	BTH_II0233	-	quinone oxidoreductase
234	 68.34	0	283921..284937	+	338	83718071	-	BTH_II0234	-	class III extradiol-type catecholic dioxygenase, putative
235	 64.91	0	284996..286360	-	454	83717382	-	BTH_II0235	-	LysR family transcriptional regulator
236	 65.23	0	287110..287526	+	138	83717038	-	BTH_II0236	-	hypothetical protein
237	 70.16	0	288326..289414	+	362	83716405	-	BTH_II0237	-	hypothetical protein
238	 70.13	0	289407..290387	+	326	83718382	-	BTH_II0238	-	pyruvate dehydrogenase E1 beta subunit
239	 73.01	+1	290392..291495	+	367	83717179	-	BTH_II0239	-	branched-chain alpha-keto acid dehydrogenase subunit E2
240	 74.01	+1	291420..292127	-	235	83717582	-	BTH_II0240	-	L-lactate dehydrogenase
241	 68.13	0	292278..293852	-	524	83716340	-	BTH_II0241	-	major facilitator family transporter
242	 66.57	0	294046..295089	-	347	83716683	-	BTH_II0242	-	isochorismatase
243	 65.35	0	295181..296089	+	302	83716184	-	BTH_II0243	-	LysR family transcriptional regulator
244	 69.60	0	296377..297330	-	317	83718032	-	BTH_II0244	-	LysR family transcriptional regulator
67.58	MEAN

4.44	STD DEV
