IslandPath Analysis: Burkholderia thailandensis E264

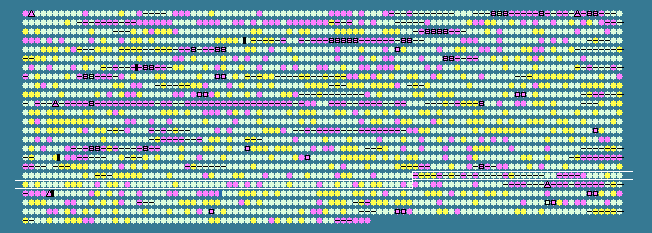

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1866	 62.75	-1	2271581..2271784	+	67	83716038	-	BTH_II1874	-	hypothetical protein
1867	 73.69	+1	2271977..2273443	-	488	83716678	-	BTH_II1875	-	multidrug resistance protein
1868	 74.49	+1	2273440..2275101	-	553	83717519	-	BTH_II1876	-	RND efflux system outer membrane lipoprotein
1869	 71.53	0	2275055..2276020	-	321	83718008	-	BTH_II1877	-	rhamnosyltransferase family protein
1870	 62.28	-1	2276017..2276130	-	37	83716421	-	BTH_II1878	-	hypothetical protein
1871	 70.17	0	2276153..2277724	-	523	83716944	-	BTH_II1879	-	EmrB/QacA family drug resistance transporter
1872	 74.65	+1	2277721..2279148	-	475	83716540	-	BTH_II1880	-	rhamnosyltransferase I, subunit B
1873	 67.67	0	2279278..2280177	-	299	83716935	-	BTH_II1881	-	rhamnosyltransferase 1, subunit A
1874	 56.45	-2	2280750..2281121	-	123	83717991	-	BTH_II1882	-	hypothetical protein
1875	 68.31	0	2281342..2281767	-	141	83718045	-	BTH_II1883	-	hypothetical protein
1876	 59.72	-1	2281790..2282149	-	119	83717690	-	BTH_II1884	-	hypothetical protein
1877	 69.53	0	2282208..2285702	-	1164	83716717	-	BTH_II1885	-	ImcF-like family protein
1878	 70.08	0	2285699..2287483	-	594	83717203	-	BTH_II1886	-	hypothetical protein
1879	 69.53	0	2287509..2288870	-	453	83716495	-	BTH_II1887	-	hypothetical protein
1880	 70.21	0	2288867..2289346	-	159	83718208	-	BTH_II1888	-	putative lipoprotein
1881	 62.82	-1	2289466..2289855	-	129	83717888	-	BTH_II1889	-	hypothetical protein
1882	 72.11	+1	2289895..2290611	-	238	83716070	-	BTH_II1890	-	hypothetical protein
1883	 68.72	0	2290614..2291684	-	356	83716702	-	BTH_II1891	-	pentapeptide repeat-containing protein
1884	 68.34	0	2291684..2293834	-	716	83717521	-	BTH_II1892	-	hypothetical protein
1885	 64.74	0	2293904..2296192	-	762	83716389	-	BTH_II1893	-	Rhs element Vgr protein
1886	 64.66	0	2296361..2298652	-	763	83717067	-	BTH_II1894	-	Rhs element Vgr protein
1887	 70.64	0	2298643..2301486	-	947	83717751	-	BTH_II1895	-	ATP-dependent Clp protease, ATP-binding subunit ClpB
1888	 68.38	0	2301489..2302478	-	329	83718279	-	BTH_II1896	-	hypothetical protein
1889	 70.10	0	2302475..2304337	-	620	83716407	-	BTH_II1897	-	hypothetical protein
1890	 62.04	-1	2304351..2304782	-	143	83717049	-	BTH_II1898	-	hypothetical protein
1891	 61.55	-1	2304861..2305388	-	175	83718015	-	BTH_II1899	-	hypothetical protein
1892	 62.88	-1	2305532..2307037	-	501	83718249	-	BTH_II1900	-	hypothetical protein
1893	 62.14	-1	2307040..2307591	-	183	83717753	-	BTH_II1901	-	hypothetical protein
1894	 62.65	-1	2307625..2308569	-	314	83717202	-	BTH_II1902	-	ImpA-like N-terminal family protein
1895	 65.47	0	2310190..2312109	-	639	83716517	-	BTH_II1903	-	coenzyme A transferase
1896	 70.11	0	2312067..2312762	+	231	83717914	-	BTH_II1904	-	CDP-alcohol phosphatidyltransferase family protein
1897	 66.28	0	2312759..2313532	+	257	83717482	-	BTH_II1905	-	2OG-Fe(II) oxygenase family oxidoreductase
1898	 74.67	+1	2313544..2314530	+	328	83716792	-	BTH_II1906	-	hypothetical protein
1899	 68.62	0	2314569..2315336	+	255	83716352	-	BTH_II1907	-	hypothetical protein
1900	 67.79	0	2315333..2317021	+	562	83716879	-	BTH_II1908	-	phosphoenolpyruvate phosphomutase
1901	 73.43	+1	2317018..2318199	+	393	83717922	-	BTH_II1909	-	3-phosphonopyruvate decarboxylase
1902	 70.22	0	2318214..2319281	+	355	83717353	-	BTH_II1910	-	2-aminoethylphosphonate-pyruvate transaminase
1903	 72.93	+1	2319411..2320001	-	196	83717212	-	BTH_II1911	-	DJ-1/PfpI family protein
1904	 69.91	0	2319931..2320578	+	215	83718243	-	BTH_II1912	-	AraC family transcriptional regulator
1905	 68.16	0	2320826..2321899	+	357	83717625	-	BTH_II1913	-	hypothetical protein
1906	 67.62	0	2322254..2322985	+	243	83716536	-	BTH_II1914	-	alpha/beta fold family hydrolase
1907	 66.99	0	2323172..2324407	-	411	83718120	-	BTH_II1915	-	Bcr/CflA subfamily drug resistance transporter
1908	 71.19	0	2324513..2326015	+	500	83718048	-	BTH_II1916	-	GntR family transcriptional regulator
1909	 72.74	+1	2326149..2327186	-	345	83717161	-	BTH_II1917	-	transglutaminase domain-containing protein
1910	 71.58	0	2327177..2329783	-	868	83717695	-	BTH_II1918	-	u1937b; B1937_F1_4
1911	 69.58	0	2330075..2333512	-	1145	83716604	-	BTH_II1919	-	transglutaminase domain-containing protein
1912	 69.91	0	2333637..2334593	-	318	83716850	-	BTH_II1920	-	transglutaminase-like domain-containing protein
1913	 63.48	0	2334602..2335543	-	313	83717377	-	BTH_II1921	-	hypothetical protein
1914	 65.89	0	2335638..2337053	-	471	83716427	-	BTH_II1922	-	u1937b; B1937_F1_4
1915	 71.31	0	2337783..2338406	+	207	83716954	-	BTH_II1923	-	nitroreductase family protein
1916	 71.40	0	2338471..2338956	+	161	83716125	-	BTH_II1924	-	hypothetical protein
1917	 67.70	0	2339057..2340406	+	449	83716748	-	BTH_II1925	-	chitin binding domain-containing protein
1918	 62.77	-1	2340662..2341225	+	187	83717689	-	BTH_II1926	-	alkyl hydroperoxide reductase, subunit c
1919	 68.99	0	2341168..2342973	+	601	83718356	ahpF	BTH_II1927	-	alkyl hydroperoxide reductase subunit
1920	 65.86	0	2343254..2343625	-	123	83718110	-	BTH_II1928	-	transmembrane protein
1921	 69.99	0	2343975..2346110	-	711	83716758	-	BTH_II1929	-	hypothetical protein
1922	 70.27	0	2346124..2350095	-	1323	83717455	-	BTH_II1930	-	AMP-binding domain-containing protein
1923	 69.68	0	2350152..2351048	-	298	83717835	-	BTH_II1931	-	metallo-beta-lactamase domain-containing protein
1924	 70.57	0	2351063..2352061	-	332	83716602	fabH	BTH_II1932	-	3-oxoacyl-(acyl carrier protein) synthase III
1925	 69.65	0	2352051..2353157	-	368	83717776	-	BTH_II1933	-	hypothetical protein
1926	 72.34	+1	2353157..2354038	-	293	83716903	-	BTH_II1934	-	hypothetical protein
1927	 69.74	0	2354118..2355743	-	541	83716442	-	BTH_II1935	-	acetyl-CoA synthetase, putative
1928	 67.88	0	2356823..2359468	-	881	83717926	-	BTH_II1936	-	ribonucleotide reductase system
1929	 64.16	0	2359857..2360414	+	185	83717249	-	BTH_II1937	-	hypothetical protein
1930	 67.09	0	2360812..2362452	-	546	83716843	groEL	BTH_II1938	-	chaperonin GroEL
1931	 64.60	0	2362465..2362755	-	96	83716291	groES	BTH_II1939	-	co-chaperonin GroES
1932	 64.73	0	2362917..2363330	-	137	83717828	-	BTH_II1940	-	hypothetical protein
1933	 66.98	0	2363388..2364350	-	320	83717304	-	BTH_II1941	-	agmatinase
1934	 68.08	0	2364482..2365972	-	496	83717700	-	BTH_II1942	-	aldehyde dehydrogenase family protein
1935	 62.63	-1	2366090..2366659	-	189	83717911	-	BTH_II1943	-	Cro/CI family transcriptional regulator putative
1936	 62.21	-1	2366923..2367348	-	141	83718288	-	BTH_II1944	-	hypothetical protein
1937	 69.00	0	2367439..2368380	+	313	83717081	-	BTH_II1945	-	glutamine amidotransferase, class I
1938	 63.60	0	2368407..2369741	+	444	83716572	-	BTH_II1946	-	glutamine synthetase family protein
1939	 66.60	0	2369777..2371210	+	477	83717599	-	BTH_II1947	-	putative aminotransferase
1940	 62.92	-1	2371278..2372399	+	373	83718182	-	BTH_II1948	-	putrescine ABC transporter, periplasmic putrescine-binding protein
1941	 64.59	0	2372590..2373744	+	384	83718054	-	BTH_II1949	-	putrescine ABC transporter, ATP-binding protein
1942	 64.93	0	2373741..2374721	+	326	83716200	-	BTH_II1950	-	putrescine ABC transporter, permease protein
1943	 65.05	0	2374718..2375647	+	309	83716719	-	BTH_II1951	-	putrescine ABC transporter, permease protein
1944	 65.97	0	2375713..2377293	+	526	83717238	-	BTH_II1952	-	hypothetical protein
1945	 71.70	0	2377398..2378729	+	443	83718209	-	BTH_II1953	-	oxidoreductase, FAD-binding
1946	 69.45	0	2378797..2380089	+	430	83717016	-	BTH_II1954	-	oxidoreductase, FAD-binding
1947	 65.99	0	2380267..2382324	-	685	83717565	-	BTH_II1955	-	methyl-accepting chemotaxis protein
1948	 70.68	0	2382350..2383297	-	315	83718099	-	BTH_II1956	-	copper resistance protein, putative
1949	 67.80	0	2383297..2383737	-	146	83716127	-	BTH_II1957	-	copper resistance protein, putative
1950	 62.64	-1	2383734..2384081	-	115	83716689	-	BTH_II1958	-	RND family efflux transporter MFP subunit
1951	 66.28	0	2384177..2385478	-	433	83717420	-	BTH_II1959	-	multicopper oxidase
1952	 70.39	0	2385475..2387085	-	536	83717855	-	BTH_II1960	-	copper tolerance protein
1953	 73.67	+1	2387082..2387381	-	99	83716136	-	BTH_II1961	-	hypothetical protein
1954	 68.48	0	2387475..2388137	-	220	83716435	-	BTH_II1962	-	hypothetical protein
1955	 69.00	0	2388143..2389987	-	614	83716502	-	BTH_II1963	-	phosphotransferase domain-containing protein
1956	 63.90	0	2391056..2392177	+	373	83717156	-	BTH_II1964	-	D-alanyl-D-alanine carboxypeptidase family protein
1957	 76.39	+1	2392177..2392320	+	47	83716823	-	BTH_II1965	-	hypothetical protein
1958	 68.44	0	2392490..2393110	-	206	83717328	-	BTH_II1966	-	DJ-1/PfpI family protein, putative
1959	 73.56	+1	2393196..2394530	+	444	83717880	-	BTH_II1967	-	aminotransferase family protein
1960	 73.29	+1	2394909..2395814	-	301	83716614	-	BTH_II1968	-	hypothetical protein
1961	 66.12	0	2395890..2396615	-	241	83717131	-	BTH_II1969	-	hypothetical protein
1962	 65.75	0	2396445..2397644	+	399	83717647	-	BTH_II1970	-	LysR family transcriptional regulator
1963	 68.52	0	2397731..2397946	+	71	83718184	-	BTH_II1971	-	hypothetical protein
1964	 56.91	-2	2398500..2398622	+	40	83716307	-	BTH_II1972	-	hypothetical protein
1965	 65.72	0	2398681..2399634	+	317	83716846	-	BTH_II1973	-	hypothetical protein
67.58	MEAN

4.44	STD DEV
