IslandPathversion 1.0

IslandPath Analysis: Burkholderia thailandensis E264

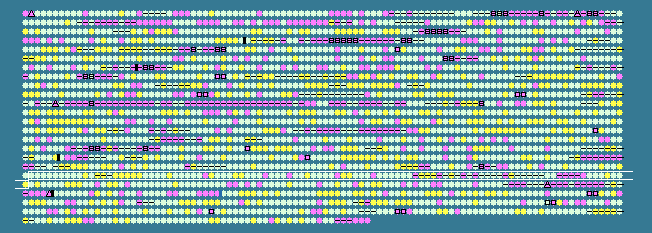

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1802	 69.77	0	2186859..2187245	+	128	83716164	-	BTH_II1810	-	hypothetical protein
1803	 70.49	0	2187434..2187616	-	60	83716404	-	BTH_II1811	-	hypothetical protein
1804	 68.07	0	2187834..2188118	-	94	83717508	-	BTH_II1812	-	hypothetical protein
1805	 67.47	0	2189001..2189621	-	206	83716575	-	BTH_II1813	-	hypothetical protein
1806	 65.82	0	2189863..2191164	+	433	83717083	-	BTH_II1814	-	permease
1807	 68.18	0	2191387..2191518	-	43	83717920	-	BTH_II1815	-	hypothetical protein
1808	 64.58	0	2191571..2191858	-	95	83716064	-	BTH_II1816	-	hypothetical protein
1809	 68.37	0	2192003..2192296	-	97	83716321	-	BTH_II1817	-	putative integral membrane protein
1810	 64.62	0	2192448..2192642	-	64	83716849	-	BTH_II1818	-	hypothetical protein
1811	 72.14	+1	2192912..2194867	+	651	83717601	-	BTH_II1819	-	sigma-54 activated regulatory protein
1812	 69.07	0	2195352..2195642	+	96	83718116	-	BTH_II1820	-	2Fe-2S iron-sulfur
1813	 72.13	+1	2195707..2197080	-	457	83717303	-	BTH_II1821	-	transporter
1814	 75.64	+1	2196971..2198485	-	504	83718094	-	BTH_II1822	-	PepSY-associated TM helix family protein
1815	 68.45	0	2198750..2200993	-	747	83716062	fptA	BTH_II1823	-	Fe(III)-pyochelin receptor precursor
1816	 74.73	+1	2201070..2202842	-	590	83717042	pchI	BTH_II1824	-	ABC transporter ATP-binding protein
1817	 74.18	+1	2202839..2204569	-	576	83716837	-	BTH_II1825	-	ABC transporter, ATP-binding/permease protein, putative
1818	 73.77	+1	2204566..2205621	-	351	83718122	pchG	BTH_II1826	-	pyochelin biosynthetic protein
1819	 72.93	+1	2205618..2211302	-	1894	83717875	-	BTH_II1827	-	pyochelin synthetase
1820	 73.66	+1	2211299..2215690	-	1463	83716174	pchE	BTH_II1828	-	pyochelin synthetase
1821	 68.62	0	2215817..2216788	-	323	83717721	pchR	BTH_II1829	-	AraC family transcription regulator
1822	 70.94	0	2216990..2218906	+	638	83718369	pchD	BTH_II1830	-	salicyl-AMP ligase
1823	 70.67	0	2218903..2219676	+	257	83716356	pchC	BTH_II1831	-	pyochelin biosynthetic protein
1824	 68.30	0	2219673..2219978	+	101	83717053	pchB	BTH_II1832	-	isochorismate-pyruvate lyase
1825	 73.44	+1	2219975..2221420	+	481	83716790	-	BTH_II1833	-	salicylate biosynthesis isochorismate synthase
1826	 69.32	0	2221648..2222892	-	414	83716755	-	BTH_II1834	-	LasA protease precursor
1827	 66.95	0	2223622..2224323	-	233	83716093	-	BTH_II1835	-	ABC transporter
1828	 66.15	0	2224323..2225096	-	257	83716525	livG	BTH_II1836	-	leucine/isoleucine/valine transporter ATP-binding subunit
1829	 66.90	0	2225093..2226364	-	423	83717622	livM	BTH_II1837	-	leucine/isoleucine/valine transporter permease subunit
1830	 65.16	0	2226373..2227299	-	308	83716942	braD	BTH_II1838	-	high-affinity branched-chain amino acid transport system permease protein
1831	 63.98	0	2227490..2228605	-	371	83716290	braC	BTH_II1839	-	leucine-, isoleucine-, valine-, threonine-, and alanine-binding protein precursor
1832	 73.09	+1	2229379..2230686	+	435	83717993	-	BTH_II1840	-	D-amino acid dehydrogenase, small subunit, putative
1833	 68.38	0	2231402..2231692	+	96	83716812	-	BTH_II1841	-	hypothetical protein
1834	 69.10	0	2231950..2232936	+	328	83717884	-	BTH_II1842	-	short chain dehydrogenase/reductase family oxidoreductase
1835	 67.63	0	2233168..2233479	+	103	83717110	-	BTH_II1843	-	hypothetical protein
1836	 71.17	0	2233479..2233589	+	36	83716633	-	BTH_II1844	-	hypothetical protein
1837	 73.56	+1	2234082..2235038	-	318	83717075	-	BTH_II1845	-	lipase, putative
1838	 66.87	0	2235075..2235572	-	165	83716819	-	BTH_II1846	-	thioesterase, putative
1839	 68.07	0	2235575..2236570	-	331	83716574	-	BTH_II1847	-	3-hydroxybutyryl-CoA dehydrogenase
1840	 69.35	0	2236657..2237586	-	309	83717603	-	BTH_II1848	-	hypothetical protein
1841	 63.62	0	2237674..2238624	-	316	83717388	-	BTH_II1849	-	ABC transporter, periplasmic glycine/betaine-binding protein
1842	 66.88	0	2238892..2239836	+	314	83716859	-	BTH_II1850	-	AraC family transcriptional regulator
1843	 67.31	0	2240310..2242013	+	567	83716257	-	BTH_II1851	-	metallopeptidase domain-containing protein
1844	 65.53	0	2242132..2243358	+	408	83717945	-	BTH_II1852	-	leucine aminopeptidase, putative
1845	 62.10	-1	2243417..2244862	-	481	83717688	-	BTH_II1853	-	outer membrane porin OpcP
1846	 67.37	0	2244787..2245926	-	379	83717137	-	BTH_II1854	-	glycine betaine/L-proline ABC transporter, periplasmic glycine betaine/L-proline-binding protein
1847	 68.08	0	2245821..2247374	-	517	83716187	-	BTH_II1855	-	choline sulfatase
1848	 73.44	+1	2247510..2248409	+	299	83718066	-	BTH_II1856	-	LysR family transcriptional regulator
1849	 65.07	0	2248553..2249428	+	291	83718067	purU-2	BTH_II1857	-	formyltetrahydrofolate deformylase
1850	 64.79	0	2249515..2251170	-	551	83717369	-	BTH_II1858	-	amino acid transporter, putative
1851	 65.05	0	2251350..2252213	-	287	83716434	-	BTH_II1859	-	ABC transporter, periplasmic glycine/betaine-binding protein
1852	 66.49	0	2252323..2253462	-	379	83718170	-	BTH_II1860	-	iron-sulfur cluster-binding protein
1853	 63.20	0	2253483..2254724	-	413	83717184	-	BTH_II1861	-	Rieske family iron-sulfur cluster-binding protein
1854	 71.25	0	2254776..2255561	-	261	83716092	-	BTH_II1862	-	hypothetical protein
1855	 71.49	0	2255558..2256739	-	393	83718354	-	BTH_II1863	-	electron transfer flavoprotein, subunit alpha, putative
1856	 69.52	0	2256744..2258669	-	641	83717662	-	BTH_II1864	-	iron-sulfur cluster binding protein
1857	 67.01	0	2258672..2260735	-	687	83716998	-	BTH_II1865	-	oxidoreductase, FAD/FMN-binding
1858	 67.23	0	2260796..2261329	-	177	83716333	-	BTH_II1866	-	V4R domain-containing protein
1859	 62.86	-1	2261477..2262448	-	323	83718346	-	BTH_II1867	-	renal dipeptidase family protein
1860	 68.24	0	2262520..2263794	-	424	83717733	glyA	BTH_II1868	-	serine hydroxymethyltransferase
1861	 67.64	0	2264203..2265228	+	341	83716071	-	BTH_II1869	-	AraC family transcriptional regulator
1862	 67.64	0	2265414..2266847	-	477	83718047	-	BTH_II1870	-	glutathione-independent formaldehyde dehydrogenase
1863	 70.33	0	2266959..2267969	-	336	83717407	-	BTH_II1871	-	raffinose repressor, putative
1864	 67.25	0	2268204..2269733	+	509	83718265	-	BTH_II1872	-	levansucrase
1865	 67.32	0	2269852..2271525	+	557	83716475	-	BTH_II1873	-	levanase
1866	 62.75	-1	2271581..2271784	+	67	83716038	-	BTH_II1874	-	hypothetical protein
1867	 73.69	+1	2271977..2273443	-	488	83716678	-	BTH_II1875	-	multidrug resistance protein
1868	 74.49	+1	2273440..2275101	-	553	83717519	-	BTH_II1876	-	RND efflux system outer membrane lipoprotein
1869	 71.53	0	2275055..2276020	-	321	83718008	-	BTH_II1877	-	rhamnosyltransferase family protein
1870	 62.28	-1	2276017..2276130	-	37	83716421	-	BTH_II1878	-	hypothetical protein
1871	 70.17	0	2276153..2277724	-	523	83716944	-	BTH_II1879	-	EmrB/QacA family drug resistance transporter
1872	 74.65	+1	2277721..2279148	-	475	83716540	-	BTH_II1880	-	rhamnosyltransferase I, subunit B
1873	 67.67	0	2279278..2280177	-	299	83716935	-	BTH_II1881	-	rhamnosyltransferase 1, subunit A
1874	 56.45	-2	2280750..2281121	-	123	83717991	-	BTH_II1882	-	hypothetical protein
1875	 68.31	0	2281342..2281767	-	141	83718045	-	BTH_II1883	-	hypothetical protein
1876	 59.72	-1	2281790..2282149	-	119	83717690	-	BTH_II1884	-	hypothetical protein
1877	 69.53	0	2282208..2285702	-	1164	83716717	-	BTH_II1885	-	ImcF-like family protein
1878	 70.08	0	2285699..2287483	-	594	83717203	-	BTH_II1886	-	hypothetical protein
1879	 69.53	0	2287509..2288870	-	453	83716495	-	BTH_II1887	-	hypothetical protein
1880	 70.21	0	2288867..2289346	-	159	83718208	-	BTH_II1888	-	putative lipoprotein
1881	 62.82	-1	2289466..2289855	-	129	83717888	-	BTH_II1889	-	hypothetical protein
1882	 72.11	+1	2289895..2290611	-	238	83716070	-	BTH_II1890	-	hypothetical protein
1883	 68.72	0	2290614..2291684	-	356	83716702	-	BTH_II1891	-	pentapeptide repeat-containing protein
1884	 68.34	0	2291684..2293834	-	716	83717521	-	BTH_II1892	-	hypothetical protein
1885	 64.74	0	2293904..2296192	-	762	83716389	-	BTH_II1893	-	Rhs element Vgr protein
1886	 64.66	0	2296361..2298652	-	763	83717067	-	BTH_II1894	-	Rhs element Vgr protein
1887	 70.64	0	2298643..2301486	-	947	83717751	-	BTH_II1895	-	ATP-dependent Clp protease, ATP-binding subunit ClpB
1888	 68.38	0	2301489..2302478	-	329	83718279	-	BTH_II1896	-	hypothetical protein
1889	 70.10	0	2302475..2304337	-	620	83716407	-	BTH_II1897	-	hypothetical protein
1890	 62.04	-1	2304351..2304782	-	143	83717049	-	BTH_II1898	-	hypothetical protein
1891	 61.55	-1	2304861..2305388	-	175	83718015	-	BTH_II1899	-	hypothetical protein
1892	 62.88	-1	2305532..2307037	-	501	83718249	-	BTH_II1900	-	hypothetical protein
1893	 62.14	-1	2307040..2307591	-	183	83717753	-	BTH_II1901	-	hypothetical protein
1894	 62.65	-1	2307625..2308569	-	314	83717202	-	BTH_II1902	-	ImpA-like N-terminal family protein
1895	 65.47	0	2310190..2312109	-	639	83716517	-	BTH_II1903	-	coenzyme A transferase
1896	 70.11	0	2312067..2312762	+	231	83717914	-	BTH_II1904	-	CDP-alcohol phosphatidyltransferase family protein
1897	 66.28	0	2312759..2313532	+	257	83717482	-	BTH_II1905	-	2OG-Fe(II) oxygenase family oxidoreductase
1898	 74.67	+1	2313544..2314530	+	328	83716792	-	BTH_II1906	-	hypothetical protein
1899	 68.62	0	2314569..2315336	+	255	83716352	-	BTH_II1907	-	hypothetical protein
1900	 67.79	0	2315333..2317021	+	562	83716879	-	BTH_II1908	-	phosphoenolpyruvate phosphomutase
1901	 73.43	+1	2317018..2318199	+	393	83717922	-	BTH_II1909	-	3-phosphonopyruvate decarboxylase
67.58	MEAN

4.44	STD DEV
