IslandPathversion 1.0

IslandPath Analysis: Burkholderia thailandensis E264

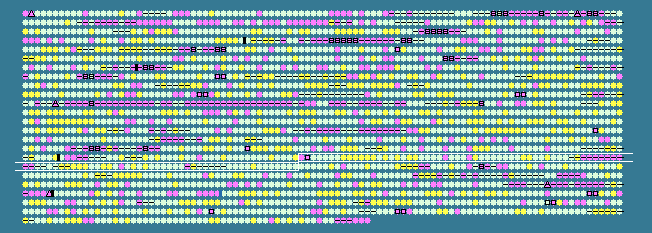

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1647	 60.65	-1	1941163..1942143	-	326	83716800	-	BTH_II1655	-	glutamate/aspartate ABC transporter, periplasmic glutamate/aspartate-binding protein
1648	 61.93	-1	1942534..1943694	-	386	83717310	-	BTH_II1656	-	ISBma1, transposase
1649	 69.30	0	1943927..1945444	-	505	83717826	mmsA-2	BTH_II1657	-	methylmalonate-semialdehyde dehydrogenase
1650	 67.59	0	1945512..1947023	-	503	83718312	-	BTH_II1658	-	beta alanine--pyruvate transaminase
1651	 68.35	0	1946971..1947921	+	316	83716073	-	BTH_II1659	-	LysR family transcriptional regulator
1652	 65.01	0	1948664..1949449	+	261	83717426	-	BTH_II1660	-	hypothetical protein
1653	 70.10	0	1949597..1950091	+	164	83717029	-	BTH_II1661	-	2,4-dihydroxyacetophenone dioxygenase
1654	 71.35	0	1950223..1950414	-	63	83716592	-	BTH_II1662	-	hypothetical protein
1655	 73.53	+1	1950416..1953928	-	1170	83718313	-	BTH_II1663	-	2-oxoacid ferredoxin oxidoreductase
1656	 72.99	+1	1953925..1960173	-	2082	83716710	-	BTH_II1664	-	polyketide synthase, putative
1657	 74.64	+1	1960098..1974047	-	4649	83716097	-	BTH_II1665	-	polyketide synthase, putative
1658	 74.71	+1	1973189..1989889	-	5566	83716786	-	BTH_II1666	-	polyketide synthase, putative
1659	 74.59	+1	1989915..1995620	-	1901	83716287	-	BTH_II1667	-	polyketide synthase, putative
1660	 68.01	0	1995632..1996378	-	248	83717978	-	BTH_II1668	-	polyketide biosynthesis enoyl-CoA hydratase
1661	 73.78	+1	1996375..1997175	-	266	83717378	-	BTH_II1669	-	polyketide biosynthesis enoyl-CoA hydratase
1662	 68.26	0	1997172..1998428	-	418	83716712	-	BTH_II1670	-	polyketide biosynthesis protein
1663	 75.52	+1	1998412..1999665	-	417	83716629	-	BTH_II1671	-	polyketide beta-ketoacyl:acyl carrier protein synthase
1664	 65.46	0	1999658..1999906	-	82	83717915	-	BTH_II1672	-	acyl carrier protein
1665	 74.89	+1	1999941..2011718	-	3925	83717633	-	BTH_II1673	-	thiotemplate mechanism natural product synthetase
1666	 74.78	+1	2011510..2028396	-	5628	83716943	-	BTH_II1674	-	polyketide synthase
1667	 70.45	0	2028449..2031913	-	1154	83716851	-	BTH_II1675	-	MmpIII
1668	 67.29	0	2031959..2032756	-	265	83717028	-	BTH_II1676	-	4-phosphopantetheinyl transferase family protein
1669	 65.88	0	2033299..2033553	+	84	83717868	-	BTH_II1677	-	phenolpthiocerol synthesis type-i polyketide synthase ppsa
1670	 64.44	0	2033561..2034322	-	253	83717406	-	BTH_II1678	-	serine/threonine protein phosphatase family protein
1671	 62.02	-1	2034376..2035344	-	322	83717133	accA-2	BTH_II1679	-	acetyl-CoA carboxylase, carboxyl transferase, alpha subunit
1672	 66.67	0	2035673..2036224	-	183	83716607	-	BTH_II1680	-	hypothetical protein
1673	 65.13	0	2036259..2036975	-	238	83716249	-	BTH_II1681	-	ATP-dependent transcription regulator LuxR
1674	 67.42	0	2037615..2037746	-	43	83717958	-	BTH_II1682	-	hypothetical protein
1675	 63.33	0	2039158..2039487	-	109	83717651	-	BTH_II1683	-	hypothetical protein
1676	 72.23	+1	2040995..2043025	+	676	83717668	-	BTH_II1684	-	methyl-accepting chemotaxis protein I
1677	 71.05	0	2043052..2043759	-	235	83717537	-	BTH_II1685	-	hypothetical protein
1678	 68.89	0	2044076..2045737	-	553	83717079	-	BTH_II1686	-	acyl-CoA synthetase
1679	 67.44	0	2045781..2046680	+	299	83717187	-	BTH_II1687	-	cyclic nucleotide-binding domain-containing protein
1680	 69.51	0	2047012..2047854	+	280	83717261	-	BTH_II1688	-	AraC family transcriptional regulator
1681	 68.89	0	2048097..2048231	+	44	83718010	-	BTH_II1689	-	hypothetical protein
1682	 68.94	0	2048357..2048971	-	204	83716155	-	BTH_II1690	-	LysE family protein, putative
1683	 67.22	0	2049029..2049571	+	180	83717870	-	BTH_II1691	-	multidrug efflux membrane protein, putative
1684	 71.67	0	2049651..2050370	-	239	83717572	-	BTH_II1692	-	hypothetical protein
1685	 74.29	+1	2050474..2051982	+	502	83717201	-	BTH_II1693	-	GntR family transcriptional regulator
1686	 71.05	0	2051904..2052929	+	341	83716455	-	BTH_II1694	-	D-beta-hydroxybutyrate dehydrogenase
1687	 70.71	0	2053028..2053423	-	131	83718014	-	BTH_II1695	-	osmotically-inducible lipoprotein OsmE
1688	 72.28	+1	2053554..2054729	-	391	83716829	-	BTH_II1696	-	hypothetical protein
1689	 69.46	0	2054739..2055167	-	142	83718239	-	BTH_II1697	-	acetyltransferase
1690	 68.64	0	2055309..2056070	-	253	83718266	-	BTH_II1698	-	enoyl-(acyl carrier protein) reductase
1691	 70.86	0	2056674..2057771	-	365	83716559	-	BTH_II1699	-	xenobiotic reductase A
1692	 67.98	0	2057989..2058672	-	227	83718124	-	BTH_II1700	-	DJ-1/PfpI family protein
1693	 71.60	0	2058734..2059159	+	141	83717084	-	BTH_II1701	-	hypothetical protein
1694	 62.39	-1	2059243..2060178	-	311	83716624	-	BTH_II1702	-	TetR family transcriptional regulator
1695	 63.53	0	2060497..2063145	+	882	83716681	-	BTH_II1703	-	hypothetical protein
1696	 62.52	-1	2063115..2063885	-	256	83717513	-	BTH_II1704	-	MmcH, putative
1697	 58.50	-2	2063925..2064218	-	97	83718114	-	BTH_II1705	-	oxidoreductase domain-containing protein
1698	 62.54	-1	2064704..2066254	+	516	83717596	-	BTH_II1706	-	radical SAM domain-containing protein
1699	 63.21	0	2066623..2068563	+	646	83717785	-	BTH_II1707	-	radical SAM domain-containing protein
1700	 62.06	-1	2068560..2069753	+	397	83717208	-	BTH_II1708	-	hypothetical protein
1701	 63.26	0	2069780..2070043	+	87	83716552	-	BTH_II1709	-	ThiS domain-containing protein
1702	 63.33	0	2069952..2071988	+	678	83717833	-	BTH_II1710	-	carbamoyltransferase family protein
1703	 66.88	0	2073877..2074344	+	155	83716194	-	BTH_II1711	-	hypothetical protein
1704	 67.59	0	2074546..2075520	-	324	83718042	-	BTH_II1712	-	hypothetical protein
1705	 67.31	0	2075525..2076760	-	411	83718173	-	BTH_II1713	-	domain of unknown function
1706	 65.11	0	2076927..2077568	-	213	83717670	-	BTH_II1714	-	domain of unknown function
1707	 71.20	0	2077837..2078961	+	374	161723116	alr-2	BTH_II1715	-	alanine racemase
1708	 75.86	+1	2079023..2079196	-	57	83717627	-	BTH_II1716	-	hypothetical protein
1709	 71.95	0	2079275..2080069	-	264	83717091	-	BTH_II1717	-	enoyl-CoA hydratase
1710	 72.77	+1	2080790..2081248	-	152	83716586	-	BTH_II1719	-	hypothetical protein
1711	 74.07	+1	2080915..2081103	+	62	83718038	-	BTH_II1718	-	hypothetical protein
1712	 66.92	0	2081393..2082595	-	400	83718226	-	BTH_II1720	-	outer membrane porin OpcP
1713	 66.67	0	2082944..2083048	+	34	83717473	-	BTH_II1721	-	hypothetical protein
1714	 71.30	0	2083373..2084623	+	416	83717910	-	BTH_II1722	-	MOSC domain-containing protein
1715	 72.08	+1	2084795..2086309	-	504	83717352	-	BTH_II1723	-	sensor histidine kinase
1716	 65.05	0	2086306..2087109	-	267	83717906	-	BTH_II1724	-	DNA-binding response regulator TctD
1717	 62.99	-1	2087108..2088196	+	362	83716977	-	BTH_II1725	-	ABC transporter, periplasmic substrate-binding protein
1718	 67.80	0	2088295..2090052	+	585	83717663	-	BTH_II1726	-	iron, putative
1719	 71.82	0	2090045..2091112	+	355	83717424	-	BTH_II1727	-	ABC transporter, ATP-binding protein
1720	 67.03	0	2091512..2092603	+	363	83718080	-	BTH_II1728	-	porin
1721	 74.02	+1	2092830..2093645	-	271	83716329	hpaI	BTH_II1729	-	2,4-dihydroxyhept-2-ene-1,7-dioic acid aldolase
1722	 67.16	0	2093655..2094458	-	267	83716988	hpaH	BTH_II1730	-	2-oxo-hepta-3-ene-1,7-dioic acid hydratase
1723	 64.63	0	2094481..2094873	-	130	83716423	hpcD	BTH_II1731	-	5-carboxymethyl-2-hydroxymuconate delta isomerase
1724	 65.72	0	2094931..2095779	-	282	83718207	hpaD	BTH_II1732	-	3,4-dihydroxyphenylacetate 2,3-dioxygenase
1725	 67.42	0	2095849..2097312	-	487	83717784	hpaE	BTH_II1733	-	5-carboxymethyl-2-hydroxymuconate semialdehyde dehydrogenase
1726	 67.71	0	2097336..2098100	-	254	83718296	hpaG-1	BTH_II1734	-	4-hydroxyphenylacetate degradation bifunctional isomerase/decarboxylase, C-terminal subunit
1727	 71.01	0	2098097..2098786	-	229	83717800	hpaG-2	BTH_II1735	-	4-hydroxyphenylacetate degradation bifunctional isomerase/decarboxylase, N-terminal subunit
1728	 63.01	-1	2098952..2099389	+	145	83716641	hpaR	BTH_II1736	-	homoprotocatechuate degradation operon regulator, HpaR
1729	 73.15	+1	2099412..2100599	-	395	83716154	-	BTH_II1737	-	hypothetical protein
1730	 66.45	0	2100623..2101537	-	304	83718013	-	BTH_II1738	-	MipA family MltA-interacting protein
1731	 67.77	0	2101600..2102322	+	240	83716824	-	BTH_II1739	-	DNA-binding response regulator
1732	 69.60	0	2102323..2103651	+	442	83717354	-	BTH_II1740	-	sensor histidine kinase
1733	 69.30	0	2103899..2105302	-	467	83716770	-	BTH_II1741	-	monoxygenase
1734	 70.38	0	2105594..2106832	-	412	83717502	-	BTH_II1742	-	acyl-CoA dehydrogenase domain-containing protein
1735	 65.25	0	2107194..2107547	+	117	83718379	-	BTH_II1743	-	hypothetical protein
1736	 64.96	0	2107943..2108410	-	155	83716165	-	BTH_II1744	-	hypothetical protein
1737	 70.58	0	2108523..2109518	-	331	83716932	-	BTH_II1745	-	AraC family transcriptional regulator
1738	 69.48	0	2109709..2110170	+	153	83717765	-	BTH_II1746	-	isoquinoline 1-oxidoreductase, alpha subunit
1739	 72.23	+1	2110173..2112401	+	742	83717480	-	BTH_II1747	-	isoquinoline 1-oxidoreductase, beta subunit
1740	 65.37	0	2112956..2113417	+	153	83718022	-	BTH_II1748	-	response regulator protein
1741	 69.91	0	2113461..2115431	-	656	83716636	asnB-2	BTH_II1749	-	asparagine synthase (glutamine-hydrolyzing)
1742	 68.81	0	2115649..2116533	-	294	83718308	-	BTH_II1750	-	hypothetical protein
1743	 70.29	0	2116687..2117817	+	376	83716650	-	BTH_II1751	-	LuxR family transcriptional regulator
1744	 68.21	0	2118170..2119858	-	562	83716111	-	BTH_II1752	-	trehalase
1745	 69.17	0	2120185..2121582	+	465	83717981	-	BTH_II1753	-	EmrB/QacA family drug resistance transporter
1746	 70.20	0	2121979..2123250	+	423	83717444	-	BTH_II1754	-	hypothetical protein
67.58	MEAN

4.44	STD DEV
