IslandPathversion 1.0

IslandPath Analysis: Burkholderia thailandensis E264

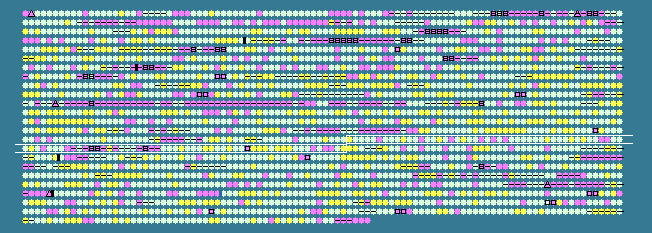

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1455	 72.01	0	1725219..1726529	-	436	83717615	-	BTH_II1461	-	putative lipoprotein
1456	 67.49	0	1726780..1727634	+	284	83718126	-	BTH_II1462	-	hypothetical protein
1457	 69.86	0	1727767..1729647	+	626	83717608	-	BTH_II1463	-	hypothetical protein
1458	 70.07	0	1729774..1731330	-	518	83718188	-	BTH_II1464	-	methyl-accepting chemotaxis protein
1459	 69.77	0	1731576..1733090	+	504	83716888	-	BTH_II1465	-	EmrB/QacA family drug resistance transporter
1460	 62.17	-1	1733139..1734272	-	377	83717348	-	BTH_II1466	-	hypothetical protein
1461	 69.66	0	1734604..1735170	+	188	83717877	-	BTH_II1467	-	phosphinothricin N-acetyltransferase
1462	 67.72	0	1735198..1736055	+	285	83716270	-	BTH_II1468	-	MerR family transcriptional regulator
1463	 69.10	0	1736179..1737165	+	328	83716797	-	BTH_II1469	-	aliphatic compound ABC transporter, periplasmic substrate-binding protein
1464	 71.69	0	1737325..1737981	+	218	83716311	-	BTH_II1470	-	hypothetical protein
1465	 64.70	0	1738236..1739810	+	524	83718157	-	BTH_II1471	-	flavin-binding monooxygenase-like protein
1466	 68.25	0	1739838..1740785	+	315	83717660	-	BTH_II1472	-	short chain dehydrogenase
1467	 64.04	0	1740782..1741696	+	304	83717175	-	BTH_II1473	-	hypothetical protein
1468	 69.72	0	1741708..1742658	+	316	83716603	-	BTH_II1474	-	alpha/beta fold family hydrolase
1469	 67.59	0	1742923..1743900	-	325	83716147	-	BTH_II1475	-	LysR family transcriptional regulator
1470	 71.47	0	1743971..1745449	+	492	83717982	-	BTH_II1476	-	6-aminohexanoate-cyclic-dimer hydrolase
1471	 68.75	0	1745482..1746393	-	303	83716044	-	BTH_II1477	-	pyridine nucleotide-disulphide oxidoreductase, class II
1472	 63.39	0	1746465..1746983	+	172	83717641	-	BTH_II1478	-	transcriptional regulator family protein
1473	 66.49	0	1747102..1747659	-	185	83716135	-	BTH_II1479	-	hypothetical protein
1474	 75.83	+1	1747678..1747797	-	39	83716487	-	BTH_II1480	-	hypothetical protein
1475	 66.45	0	1747908..1748810	-	300	83716923	-	BTH_II1481	-	N-hydroxyarylamine O-acetyltransferase
1476	 68.61	0	1748895..1749614	-	239	83716103	-	BTH_II1482	-	hypothetical protein
1477	 57.78	-2	1750073..1750297	+	74	83718222	-	BTH_II1483	-	hypothetical protein
1478	 65.51	0	1750489..1751790	-	433	83717577	-	BTH_II1484	-	methionine gamma-lyase
1479	 62.08	-1	1751978..1752457	+	159	83717717	-	BTH_II1485	-	AsnC family transcriptional regulator
1480	 68.27	0	1752559..1754052	-	497	83717071	-	BTH_II1486	-	amidase
1481	 62.55	-1	1754464..1754997	+	177	83717852	-	BTH_II1487	-	UspA family protein
1482	 66.22	0	1755173..1756069	-	298	83717436	-	BTH_II1488	-	OmpA/SmpA/OmlA family outer membrane lipoprotein
1483	 69.55	0	1756063..1758558	-	831	83717995	-	BTH_II1489	-	Hep_Hag family protein
1484	 67.66	0	1759091..1760497	-	468	83717396	-	BTH_II1490	-	major facilitator family transporter
1485	 70.35	0	1760532..1761779	-	415	83717164	-	BTH_II1491	-	pyridine nucleotide-disulfide oxidoreductase, class I
1486	 68.01	0	1761772..1762737	-	321	83716179	-	BTH_II1492	-	glyoxalase family protein
1487	 70.35	0	1762754..1764220	-	488	83718216	-	BTH_II1493	-	aldehyde dehydrogenase family protein
1488	 72.18	+1	1764266..1765081	-	271	83717707	-	BTH_II1494	-	L-aspartate dehydrogenase
1489	 69.71	0	1765074..1766747	-	557	83717500	-	BTH_II1495	-	hypothetical protein
1490	 69.35	0	1766740..1767522	-	260	83716386	-	BTH_II1496	-	short chain dehydrogenase
1491	 67.95	0	1767534..1768388	-	284	83717760	-	BTH_II1497	-	IclR family transcriptional regulator
1492	 73.07	+1	1768385..1769290	-	301	83718359	-	BTH_II1498	-	alpha/beta fold family hydrolase
1493	 65.15	0	1769307..1769834	-	175	83717281	-	BTH_II1499	-	hypothetical protein
1494	 72.37	+1	1769873..1770643	-	256	83716773	-	BTH_II1500	-	short chain dehydrogenase
1495	 67.70	0	1770640..1771707	-	355	83716647	-	BTH_II1501	-	Rieske family iron-sulfur cluster-binding protein
1496	 68.27	0	1771742..1772053	-	103	83716263	-	BTH_II1502	-	hypothetical protein
1497	 63.52	0	1772055..1772372	-	105	83718023	-	BTH_II1503	-	naphthalene 1,2-dioxygenase system ferredoxin component
1498	 62.44	-1	1772405..1773895	+	496	83717059	-	BTH_II1504	-	outer membrane porin OpcP
1499	 69.72	0	1774200..1775150	-	316	83717060	-	BTH_II1505	-	IclR family transcriptional regulator
1500	 70.39	0	1775229..1775846	-	205	83716390	-	BTH_II1506	-	2OG-Fe(II) oxygenase family oxidoreductase
1501	 66.01	0	1775962..1776570	+	202	83718306	-	BTH_II1507	-	hypothetical protein
1502	 72.36	+1	1776630..1777841	+	403	83716582	-	BTH_II1508	-	Ser/Thr protein phosphatase family protein
1503	 65.97	0	1778325..1779041	+	238	83717315	-	BTH_II1509	-	MgtC family protein
1504	 63.47	0	1779070..1779789	-	239	83716915	-	BTH_II1510	-	ATP-dependent transcription regulator LuxR
1505	 68.69	0	1779863..1780306	+	147	83718133	-	BTH_II1511	-	hypothetical protein
1506	 66.83	0	1780524..1781135	+	203	83717635	-	BTH_II1512	-	N-acyl homoserine lactone synthase
1507	 70.60	0	1781224..1782036	+	270	83717077	-	BTH_II1513	-	hypothetical protein
1508	 63.96	0	1781999..1782664	-	221	83717631	ribA	BTH_II1514	-	GTP cyclohydrolase II
1509	 58.66	-2	1782829..1783290	+	153	83716568	-	BTH_II1515	-	CBS domain-containing protein
1510	 65.20	0	1783502..1783843	-	113	83717975	-	BTH_II1516	-	hypothetical protein
1511	 58.90	-1	1784385..1784783	+	132	83716392	-	BTH_II1517	-	nucleoside diphosphate kinase regulator, putative
1512	 55.88	-2	1784903..1785310	+	135	83716114	-	BTH_II1518	-	transposase, putative
1513	 58.53	-2	1785280..1785660	+	126	83718098	-	BTH_II1519	-	IS4 family transposase
1514	 62.67	-1	1785834..1786958	-	374	83718334	-	BTH_II1520	-	outer membrane porin OpcP
1515	 73.04	+1	1787543..1787950	+	135	83716334	-	BTH_II1521	-	Tat pathway signal sequence domain-containing protein
1516	 63.65	0	1788064..1788561	+	165	83716707	-	BTH_II1522	-	ArsR family transcriptional regulator
1517	 69.30	0	1788611..1789672	+	353	83717694	-	BTH_II1523	-	N-ethylmaleimide reductase
1518	 67.82	0	1789793..1790398	-	201	83718088	-	BTH_II1524	-	acetyltransferase
1519	 66.09	0	1790275..1790796	+	173	83717903	-	BTH_II1525	-	transporter, putative
1520	 59.37	-1	1791422..1792120	-	232	83717495	-	BTH_II1527	-	hypothetical protein
1521	 60.99	-1	1792173..1793441	-	422	83716088	-	BTH_II1528	-	transposase mutator family protein
1522	 56.74	-2	1793465..1794391	-	308	83716987	-	BTH_II1529	-	hypothetical protein
1523	 59.86	-1	1794417..1795811	-	464	83716458	-	BTH_II1530	-	hypothetical protein
1524	 67.52	0	1795811..1798153	-	780	83716374	-	BTH_II1531	-	Rhs element Vgr protein, putative
1525	 64.26	0	1798964..1800166	-	400	83717030	-	BTH_II1532	-	outer membrane porin OpcP
1526	 68.58	0	1800395..1801333	-	312	83717799	-	BTH_II1533	-	putative ethanolamine operon transcriptional regulator
1527	 73.43	+1	1801422..1802042	-	206	83716571	-	BTH_II1534	-	hypothetical protein
1528	 67.87	0	1802039..1803529	-	496	83716788	-	BTH_II1535	-	amino acid permease
1529	 67.70	0	1803682..1805031	-	449	83716615	-	BTH_II1536	-	hypothetical protein
1530	 70.38	0	1805069..1806790	-	573	83718371	-	BTH_II1537	-	phenylacetaldehyde dehydrogenase
1531	 71.16	0	1806855..1807721	-	288	83717609	-	BTH_II1538	-	LuxR family transcriptional regulator
1532	 74.37	+1	1807877..1808707	-	276	83717093	-	BTH_II1539	-	3-ketoacyl-(acyl-carrier-protein) reductase
1533	 68.25	0	1808704..1809963	-	419	83717501	-	BTH_II1540	-	hypothetical protein
1534	 66.88	0	1810018..1810965	-	315	83718237	-	BTH_II1541	-	aldo/keto reductase family oxidoreductase
1535	 71.82	0	1811351..1812049	-	232	83716198	-	BTH_II1542	-	DSBA-like thioredoxin domain-containing protein
1536	 70.78	0	1812138..1813037	+	299	83716864	-	BTH_II1543	-	LysR family transcriptional regulator
1537	 67.19	0	1813350..1814891	-	513	83716360	-	BTH_II1544	-	flagellar hook-associated protein 2
1538	 63.18	0	1815390..1816652	+	420	83717044	-	BTH_II1545	-	ISBma3, transposase
1539	 73.90	+1	1816682..1817926	-	414	83717708	-	BTH_II1546	-	allantoate amidohydrolase
1540	 74.11	+1	1817913..1818731	-	272	83718292	-	BTH_II1547	-	L-2-amino-thiazoline-4-carboxylic acid hydrolase
1541	 72.53	+1	1818754..1819980	-	408	83716190	-	BTH_II1548	-	amino acid ABC transporter, periplasmic amino acid-binding protein, putative
1542	 69.58	0	1820248..1821138	+	296	83717256	-	BTH_II1549	-	glycine cleavage system transcriptional activator
1543	 71.72	0	1821275..1823512	-	745	83717546	-	BTH_II1550	-	DNA repair helicase
1544	 71.55	0	1823536..1825236	-	566	83716242	-	BTH_II1551	-	Uvs005
1545	 71.91	0	1825441..1825917	-	158	83716622	-	BTH_II1552	-	hypothetical protein
1546	 65.24	0	1825957..1826166	-	69	83717209	-	BTH_II1553	-	hypothetical protein
1547	 69.24	0	1826226..1827158	+	310	83716546	-	BTH_II1554	-	ribokinase
1548	 70.26	0	1827184..1828323	-	379	83718230	-	BTH_II1555	-	hypothetical protein
1549	 62.94	-1	1828959..1829843	+	294	83718084	-	BTH_II1556	-	hypothetical protein
1550	 64.66	0	1829874..1830470	+	198	83718357	-	BTH_II1557	-	hypothetical protein
1551	 58.84	-1	1830621..1831016	-	131	83716776	-	BTH_II1558	-	H-NS histone family protein
1552	 56.38	-2	1831062..1831304	+	80	83718127	-	BTH_II1559	-	DNA-binding protein
1553	 66.16	0	1831847..1833232	-	461	83717590	-	BTH_II1560	-	amino acid permease
1554	 74.51	+1	1833931..1834032	-	33	83716296	-	BTH_II1561	-	hypothetical protein
67.58	MEAN

4.44	STD DEV
