IslandPathversion 1.0

IslandPath Analysis: Burkholderia thailandensis E264

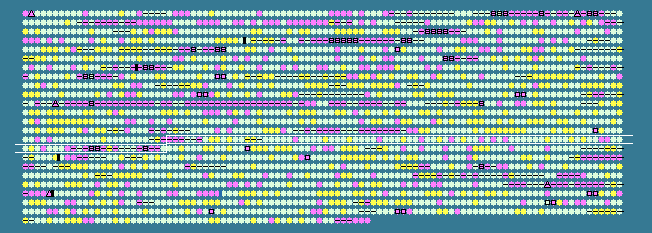

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1425	 55.13	-2	1692617..1692772	+	51	83716508	-	BTH_II1431	-	hypothetical protein
1426	 59.11	-1	1692872..1693096	+	74	83716671	-	BTH_II1432	-	hypothetical protein
1427	 54.88	-2	1693408..1694001	-	197	83716166	-	BTH_II1433	-	hypothetical protein
1428	 65.98	0	1694011..1698672	-	1553	83717122	-	BTH_II1434	-	YD repeat-containing protein
1429	 65.71	0	1698724..1699245	-	173	83716060	-	BTH_II1435	-	hypothetical protein
1430	 63.04	-1	1699271..1701256	-	661	83718180	-	BTH_II1436	-	Rhs element Vgr protein
1431	 69.53	0	1701485..1702774	+	429	83717023	-	BTH_II1437	-	hypothetical protein
1432	 75.46	+1	1702717..1702932	-	71	83717728	-	BTH_II1438	-	hypothetical protein
1433	 72.33	+1	1703024..1703182	+	52	83716353	-	BTH_II1439	-	hypothetical protein
1434	 68.69	0	1703484..1704374	+	296	83716267	-	BTH_II1440	-	hypothetical protein
1435	 71.23	0	1704395..1704964	+	189	83718107	-	BTH_II1441	-	D-alanyl-D-alanine dipeptidase
1436	 65.60	0	1704997..1706688	+	563	83718344	-	BTH_II1442	-	ABC transporter, periplasmic substrate-binding protein
1437	 68.08	0	1706787..1707779	+	330	83716523	-	BTH_II1443	-	ABC transporter, permease protein
1438	 71.66	0	1707822..1708763	+	313	83716171	-	BTH_II1444	-	ABC transporter, permease protein
1439	 72.22	+1	1708765..1709646	+	293	83716673	-	BTH_II1445	-	ABC transporter, ATP-binding protein
1440	 70.70	0	1709643..1710410	+	255	83716116	-	BTH_II1446	-	ABC transporter system, ATP-binding protein
1441	 67.82	0	1710685..1710945	+	86	83717419	-	BTH_II1447	-	LysR family transcriptional regulator
1442	 68.75	0	1711246..1711581	+	111	83718081	-	BTH_II1448	-	hypothetical protein
1443	 67.21	0	1711722..1712639	-	305	83716338	-	BTH_II1449	-	LysR family transcriptional regulator
1444	 69.56	0	1713084..1714052	-	322	83717141	-	BTH_II1450	-	class A beta-lactamase precursor
1445	 70.48	0	1714197..1715351	-	384	83717584	-	BTH_II1451	-	lipoprotein NlpD, putative
1446	 59.39	-1	1715514..1715678	-	54	83717634	-	BTH_II1452	-	hypothetical protein
1447	 67.11	0	1715783..1716694	+	303	83718349	-	BTH_II1453	-	LysR family transcriptional regulator
1448	 64.42	0	1717177..1718421	-	414	83716488	-	BTH_II1454	-	outer membrane porin OpcP
1449	 68.60	0	1718614..1719909	+	431	83716709	-	BTH_II1455	-	opgC protein, putative
1450	 69.62	0	1719974..1720819	+	281	83718051	-	BTH_II1456	-	esterase, putative
1451	 73.87	+1	1720791..1721762	-	323	83717235	-	BTH_II1457	-	ornithine cyclodeaminase
1452	 69.17	0	1722118..1722516	-	132	83716243	-	BTH_II1458	-	4-carboxymuconolactone decarboxylase
1453	 71.04	0	1722926..1723816	+	296	83717657	-	BTH_II1459	-	alpha/beta fold family hydrolase
1454	 66.67	0	1723868..1725109	-	413	83717207	-	BTH_II1460	-	TrkA domain-containing protein
1455	 72.01	0	1725219..1726529	-	436	83717615	-	BTH_II1461	-	putative lipoprotein
1456	 67.49	0	1726780..1727634	+	284	83718126	-	BTH_II1462	-	hypothetical protein
1457	 69.86	0	1727767..1729647	+	626	83717608	-	BTH_II1463	-	hypothetical protein
1458	 70.07	0	1729774..1731330	-	518	83718188	-	BTH_II1464	-	methyl-accepting chemotaxis protein
1459	 69.77	0	1731576..1733090	+	504	83716888	-	BTH_II1465	-	EmrB/QacA family drug resistance transporter
1460	 62.17	-1	1733139..1734272	-	377	83717348	-	BTH_II1466	-	hypothetical protein
1461	 69.66	0	1734604..1735170	+	188	83717877	-	BTH_II1467	-	phosphinothricin N-acetyltransferase
1462	 67.72	0	1735198..1736055	+	285	83716270	-	BTH_II1468	-	MerR family transcriptional regulator
1463	 69.10	0	1736179..1737165	+	328	83716797	-	BTH_II1469	-	aliphatic compound ABC transporter, periplasmic substrate-binding protein
1464	 71.69	0	1737325..1737981	+	218	83716311	-	BTH_II1470	-	hypothetical protein
1465	 64.70	0	1738236..1739810	+	524	83718157	-	BTH_II1471	-	flavin-binding monooxygenase-like protein
1466	 68.25	0	1739838..1740785	+	315	83717660	-	BTH_II1472	-	short chain dehydrogenase
1467	 64.04	0	1740782..1741696	+	304	83717175	-	BTH_II1473	-	hypothetical protein
1468	 69.72	0	1741708..1742658	+	316	83716603	-	BTH_II1474	-	alpha/beta fold family hydrolase
1469	 67.59	0	1742923..1743900	-	325	83716147	-	BTH_II1475	-	LysR family transcriptional regulator
1470	 71.47	0	1743971..1745449	+	492	83717982	-	BTH_II1476	-	6-aminohexanoate-cyclic-dimer hydrolase
1471	 68.75	0	1745482..1746393	-	303	83716044	-	BTH_II1477	-	pyridine nucleotide-disulphide oxidoreductase, class II
1472	 63.39	0	1746465..1746983	+	172	83717641	-	BTH_II1478	-	transcriptional regulator family protein
1473	 66.49	0	1747102..1747659	-	185	83716135	-	BTH_II1479	-	hypothetical protein
1474	 75.83	+1	1747678..1747797	-	39	83716487	-	BTH_II1480	-	hypothetical protein
1475	 66.45	0	1747908..1748810	-	300	83716923	-	BTH_II1481	-	N-hydroxyarylamine O-acetyltransferase
1476	 68.61	0	1748895..1749614	-	239	83716103	-	BTH_II1482	-	hypothetical protein
1477	 57.78	-2	1750073..1750297	+	74	83718222	-	BTH_II1483	-	hypothetical protein
1478	 65.51	0	1750489..1751790	-	433	83717577	-	BTH_II1484	-	methionine gamma-lyase
1479	 62.08	-1	1751978..1752457	+	159	83717717	-	BTH_II1485	-	AsnC family transcriptional regulator
1480	 68.27	0	1752559..1754052	-	497	83717071	-	BTH_II1486	-	amidase
1481	 62.55	-1	1754464..1754997	+	177	83717852	-	BTH_II1487	-	UspA family protein
1482	 66.22	0	1755173..1756069	-	298	83717436	-	BTH_II1488	-	OmpA/SmpA/OmlA family outer membrane lipoprotein
1483	 69.55	0	1756063..1758558	-	831	83717995	-	BTH_II1489	-	Hep_Hag family protein
1484	 67.66	0	1759091..1760497	-	468	83717396	-	BTH_II1490	-	major facilitator family transporter
1485	 70.35	0	1760532..1761779	-	415	83717164	-	BTH_II1491	-	pyridine nucleotide-disulfide oxidoreductase, class I
1486	 68.01	0	1761772..1762737	-	321	83716179	-	BTH_II1492	-	glyoxalase family protein
1487	 70.35	0	1762754..1764220	-	488	83718216	-	BTH_II1493	-	aldehyde dehydrogenase family protein
1488	 72.18	+1	1764266..1765081	-	271	83717707	-	BTH_II1494	-	L-aspartate dehydrogenase
1489	 69.71	0	1765074..1766747	-	557	83717500	-	BTH_II1495	-	hypothetical protein
1490	 69.35	0	1766740..1767522	-	260	83716386	-	BTH_II1496	-	short chain dehydrogenase
1491	 67.95	0	1767534..1768388	-	284	83717760	-	BTH_II1497	-	IclR family transcriptional regulator
1492	 73.07	+1	1768385..1769290	-	301	83718359	-	BTH_II1498	-	alpha/beta fold family hydrolase
1493	 65.15	0	1769307..1769834	-	175	83717281	-	BTH_II1499	-	hypothetical protein
1494	 72.37	+1	1769873..1770643	-	256	83716773	-	BTH_II1500	-	short chain dehydrogenase
1495	 67.70	0	1770640..1771707	-	355	83716647	-	BTH_II1501	-	Rieske family iron-sulfur cluster-binding protein
1496	 68.27	0	1771742..1772053	-	103	83716263	-	BTH_II1502	-	hypothetical protein
1497	 63.52	0	1772055..1772372	-	105	83718023	-	BTH_II1503	-	naphthalene 1,2-dioxygenase system ferredoxin component
1498	 62.44	-1	1772405..1773895	+	496	83717059	-	BTH_II1504	-	outer membrane porin OpcP
1499	 69.72	0	1774200..1775150	-	316	83717060	-	BTH_II1505	-	IclR family transcriptional regulator
1500	 70.39	0	1775229..1775846	-	205	83716390	-	BTH_II1506	-	2OG-Fe(II) oxygenase family oxidoreductase
1501	 66.01	0	1775962..1776570	+	202	83718306	-	BTH_II1507	-	hypothetical protein
1502	 72.36	+1	1776630..1777841	+	403	83716582	-	BTH_II1508	-	Ser/Thr protein phosphatase family protein
1503	 65.97	0	1778325..1779041	+	238	83717315	-	BTH_II1509	-	MgtC family protein
1504	 63.47	0	1779070..1779789	-	239	83716915	-	BTH_II1510	-	ATP-dependent transcription regulator LuxR
1505	 68.69	0	1779863..1780306	+	147	83718133	-	BTH_II1511	-	hypothetical protein
1506	 66.83	0	1780524..1781135	+	203	83717635	-	BTH_II1512	-	N-acyl homoserine lactone synthase
1507	 70.60	0	1781224..1782036	+	270	83717077	-	BTH_II1513	-	hypothetical protein
1508	 63.96	0	1781999..1782664	-	221	83717631	ribA	BTH_II1514	-	GTP cyclohydrolase II
1509	 58.66	-2	1782829..1783290	+	153	83716568	-	BTH_II1515	-	CBS domain-containing protein
1510	 65.20	0	1783502..1783843	-	113	83717975	-	BTH_II1516	-	hypothetical protein
1511	 58.90	-1	1784385..1784783	+	132	83716392	-	BTH_II1517	-	nucleoside diphosphate kinase regulator, putative
1512	 55.88	-2	1784903..1785310	+	135	83716114	-	BTH_II1518	-	transposase, putative
1513	 58.53	-2	1785280..1785660	+	126	83718098	-	BTH_II1519	-	IS4 family transposase
1514	 62.67	-1	1785834..1786958	-	374	83718334	-	BTH_II1520	-	outer membrane porin OpcP
1515	 73.04	+1	1787543..1787950	+	135	83716334	-	BTH_II1521	-	Tat pathway signal sequence domain-containing protein
1516	 63.65	0	1788064..1788561	+	165	83716707	-	BTH_II1522	-	ArsR family transcriptional regulator
1517	 69.30	0	1788611..1789672	+	353	83717694	-	BTH_II1523	-	N-ethylmaleimide reductase
1518	 67.82	0	1789793..1790398	-	201	83718088	-	BTH_II1524	-	acetyltransferase
1519	 66.09	0	1790275..1790796	+	173	83717903	-	BTH_II1525	-	transporter, putative
1520	 59.37	-1	1791422..1792120	-	232	83717495	-	BTH_II1527	-	hypothetical protein
1521	 60.99	-1	1792173..1793441	-	422	83716088	-	BTH_II1528	-	transposase mutator family protein
1522	 56.74	-2	1793465..1794391	-	308	83716987	-	BTH_II1529	-	hypothetical protein
1523	 59.86	-1	1794417..1795811	-	464	83716458	-	BTH_II1530	-	hypothetical protein
1524	 67.52	0	1795811..1798153	-	780	83716374	-	BTH_II1531	-	Rhs element Vgr protein, putative
67.58	MEAN

4.44	STD DEV
