IslandPathversion 1.0

IslandPath Analysis: Burkholderia thailandensis E264

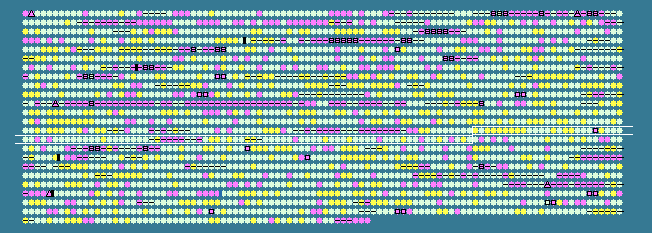

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1376	 77.01	+2	1633527..1634531	-	334	83716620	-	BTH_II1382	-	FecR family protein
1377	 70.78	0	1634528..1635037	-	169	83717850	-	BTH_II1383	-	ECF subfamily RNA polymerase sigma factor
1378	 71.94	0	1635222..1635581	-	119	83717343	-	BTH_II1384	-	hypothetical protein
1379	 74.04	+1	1635621..1636352	-	243	83716735	-	BTH_II1385	-	YceI like family protein
1380	 77.00	+2	1636480..1637292	-	270	83716066	-	BTH_II1386	-	hypothetical protein
1381	 71.07	0	1637289..1637810	-	173	83716762	-	BTH_II1387	-	ECF subfamily RNA polymerase sigma factor
1382	 71.71	0	1638580..1639590	+	336	83716095	-	BTH_II1388	-	AraC family transcriptional regulator
1383	 72.20	+1	1639754..1640458	+	234	83718339	-	BTH_II1389	-	fumarylacetoacetate hydrolase family protein
1384	 71.83	0	1640493..1641731	+	412	83717681	-	BTH_II1390	-	CAAX protease family protein
1385	 66.81	0	1641999..1642715	-	238	83717057	-	BTH_II1391	-	hypothetical protein
1386	 70.14	0	1642762..1644087	-	441	83716346	paaF-2	BTH_II1392	-	phenylacetate-CoA ligase
1387	 69.98	0	1644299..1645444	+	381	83716371	-	BTH_II1393	-	calcium/proton exchanger
1388	 67.98	0	1645559..1646851	-	430	83716945	-	BTH_II1394	-	LysR family transcriptional regulator
1389	 73.06	+1	1646801..1648051	+	416	83716476	-	BTH_II1395	-	HPP family protein
1390	 64.18	0	1648114..1648596	+	160	83716995	-	BTH_II1396	-	hypothetical protein
1391	 71.24	0	1648630..1650486	+	618	83717802	-	BTH_II1397	-	voltage-gated chloride channel/CBS domain-containing protein
1392	 73.32	+1	1650658..1652430	+	590	83718318	-	BTH_II1398	-	hypothetical protein
1393	 68.47	0	1652591..1653475	+	294	83716162	-	BTH_II1399	-	methyltransferase FkbM family protein
1394	 68.03	0	1653568..1654299	-	243	83716686	-	BTH_II1400	-	response regulator
1395	 69.90	0	1654301..1655383	-	360	83717487	-	BTH_II1401	-	histidine kinase
1396	 60.49	-1	1655622..1655783	+	53	83717661	-	BTH_II1402	-	putative transposase
1397	 72.93	+1	1655843..1656289	-	148	83717931	-	BTH_II1403	-	transporter, putative
1398	 69.01	0	1657350..1657691	+	113	83717286	-	BTH_II1404	-	hypothetical protein
1399	 70.21	0	1657815..1658096	-	93	83716793	-	BTH_II1405	-	hypothetical protein
1400	 66.87	0	1658077..1658571	-	164	83716428	-	BTH_II1406	-	hypothetical protein
1401	 68.28	0	1658816..1660117	+	433	83717724	-	BTH_II1407	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase, putative
1402	 65.23	0	1660176..1660943	-	255	83717199	-	BTH_II1408	-	histidine ABC transporter, ATP-binding protein
1403	 63.73	0	1661008..1661721	-	237	83717832	-	BTH_II1409	-	histidine ABC transporter, permease protein
1404	 64.35	0	1661718..1662407	-	229	83717299	-	BTH_II1410	-	histidine ABC transporter, permease protein
1405	 63.84	0	1662506..1663672	+	388	83717356	-	BTH_II1411	-	hypothetical protein
1406	 66.58	0	1663877..1664992	-	371	83716840	-	BTH_II1412	-	porin
1407	 64.30	0	1665045..1665593	-	182	83716320	-	BTH_II1413	-	DoxD-like family protein
1408	 68.97	0	1665652..1667130	-	492	83718163	-	BTH_II1414	-	cytochrome c family protein
1409	 65.68	0	1666995..1668608	-	537	83716938	-	BTH_II1415	-	hypothetical protein
1410	 67.05	0	1668608..1669123	-	171	83716424	-	BTH_II1416	-	oxidoreductase, putative
1411	 70.05	0	1670588..1672270	+	560	83717882	-	BTH_II1417	-	serine metalloprotease MrpA
1412	 66.85	0	1673005..1675794	+	929	83716685	mgtA	BTH_II1418	-	magnesium-translocating P-type ATPase
1413	 69.20	0	1675707..1676615	+	302	83716223	-	BTH_II1419	-	hypothetical protein
1414	 74.21	+1	1676741..1677151	-	136	83718113	-	BTH_II1420	-	hypothetical protein
1415	 68.42	0	1677162..1678760	-	532	83717588	-	BTH_II1421	-	GntR family transcriptional regulator
1416	 68.83	0	1678678..1681083	+	801	83716158	-	BTH_II1422	-	oxidoreductase alpha (molybdopterin) subunit
1417	 69.20	0	1681096..1682004	+	302	83716656	-	BTH_II1423	-	hypothetical protein
1418	 66.01	0	1682001..1682303	+	100	83717798	-	BTH_II1424	-	hypothetical protein
1419	 69.78	0	1682463..1683812	-	449	83718280	-	BTH_II1425	-	manganese/iron transporter
1420	 66.91	0	1683885..1685141	-	418	83717411	-	BTH_II1426	-	cupin family protein
1421	 65.86	0	1685435..1687036	+	533	83716425	-	BTH_II1427	-	solute-binding family 5 protein
1422	 67.82	0	1687128..1687733	-	201	83716150	-	BTH_II1428	-	hypothetical protein
1423	 71.26	0	1687850..1691242	-	1130	83716639	-	BTH_II1429	-	serine protease
1424	 55.22	-2	1691619..1691819	-	66	83718350	-	BTH_II1430	-	hypothetical protein
1425	 55.13	-2	1692617..1692772	+	51	83716508	-	BTH_II1431	-	hypothetical protein
1426	 59.11	-1	1692872..1693096	+	74	83716671	-	BTH_II1432	-	hypothetical protein
1427	 54.88	-2	1693408..1694001	-	197	83716166	-	BTH_II1433	-	hypothetical protein
1428	 65.98	0	1694011..1698672	-	1553	83717122	-	BTH_II1434	-	YD repeat-containing protein
1429	 65.71	0	1698724..1699245	-	173	83716060	-	BTH_II1435	-	hypothetical protein
1430	 63.04	-1	1699271..1701256	-	661	83718180	-	BTH_II1436	-	Rhs element Vgr protein
1431	 69.53	0	1701485..1702774	+	429	83717023	-	BTH_II1437	-	hypothetical protein
1432	 75.46	+1	1702717..1702932	-	71	83717728	-	BTH_II1438	-	hypothetical protein
1433	 72.33	+1	1703024..1703182	+	52	83716353	-	BTH_II1439	-	hypothetical protein
1434	 68.69	0	1703484..1704374	+	296	83716267	-	BTH_II1440	-	hypothetical protein
1435	 71.23	0	1704395..1704964	+	189	83718107	-	BTH_II1441	-	D-alanyl-D-alanine dipeptidase
1436	 65.60	0	1704997..1706688	+	563	83718344	-	BTH_II1442	-	ABC transporter, periplasmic substrate-binding protein
1437	 68.08	0	1706787..1707779	+	330	83716523	-	BTH_II1443	-	ABC transporter, permease protein
1438	 71.66	0	1707822..1708763	+	313	83716171	-	BTH_II1444	-	ABC transporter, permease protein
1439	 72.22	+1	1708765..1709646	+	293	83716673	-	BTH_II1445	-	ABC transporter, ATP-binding protein
1440	 70.70	0	1709643..1710410	+	255	83716116	-	BTH_II1446	-	ABC transporter system, ATP-binding protein
1441	 67.82	0	1710685..1710945	+	86	83717419	-	BTH_II1447	-	LysR family transcriptional regulator
1442	 68.75	0	1711246..1711581	+	111	83718081	-	BTH_II1448	-	hypothetical protein
1443	 67.21	0	1711722..1712639	-	305	83716338	-	BTH_II1449	-	LysR family transcriptional regulator
1444	 69.56	0	1713084..1714052	-	322	83717141	-	BTH_II1450	-	class A beta-lactamase precursor
1445	 70.48	0	1714197..1715351	-	384	83717584	-	BTH_II1451	-	lipoprotein NlpD, putative
1446	 59.39	-1	1715514..1715678	-	54	83717634	-	BTH_II1452	-	hypothetical protein
1447	 67.11	0	1715783..1716694	+	303	83718349	-	BTH_II1453	-	LysR family transcriptional regulator
1448	 64.42	0	1717177..1718421	-	414	83716488	-	BTH_II1454	-	outer membrane porin OpcP
1449	 68.60	0	1718614..1719909	+	431	83716709	-	BTH_II1455	-	opgC protein, putative
1450	 69.62	0	1719974..1720819	+	281	83718051	-	BTH_II1456	-	esterase, putative
1451	 73.87	+1	1720791..1721762	-	323	83717235	-	BTH_II1457	-	ornithine cyclodeaminase
1452	 69.17	0	1722118..1722516	-	132	83716243	-	BTH_II1458	-	4-carboxymuconolactone decarboxylase
1453	 71.04	0	1722926..1723816	+	296	83717657	-	BTH_II1459	-	alpha/beta fold family hydrolase
1454	 66.67	0	1723868..1725109	-	413	83717207	-	BTH_II1460	-	TrkA domain-containing protein
1455	 72.01	0	1725219..1726529	-	436	83717615	-	BTH_II1461	-	putative lipoprotein
1456	 67.49	0	1726780..1727634	+	284	83718126	-	BTH_II1462	-	hypothetical protein
1457	 69.86	0	1727767..1729647	+	626	83717608	-	BTH_II1463	-	hypothetical protein
1458	 70.07	0	1729774..1731330	-	518	83718188	-	BTH_II1464	-	methyl-accepting chemotaxis protein
1459	 69.77	0	1731576..1733090	+	504	83716888	-	BTH_II1465	-	EmrB/QacA family drug resistance transporter
1460	 62.17	-1	1733139..1734272	-	377	83717348	-	BTH_II1466	-	hypothetical protein
1461	 69.66	0	1734604..1735170	+	188	83717877	-	BTH_II1467	-	phosphinothricin N-acetyltransferase
1462	 67.72	0	1735198..1736055	+	285	83716270	-	BTH_II1468	-	MerR family transcriptional regulator
1463	 69.10	0	1736179..1737165	+	328	83716797	-	BTH_II1469	-	aliphatic compound ABC transporter, periplasmic substrate-binding protein
1464	 71.69	0	1737325..1737981	+	218	83716311	-	BTH_II1470	-	hypothetical protein
1465	 64.70	0	1738236..1739810	+	524	83718157	-	BTH_II1471	-	flavin-binding monooxygenase-like protein
1466	 68.25	0	1739838..1740785	+	315	83717660	-	BTH_II1472	-	short chain dehydrogenase
1467	 64.04	0	1740782..1741696	+	304	83717175	-	BTH_II1473	-	hypothetical protein
1468	 69.72	0	1741708..1742658	+	316	83716603	-	BTH_II1474	-	alpha/beta fold family hydrolase
1469	 67.59	0	1742923..1743900	-	325	83716147	-	BTH_II1475	-	LysR family transcriptional regulator
1470	 71.47	0	1743971..1745449	+	492	83717982	-	BTH_II1476	-	6-aminohexanoate-cyclic-dimer hydrolase
1471	 68.75	0	1745482..1746393	-	303	83716044	-	BTH_II1477	-	pyridine nucleotide-disulphide oxidoreductase, class II
1472	 63.39	0	1746465..1746983	+	172	83717641	-	BTH_II1478	-	transcriptional regulator family protein
1473	 66.49	0	1747102..1747659	-	185	83716135	-	BTH_II1479	-	hypothetical protein
1474	 75.83	+1	1747678..1747797	-	39	83716487	-	BTH_II1480	-	hypothetical protein
1475	 66.45	0	1747908..1748810	-	300	83716923	-	BTH_II1481	-	N-hydroxyarylamine O-acetyltransferase
67.58	MEAN

4.44	STD DEV
