IslandPath Analysis: Burkholderia thailandensis E264

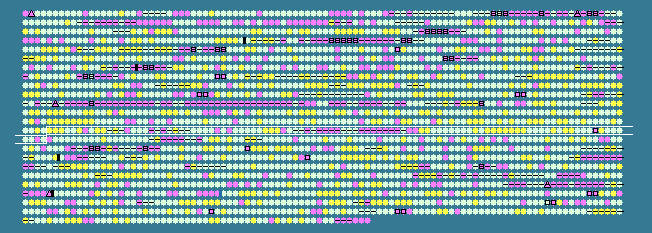

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1305	 74.13	+1	1561679..1564291	-	870	83718050	-	BTH_II1311	-	Mg2+-importing ATPase, putative
1306	 71.48	0	1564355..1565725	-	456	83716557	-	BTH_II1312	-	hypothetical protein
1307	 71.67	0	1565877..1566296	+	139	83717620	-	BTH_II1313	-	hypothetical protein
1308	 70.22	0	1566310..1567743	+	477	83717086	-	BTH_II1314	-	hypothetical protein
1309	 65.90	0	1567801..1568061	+	86	83717293	-	BTH_II1315	-	hypothetical protein
1310	 73.48	+1	1568192..1568896	+	234	83717893	-	BTH_II1316	-	hypothetical protein
1311	 60.33	-1	1569028..1569327	+	99	83717979	-	BTH_II1317	-	hypothetical protein
1312	 69.93	0	1569436..1570569	+	377	83716410	-	BTH_II1318	-	polyglutamate synthase
1313	 73.46	+1	1570685..1573480	-	931	83717210	-	BTH_II1319	-	DnaK-related protein
1314	 71.92	0	1573484..1575331	-	615	83717736	-	BTH_II1320	-	putative DnaK-related protein (molecular chaperone)
1315	 68.85	0	1575328..1576107	-	259	83717340	-	BTH_II1321	-	hypothetical protein
1316	 72.03	+1	1576218..1576982	-	254	83716076	-	BTH_II1322	-	hydratase/decarboxylase family protein
1317	 67.44	0	1577569..1578084	+	171	83718109	-	BTH_II1323	-	ProP effector
1318	 59.09	-1	1578098..1578427	+	109	83716046	-	BTH_II1324	-	H-NS histone family protein
1319	 65.49	0	1579400..1580500	-	366	83717009	-	BTH_II1325	-	fels-2 prophage protein
1320	 68.08	0	1580500..1580925	-	141	83716759	gpU	BTH_II1326	-	Fels-2 prophage protein
1321	 67.14	0	1580943..1583903	-	986	83717435	-	BTH_II1327	-	phage-related tail transmembrane protein
1322	 64.04	0	1583906..1584019	-	37	83718076	-	BTH_II1328	-	phage tail protein P2
1323	 66.96	0	1584028..1584372	-	114	83718097	gpE	BTH_II1329	-	gpE+E'
1324	 59.41	-1	1584430..1584939	-	169	83716619	-	BTH_II1330	-	phage major tail tube protein
1325	 67.09	0	1584955..1586127	-	390	83716089	-	BTH_II1331	-	Phage tail sheath protein
1326	 73.51	+1	1586183..1586854	-	223	83717664	-	BTH_II1332	-	tail fiber assembly protein from lambdoid prophage e14
1327	 70.16	0	1586871..1589243	-	790	83718185	-	BTH_II1333	-	phage-related tail fiber protein
1328	 69.19	0	1589245..1589799	-	184	83717136	-	BTH_II1334	-	phage-related tail protein
1329	 67.88	0	1589792..1590697	-	301	83716415	-	BTH_II1335	-	baseplate J-like protein
1330	 67.51	0	1590694..1591047	-	117	83717272	-	BTH_II1336	-	hypothetical protein
1331	 68.43	0	1591053..1591733	-	226	83717952	-	BTH_II1337	-	hypothetical protein
1332	 66.67	0	1591907..1592683	+	258	83716835	-	BTH_II1338	-	site-specific DNA-methyltransferase
1333	 49.15	-2	1592849..1593379	-	176	83716211	-	BTH_II1339	-	hypothetical protein
1334	 70.09	0	1593506..1593973	-	155	83716314	-	BTH_II1340	-	phage virion morphogenesis protein
1335	 63.79	0	1593970..1594386	-	138	83716518	-	BTH_II1341	-	fels-2 prophage protein
1336	 70.29	0	1594491..1594931	-	146	83718328	-	BTH_II1342	-	protein lysB
1337	 68.26	0	1594928..1595680	-	250	83717816	-	BTH_II1343	-	hypothetical protein
1338	 68.13	0	1595737..1596009	-	90	83716711	-	BTH_II1344	-	hypothetical protein
1339	 68.99	0	1596011..1596355	-	114	83718041	-	BTH_II1345	-	hypothetical protein
1340	 67.63	0	1596370..1596576	-	68	83716985	-	BTH_II1346	-	Phage tail protein X
1341	 71.43	0	1596573..1596824	-	83	83717144	-	BTH_II1347	-	hypothetical protein
1342	 71.48	0	1596824..1597342	-	172	83716451	-	BTH_II1348	-	fels-2 prophage protein
1343	 71.30	0	1597403..1598092	-	229	83718154	-	BTH_II1349	-	Phage small terminase subunit
1344	 63.41	0	1598089..1599102	-	337	83716068	-	BTH_II1350	-	P2 family phage major capsid protein
1345	 66.42	0	1599136..1599945	-	269	83716727	-	BTH_II1351	-	Phage capsid scaffolding protein (GPO)
1346	 64.95	0	1600053..1601858	+	601	83717940	-	BTH_II1352	-	putative ATPase subunit of terminase (gpP-like)
1347	 66.19	0	1601855..1602910	+	351	83716197	-	BTH_II1353	-	PBSX family phage portal protein
1348	 57.88	-2	1603017..1603289	+	90	83716920	-	BTH_II1354	-	hypothetical protein
1349	 65.57	0	1603249..1603521	+	90	83716993	-	BTH_II1355	-	hypothetical protein
1350	 60.61	-1	1604079..1605200	-	373	83716613	-	BTH_II1356	-	gp31
1351	 60.43	-1	1605209..1605946	-	245	83716918	-	BTH_II1357	-	gp30
1352	 63.30	0	1605943..1606476	-	177	83716236	-	BTH_II1358	-	hypothetical protein
1353	 60.99	-1	1606579..1606860	-	93	83717781	-	BTH_II1359	-	hypothetical protein
1354	 66.51	0	1606935..1607588	-	217	83717536	-	BTH_II1360	-	ParA family protein, putative
1355	 66.67	0	1607689..1607895	-	68	83717616	-	BTH_II1361	-	putative bacteriophage transcriptional activator-related transcription regulator protein
1356	 67.05	0	1607892..1608149	-	85	83716655	-	BTH_II1362	-	bacteriophage-acquired protein
1357	 63.66	0	1608174..1609967	-	597	83717715	-	BTH_II1363	-	bacteriophage replication protein
1358	 63.18	0	1609967..1611574	-	535	83718377	-	BTH_II1364	-	DNA methyltransferase
1359	 62.57	-1	1611391..1612512	-	373	83718172	-	BTH_II1365	-	gp51
1360	 60.36	-1	1612868..1613089	-	73	83716406	-	BTH_II1366	-	hypothetical protein
1361	 59.17	-1	1613405..1614178	-	257	83717996	-	BTH_II1367	-	hypothetical protein
1362	 58.11	-2	1614568..1614906	+	112	83718205	-	BTH_II1368	-	hypothetical protein
1363	 62.35	-1	1615044..1615529	-	161	83716348	-	BTH_II1369	-	YbaK/prolyl-tRNA synthetase associated domain-containing protein
1364	 66.04	0	1615759..1615917	-	52	83717146	-	BTH_II1370	-	cystathionine beta-synthase
1365	 63.60	0	1616174..1616662	+	162	83717330	-	BTH_II1371	-	hypothetical protein
1366	 63.75	0	1617014..1617253	+	79	83716939	-	BTH_II1372	-	hypothetical protein
1367	 72.30	+1	1618195..1619526	+	443	83717845	-	BTH_II1373	-	heavy metal resistance protein CzcC
1368	 71.27	0	1619537..1620991	+	484	83717838	-	BTH_II1374	-	heavy metal resistance protein CzcB
1369	 68.71	0	1621057..1624290	+	1077	83718363	-	BTH_II1375	-	heavy metal efflux pump CzcA
1370	 66.81	0	1624297..1624986	+	229	83717734	-	BTH_II1376	-	DNA-binding response regulator IrlR
1371	 68.10	0	1624983..1626377	+	464	83717082	-	BTH_II1377	-	sensor protein irlS
1372	 67.03	0	1626469..1626741	-	90	83716229	-	BTH_II1378	-	hypothetical protein
1373	 70.08	0	1628184..1629443	+	419	83718148	-	BTH_II1379	-	acyl-CoA dehydrogenase family protein
1374	 66.25	0	1629555..1630271	-	238	83717280	-	BTH_II1380	-	hypothetical protein
1375	 69.31	0	1630820..1633048	-	742	83717123	-	BTH_II1381	-	TonB-dependent siderophore receptor
1376	 77.01	+2	1633527..1634531	-	334	83716620	-	BTH_II1382	-	FecR family protein
1377	 70.78	0	1634528..1635037	-	169	83717850	-	BTH_II1383	-	ECF subfamily RNA polymerase sigma factor
1378	 71.94	0	1635222..1635581	-	119	83717343	-	BTH_II1384	-	hypothetical protein
1379	 74.04	+1	1635621..1636352	-	243	83716735	-	BTH_II1385	-	YceI like family protein
1380	 77.00	+2	1636480..1637292	-	270	83716066	-	BTH_II1386	-	hypothetical protein
1381	 71.07	0	1637289..1637810	-	173	83716762	-	BTH_II1387	-	ECF subfamily RNA polymerase sigma factor
1382	 71.71	0	1638580..1639590	+	336	83716095	-	BTH_II1388	-	AraC family transcriptional regulator
1383	 72.20	+1	1639754..1640458	+	234	83718339	-	BTH_II1389	-	fumarylacetoacetate hydrolase family protein
1384	 71.83	0	1640493..1641731	+	412	83717681	-	BTH_II1390	-	CAAX protease family protein
1385	 66.81	0	1641999..1642715	-	238	83717057	-	BTH_II1391	-	hypothetical protein
1386	 70.14	0	1642762..1644087	-	441	83716346	paaF-2	BTH_II1392	-	phenylacetate-CoA ligase
1387	 69.98	0	1644299..1645444	+	381	83716371	-	BTH_II1393	-	calcium/proton exchanger
1388	 67.98	0	1645559..1646851	-	430	83716945	-	BTH_II1394	-	LysR family transcriptional regulator
1389	 73.06	+1	1646801..1648051	+	416	83716476	-	BTH_II1395	-	HPP family protein
1390	 64.18	0	1648114..1648596	+	160	83716995	-	BTH_II1396	-	hypothetical protein
1391	 71.24	0	1648630..1650486	+	618	83717802	-	BTH_II1397	-	voltage-gated chloride channel/CBS domain-containing protein
1392	 73.32	+1	1650658..1652430	+	590	83718318	-	BTH_II1398	-	hypothetical protein
1393	 68.47	0	1652591..1653475	+	294	83716162	-	BTH_II1399	-	methyltransferase FkbM family protein
1394	 68.03	0	1653568..1654299	-	243	83716686	-	BTH_II1400	-	response regulator
1395	 69.90	0	1654301..1655383	-	360	83717487	-	BTH_II1401	-	histidine kinase
1396	 60.49	-1	1655622..1655783	+	53	83717661	-	BTH_II1402	-	putative transposase
1397	 72.93	+1	1655843..1656289	-	148	83717931	-	BTH_II1403	-	transporter, putative
1398	 69.01	0	1657350..1657691	+	113	83717286	-	BTH_II1404	-	hypothetical protein
1399	 70.21	0	1657815..1658096	-	93	83716793	-	BTH_II1405	-	hypothetical protein
1400	 66.87	0	1658077..1658571	-	164	83716428	-	BTH_II1406	-	hypothetical protein
1401	 68.28	0	1658816..1660117	+	433	83717724	-	BTH_II1407	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase, putative
1402	 65.23	0	1660176..1660943	-	255	83717199	-	BTH_II1408	-	histidine ABC transporter, ATP-binding protein
1403	 63.73	0	1661008..1661721	-	237	83717832	-	BTH_II1409	-	histidine ABC transporter, permease protein
1404	 64.35	0	1661718..1662407	-	229	83717299	-	BTH_II1410	-	histidine ABC transporter, permease protein
67.58	MEAN

4.44	STD DEV
