IslandPath Analysis: Burkholderia thailandensis E264

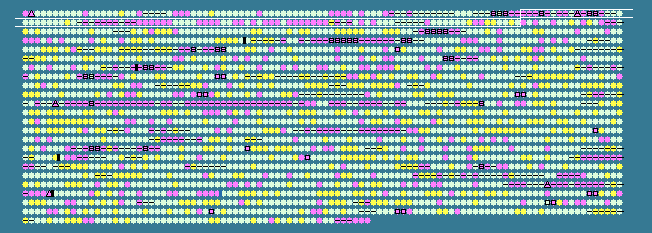

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
84	 57.34	-2	92677..93405	+	242	83717284	-	BTH_II0084	-	putrescine ABC transporter, permease protein
85	 55.79	-2	93392..94246	+	284	83716817	potC	BTH_II0085	-	ABC transporter, permease protein
86	 53.78	-2	94243..95274	+	343	83716306	-	BTH_II0086	-	putrescine ABC transporter, periplasmic putrescine-binding protein, putative
87	 61.81	-1	95823..96893	-	356	83717871	-	BTH_II0087	-	transposase
88	 57.19	-2	97053..97358	+	101	83716402	-	BTH_II0088	-	DNA-binding protein BprA
89	 67.46	0	97680..100460	+	926	83716745	-	BTH_II0089	-	Rhs element Vgr protein, putative
90	 62.60	-1	100528..102714	+	728	83716109	-	BTH_II0090	-	hypothetical protein
91	 60.04	-1	102853..104391	+	512	83718104	-	BTH_II0091	-	hypothetical protein
92	 67.80	0	104401..104664	+	87	83717026	-	BTH_II0092	-	PAAR motif-containing protein
93	 56.51	-2	104684..104998	-	104	83717557	-	BTH_II0093	-	integrase, putative
94	 58.82	-1	104962..105687	+	241	83718341	-	BTH_II0094	-	hypothetical protein
95	 62.84	-1	105871..106236	+	121	83717732	-	BTH_II0095	-	transposase
96	 62.50	-1	106194..107081	+	295	83716991	-	BTH_II0096	-	transposase
97	 60.03	-1	107167..108702	+	511	83717375	-	BTH_II0097	-	hypothetical protein
98	 67.80	0	108712..108975	+	87	83717867	-	BTH_II0098	-	PAAR motif-containing protein
99	 65.24	0	109390..109809	-	139	83716293	-	BTH_II0099	-	hypothetical protein
100	 66.97	0	109829..110155	-	108	83716191	trx	BTH_II0100	-	thioredoxin
101	 67.68	0	110628..111320	+	230	83716565	-	BTH_II0101	-	putative lipoprotein
102	 69.19	0	112130..112486	-	118	83717520	-	BTH_II0102	-	hypothetical protein
103	 65.37	0	112964..114199	-	411	83717969	-	BTH_II0103	-	outer membrane porin OpcP
104	 65.40	0	114738..115682	-	314	83716532	-	BTH_II0104	-	LysR family transcriptional regulator
105	 67.90	0	116223..116546	-	107	83718096	-	BTH_II0105	-	hypothetical protein
106	 67.39	0	117174..117449	-	91	83717555	-	BTH_II0106	-	hypothetical protein
107	 64.66	0	117552..118499	-	315	161723120	-	BTH_II0107	-	DNA-binding transcriptional regulator CynR
108	 72.59	+1	118751..120184	-	477	83716676	-	BTH_II0108	-	outer membrane efflux protein
109	 69.67	0	120178..121077	-	299	83718248	-	BTH_II0109	-	FusE-MFP/HlyD family membrane protein
110	 68.67	0	121300..123549	-	749	83717755	-	BTH_II0110	-	fusaric acid resistance protein, putative
111	 62.90	-1	124376..125890	-	504	83717439	-	BTH_II0111	-	hypothetical protein
112	 68.72	0	127466..129949	+	827	83717045	-	BTH_II0112	-	Hep_Hag family protein
113	 62.50	-1	130025..131512	-	495	83716039	-	BTH_II0113	-	PqaA
114	 63.78	0	131727..132176	-	149	83717069	-	BTH_II0114	-	YfaZ precursor superfamily protein
115	 57.12	-2	132907..133461	+	184	83717319	-	BTH_II0115	-	frimbrial protein
116	 60.61	-1	133543..134268	+	241	83717851	-	BTH_II0116	-	fimbrial chaperone protein ecpD
117	 64.22	0	134305..137124	+	939	83716782	-	BTH_II0117	-	outer membrane usher protein
118	 63.00	-1	137144..137689	+	181	83716399	-	BTH_II0118	-	major fimbrial subunit protein
119	 60.43	-1	137720..138409	+	229	83717840	-	BTH_II0119	-	hypothetical protein
120	 63.21	0	138412..140088	+	558	83717470	-	BTH_II0120	-	hypothetical protein
121	 58.33	-2	140432..140971	+	179	83716514	-	BTH_II0121	-	hypothetical protein
122	 60.60	-1	141005..142504	+	499	83716153	-	BTH_II0122	-	hypothetical protein
123	 60.46	-1	142705..143187	+	160	83717589	-	BTH_II0123	-	hypothetical protein
124	 61.69	-1	143315..143857	+	180	83717629	-	BTH_II0124	-	putative lipoprotein
125	 61.47	-1	143770..145212	+	480	83717986	-	BTH_II0125	-	hypothetical protein
126	 65.51	0	145209..146510	+	433	83716132	-	BTH_II0126	-	hypothetical protein
127	 66.26	0	146525..150433	+	1302	83716562	-	BTH_II0127	-	putative lipoprotein
128	 66.67	0	150603..151172	+	189	83717749	-	BTH_II0128	-	hypothetical protein
129	 64.83	0	151273..153891	+	872	83718246	-	BTH_II0129	-	Rhs element Vgr protein
130	 63.70	0	153966..154235	+	89	83716387	-	BTH_II0130	-	Rhs family protein
131	 60.96	-1	154248..157700	+	1150	83716726	-	BTH_II0131	-	Rhs1 protein
132	 57.70	-2	157593..158975	-	460	83716926	-	BTH_II0132	-	hypothetical protein
133	 57.05	-2	158984..160117	-	377	83717748	-	BTH_II0133	-	fimbrial protein subfamily protein
134	 66.39	0	160068..161138	-	356	83716195	-	BTH_II0134	-	ImpA-like N-terminal family protein
135	 66.29	0	161157..162206	-	349	83716825	-	BTH_II0135	-	putative cytoplasmic protein
136	 63.21	0	162203..164083	-	626	83718132	-	BTH_II0136	-	hypothetical protein
137	 62.43	-1	164085..164603	-	172	83718123	-	BTH_II0137	-	hypothetical protein
138	 64.21	0	164590..165444	-	284	83716566	-	BTH_II0138	-	ImpE protein superfamily protein
139	 64.02	0	165428..166483	-	351	83717118	-	BTH_II0139	-	hypothetical protein
140	 65.22	0	166857..169613	+	918	83717355	-	BTH_II0140	-	ClpA/B type protease
141	 62.68	-1	170006..172864	-	952	83717305	-	BTH_II0141	-	two-component system sensor protein
142	 54.60	-2	174659..175321	-	220	83717848	-	BTH_II0142	-	DNA-binding response regulator
143	 61.40	-1	176147..176944	+	265	83717007	-	BTH_II0143	-	transcription regulator
144	 65.66	0	177029..179521	-	830	83718073	-	BTH_II0144	-	sensor protein evgS precursor
145	 63.93	0	179572..181395	+	607	83716112	-	BTH_II0145	-	glycosyl transferase group 2 family protein
146	 60.47	-1	181392..182327	+	311	83716750	-	BTH_II0146	-	hypothetical protein
147	 60.58	-1	182320..183108	+	262	83717240	-	BTH_II0147	-	hypothetical protein
148	 57.80	-2	183105..183713	+	202	83718026	-	BTH_II0148	-	HAD family hydrolase
149	 58.94	-1	183689..184348	+	219	83716512	-	BTH_II0149	-	hypothetical protein
150	 60.26	-1	184329..185483	+	384	83716668	-	BTH_II0150	-	hypothetical protein
151	 63.86	0	185596..186486	+	296	83717540	-	BTH_II0151	-	flagellin D
152	 71.19	0	186543..186719	-	58	83718295	-	BTH_II0152	-	hypothetical protein
153	 62.09	-1	186899..187750	+	283	83717992	-	BTH_II0153	-	flagellar motor protein MotA
154	 67.95	0	187769..188704	+	311	83717140	-	BTH_II0154	-	chemotaxis lafU protein
155	 61.71	-1	188721..189083	+	120	83717918	-	BTH_II0155	-	chemotaxis response regulator
156	 66.76	0	189128..191371	+	747	83716091	-	BTH_II0156	-	chemotaxis protein CheA
157	 63.92	0	191381..191854	+	157	83717542	-	BTH_II0157	-	chemotaxis protein CheW
158	 66.41	0	191935..194274	+	779	83717148	-	BTH_II0158	-	chemotaxis protein
159	 63.63	0	194385..195206	+	273	83716910	-	BTH_II0159	-	chemotaxis protein methyltransferase CheR
160	 66.67	0	195211..195798	+	195	83716255	-	BTH_II0160	-	chemotaxis protein CheD
161	 69.78	0	195743..196930	+	395	83717224	-	BTH_II0161	-	protein-glutamate methylesterase CheB
162	 65.65	0	196955..198037	+	360	83716866	-	BTH_II0162	-	protein-glutamate methylesterase CheB
163	 66.43	0	198126..200216	-	696	83716612	-	BTH_II0163	-	flagellar biosynthesis protein FlhA
164	 67.02	0	200213..201352	-	379	83716504	flhB	BTH_II0164	-	flagellar biosynthesis protein FlhB
165	 66.54	0	201345..202121	-	258	83718195	-	BTH_II0165	-	flagellar biosynthetic protein FliR, putative
166	 65.93	0	202126..202398	-	90	83717562	-	BTH_II0166	-	flagellar biosynthetic protein FliQ, putative
167	 66.15	0	202398..203165	-	255	83716894	fliP	BTH_II0167	-	flagellar biosynthesis protein FliP
168	 63.79	0	203162..203509	-	115	83716202	-	BTH_II0168	-	flagellar motor switch protein FliN
169	 70.73	0	203513..204472	-	319	83717892	-	BTH_II0169	-	hypothetical protein
170	 64.26	0	205230..205562	+	110	83716521	fliE-2	BTH_II0170	-	flagellar hook-basal body complex protein FliE
171	 68.06	0	205598..207253	+	551	83718135	fliF	BTH_II0171	-	flagellar MS-ring protein
172	 65.98	0	207234..208247	+	337	83717505	fliG	BTH_II0172	-	flagellar motor switch protein G
173	 69.28	0	208244..208969	+	241	83717320	fliH	BTH_II0173	-	flagellar assembly protein H
174	 70.03	0	208966..210273	+	435	83716747	fliI	BTH_II0174	-	flagellum-specific ATP synthase
175	 73.29	+1	210270..210707	+	145	83716277	-	BTH_II0175	-	hypothetical protein
176	 61.96	-1	210784..212100	+	438	83717962	-	BTH_II0176	-	flagellar hook-associated protein, putative
177	 64.08	0	212134..212520	+	128	83718213	fliS-2	BTH_II0177	-	flagellar protein FliS
178	 72.42	+1	212507..212836	+	109	83717532	-	BTH_II0178	-	hypothetical protein
179	 72.34	+1	212833..213978	+	381	83717155	-	BTH_II0179	-	flagellar hook-length control protein, putative
180	 64.77	0	214074..215183	+	369	83716542	-	BTH_II0180	-	RNA polymerase sigma factor for flagellar operon FliA
181	 68.42	0	215232..215516	+	94	83717908	-	BTH_II0181	-	hypothetical protein
182	 72.08	+1	215925..216719	+	264	83717866	-	BTH_II0182	-	flagellar protein FlgJ
183	 70.80	0	216661..217434	-	257	83717277	-	BTH_II0183	-	flagella basal body P-ring formation protein FlgA
67.58	MEAN

4.44	STD DEV
