IslandPath Analysis: Burkholderia thailandensis E264

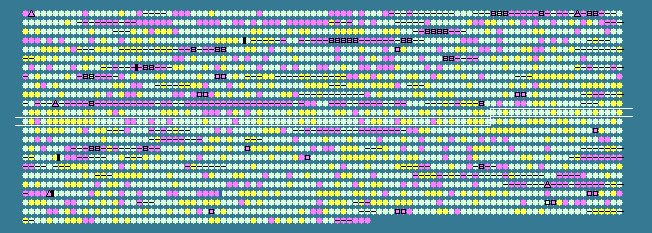

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1179	 68.14	0	1384906..1388025	-	1039	83716606	-	BTH_II1184	-	heavy metal efflux pump CzcA, putative
1180	 70.05	0	1388073..1389137	-	354	83716269	-	BTH_II1185	-	metal ion efflux membrane fusion protein family
1181	 71.35	0	1389134..1390669	-	511	83717666	-	BTH_II1186	-	divalent cation resistant determinant protein C, putative
1182	 68.04	0	1390709..1390999	-	96	83717468	-	BTH_II1187	-	hypothetical protein
1183	 66.51	0	1391092..1392408	-	438	83716927	-	BTH_II1188	-	sensor histidine kinase, putative
1184	 67.10	0	1392398..1393087	-	229	83717997	-	BTH_II1189	-	response regulator
1185	 69.47	0	1393623..1393979	-	118	83717777	-	BTH_II1191	-	hypothetical protein
1186	 68.26	0	1393993..1395996	-	667	83716145	-	BTH_II1192	-	hypothetical protein
1187	 65.68	0	1396081..1397403	-	440	83718302	-	BTH_II1193	-	FF domain-containing protein
1188	 70.33	0	1398017..1399762	+	581	83717578	-	BTH_II1194	-	potassium efflux system protein, putative
1189	 72.40	+1	1399820..1400587	-	255	83717250	-	BTH_II1195	-	short chain dehydrogenase
1190	 68.86	0	1400643..1401644	-	333	83716589	-	BTH_II1196	-	L-arabinose ABC transporter, periplasmic L-arabinose-binding protein
1191	 68.29	0	1401901..1403691	-	596	83716466	-	BTH_II1197	-	penicillin-binding protein
1192	 68.25	0	1404370..1405818	-	482	83716986	-	BTH_II1198	-	methyl-accepting chemotaxis protein
1193	 75.50	+1	1406823..1407422	-	199	83716477	-	BTH_II1199	-	hypothetical protein
1194	 65.97	0	1407888..1408463	+	191	83718297	-	BTH_II1200	-	isochorismatase family protein
1195	 68.27	0	1408657..1409340	-	227	83717759	-	BTH_II1201	-	putative hydroxylase
1196	 72.98	+1	1409337..1410080	-	247	83716774	-	BTH_II1202	-	hypothetical protein
1197	 67.01	0	1410085..1412403	-	772	83716122	-	BTH_II1203	-	outer membrane ferric siderophore receptor
1198	 67.98	0	1412765..1414060	-	431	83717964	pyrB-2	BTH_II1204	-	aspartate carbamoyltransferase
1199	 65.19	0	1414343..1414477	+	44	83717408	-	BTH_II1205	-	entericidin-related protein
1200	 72.33	+1	1414611..1415069	-	152	83717105	-	BTH_II1206	-	hypothetical protein
1201	 67.81	0	1415078..1415515	-	145	83716108	-	BTH_II1207	-	carboxymuconolactone decarboxylase family protein
1202	 72.29	+1	1415710..1417434	-	574	83716625	-	BTH_II1208	-	GntR family transcriptional regulator
1203	 57.95	-2	1417784..1418047	+	87	83718317	-	BTH_II1209	-	hypothetical protein
1204	 68.92	0	1418132..1418842	+	236	83717351	-	BTH_II1210	-	hypothetical protein
1205	 75.15	+1	1418843..1427977	+	3044	83716694	-	BTH_II1211	-	polyketide synthase
1206	 71.29	0	1428069..1429064	+	331	83716299	-	BTH_II1212	-	syringomycin biosynthesis enzyme, putative
1207	 75.32	+1	1429061..1433023	+	1320	83717770	-	BTH_II1213	-	peptide synthetase-like protein
1208	 74.12	+1	1433041..1437765	+	1574	83716965	-	BTH_II1214	-	peptide synthetase, putative
1209	 73.32	+1	1437762..1439054	+	430	83717336	-	BTH_II1215	-	hypothetical protein
1210	 73.24	+1	1439051..1440115	+	354	83716832	-	BTH_II1216	-	D-cysteine desulfhydrase, putative
1211	 72.78	+1	1440127..1441074	+	315	83716342	-	BTH_II1217	-	luciferase family protein
1212	 75.29	+1	1441071..1442891	+	606	83716713	-	BTH_II1218	-	AMP-binding domain-containing protein
1213	 70.33	0	1442888..1443160	+	90	83716480	-	BTH_II1219	-	phosphopantetheine attachment site domain-containing protein
1214	 70.17	0	1443189..1444073	-	294	83716962	-	BTH_II1220	-	IclR family transcriptional regulator
1215	 69.34	0	1443995..1445302	-	435	83717811	-	BTH_II1221	-	shikimate transporter
1216	 69.28	0	1445675..1446820	+	381	83716682	-	BTH_II1222	-	4-hydroxyphenylpyruvate dioxygenase
1217	 68.35	0	1446810..1447106	-	98	83718311	-	BTH_II1223	-	hypothetical protein
1218	 63.20	0	1447197..1448120	-	307	83717262	-	BTH_II1224	-	CmaB
1219	 61.79	-1	1448266..1448511	-	81	83717936	-	BTH_II1225	-	phosphopantetheine-containing protein
1220	 68.61	0	1448529..1450175	-	548	83716248	-	BTH_II1226	-	peptide synthetase, putative
1221	 64.25	0	1450117..1450737	-	206	83716178	-	BTH_II1227	-	N-acyl homoserine lactone synthase
1222	 63.24	0	1450821..1451228	-	135	83718077	-	BTH_II1228	-	hypothetical protein
1223	 68.53	0	1451868..1453100	+	410	83716610	-	BTH_II1229	-	sodium/hydrogen exchanger
1224	 65.03	0	1453151..1454008	+	285	83717113	-	BTH_II1230	-	hypothetical protein
1225	 62.41	-1	1454107..1454811	-	234	83716885	-	BTH_II1231	-	ATP-dependent transcription regulator LuxR
1226	 64.22	0	1455361..1457442	-	693	83717270	-	BTH_II1232	-	oligopeptidase A
1227	 68.28	0	1457826..1462166	+	1446	83716416	-	BTH_II1233	-	peptide synthetase, putative
1228	 69.68	0	1462174..1466748	+	1524	83716219	-	BTH_II1234	-	JamP
1229	 68.25	0	1466630..1470742	+	1370	83717138	-	BTH_II1235	-	JamP
1230	 68.50	0	1470782..1474216	+	1144	83716594	-	BTH_II1236	-	nonribosomal peptide synthetase, putative
1231	 71.62	0	1474257..1476596	+	779	83716265	-	BTH_II1237	-	thiotemplate mechanism natural product synthetase
1232	 66.79	0	1476609..1478201	+	530	83717186	-	BTH_II1238	-	polyketide synthase
1233	 69.39	0	1478206..1479051	+	281	83716331	-	BTH_II1239	-	acetyltransferase
1234	 70.70	0	1479032..1479874	+	280	83717574	-	BTH_II1240	-	thioesterase II
1235	 67.40	0	1479935..1481161	+	408	83718155	-	BTH_II1241	-	drug resistance transporter, Bcr/CflA family protein, putative
1236	 59.57	-1	1481424..1482269	-	281	83718273	-	BTH_II1242	-	TauD/TfdA family dioxygenase
1237	 66.84	0	1483043..1484761	+	572	83716391	-	BTH_II1243	-	putative ABC transporter ATP-binding protein
1238	 66.67	0	1485100..1485885	-	261	83716640	-	BTH_II1244	-	Crp/FNR family transcriptional regulator
1239	 67.64	0	1485898..1486308	-	136	83716963	-	BTH_II1245	-	DNA-binding response regulator,, putative
1240	 72.45	+1	1486278..1486796	-	172	83717516	-	BTH_II1246	-	hypothetical protein
1241	 66.36	0	1486855..1487502	-	215	83716364	-	BTH_II1247	-	LuxR family DNA-binding response regulator
1242	 70.45	0	1487499..1489562	-	687	83717025	-	BTH_II1248	-	sensory box histidine kinase/response regulator
1243	 68.08	0	1490195..1494019	+	1274	83717065	-	BTH_II1249	-	nitrate reductase, alpha subunit
1244	 65.36	0	1494016..1495545	+	509	83718035	narH-2	BTH_II1250	-	nitrate reductase, beta subunit
1245	 70.85	0	1495542..1496234	+	230	83716043	-	BTH_II1251	-	nitrate reductase, delta subunit
1246	 65.79	0	1496338..1497021	+	227	83716703	narI-2	BTH_II1252	-	respiratory nitrate reductase, gamma subunit
1247	 71.58	0	1497077..1497829	+	250	83717644	-	BTH_II1253	-	peptidylprolyl isomerase
1248	 68.31	0	1497854..1499128	+	424	83718294	-	BTH_II1254	-	nitrate/nitrite transporter
1249	 72.42	+1	1499134..1499463	-	109	83716537	-	BTH_II1255	-	hypothetical protein
1250	 64.98	0	1499504..1499740	-	78	83716818	-	BTH_II1256	-	thioredoxin
1251	 69.54	0	1499829..1500524	-	231	83716892	-	BTH_II1257	-	transferase
1252	 65.13	0	1500680..1500940	-	86	83717526	-	BTH_II1258	-	phosphocarrier protein HPr
1253	 69.48	0	1501002..1501499	-	165	83718220	-	BTH_II1259	-	hypothetical protein
1254	 68.48	0	1501981..1502754	-	257	83716505	-	BTH_II1260	-	hypothetical protein
1255	 69.21	0	1503131..1505137	+	668	83717182	-	BTH_II1261	-	hydrogenase 4 subunit B
1256	 68.87	0	1505131..1506081	+	316	83717934	-	BTH_II1262	-	formate hydrogenlyase subunit 4
1257	 63.33	0	1506082..1506741	+	219	83716144	-	BTH_II1263	-	hypothetical protein
1258	 67.17	0	1506803..1508194	+	463	83717864	-	BTH_II1264	-	hydrogenase 4 subunit F
1259	 72.02	+1	1508198..1509877	+	559	83717987	-	BTH_II1265	-	hydrogenase-3, subunit E
1260	 72.19	+1	1509877..1510401	+	174	83717494	-	BTH_II1266	-	formate hydrogenlyase subunit 7
1261	 66.67	0	1510787..1511203	+	138	83717229	-	BTH_II1267	-	hypothetical protein
1262	 68.88	0	1511650..1512597	-	315	83716891	-	BTH_II1268	-	universal stress protein
1263	 63.57	0	1512998..1513255	+	85	83717594	-	BTH_II1269	-	hypothetical protein
1264	 71.84	0	1513394..1514011	+	205	83717718	-	BTH_II1270	-	hypothetical protein
1265	 73.31	+1	1514117..1514899	-	260	83716959	-	BTH_II1271	-	hydroxyethylthiazole kinase family protein
1266	 67.56	0	1515171..1515728	-	185	83718210	-	BTH_II1272	-	transcriptional regulator
1267	 68.83	0	1515728..1517896	+	722	83716538	-	BTH_II1273	-	2,4-dienoyl-CoA reductase
1268	 66.67	0	1517991..1518431	+	146	83716899	-	BTH_II1274	-	hypothetical protein
1269	 62.70	-1	1518815..1519621	+	268	83717618	-	BTH_II1275	-	transcription regulator LuxR family protein
1270	 74.49	+1	1519861..1521240	-	459	83717391	-	BTH_II1276	-	hypothetical protein
1271	 70.65	0	1521298..1521900	-	200	83718083	-	BTH_II1277	-	hypothetical protein
1272	 73.01	+1	1521863..1523266	-	467	83716065	-	BTH_II1278	-	major facilitator superfamily protein superfamily
1273	 69.79	0	1523298..1524161	-	287	83717496	-	BTH_II1279	-	glyoxalase family protein family
1274	 67.14	0	1524164..1525216	-	350	83718199	-	BTH_II1280	-	O-methyltransferase family protein, putative
1275	 76.50	+2	1525276..1526445	-	389	83717489	ribD-2	BTH_II1281	-	riboflavin biosynthesis protein RibD
1276	 71.65	0	1526564..1527547	-	327	83718061	-	BTH_II1282	-	serine/threonine kinase
1277	 71.87	0	1527544..1528254	-	236	83716101	-	BTH_II1283	-	hypothetical protein
1278	 70.26	0	1528251..1529948	-	565	83716708	-	BTH_II1284	-	WD domain-containing protein
67.58	MEAN

4.44	STD DEV
