IslandPath Analysis: Burkholderia thailandensis E264

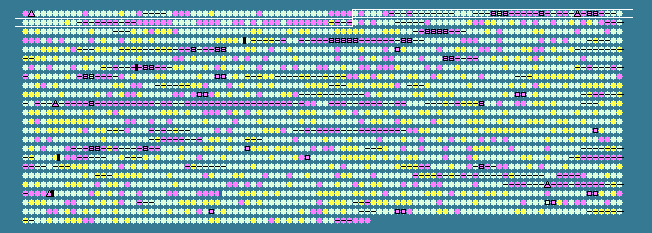

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 67.58   STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
56	 66.23	0	52289..53671	-	460	83718196	-	BTH_II0056	-	porin (omp) ABC transporter protein
57	 61.43	-1	53700..53909	-	69	83717693	-	BTH_II0057	-	hypothetical protein
58	 66.35	0	53920..57123	-	1067	83717160	-	BTH_II0058	-	AcrB/AcrD/AcrF family transporter
59	 68.37	0	57145..58380	-	411	83716325	-	BTH_II0059	-	RND family efflux transporter MFP subunit
60	 65.06	0	58594..59277	-	227	83717890	-	BTH_II0060	-	transcription regulator ArsR
61	 63.38	0	59237..60088	-	283	83716687	-	BTH_II0061	-	hypothetical protein
62	 63.40	0	60069..60773	+	234	83718229	-	BTH_II0062	-	ABC transporter, ATP-binding protein
63	 65.27	0	60767..63136	+	789	83716847	-	BTH_II0063	-	permease domain-containing protein
64	 65.84	0	63133..64701	+	522	83717102	-	BTH_II0064	-	RND family efflux transporter MFP subunit
65	 61.11	-1	65260..65745	-	161	83717621	-	BTH_II0065	-	creA protein, putative
66	 64.83	0	65881..66696	+	271	83718385	-	BTH_II0066	-	hypothetical protein
67	 66.86	0	66721..67770	+	349	83716551	-	BTH_II0067	-	CybP
68	 65.88	0	67795..69069	+	424	83717402	-	BTH_II0068	-	DNA-binding response regulator
69	 64.26	0	69165..70121	+	318	83716050	-	BTH_II0069	-	cation efflux family protein
70	 66.43	0	70850..71278	+	142	83716693	-	BTH_II0070	-	PalA
71	 66.73	0	71434..73059	+	541	83717342	-	BTH_II0071	-	hemagglutinin-related protein
72	 64.75	0	73128..74012	+	294	83718366	-	BTH_II0072	-	HlyB family hemolysin activator protein
73	 66.75	0	74419..75609	-	396	83718333	chrA	BTH_II0073	-	chromate resistance transport protein
74	 69.83	0	75606..76427	-	273	83716357	-	BTH_II0074	-	chromate resistance protein ChrB
75	 69.12	0	77021..83086	+	2021	83717990	-	BTH_II0075	-	excinuclease ABC, subunit A, form 2
76	 66.92	0	83335..83736	-	133	83717794	-	BTH_II0076	-	hypothetical protein
77	 67.34	0	84140..86077	+	645	83716947	-	BTH_II0077	-	hypothetical protein
78	 67.64	0	86573..88822	+	749	83717554	-	BTH_II0078	-	phospholipase C
79	 59.30	-1	88930..89187	+	85	83717169	-	BTH_II0079	-	IS407A, transposase OrfA
80	 67.39	0	89295..89432	-	45	83716515	-	BTH_II0080	-	transposase subunit
81	 62.50	-1	89575..89862	-	95	83716123	-	BTH_II0081	-	transposase subunit
82	 51.03	-2	90537..91553	-	338	83716909	-	BTH_II0082	-	hypothetical protein
83	 53.64	-2	91572..92024	-	150	83718089	-	BTH_II0083	-	acetyltransferase
84	 57.34	-2	92677..93405	+	242	83717284	-	BTH_II0084	-	putrescine ABC transporter, permease protein
85	 55.79	-2	93392..94246	+	284	83716817	potC	BTH_II0085	-	ABC transporter, permease protein
86	 53.78	-2	94243..95274	+	343	83716306	-	BTH_II0086	-	putrescine ABC transporter, periplasmic putrescine-binding protein, putative
87	 61.81	-1	95823..96893	-	356	83717871	-	BTH_II0087	-	transposase
88	 57.19	-2	97053..97358	+	101	83716402	-	BTH_II0088	-	DNA-binding protein BprA
89	 67.46	0	97680..100460	+	926	83716745	-	BTH_II0089	-	Rhs element Vgr protein, putative
90	 62.60	-1	100528..102714	+	728	83716109	-	BTH_II0090	-	hypothetical protein
91	 60.04	-1	102853..104391	+	512	83718104	-	BTH_II0091	-	hypothetical protein
92	 67.80	0	104401..104664	+	87	83717026	-	BTH_II0092	-	PAAR motif-containing protein
93	 56.51	-2	104684..104998	-	104	83717557	-	BTH_II0093	-	integrase, putative
94	 58.82	-1	104962..105687	+	241	83718341	-	BTH_II0094	-	hypothetical protein
95	 62.84	-1	105871..106236	+	121	83717732	-	BTH_II0095	-	transposase
96	 62.50	-1	106194..107081	+	295	83716991	-	BTH_II0096	-	transposase
97	 60.03	-1	107167..108702	+	511	83717375	-	BTH_II0097	-	hypothetical protein
98	 67.80	0	108712..108975	+	87	83717867	-	BTH_II0098	-	PAAR motif-containing protein
99	 65.24	0	109390..109809	-	139	83716293	-	BTH_II0099	-	hypothetical protein
100	 66.97	0	109829..110155	-	108	83716191	trx	BTH_II0100	-	thioredoxin
101	 67.68	0	110628..111320	+	230	83716565	-	BTH_II0101	-	putative lipoprotein
102	 69.19	0	112130..112486	-	118	83717520	-	BTH_II0102	-	hypothetical protein
103	 65.37	0	112964..114199	-	411	83717969	-	BTH_II0103	-	outer membrane porin OpcP
104	 65.40	0	114738..115682	-	314	83716532	-	BTH_II0104	-	LysR family transcriptional regulator
105	 67.90	0	116223..116546	-	107	83718096	-	BTH_II0105	-	hypothetical protein
106	 67.39	0	117174..117449	-	91	83717555	-	BTH_II0106	-	hypothetical protein
107	 64.66	0	117552..118499	-	315	161723120	-	BTH_II0107	-	DNA-binding transcriptional regulator CynR
108	 72.59	+1	118751..120184	-	477	83716676	-	BTH_II0108	-	outer membrane efflux protein
109	 69.67	0	120178..121077	-	299	83718248	-	BTH_II0109	-	FusE-MFP/HlyD family membrane protein
110	 68.67	0	121300..123549	-	749	83717755	-	BTH_II0110	-	fusaric acid resistance protein, putative
111	 62.90	-1	124376..125890	-	504	83717439	-	BTH_II0111	-	hypothetical protein
112	 68.72	0	127466..129949	+	827	83717045	-	BTH_II0112	-	Hep_Hag family protein
113	 62.50	-1	130025..131512	-	495	83716039	-	BTH_II0113	-	PqaA
114	 63.78	0	131727..132176	-	149	83717069	-	BTH_II0114	-	YfaZ precursor superfamily protein
115	 57.12	-2	132907..133461	+	184	83717319	-	BTH_II0115	-	frimbrial protein
116	 60.61	-1	133543..134268	+	241	83717851	-	BTH_II0116	-	fimbrial chaperone protein ecpD
117	 64.22	0	134305..137124	+	939	83716782	-	BTH_II0117	-	outer membrane usher protein
118	 63.00	-1	137144..137689	+	181	83716399	-	BTH_II0118	-	major fimbrial subunit protein
119	 60.43	-1	137720..138409	+	229	83717840	-	BTH_II0119	-	hypothetical protein
120	 63.21	0	138412..140088	+	558	83717470	-	BTH_II0120	-	hypothetical protein
121	 58.33	-2	140432..140971	+	179	83716514	-	BTH_II0121	-	hypothetical protein
122	 60.60	-1	141005..142504	+	499	83716153	-	BTH_II0122	-	hypothetical protein
123	 60.46	-1	142705..143187	+	160	83717589	-	BTH_II0123	-	hypothetical protein
124	 61.69	-1	143315..143857	+	180	83717629	-	BTH_II0124	-	putative lipoprotein
125	 61.47	-1	143770..145212	+	480	83717986	-	BTH_II0125	-	hypothetical protein
126	 65.51	0	145209..146510	+	433	83716132	-	BTH_II0126	-	hypothetical protein
127	 66.26	0	146525..150433	+	1302	83716562	-	BTH_II0127	-	putative lipoprotein
128	 66.67	0	150603..151172	+	189	83717749	-	BTH_II0128	-	hypothetical protein
129	 64.83	0	151273..153891	+	872	83718246	-	BTH_II0129	-	Rhs element Vgr protein
130	 63.70	0	153966..154235	+	89	83716387	-	BTH_II0130	-	Rhs family protein
131	 60.96	-1	154248..157700	+	1150	83716726	-	BTH_II0131	-	Rhs1 protein
132	 57.70	-2	157593..158975	-	460	83716926	-	BTH_II0132	-	hypothetical protein
133	 57.05	-2	158984..160117	-	377	83717748	-	BTH_II0133	-	fimbrial protein subfamily protein
134	 66.39	0	160068..161138	-	356	83716195	-	BTH_II0134	-	ImpA-like N-terminal family protein
135	 66.29	0	161157..162206	-	349	83716825	-	BTH_II0135	-	putative cytoplasmic protein
136	 63.21	0	162203..164083	-	626	83718132	-	BTH_II0136	-	hypothetical protein
137	 62.43	-1	164085..164603	-	172	83718123	-	BTH_II0137	-	hypothetical protein
138	 64.21	0	164590..165444	-	284	83716566	-	BTH_II0138	-	ImpE protein superfamily protein
139	 64.02	0	165428..166483	-	351	83717118	-	BTH_II0139	-	hypothetical protein
140	 65.22	0	166857..169613	+	918	83717355	-	BTH_II0140	-	ClpA/B type protease
141	 62.68	-1	170006..172864	-	952	83717305	-	BTH_II0141	-	two-component system sensor protein
142	 54.60	-2	174659..175321	-	220	83717848	-	BTH_II0142	-	DNA-binding response regulator
143	 61.40	-1	176147..176944	+	265	83717007	-	BTH_II0143	-	transcription regulator
144	 65.66	0	177029..179521	-	830	83718073	-	BTH_II0144	-	sensor protein evgS precursor
145	 63.93	0	179572..181395	+	607	83716112	-	BTH_II0145	-	glycosyl transferase group 2 family protein
146	 60.47	-1	181392..182327	+	311	83716750	-	BTH_II0146	-	hypothetical protein
147	 60.58	-1	182320..183108	+	262	83717240	-	BTH_II0147	-	hypothetical protein
148	 57.80	-2	183105..183713	+	202	83718026	-	BTH_II0148	-	HAD family hydrolase
149	 58.94	-1	183689..184348	+	219	83716512	-	BTH_II0149	-	hypothetical protein
150	 60.26	-1	184329..185483	+	384	83716668	-	BTH_II0150	-	hypothetical protein
151	 63.86	0	185596..186486	+	296	83717540	-	BTH_II0151	-	flagellin D
152	 71.19	0	186543..186719	-	58	83718295	-	BTH_II0152	-	hypothetical protein
153	 62.09	-1	186899..187750	+	283	83717992	-	BTH_II0153	-	flagellar motor protein MotA
154	 67.95	0	187769..188704	+	311	83717140	-	BTH_II0154	-	chemotaxis lafU protein
155	 61.71	-1	188721..189083	+	120	83717918	-	BTH_II0155	-	chemotaxis response regulator
67.58	MEAN

4.44	STD DEV
