IslandPath Analysis: Burkholderia thailandensis E264

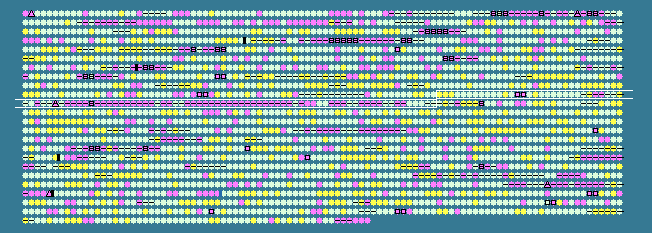

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.58 STD DEV: 4.44
Burkholderia thailandensis E264 chromosome II, complete sequence - 1..2914771
2358 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
970	 71.34	0	1161777..1162418	-	213	83716936	-	BTH_II0975	-	putative aldolase
971	 71.58	0	1162415..1163758	-	447	83718130	-	BTH_II0976	-	YgbK domain-containing protein
972	 73.10	+1	1163781..1164635	-	284	83716275	-	BTH_II0977	-	2-hydroxy-3-oxopropionate reductase
973	 69.79	0	1164742..1165446	-	234	83716749	-	BTH_II0978	-	GntR family transcriptional regulator
974	 70.89	0	1165636..1166250	+	204	83717251	-	BTH_II0979	-	HAD-superfamily hydrolase
975	 67.80	0	1166514..1168460	+	648	83717448	-	BTH_II0980	-	MerR family transcriptional regulator
976	 66.05	0	1168727..1169542	-	271	83717967	-	BTH_II0981	-	hydrolase, putative
977	 68.35	0	1169539..1170546	-	335	83718342	-	BTH_II0982	-	D-3-phosphoglycerate dehydrogenase, putative
978	 67.03	0	1170551..1171642	-	363	83717846	-	BTH_II0983	-	ribose operon repressor, putative
979	 66.93	0	1171650..1173545	-	631	83717806	-	BTH_II0984	-	TRAP transporter DctM family protein
980	 65.50	0	1173561..1174592	-	343	83717939	-	BTH_II0985	-	solute-binding family 7 protein
981	 75.14	+1	1174715..1174891	+	58	83717386	-	BTH_II0986	-	hypothetical protein
982	 64.75	0	1175014..1175742	+	242	83717200	-	BTH_II0987	-	glutathione S-transferase P subunit
983	 58.53	-2	1175915..1176295	-	126	83716077	-	BTH_II0988	-	IS4 family transposase
984	 55.88	-2	1176265..1176672	-	135	83718079	-	BTH_II0989	-	transposase, putative
985	 68.37	0	1176881..1177585	+	234	83718119	-	BTH_II0990	-	hypothetical protein
986	 75.40	+1	1177852..1178664	-	270	83717623	-	BTH_II0991	-	AraC family transcriptional regulator
987	 67.52	0	1178721..1179071	-	116	83716372	-	BTH_II0993	-	hypothetical protein
988	 67.46	0	1178760..1179011	+	83	83717051	-	BTH_II0992	-	hypothetical protein
989	 70.05	0	1179304..1180692	-	462	83717298	-	BTH_II0994	-	AraC family transcriptional regulator
990	 67.01	0	1180738..1182210	+	490	83718269	sdaA-2	BTH_II0995	-	L-serine ammonia-lyase
991	 66.91	0	1182227..1183471	+	414	83716659	-	BTH_II0996	-	sarcosine oxidase, beta subunit, putative
992	 65.31	0	1183600..1183893	+	97	83716133	-	BTH_II0997	-	sarcosine oxidase delta subunit (sarcosine oxidasesubunit D)
993	 68.46	0	1183890..1186898	+	1002	83717636	-	BTH_II0998	-	sarcosine oxidase, alpha subunit
994	 69.97	0	1186888..1187523	+	211	83717171	-	BTH_II0999	-	sarcosine oxidase subunit gamma
995	 71.43	0	1187523..1187984	+	153	83717054	-	BTH_II1000	-	dihydroneopterin aldolase, putative
996	 58.22	-2	1188263..1188475	-	70	83716560	rpsU-2	BTH_II1001	-	30S ribosomal protein S21
997	 56.37	-2	1189126..1189329	+	67	83717433	-	BTH_II1002	-	cold-shock domain-contain protein
998	 69.57	0	1190038..1190484	-	148	83717279	-	BTH_II1003	-	hypothetical protein
999	 65.90	0	1190757..1191017	+	86	83716581	-	BTH_II1004	-	hypothetical protein
1000	 78.71	+2	1191297..1191545	+	82	83717120	-	BTH_II1005	-	glyoxylate reductase
1001	 66.05	0	1191585..1192070	+	161	83717531	-	BTH_II1006	-	OsmC/Ohr family protein
1002	 68.22	0	1192310..1194748	+	812	83717440	-	BTH_II1007	-	sensory box histidine kinase
1003	 61.59	-1	1194774..1195226	+	150	83718090	-	BTH_II1008	-	response regulator
1004	 67.17	0	1195310..1196701	+	463	83716080	-	BTH_II1009	-	sensory box histidine kinase/response regulator
1005	 70.34	0	1196765..1197961	-	398	83716736	-	BTH_II1010	-	major facilitator family transporter
1006	 54.88	-2	1197986..1199113	-	375	83717795	-	BTH_II1011	-	integrase-like protein
1007	 64.22	0	1199349..1201103	-	584	83718214	-	BTH_II1012	-	gp38
1008	 58.42	-2	1201118..1201396	-	92	83716362	-	BTH_II1013	-	gp44
1009	 58.84	-1	1201396..1201791	-	131	83718262	-	BTH_II1014	-	hypothetical protein
1010	 62.50	-1	1201794..1202465	-	223	83717575	-	BTH_II1015	-	gp41
1011	 55.64	-2	1202479..1203249	-	256	83716901	-	BTH_II1016	-	gp42
1012	 59.90	-1	1203448..1204260	-	270	83718225	-	BTH_II1017	-	bacteriophage/transposase fusion protein
1013	 59.33	-1	1204257..1204406	-	49	83716051	-	BTH_II1018	-	phage protein, putative
1014	 62.50	-1	1204714..1204833	-	39	83717178	-	BTH_II1019	-	gp40-related protein
1015	 62.12	-1	1204857..1204988	-	43	83717005	-	BTH_II1020	-	gp56-related protein
1016	 58.70	-2	1204999..1205274	-	91	83716403	-	BTH_II1021	-	gp49
1017	 63.19	0	1205515..1205658	+	47	83716679	-	BTH_II1022	-	gp50
1018	 47.29	-2	1205674..1205931	+	85	83716180	-	BTH_II1023	-	gp51
1019	 63.36	0	1206159..1206551	-	130	83717665	-	BTH_II1024	-	gp52
1020	 59.46	-1	1207002..1207334	+	110	83716210	-	BTH_II1025	-	gp63
1021	 54.24	-2	1207331..1207684	-	117	83716974	-	BTH_II1026	-	gp64
1022	 63.33	0	1207725..1208204	+	159	83717929	-	BTH_II1027	-	gp65
1023	 64.89	0	1208219..1209403	+	394	83716252	-	BTH_II1028	-	Mte8-like protein
1024	 63.76	0	1209408..1210544	+	378	83716880	-	BTH_II1029	-	gp56
1025	 62.86	-1	1210541..1211539	+	332	83717395	-	BTH_II1030	-	gp57
1026	 65.09	0	1211574..1212395	+	273	83716828	-	BTH_II1031	-	gp58
1027	 64.75	0	1212392..1212652	+	86	83717449	-	BTH_II1032	-	gp69
1028	 61.97	-1	1212863..1213798	+	311	83717213	-	BTH_II1033	-	gp60
1029	 61.59	-1	1213795..1214346	+	183	83717876	-	BTH_II1034	-	gp72
1030	 59.94	-1	1214343..1214699	+	118	83717977	-	BTH_II1035	-	gp62
1031	 61.84	-1	1214681..1215136	+	151	83716439	-	BTH_II1036	-	gp74
1032	 60.06	-1	1215139..1215471	+	110	83716485	-	BTH_II1037	-	gp64
1033	 59.39	-1	1215447..1215707	+	86	83716074	-	BTH_II1038	-	gp65
1034	 61.49	-1	1215704..1216147	+	147	83717158	-	BTH_II1039	-	hypothetical protein
1035	 57.04	-2	1216197..1216466	+	89	83717580	-	BTH_II1040	-	hypothetical protein
1036	 62.46	-1	1216450..1216734	+	94	83718204	-	BTH_II1041	-	hypothetical protein
1037	 63.42	0	1216935..1217273	+	112	83717854	-	BTH_II1042	-	59R
1038	 60.70	-1	1217359..1217844	+	161	83716048	-	BTH_II1043	-	hypothetical protein
1039	 59.72	-1	1217844..1219586	+	580	83717767	-	BTH_II1044	-	phage terminase, large subunit, putative
1040	 60.16	-1	1219507..1220889	+	460	83716795	-	BTH_II1045	-	head portal protein
1041	 63.70	0	1220867..1221709	+	280	83718056	-	BTH_II1046	-	ClpP protease
1042	 61.46	-1	1221666..1222991	+	441	83716436	-	BTH_II1047	-	HK97 family phage major capsid protein
1043	 60.61	-1	1223063..1223227	+	54	83716940	-	BTH_II1048	-	hypothetical protein
1044	 58.19	-2	1223231..1223572	+	113	83718052	-	BTH_II1049	-	hypothetical protein
1045	 60.91	-1	1223575..1223904	+	109	83717783	-	BTH_II1050	-	phage head-tail adaptor, putative
1046	 64.30	0	1223897..1224319	+	140	83717930	-	BTH_II1051	-	HK97 family phage protein
1047	 61.49	-1	1224316..1224663	+	115	83717033	-	BTH_II1052	-	gp10
1048	 60.76	-1	1224660..1225184	+	174	83718160	-	BTH_II1053	-	gp11
1049	 62.37	-1	1225212..1225676	+	154	83717483	-	BTH_II1054	-	Phage tail assembly chaperone
1050	 65.33	0	1225511..1225960	+	149	83716373	-	BTH_II1055	-	hypothetical protein
1051	 66.13	0	1225974..1230074	+	1366	83716976	-	BTH_II1056	-	hypothetical protein
1052	 60.77	-1	1230071..1230409	+	112	83716460	-	BTH_II1057	-	Phage minor tail protein
1053	 58.71	-1	1230418..1231824	+	468	83717968	-	BTH_II1058	-	hypothetical protein
1054	 62.43	-1	1231821..1232504	+	227	83716138	-	BTH_II1059	-	phage minor tail protein L
1055	 65.07	0	1232554..1233306	+	250	83716657	-	BTH_II1060	-	hypothetical protein
1056	 64.62	0	1233303..1233887	+	194	83717443	-	BTH_II1061	-	bacteriophage lambda tail assembly protein I
1057	 64.07	0	1233884..1237189	+	1101	83716294	-	BTH_II1062	-	host specificity protein J
1058	 57.46	-2	1237183..1237497	+	104	83718055	-	BTH_II1063	-	hypothetical protein
1059	 53.58	-2	1237473..1238213	+	246	83717361	-	BTH_II1064	-	hypothetical protein
1060	 59.91	-1	1238108..1238551	+	147	83718378	-	BTH_II1065	-	holin
1061	 66.00	0	1238554..1239003	+	149	83717617	-	BTH_II1066	-	hypothetical protein
1062	 65.81	0	1238901..1239482	+	193	83716394	-	BTH_II1067	-	gp23
1063	 60.71	-1	1239621..1240409	+	262	83718143	-	BTH_II1068	-	DNA adenine methylase
1064	 61.32	-1	1240512..1241408	+	298	83716997	-	BTH_II1069	-	hypothetical protein
1065	 65.26	0	1242282..1242707	-	141	83717740	-	BTH_II1070	-	MFS transporter, putative
1066	 68.42	0	1242857..1246054	-	1065	83717742	-	BTH_II1071	-	hypothetical protein
1067	 67.43	0	1247285..1248982	-	565	83717344	betA	BTH_II1072	-	choline dehydrogenase
1068	 67.68	0	1249002..1250480	-	492	83718064	betB	BTH_II1073	-	betaine aldehyde dehydrogenase
1069	 69.05	0	1250518..1251105	-	195	83716216	-	BTH_II1074	-	transcriptional regulator BetI
67.58	MEAN

4.44	STD DEV
