IslandPath Analysis: Burkholderia sp. 383

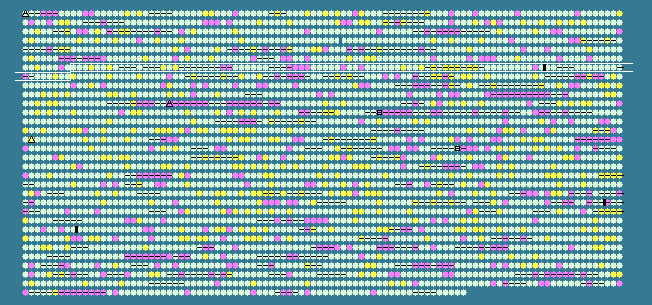

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.93 STD DEV: 3.60
Burkholderia sp. 383 chromosome 2, complete sequence - 1..3587082
3174 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
609	 69.14	0	685819..686748	+	309	78061462	-	Bcep18194_B0612	-	hypothetical protein
610	 67.81	0	686837..687802	+	321	78061463	-	Bcep18194_B0613	-	3-hydroxybutyryl-CoA dehydrogenase
611	 65.64	0	687815..688303	+	162	78061464	-	Bcep18194_B0614	-	thioesterase-like
612	 71.06	+1	688337..689293	+	318	78061465	-	Bcep18194_B0615	-	lipolytic protein
613	 69.09	0	689316..690512	+	398	78061466	-	Bcep18194_B0616	-	gamma-butyrobetaine,2-oxoglutarate dioxygenase
614	 64.98	0	690715..691011	-	98	78061467	-	Bcep18194_B0617	-	hypothetical protein
615	 71.43	+1	691226..692212	-	328	78061468	-	Bcep18194_B0618	-	Short-chain dehydrogenase/reductase SDR
616	 68.73	0	692379..692669	-	96	78061469	-	Bcep18194_B0619	-	hypothetical protein
617	 70.33	0	693334..694098	+	254	78061470	-	Bcep18194_B0620	-	Short-chain dehydrogenase/reductase SDR
618	 67.62	0	694140..694982	+	280	78061471	-	Bcep18194_B0621	-	5-carboxymethyl-2-hydroxymuconate delta-isomerase
619	 66.82	0	695006..696283	+	425	78061472	-	Bcep18194_B0622	-	mandelate racemase/muconate lactonizing protein
620	 65.12	0	696327..697103	+	258	78061473	-	Bcep18194_B0623	-	short chain dehydrogenase
621	 67.32	0	697116..698654	+	512	78061474	-	Bcep18194_B0624	-	ABC sugar transporter, ATPase subunit
622	 65.80	0	698671..699708	+	345	78061475	-	Bcep18194_B0625	-	ABC sugar transporter, inner membrane subunit
623	 64.44	0	699797..700738	+	313	78061476	-	Bcep18194_B0626	-	ABC sugar transporter, periplasmic ligand binding protein
624	 70.90	+1	700799..701671	+	290	78061477	-	Bcep18194_B0627	-	amidohydrolase 2
625	 66.27	0	701862..702617	+	251	78061478	-	Bcep18194_B0628	-	GntR family transcriptional regulator
626	 70.90	+1	702648..703970	-	440	78061479	-	Bcep18194_B0629	-	FAD dependent oxidoreductase
627	 63.64	0	704107..704832	+	241	78061480	-	Bcep18194_B0630	-	hypothetical protein
628	 68.04	0	704881..705606	-	241	78061481	-	Bcep18194_B0631	-	Asp/Glu racemase
629	 70.14	0	705621..707003	-	460	78061482	-	Bcep18194_B0632	-	amidohydrolase
630	 68.56	0	707091..708464	-	457	78061483	-	Bcep18194_B0633	-	xanthine/uracil transporter
631	 65.50	0	708526..709635	-	369	78061484	-	Bcep18194_B0634	-	cobalamin synthesis protein/P47K
632	 68.13	0	709632..710246	-	204	78061485	-	Bcep18194_B0635	-	phenylacrylic acid decarboxylase
633	 68.60	0	710243..711637	-	464	78061486	-	Bcep18194_B0636	-	carboxylyase-like protein
634	 63.36	0	711719..712624	-	301	78061487	-	Bcep18194_B0637	-	amidohydrolase 2
635	 63.12	-1	712661..713563	-	300	78061488	-	Bcep18194_B0638	-	amidohydrolase 2
636	 67.56	0	713806..714696	+	296	78061489	-	Bcep18194_B0639	-	LysR family transcriptional regulator
637	 69.24	0	714706..715599	-	297	78061490	-	Bcep18194_B0640	-	LysR family transcriptional regulator
638	 68.28	0	715729..716223	+	164	78061491	-	Bcep18194_B0641	-	Iron sulfer protein
639	 68.90	0	716225..718507	+	760	78061492	-	Bcep18194_B0642	-	aldehyde oxidase
640	 68.36	0	718789..719496	+	235	78061493	-	Bcep18194_B0643	-	hypothetical protein
641	 69.19	0	719493..720761	+	422	78061494	-	Bcep18194_B0644	-	diguanylate cyclase
642	 64.31	0	720847..721356	+	169	78061495	-	Bcep18194_B0645	-	OmpA/MotB family outer membrane protein
643	 65.86	0	721788..723890	+	700	78061496	-	Bcep18194_B0646	-	Rhs element Vgr protein
644	 67.10	0	723908..724366	+	152	78061497	-	Bcep18194_B0647	-	hypothetical protein
645	 60.95	-1	724363..728703	+	1446	78061498	-	Bcep18194_B0648	-	Rhs family protein
646	 49.92	-2	728720..729316	+	198	78061499	-	Bcep18194_B0649	-	hypothetical protein
647	 63.11	-1	729722..730537	-	271	78061500	-	Bcep18194_B0650	-	hypothetical protein
648	 63.42	0	731078..732277	+	399	78061501	-	Bcep18194_B0651	-	branched chain amino acid ABC transporter periplasmic ligand-binding protein
649	 65.10	0	732428..733387	+	319	78061502	-	Bcep18194_B0652	-	branched chain amino acid ABC transporter inner membrane protein
650	 65.80	0	733399..734670	+	423	78061503	livM	Bcep18194_B0653	-	leucine/isoleucine/valine transporter permease subunit
651	 66.28	0	734667..735440	+	257	78061504	livG	Bcep18194_B0654	-	leucine/isoleucine/valine transporter ATP-binding subunit
652	 67.24	0	735440..736141	+	233	78061505	-	Bcep18194_B0655	-	branched chain amino acid ABC transporter ATPase
653	 65.26	0	736224..737078	-	284	78061506	-	Bcep18194_B0656	-	LysR family transcriptional regulator
654	 61.26	-1	737211..738191	+	326	78061507	-	Bcep18194_B0657	-	hypothetical protein
655	 64.44	0	738221..739207	+	328	78061508	-	Bcep18194_B0658	-	hypothetical protein
656	 67.32	0	739221..740144	+	307	78061509	-	Bcep18194_B0659	-	hypothetical protein
657	 62.68	-1	740211..740561	+	116	78061510	-	Bcep18194_B0660	-	glyoxalase/bleomycin resistance protein/dioxygenase
658	 67.79	0	740692..741669	-	325	78061511	-	Bcep18194_B0661	-	AraC family transcriptional regulator
659	 68.80	0	741715..742464	+	249	78061512	-	Bcep18194_B0662	-	Short-chain dehydrogenase/reductase SDR
660	 65.57	0	742758..743030	-	90	78061513	-	Bcep18194_B0663	-	hypothetical protein
661	 63.62	0	743594..744676	+	360	78061514	-	Bcep18194_B0664	-	LuxR family transcriptional regulator
662	 68.43	0	744712..746013	-	433	78061515	-	Bcep18194_B0665	-	aminotransferase
663	 67.57	0	746100..746984	+	294	78061516	-	Bcep18194_B0666	-	LysR family transcriptional regulator
664	 72.34	+1	747010..748455	-	481	78061517	-	Bcep18194_B0667	-	salicylate biosynthesis isochorismate synthase
665	 67.97	0	748452..748757	-	101	78061518	-	Bcep18194_B0668	-	isochorismate-pyruvate lyase
666	 70.16	0	748754..749527	-	257	78061519	-	Bcep18194_B0669	-	thioesterase
667	 71.39	+1	749524..751176	-	550	78061520	-	Bcep18194_B0670	-	AMP-dependent synthetase and ligase
668	 66.45	0	751394..752335	+	313	78061521	-	Bcep18194_B0671	-	AraC family transcriptional regulator
669	 70.70	+1	752459..756868	+	1469	78061522	-	Bcep18194_B0672	-	non-ribosomal peptide synthetase modules
670	 69.59	0	756865..762339	+	1824	78061523	-	Bcep18194_B0673	-	non-ribosomal peptide synthetase modules
671	 71.42	+1	762336..763388	+	350	78061524	-	Bcep18194_B0674	-	thiazolinyl imide reductase
672	 71.25	+1	763385..765106	+	573	78061525	-	Bcep18194_B0675	-	ABC efflux pump, fused inner membrane and ATPase subunits
673	 74.34	+2	765103..766887	+	594	78061526	-	Bcep18194_B0676	-	ABC efflux pump, fused inner membrane and ATPase subunits
674	 67.65	0	767001..769238	+	745	78061527	-	Bcep18194_B0677	-	TonB-dependent siderophore receptor
675	 78.03	+2	769238..769501	+	87	78061528	-	Bcep18194_B0678	-	hypothetical protein
676	 73.15	+1	769503..771014	+	503	78061529	-	Bcep18194_B0679	-	hypothetical protein
677	 70.36	0	771037..772281	+	414	78061530	-	Bcep18194_B0680	-	major facilitator transporter
678	 66.95	0	772490..773563	+	357	78061531	-	Bcep18194_B0681	-	AraC family transcriptional regulator
679	 69.80	0	773579..774757	-	392	78061532	-	Bcep18194_B0682	-	Alpha/beta hydrolase
680	 67.80	0	774961..776553	+	530	78061533	-	Bcep18194_B0683	-	Beta-lactamase
681	 67.68	0	776740..778215	+	491	78061534	-	Bcep18194_B0684	-	hypothetical protein
682	 69.48	0	778389..779705	+	438	78061535	-	Bcep18194_B0685	-	major facilitator transporter
683	 67.27	0	780030..782363	+	777	78061536	-	Bcep18194_B0686	-	TonB-dependent receptor
684	 69.62	0	782389..783066	+	225	78061537	-	Bcep18194_B0687	-	TonB-like protein
685	 67.97	0	783136..784059	+	307	78061538	-	Bcep18194_B0688	-	MotA/TolQ/ExbB proton channel
686	 62.65	-1	784073..784495	+	140	78061539	-	Bcep18194_B0689	-	biopolymer transport protein ExbD/TolR
687	 65.71	0	784505..784924	+	139	78061540	-	Bcep18194_B0690	-	biopolymer transport protein ExbD/TolR
688	 69.61	0	785466..786791	+	441	78061541	-	Bcep18194_B0691	-	serine/threonine protein kinase
689	 68.10	0	786803..787432	-	209	78061542	-	Bcep18194_B0692	-	lysine exporter protein LysE/YggA
690	 67.79	0	787736..788182	-	148	78061543	-	Bcep18194_B0693	-	hypothetical protein
691	 66.39	0	788263..788628	-	121	78061544	-	Bcep18194_B0694	-	copper resistance protein CopC
692	 69.84	0	788931..789308	-	125	78061545	-	Bcep18194_B0695	-	hypothetical protein
693	 64.65	0	789410..789904	-	164	78061546	-	Bcep18194_B0696	-	hypothetical protein
694	 68.32	0	789964..790266	-	100	78061547	-	Bcep18194_B0697	-	ferredoxin
695	 70.17	0	790355..792268	-	637	78061548	-	Bcep18194_B0698	-	Fis family GAF modulated sigma54 specific transcriptional regulator
696	 66.15	0	792691..792882	+	63	78061549	-	Bcep18194_B0699	-	hypothetical protein
697	 65.28	0	793123..793410	+	95	78061550	-	Bcep18194_B0700	-	hypothetical protein
698	 67.84	0	793644..795602	+	652	78061551	-	Bcep18194_B0701	-	TPR repeat-containing protein
699	 65.21	0	795708..797009	-	433	78061552	-	Bcep18194_B0702	-	xanthine/uracil/vitamin C transporter
700	 68.87	0	797153..797560	+	135	78061553	-	Bcep18194_B0703	-	hypothetical protein
701	 63.44	0	797799..798077	+	92	78061554	-	Bcep18194_B0704	-	hypothetical protein
702	 70.40	0	798238..798612	-	124	78061555	-	Bcep18194_B0705	-	hypothetical protein
703	 65.13	0	798939..799328	-	129	78061556	-	Bcep18194_B0706	-	hypothetical protein
704	 65.62	0	799580..799867	-	95	78061557	-	Bcep18194_B0707	-	hypothetical protein
705	 66.11	0	799946..800851	-	301	78061558	-	Bcep18194_B0708	-	metal-dependent hydrolase
706	 70.92	+1	800882..802669	-	595	78061559	-	Bcep18194_B0709	-	short chain dehydrogenase
707	 68.22	0	802715..803614	-	299	78061560	-	Bcep18194_B0710	-	hypothetical protein
708	 65.76	0	804228..805001	-	257	78061561	-	Bcep18194_B0711	-	SPFH domain-containing protein/band 7 family protein
66.93	MEAN

3.60	STD DEV
