IslandPathversion 1.0

IslandPath Analysis: Burkholderia sp. 383

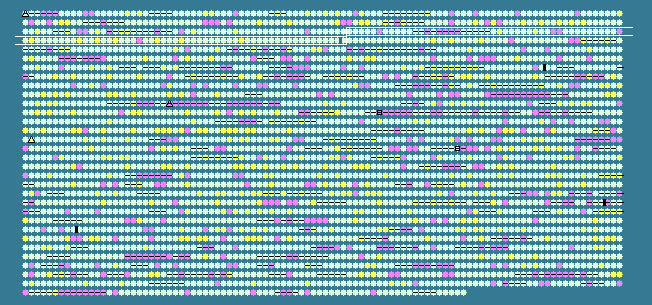

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.93 STD DEV: 3.60
Burkholderia sp. 383 chromosome 2, complete sequence - 1..3587082
3174 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
255	 68.46	0	271603..272718	+	371	78061108	-	Bcep18194_B0256	-	succinylglutamate desuccinylase/aspartoacylase
256	 66.97	0	272896..273891	-	331	78061109	-	Bcep18194_B0257	-	LysR family transcriptional regulator
257	 66.97	0	273986..274966	+	326	78061110	-	Bcep18194_B0258	-	amidohydrolase 2
258	 69.26	0	275205..276554	+	449	78061111	-	Bcep18194_B0259	-	major facilitator transporter
259	 68.45	0	276595..277716	+	373	78061112	-	Bcep18194_B0260	-	outer membrane protein (porin)
260	 58.82	-2	278069..279139	+	356	78061113	-	Bcep18194_B0261	-	hypothetical protein
261	 67.03	0	279160..279987	-	275	78061114	-	Bcep18194_B0262	-	IclR family transcriptional regulator
262	 69.08	0	280176..281378	+	400	78061115	-	Bcep18194_B0263	-	beta-ketoadipyl CoA thiolase
263	 68.66	0	281468..281968	-	166	78061116	-	Bcep18194_B0264	-	hypothetical protein
264	 69.16	0	282078..282638	-	186	78061117	-	Bcep18194_B0265	-	GCN5-related N-acetyltransferase
265	 66.43	0	282635..283492	-	285	78061118	-	Bcep18194_B0266	-	hypothetical protein
266	 68.03	0	283817..285361	+	514	78061119	-	Bcep18194_B0267	-	methyl-accepting chemotaxis sensory transducer
267	 67.06	0	285775..287319	+	514	78061120	-	Bcep18194_B0268	-	methyl-accepting chemotaxis sensory transducer
268	 60.28	-1	287438..288016	-	192	78061121	-	Bcep18194_B0269	-	stress protein
269	 63.72	0	288049..288624	-	191	78061122	-	Bcep18194_B0270	-	stress protein
270	 60.14	-1	288653..289648	-	331	78061123	-	Bcep18194_B0271	-	integral membrane protein TerC
271	 57.56	-2	289696..290145	-	149	78061124	-	Bcep18194_B0272	-	tellurite resistance TerB
272	 62.53	-1	290194..291402	-	402	78061125	-	Bcep18194_B0273	-	stress protein
273	 62.29	-1	291399..291992	-	197	78061126	-	Bcep18194_B0274	-	stress protein
274	 63.72	0	292252..293202	-	316	78061127	-	Bcep18194_B0275	-	citrate lyase beta subunit-like
275	 64.93	0	293199..294293	-	364	78061128	-	Bcep18194_B0276	-	hypothetical protein
276	 66.93	0	294286..295044	-	252	78061129	-	Bcep18194_B0277	-	hypothetical protein
277	 65.07	0	295034..296161	-	375	78061130	-	Bcep18194_B0278	-	hypothetical protein
278	 67.07	0	296617..298086	-	489	78061131	-	Bcep18194_B0279	-	succinate semialdehyde dehydrogenase
279	 66.82	0	298179..299468	-	429	78061132	-	Bcep18194_B0280	-	4-aminobutyrate aminotransferase
280	 70.44	0	299589..301100	+	503	78061133	-	Bcep18194_B0281	-	GntR family transcriptional regulator
281	 67.81	0	301223..302713	-	496	78061134	-	Bcep18194_B0282	-	C4-dicarboxylate anaerobic carrier
282	 69.38	0	302743..303516	-	257	78061135	-	Bcep18194_B0283	-	IclR family transcriptional regulator
283	 69.67	0	303513..304412	-	299	78061136	-	Bcep18194_B0284	-	N-formylglutamate amidohydrolase
284	 66.76	0	304762..305865	+	367	78061137	-	Bcep18194_B0285	-	outer membrane protein (porin)
285	 69.61	0	305899..306780	-	293	78061138	-	Bcep18194_B0286	-	hypothetical protein
286	 70.86	+1	306842..307915	+	357	78061139	-	Bcep18194_B0287	-	selenophosphate synthetase
287	 69.04	0	307988..308578	+	196	78061140	-	Bcep18194_B0288	-	lysine exporter protein LysE/YggA
288	 66.48	0	308826..309905	+	359	78061141	-	Bcep18194_B0289	-	purine nucleoside transporter
289	 59.26	-2	310000..310755	-	251	78061142	-	Bcep18194_B0290	-	hypothetical protein
290	 57.86	-2	310769..311404	-	211	78061143	-	Bcep18194_B0291	-	hypothetical protein
291	 67.01	0	312060..312353	-	97	78061144	-	Bcep18194_B0292	-	hypothetical protein
292	 63.88	0	312781..313785	-	334	78061145	-	Bcep18194_B0293	-	LysR family transcriptional regulator
293	 66.78	0	313960..314820	+	286	78061146	-	Bcep18194_B0294	-	esterase/lipase/thioesterase
294	 68.72	0	314853..316070	+	405	78061147	-	Bcep18194_B0295	-	HlyD family secretion protein
295	 64.92	0	316116..319316	+	1066	78061148	-	Bcep18194_B0296	-	hydrophobe/amphiphile efflux pump, HAE1
296	 70.38	0	319327..320862	+	511	78061149	-	Bcep18194_B0297	-	RND efflux system outer membrane lipoprotein
297	 68.34	0	320956..321552	-	198	78061150	-	Bcep18194_B0298	-	TetR family transcriptional regulator
298	 67.36	0	321678..322109	+	143	78061151	-	Bcep18194_B0299	-	hypothetical protein
299	 69.14	0	322175..323065	-	296	78061152	-	Bcep18194_B0300	-	LysR family transcriptional regulator
300	 63.11	-1	323165..323614	+	149	78061153	-	Bcep18194_B0301	-	transmembrane protein
301	 67.27	0	323965..326118	+	717	78061154	-	Bcep18194_B0302	-	phosphoesterase
302	 70.67	+1	326115..326714	+	199	78061155	-	Bcep18194_B0303	-	hypothetical protein
303	 66.90	0	326795..327646	-	283	78061156	-	Bcep18194_B0304	-	Alpha/beta hydrolase
304	 66.39	0	327917..328282	-	121	78061157	-	Bcep18194_B0305	-	hypothetical protein
305	 68.21	0	328269..329630	-	453	78061158	-	Bcep18194_B0306	-	two component, sigma54 specific, Fis family transcriptional regulator
306	 70.22	0	329620..331503	-	627	78061159	-	Bcep18194_B0307	-	periplasmic sensor signal transduction histidine kinase
307	 66.01	0	331631..332995	-	454	78061160	-	Bcep18194_B0308	-	citrate carrier protein
308	 64.62	0	333418..334248	+	276	78061161	-	Bcep18194_B0309	-	NLPA lipoprotein
309	 67.94	0	334259..335671	+	470	78061162	-	Bcep18194_B0310	-	flavin-dependent oxidoreductase
310	 71.26	+1	335690..336886	+	398	78061163	-	Bcep18194_B0311	-	ABC metal ion transporter, ATPase subunit
311	 69.10	0	336879..337535	+	218	78061164	-	Bcep18194_B0312	-	ABC metal ion transporter, inner membrane subunit
312	 67.14	0	337590..338432	+	280	78061165	-	Bcep18194_B0313	-	hypothetical protein
313	 71.29	+1	338429..339640	+	403	78061166	-	Bcep18194_B0314	-	Acyl-CoA dehydrogenase-like
314	 66.67	0	339657..340478	-	273	78061167	-	Bcep18194_B0315	-	hypothetical protein
315	 67.53	0	340629..341900	+	423	78061168	-	Bcep18194_B0316	-	cobalamin synthesis protein/P47K
316	 71.19	+1	341929..342879	+	316	78061169	-	Bcep18194_B0317	-	putative GTP cyclohydrolase
317	 64.77	0	342873..343451	+	192	78061170	-	Bcep18194_B0318	-	6-pyruvoyl-tetrahydropterin synthase-like
318	 65.24	0	343451..344011	+	186	78061171	-	Bcep18194_B0319	-	carbonic anhydrase
319	 69.86	0	344015..345391	+	458	78061172	-	Bcep18194_B0320	-	dihydroorotase
320	 61.29	-1	345388..345852	-	154	78061173	-	Bcep18194_B0321	-	AsnC family transcriptional regulator
321	 66.67	0	346007..346636	+	209	78061174	-	Bcep18194_B0322	-	lysine exporter protein LysE/YggA
322	 68.93	0	346735..348504	-	589	78061175	-	Bcep18194_B0323	-	YadA-like haemagluttinin
323	 71.26	+1	348892..349740	-	282	78061176	-	Bcep18194_B0324	-	XRE family transcriptional regulator
324	 67.81	0	349936..350898	+	320	78061177	-	Bcep18194_B0325	-	uncharacterized membrane-anchored protein
325	 66.39	0	350895..351620	+	241	78061178	-	Bcep18194_B0326	-	peptidase M50
326	 67.25	0	351699..353078	-	459	78061179	-	Bcep18194_B0327	-	D-galactonate transporter
327	 72.12	+1	353326..354903	+	525	78061180	-	Bcep18194_B0328	-	2,5-dioxopentanoate dehydrogenase (NAD+)
328	 65.05	0	355050..355421	-	123	78061181	-	Bcep18194_B0329	-	PilT protein-like
329	 65.66	0	355418..355615	-	65	78061182	-	Bcep18194_B0330	-	hypothetical protein
330	 67.03	0	355897..356451	+	184	78061183	-	Bcep18194_B0331	-	hypothetical protein
331	 65.46	0	356565..357479	-	304	78061184	-	Bcep18194_B0332	-	5-dehydro-4-deoxyglucarate dehydratase
332	 68.73	0	357709..359262	+	517	78061185	-	Bcep18194_B0333	-	galactarate dehydratase
333	 67.53	0	359369..359944	+	191	78061186	-	Bcep18194_B0334	-	hypothetical protein
334	 67.54	0	360024..360479	+	151	78061187	-	Bcep18194_B0335	-	RbsD or FucU transport associated protein
335	 64.16	0	360673..361110	+	145	78061188	-	Bcep18194_B0336	-	DoxX family membrane protein
336	 66.74	0	361268..362575	-	435	78061189	-	Bcep18194_B0337	-	major facilitator transporter
337	 73.19	+1	362779..363054	+	91	78061190	-	Bcep18194_B0338	-	hypothetical protein
338	 66.82	0	363000..364286	-	428	78061191	-	Bcep18194_B0339	-	branched chain amino acid ABC transporter periplasmic ligand-binding protein
339	 64.58	0	364362..364649	-	95	78061192	-	Bcep18194_B0340	-	hypothetical protein
340	 66.29	0	364808..365602	+	264	78061193	-	Bcep18194_B0341	-	AraC family transcriptional regulator
341	 65.91	0	365681..365944	-	87	78061194	-	Bcep18194_B0342	-	hypothetical protein
342	 67.93	0	366233..368125	-	630	78061195	-	Bcep18194_B0343	-	4-hydroxyphenylpyruvate dioxygenase
343	 65.79	0	368383..368838	+	151	78061196	-	Bcep18194_B0344	-	3-dehydroquinate dehydratase
344	 70.41	0	368835..369689	+	284	78061197	aroE	Bcep18194_B0345	-	shikimate 5-dehydrogenase
345	 66.00	0	369723..371075	+	450	78061198	-	Bcep18194_B0346	-	major facilitator transporter
346	 68.38	0	371176..372285	-	369	78061199	-	Bcep18194_B0347	-	2-aminoethylphosphonate--pyruvate transaminase
347	 64.00	0	372545..373633	+	362	78061200	-	Bcep18194_B0348	-	thiamine ABC transporter periplasmic binding protein
348	 69.93	0	373668..374771	+	367	78061201	-	Bcep18194_B0349	-	ABC transporter, ATPase subunit
349	 67.86	0	374749..375669	+	306	78061202	-	Bcep18194_B0350	-	ABC transporter, inner membrane subunit
350	 69.22	0	375659..376519	+	286	78061203	-	Bcep18194_B0351	-	ABC transporter, inner membrane subunit
351	 68.20	0	376516..377823	+	435	78061204	-	Bcep18194_B0352	-	Type I phosphodiesterase/nucleotide pyrophosphatase
352	 66.05	0	377820..379274	+	484	78061205	-	Bcep18194_B0353	-	aldehyde dehydrogenase
353	 65.76	0	379279..379830	+	183	78061206	-	Bcep18194_B0354	-	HD phosphohydrolase-like
354	 65.89	0	386220..387644	+	474	78061207	-	Bcep18194_B0355	-	major facilitator transporter
66.93	MEAN

3.60	STD DEV
