IslandPath Analysis: Burkholderia sp. 383

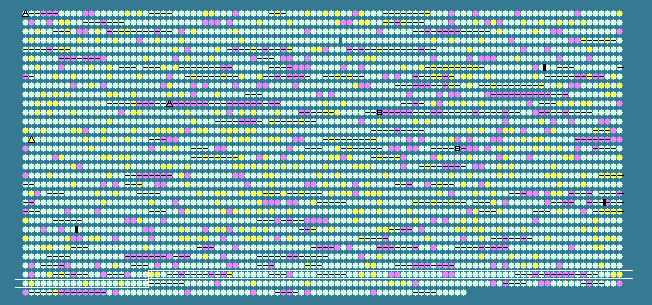

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.93 STD DEV: 3.60
Burkholderia sp. 383 chromosome 2, complete sequence - 1..3587082
3174 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2922	 72.21	+1	3309035..3310153	-	372	78063775	-	Bcep18194_B2928	-	HlyD family secretion protein
2923	 72.85	+1	3310213..3311667	-	484	78063776	-	Bcep18194_B2929	-	RND efflux system outer membrane lipoprotein
2924	 69.12	0	3311766..3312539	+	257	78063777	-	Bcep18194_B2930	-	AraC family transcriptional regulator
2925	 69.41	0	3312653..3313711	+	352	78063778	-	Bcep18194_B2931	-	LysR family transcriptional regulator
2926	 66.37	0	3313629..3315341	-	570	78063779	-	Bcep18194_B2932	-	2-isopropylmalate synthase
2927	 60.26	-1	3316288..3316677	+	129	78063780	-	Bcep18194_B2933	-	hypothetical protein
2928	 65.85	0	3316814..3317665	+	283	78063781	-	Bcep18194_B2934	-	hypothetical protein
2929	 65.27	0	3317671..3318600	+	309	78063782	-	Bcep18194_B2935	-	hypothetical protein
2930	 68.86	0	3318884..3320161	+	425	78063783	-	Bcep18194_B2936	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
2931	 67.82	0	3320262..3320783	-	173	78063784	-	Bcep18194_B2937	-	BadM/Rrf2 family transcriptional regulator
2932	 62.74	-1	3320967..3321806	+	279	78063785	-	Bcep18194_B2938	-	AraC family transcriptional regulator
2933	 67.41	0	3321883..3325230	-	1115	78063786	-	Bcep18194_B2939	-	outer membrane autotransporter barrel
2934	 55.10	-2	3325340..3325633	-	97	78063787	-	Bcep18194_B2940	-	hypothetical protein
2935	 70.62	+1	3325673..3327037	-	454	78063788	-	Bcep18194_B2941	-	peptidase M23B
2936	 66.78	0	3327380..3328246	+	288	78063789	-	Bcep18194_B2942	-	MscS mechanosensitive ion channel
2937	 67.81	0	3328298..3329695	-	465	78063790	-	Bcep18194_B2943	-	hypothetical protein
2938	 69.27	0	3330009..3330431	+	140	78063791	-	Bcep18194_B2944	-	NUDIX hydrolase
2939	 67.90	0	3330475..3331608	-	377	78063792	-	Bcep18194_B2945	-	branched chain amino acid ABC transporter periplasmic ligand-binding protein
2940	 66.57	0	3331685..3332761	-	358	78063793	-	Bcep18194_B2946	-	ornithine cyclodeaminase
2941	 69.36	0	3332830..3333867	-	345	78063794	-	Bcep18194_B2947	-	histone deacetylase superfamily protein
2942	 66.26	0	3333983..3334471	+	162	78063795	-	Bcep18194_B2948	-	AsnC family transcriptional regulator
2943	 67.67	0	3334537..3334836	+	99	78063796	-	Bcep18194_B2949	-	hypothetical protein
2944	 63.66	0	3335348..3337009	+	553	78063797	-	Bcep18194_B2950	-	malate:quinone oxidoreductase
2945	 63.13	-1	3337447..3337644	+	65	78063798	-	Bcep18194_B2951	-	hypothetical protein
2946	 68.38	0	3337641..3339038	+	465	78063799	-	Bcep18194_B2952	-	ATP-dependent RNA helicase DbpA
2947	 70.06	0	3339060..3339944	-	294	78063800	-	Bcep18194_B2953	-	LysR family transcriptional regulator
2948	 69.30	0	3340067..3341017	+	316	78063801	-	Bcep18194_B2954	-	amidohydrolase 2
2949	 66.22	0	3341096..3341998	-	300	78063802	-	Bcep18194_B2955	-	meta-pathway phenol degradation-like protein
2950	 67.75	0	3342122..3342949	-	275	78063803	-	Bcep18194_B2956	-	Alpha/beta hydrolase
2951	 65.10	0	3342986..3343177	-	63	78063804	-	Bcep18194_B2957	-	4-oxalocrotonate tautomerase
2952	 69.58	0	3343206..3343994	-	262	78063805	-	Bcep18194_B2958	-	4-oxalocrotonate decarboxylase
2953	 67.62	0	3343991..3345037	-	348	78063806	-	Bcep18194_B2959	-	4-hydroxy-2-ketovalerate aldolase
2954	 68.95	0	3345078..3345998	-	306	78063807	-	Bcep18194_B2960	-	acetaldehyde dehydrogenase
2955	 68.45	0	3346039..3346821	-	260	78063808	-	Bcep18194_B2961	-	4-oxalocrotonate decarboxylase
2956	 69.97	0	3346850..3348454	-	534	78063809	-	Bcep18194_B2962	-	betaine-aldehyde dehydrogenase
2957	 74.22	+2	3348477..3348926	-	149	78063810	-	Bcep18194_B2963	-	hypothetical protein
2958	 65.29	0	3348948..3349892	-	314	78063811	-	Bcep18194_B2964	-	catechol 2,3-dioxygenase
2959	 71.99	+1	3349910..3350266	-	118	78063812	-	Bcep18194_B2965	-	ferredoxin
2960	 68.26	0	3350268..3351332	-	354	78063813	-	Bcep18194_B2966	-	oxidoreductase FAD/NAD(P)-binding
2961	 68.07	0	3351359..3351715	-	118	78063814	-	Bcep18194_B2967	-	phenol hydroxylase region
2962	 62.35	-1	3351795..3353345	-	516	78063815	-	Bcep18194_B2968	-	methane/phenol/toluene hydroxylase
2963	 60.74	-1	3353384..3353653	-	89	78063816	-	Bcep18194_B2969	-	monooxygenase component MmoB/DmpM
2964	 68.37	0	3353689..3354684	-	331	78063817	-	Bcep18194_B2970	-	methane/phenol/toluene hydroxylase
2965	 65.37	0	3354701..3354931	-	76	78063818	-	Bcep18194_B2971	-	phenol hydroxylase subunit
2966	 69.51	0	3355218..3356906	+	562	78063819	-	Bcep18194_B2972	-	sigma-54 dependent trancsriptional regulator
2967	 67.99	0	3356908..3357663	+	251	78063820	-	Bcep18194_B2973	-	GntR family transcriptional regulator
2968	 66.79	0	3357688..3358512	-	274	78063821	-	Bcep18194_B2974	-	ABC phosphate/phosphonate transporter, periplasmic ligand binding protein
2969	 65.89	0	3358814..3359839	+	341	78063822	-	Bcep18194_B2975	-	Fatty acid desaturase
2970	 67.42	0	3359904..3361226	+	440	78063823	-	Bcep18194_B2976	-	benzoate membrane transport protein
2971	 54.91	-2	3361594..3362214	-	206	78063824	-	Bcep18194_B2977	-	hypothetical protein
2972	 58.88	-2	3362218..3362538	-	106	78063825	-	Bcep18194_B2978	-	hypothetical protein
2973	 69.48	0	3363016..3363903	-	295	78063826	-	Bcep18194_B2980	-	NmrA-like protein
2974	 69.28	0	3364257..3365174	-	305	78063827	-	Bcep18194_B2981	-	AraC family transcriptional regulator
2975	 69.49	0	3365213..3365566	+	117	78063828	-	Bcep18194_B2982	-	hypothetical protein
2976	 66.14	0	3365606..3366559	-	317	78063829	-	Bcep18194_B2983	-	LysR family transcriptional regulator
2977	 68.65	0	3366660..3368018	+	452	78063830	-	Bcep18194_B2984	-	NADH dehydrogenase, FAD-containing subunit
2978	 63.91	0	3368345..3368779	+	144	78063831	-	Bcep18194_B2985	-	hypothetical protein
2979	 67.04	0	3368959..3370578	+	539	78063832	-	Bcep18194_B2986	-	histidine acid phosphatase
2980	 64.46	0	3370602..3371282	-	226	78063833	-	Bcep18194_B2987	-	metal-dependent hydrolase
2981	 63.73	0	3371319..3372338	-	339	78063834	-	Bcep18194_B2988	-	sterol desaturase-like
2982	 68.00	0	3372433..3373479	+	348	78063835	-	Bcep18194_B2989	-	AraC family transcriptional regulator
2983	 64.71	0	3373554..3373859	+	101	78063836	-	Bcep18194_B2990	-	hypothetical protein
2984	 63.97	0	3373895..3374191	-	98	78063837	-	Bcep18194_B2991	-	hypothetical protein
2985	 65.97	0	3374684..3376252	+	522	78063838	-	Bcep18194_B2992	-	diguanylate phosphodiesterase
2986	 57.07	-2	3376398..3376772	-	124	78063839	-	Bcep18194_B2993	-	hypothetical protein
2987	 64.86	0	3376876..3377871	+	331	78063840	-	Bcep18194_B2994	-	LysR family transcriptional regulator
2988	 63.10	-1	3378165..3379118	-	317	78063841	-	Bcep18194_B2995	-	hypothetical protein
2989	 57.68	-2	3379447..3379713	-	88	78063842	-	Bcep18194_B2996	-	hypothetical protein
2990	 57.59	-2	3379749..3381389	-	546	78063843	-	Bcep18194_B2997	-	hypothetical protein
2991	 55.96	-2	3381403..3383448	-	681	78063844	-	Bcep18194_B2998	-	phospholipase D/transphosphatidylase
2992	 58.29	-2	3383488..3386220	-	910	78063845	-	Bcep18194_B2999	-	Rhs element Vgr protein
2993	 65.72	0	3386417..3386944	+	175	78063846	-	Bcep18194_B3000	-	hypothetical protein
2994	 61.96	-1	3387074..3387583	-	169	78063847	-	Bcep18194_B3001	-	hypothetical protein
2995	 67.67	0	3387717..3390098	+	793	78063848	-	Bcep18194_B3002	-	DNA polymerase II
2996	 65.41	0	3390189..3391304	+	371	78063849	-	Bcep18194_B3003	-	hypothetical protein
2997	 68.21	0	3391580..3391903	+	107	78063850	-	Bcep18194_B3004	-	hypothetical protein
2998	 65.36	0	3392013..3393389	-	458	78063851	-	Bcep18194_B3005	-	hypothetical protein
2999	 70.45	0	3393456..3394169	-	237	78063852	-	Bcep18194_B3006	-	hypothetical protein
3000	 72.21	+1	3394600..3395826	+	408	78063853	-	Bcep18194_B3007	-	amino acid aldolase or racemase-like
3001	 69.99	0	3395901..3397313	+	470	78063854	-	Bcep18194_B3008	-	FAD-linked oxidoreductase
3002	 72.38	+1	3397310..3398500	+	396	78063855	-	Bcep18194_B3009	-	major facilitator transporter
3003	 69.01	0	3398637..3399833	+	398	78063856	-	Bcep18194_B3010	-	outer membrane protein (porin)
3004	 67.25	0	3399934..3400953	+	339	78063857	-	Bcep18194_B3011	-	AraC family transcriptional regulator
3005	 69.41	0	3400986..3402263	-	425	78063858	-	Bcep18194_B3012	-	allantoate amidohydrolase
3006	 69.34	0	3402260..3403645	-	461	78063859	-	Bcep18194_B3013	-	amidohydrolase
3007	 68.13	0	3403745..3404635	+	296	78063860	-	Bcep18194_B3014	-	LysR family transcriptional regulator
3008	 69.41	0	3404897..3405988	+	363	78063861	-	Bcep18194_B3015	-	hypothetical protein
3009	 68.60	0	3406001..3407653	+	550	78063862	-	Bcep18194_B3016	-	urocanate hydratase
3010	 69.92	0	3407690..3409012	+	440	78063863	-	Bcep18194_B3017	-	major facilitator transporter
3011	 70.89	+1	3409030..3410664	+	544	78063864	-	Bcep18194_B3018	-	phenylalanine/histidine ammonia-lyase
3012	 65.58	0	3410833..3411933	+	366	78063865	-	Bcep18194_B3019	-	outer membrane protein (porin)
3013	 68.58	0	3412054..3413151	+	365	78063866	-	Bcep18194_B3020	-	outer membrane protein (porin)
3014	 66.52	0	3413197..3413901	-	234	78063867	-	Bcep18194_B3021	-	GntR family transcriptional regulator
3015	 68.80	0	3414085..3415305	+	406	78063868	-	Bcep18194_B3022	-	aminotransferase, class V
3016	 67.29	0	3415464..3416738	+	424	78063869	-	Bcep18194_B3023	-	major facilitator transporter
3017	 71.11	+1	3416785..3417549	+	254	78063870	-	Bcep18194_B3024	-	2-keto-4-pentenoate hydratase-like
3018	 68.21	0	3417586..3420702	+	1038	78063871	-	Bcep18194_B3025	-	D-lactate dehydrogenase (cytochrome)
3019	 69.60	0	3420791..3421165	-	124	78063872	-	Bcep18194_B3026	-	transport-associated protein
3020	 64.49	0	3421192..3422250	-	352	78063873	-	Bcep18194_B3027	-	outer membrane protein (porin)
3021	 67.56	0	3422412..3423758	-	448	78063874	-	Bcep18194_B3028	-	hypothetical protein
66.93	MEAN

3.60	STD DEV
