IslandPath Analysis: Burkholderia sp. 383

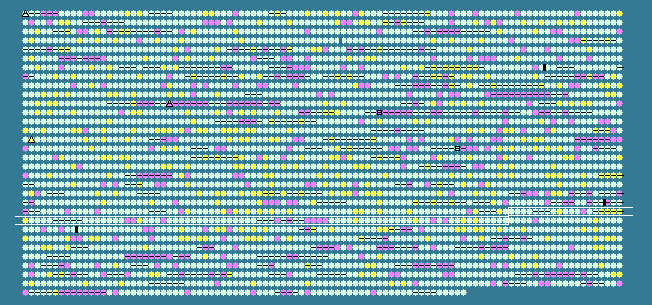

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.93 STD DEV: 3.60
Burkholderia sp. 383 chromosome 2, complete sequence - 1..3587082
3174 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2282	 67.86	0	2613076..2613660	+	194	78063135	-	Bcep18194_B2288	-	hypothetical protein
2283	 64.50	0	2613888..2614949	+	353	78063136	-	Bcep18194_B2289	-	hypothetical protein
2284	 68.99	0	2614993..2615508	-	171	78063137	-	Bcep18194_B2290	-	hypothetical protein
2285	 69.91	0	2615717..2616733	-	338	78063138	-	Bcep18194_B2291	-	zinc-containing alcohol dehydrogenase superfamily protein
2286	 68.95	0	2616771..2617559	-	262	78063139	-	Bcep18194_B2292	-	short chain dehydrogenase
2287	 69.71	0	2618029..2618619	-	196	78063140	-	Bcep18194_B2293	-	phosphoesterase, PA-phosphatase related
2288	 68.87	0	2618701..2620017	-	438	78063141	-	Bcep18194_B2294	-	manganese transport protein MntH
2289	 69.03	0	2620089..2621018	-	309	78063142	-	Bcep18194_B2295	-	AraC family transcriptional regulator
2290	 70.43	0	2621514..2622443	+	309	78063143	-	Bcep18194_B2296	-	LysR family transcriptional regulator
2291	 69.15	0	2622542..2622943	+	133	78063144	-	Bcep18194_B2297	-	OsmC-like protein
2292	 69.27	0	2623046..2623927	-	293	78063145	-	Bcep18194_B2298	-	Dyp-type peroxidase
2293	 70.37	0	2624418..2626280	+	620	78063146	-	Bcep18194_B2299	-	ABC efflux pump, fused ATPase and inner membrane subunits
2294	 62.04	-1	2626489..2627202	+	237	78063147	-	Bcep18194_B2300	-	riboflavin synthase subunit alpha
2295	 65.04	0	2627221..2627835	-	204	78063148	-	Bcep18194_B2301	-	hypothetical protein
2296	 70.13	0	2627885..2629126	-	413	78063149	-	Bcep18194_B2302	-	Cl- channel, voltage gated
2297	 72.84	+1	2629380..2630399	-	339	78063150	-	Bcep18194_B2303	-	chemotaxis-specific methylesterase
2298	 70.52	0	2630396..2632705	-	769	78063151	-	Bcep18194_B2304	-	CheA signal transduction histidine kinase
2299	 70.90	+1	2632702..2633409	-	235	78063152	-	Bcep18194_B2305	-	CheW protein
2300	 72.33	+1	2633456..2634868	-	470	78063153	-	Bcep18194_B2306	-	MCP methyltransferase, CheR-type
2301	 71.93	+1	2634865..2635377	-	170	78063154	-	Bcep18194_B2307	-	CheW protein
2302	 67.92	0	2635374..2637050	-	558	78063155	-	Bcep18194_B2308	-	methyl-accepting chemotaxis sensory transducer
2303	 66.49	0	2637174..2638307	-	377	78063156	-	Bcep18194_B2309	-	response regulator receiver sensor signal transduction histidine kinase
2304	 67.87	0	2638791..2640374	-	527	78063157	-	Bcep18194_B2310	-	Na+/H+ antiporter
2305	 66.11	0	2640617..2642050	-	477	78063158	-	Bcep18194_B2311	-	aldehyde dehydrogenase
2306	 64.59	0	2642080..2643720	-	546	78063159	-	Bcep18194_B2312	-	acetolactate synthase
2307	 64.90	0	2644051..2644389	+	112	78063160	-	Bcep18194_B2313	-	hypothetical protein
2308	 65.33	0	2644393..2644692	+	99	78063161	-	Bcep18194_B2314	-	putative transcriptional regulator
2309	 66.51	0	2644741..2646027	-	428	78063162	-	Bcep18194_B2315	-	hypothetical protein
2310	 68.96	0	2646355..2647095	+	246	78063163	-	Bcep18194_B2316	-	IclR family transcriptional regulator
2311	 69.63	0	2647163..2648782	+	539	78063164	-	Bcep18194_B2317	-	membrane protein
2312	 69.37	0	2648807..2649991	+	394	78063165	-	Bcep18194_B2318	-	aminotransferase, class V
2313	 66.53	0	2650039..2650794	+	251	78063166	-	Bcep18194_B2319	-	peptidase E
2314	 67.28	0	2650849..2651994	+	381	78063167	-	Bcep18194_B2320	-	outer membrane protein (porin)-like
2315	 65.42	0	2652074..2653033	+	319	78063168	-	Bcep18194_B2321	-	hypothetical protein
2316	 69.45	0	2653081..2654301	-	406	78063169	-	Bcep18194_B2322	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
2317	 66.06	0	2654291..2654617	-	108	78063170	-	Bcep18194_B2323	-	Rieske (2Fe-2S) protein
2318	 61.96	-1	2654638..2655126	-	162	78063171	-	Bcep18194_B2324	-	aromatic-ring-hydroxylating dioxygenase, beta subunit
2319	 63.15	-1	2655139..2656446	-	435	78063172	-	Bcep18194_B2325	-	ring hydroxylating dioxygenase, alpha subunit/Rieske (2Fe-2S) protein
2320	 70.70	+1	2656618..2657583	+	321	78063173	-	Bcep18194_B2326	-	AraC family transcriptional regulator
2321	 69.92	0	2657731..2658621	-	296	78063174	-	Bcep18194_B2327	-	LysR family transcriptional regulator
2322	 69.05	0	2658713..2659846	+	377	78063175	-	Bcep18194_B2328	-	muconate cycloisomerase
2323	 65.45	0	2659878..2660780	+	300	78063176	-	Bcep18194_B2329	-	catechol dioxygenase
2324	 60.82	-1	2660824..2661114	+	96	78063177	-	Bcep18194_B2330	-	muconolactone delta-isomerase
2325	 63.73	0	2661220..2662410	-	396	78063178	-	Bcep18194_B2331	-	hypothetical protein
2326	 64.13	0	2662560..2663348	-	262	78063179	-	Bcep18194_B2332	-	NAD(P)H dehydrogenase (quinone)
2327	 68.46	0	2663435..2664328	+	297	78063180	-	Bcep18194_B2333	-	LysR family transcriptional regulator
2328	 69.14	0	2664493..2664897	+	134	78063181	-	Bcep18194_B2334	-	hypothetical protein
2329	 67.80	0	2665096..2667129	-	677	78063182	-	Bcep18194_B2335	-	2,4-dienoyl-CoA reductase
2330	 68.62	0	2667242..2668315	+	357	78063183	-	Bcep18194_B2336	-	AraC family transcriptional regulator
2331	 69.02	0	2668312..2669202	-	296	78063184	-	Bcep18194_B2337	-	LysR family transcriptional regulator
2332	 64.76	0	2669358..2669777	+	139	78063185	-	Bcep18194_B2338	-	hypothetical protein
2333	 69.25	0	2669828..2670292	-	154	78063186	-	Bcep18194_B2339	-	aconitase subunit 2
2334	 66.59	0	2670285..2671532	-	415	78063187	-	Bcep18194_B2340	-	aconitase subunit 1
2335	 65.38	0	2671720..2672184	-	154	78063188	-	Bcep18194_B2341	-	MarR family transcriptional regulator
2336	 67.75	0	2672239..2673159	+	306	78063189	-	Bcep18194_B2342	-	LysR family transcriptional regulator
2337	 68.29	0	2673241..2673672	+	143	78063190	-	Bcep18194_B2343	-	hypothetical protein
2338	 68.22	0	2673737..2674831	+	364	78063191	-	Bcep18194_B2344	-	HlyD family secretion protein
2339	 65.52	0	2674845..2676419	+	524	78063192	-	Bcep18194_B2345	-	EmrB/QacA family drug resistance transporter
2340	 65.62	0	2676439..2677875	+	478	78063193	-	Bcep18194_B2346	-	RND efflux system outer membrane lipoprotein
2341	 67.15	0	2678128..2678751	-	207	78063194	-	Bcep18194_B2347	-	lysine exporter protein LysE/YggA
2342	 64.77	0	2678896..2679528	-	210	78063195	-	Bcep18194_B2348	-	glutathione S-transferase-like protein
2343	 62.04	-1	2679678..2680088	-	136	78063196	-	Bcep18194_B2349	-	hypothetical protein
2344	 67.11	0	2680301..2680528	-	75	78063197	-	Bcep18194_B2350	-	hypothetical protein
2345	 60.92	-1	2680572..2680919	-	115	78063198	-	Bcep18194_B2351	-	hypothetical protein
2346	 67.00	0	2681040..2681951	+	303	78063199	-	Bcep18194_B2352	-	LysR family transcriptional regulator
2347	 65.91	0	2682085..2683401	+	438	78063200	-	Bcep18194_B2353	-	major facilitator transporter
2348	 60.97	-1	2683414..2684676	+	420	78063201	-	Bcep18194_B2354	-	amidohydrolase
2349	 38.97	-2	2684974..2685594	-	206	78063202	-	Bcep18194_B2355	-	hypothetical protein
2350	 57.66	-2	2685687..2686508	-	273	78063203	-	Bcep18194_B2356	-	hypothetical protein
2351	 63.39	0	2686581..2688443	-	620	78063204	-	Bcep18194_B2357	-	methyl-accepting chemotaxis sensory transducer
2352	 65.35	0	2688613..2689293	-	226	78063205	-	Bcep18194_B2358	-	OmpA/MotB family outer membrane protein
2353	 66.14	0	2689333..2690097	-	254	78063206	-	Bcep18194_B2359	-	MotA/TolQ/ExbB proton channel
2354	 64.66	0	2690111..2691355	-	414	78063207	-	Bcep18194_B2360	-	cyclic nucleotide-binding protein
2355	 64.53	0	2691633..2692100	-	155	78063208	-	Bcep18194_B2361	-	lytic transglycosylase, catalytic
2356	 70.57	+1	2692154..2692537	-	127	78063209	-	Bcep18194_B2362	-	hypothetical protein
2357	 64.52	0	2692552..2692923	-	123	78063210	-	Bcep18194_B2363	-	hypothetical protein
2358	 64.56	0	2693141..2693803	-	220	78063211	-	Bcep18194_B2364	-	glutathione S-transferase-like protein
2359	 66.30	0	2694092..2695447	+	451	78063212	-	Bcep18194_B2365	-	polyhydroxyalkanoate depolymerase
2360	 69.18	0	2695553..2696029	-	158	78063213	-	Bcep18194_B2366	-	hypothetical protein
2361	 65.52	0	2696543..2696977	-	144	78063214	-	Bcep18194_B2367	-	hypothetical protein
2362	 69.98	0	2697061..2698056	-	331	78063215	-	Bcep18194_B2368	-	ABC sugar transporter, inner membrane subunit
2363	 66.56	0	2698058..2699035	-	325	78063216	-	Bcep18194_B2369	-	ABC sugar transporter, inner membrane subunit
2364	 69.56	0	2699069..2700625	-	518	78063217	-	Bcep18194_B2370	-	ABC sugar transporter, ATPase subunit
2365	 66.67	0	2700675..2701700	-	341	78063218	-	Bcep18194_B2371	-	ABC sugar transporter, periplasmic ligand binding protein
2366	 70.43	0	2701829..2702758	-	309	78063219	-	Bcep18194_B2372	-	aldose 1-epimerase
2367	 68.30	0	2703060..2704100	+	346	78063220	-	Bcep18194_B2373	-	LacI family transcription regulator
2368	 67.01	0	2704491..2706809	+	772	78063221	-	Bcep18194_B2374	-	hypothetical protein
2369	 62.67	-1	2706881..2707681	-	266	78063222	-	Bcep18194_B2375	-	ABC transporter, ATPase subunit
2370	 63.87	0	2707681..2708394	-	237	78063223	-	Bcep18194_B2376	-	ABC His/Glu/Gln/Arg/opine transporter, inner membrane subunit
2371	 62.84	-1	2708391..2709122	-	243	78063224	-	Bcep18194_B2377	-	ABC His/Glu/Gln/Arg/opine transporter, inner membrane subunit
2372	 63.82	0	2709255..2710028	-	257	78063225	-	Bcep18194_B2378	-	lysine/arginine/ornithine ABC transporter periplasmic-binding protein
2373	 68.53	0	2710328..2711080	-	250	78063226	-	Bcep18194_B2379	-	two component transcriptional regulator
2374	 70.59	+1	2711077..2712783	-	568	78063227	-	Bcep18194_B2380	-	periplasmic sensor signal transduction histidine kinase
2375	 68.15	0	2712864..2714948	-	694	78063228	-	Bcep18194_B2381	-	potassium-translocating P-type ATPase, B subunit
2376	 72.22	+1	2714969..2715670	-	233	78063229	-	Bcep18194_B2382	-	potassium-transporting ATPase
2377	 65.85	0	2715681..2717384	-	567	78063230	-	Bcep18194_B2383	-	potassium-transporting ATPase subunit A
2378	 67.94	0	2717939..2718253	+	104	78063231	-	Bcep18194_B2384	-	hypothetical protein
2379	 66.31	0	2718433..2719560	+	375	78063232	-	Bcep18194_B2385	-	outer membrane protein (porin)
2380	 66.52	0	2719743..2720438	+	231	78063233	-	Bcep18194_B2386	-	histidine utilization repressor
2381	 68.28	0	2720454..2721695	-	413	78063234	-	Bcep18194_B2387	-	glycosyl transferase family protein
66.93	MEAN

3.60	STD DEV
