IslandPathversion 1.0

IslandPath Analysis: Burkholderia sp. 383

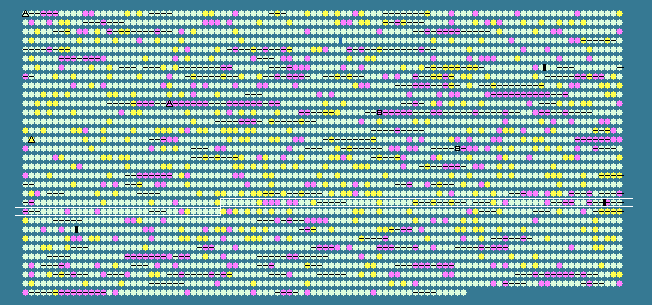

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 66.93 STD DEV: 3.60
Burkholderia sp. 383 chromosome 2, complete sequence - 1..3587082
3174 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2134	 67.65	0	2453926..2454840	+	304	78062987	-	Bcep18194_B2140	-	LysR family transcriptional regulator
2135	 65.43	0	2454939..2456471	-	510	78062988	-	Bcep18194_B2141	-	amino acid transporter
2136	 65.59	0	2456574..2457038	-	154	78062989	-	Bcep18194_B2142	-	AsnC family transcriptional regulator
2137	 68.09	0	2457137..2457907	-	256	78062990	-	Bcep18194_B2143	-	dimethylargininase
2138	 69.86	0	2458105..2459355	-	416	78062991	-	Bcep18194_B2144	-	hypothetical protein
2139	 67.69	0	2459465..2459854	-	129	78062992	-	Bcep18194_B2145	-	glyoxalase/bleomycin resistance protein/dioxygenase
2140	 71.06	+1	2459927..2460904	+	325	78062993	-	Bcep18194_B2146	-	AraC family transcriptional regulator
2141	 60.68	-1	2460994..2462295	-	433	78062994	gltA	Bcep18194_B2147	-	type II citrate synthase
2142	 61.54	-1	2462349..2462621	-	90	78062995	-	Bcep18194_B2148	-	hypothetical protein
2143	 62.39	-1	2462629..2463330	-	233	78062996	sdhB	Bcep18194_B2149	-	succinate dehydrogenase iron-sulfur subunit
2144	 64.64	0	2463352..2465130	-	592	78062997	sdhA	Bcep18194_B2150	-	succinate dehydrogenase flavoprotein subunit
2145	 60.98	-1	2465134..2465502	-	122	78062998	-	Bcep18194_B2151	-	succinate dehydrogenase subunit D
2146	 55.64	-2	2465507..2465923	-	138	78062999	-	Bcep18194_B2152	-	succinate dehydrogenase subunit C
2147	 65.33	0	2466094..2466918	-	274	78063000	-	Bcep18194_B2153	-	GntR family transcriptional regulator
2148	 64.54	0	2467207..2468193	+	328	78063001	-	Bcep18194_B2154	-	malate dehydrogenase
2149	 71.92	+1	2468378..2469385	+	335	78063002	-	Bcep18194_B2155	-	citrate lyase beta subunit-like
2150	 64.53	0	2469616..2470131	+	171	78063003	-	Bcep18194_B2156	-	hypothetical protein
2151	 66.74	0	2470154..2471605	+	483	78063004	prpD	Bcep18194_B2157	-	2-methylcitrate dehydratase
2152	 63.94	0	2471658..2474375	+	905	78063005	acnA	Bcep18194_B2158	-	aconitate hydratase
2153	 66.21	0	2474480..2474914	-	144	78063006	-	Bcep18194_B2159	-	hypothetical protein
2154	 68.75	0	2474911..2475342	-	143	78063007	-	Bcep18194_B2160	-	hypothetical protein
2155	 63.69	0	2475342..2475677	-	111	78063008	-	Bcep18194_B2161	-	ArsR family transcriptional regulator
2156	 63.94	0	2475898..2476227	+	109	78063009	-	Bcep18194_B2162	-	hypothetical protein
2157	 67.19	0	2476308..2478041	+	577	78063010	-	Bcep18194_B2163	-	sedolisin
2158	 66.11	0	2478190..2479620	+	476	78063011	-	Bcep18194_B2164	-	major facilitator transporter
2159	 65.27	0	2479635..2480567	-	310	78063012	-	Bcep18194_B2165	-	LysR family transcriptional regulator
2160	 70.81	+1	2480653..2482149	-	498	78063013	-	Bcep18194_B2166	-	major facilitator transporter
2161	 66.07	0	2482293..2483129	-	278	78063014	-	Bcep18194_B2167	-	ABC spermidine/putrescine transporter, inner membrane subunit
2162	 66.67	0	2483167..2484423	-	418	78063015	-	Bcep18194_B2168	-	ABC spermidine/putrescine transporter, inner membrane subunit
2163	 64.66	0	2484526..2485572	-	348	78063016	-	Bcep18194_B2169	-	ABC spermidine/putrescine transporter, periplasmic ligand binding protein
2164	 66.58	0	2485650..2486756	-	368	78063017	-	Bcep18194_B2170	-	spermidine/putrescine ABC transporter ATPase
2165	 69.36	0	2486865..2488388	+	507	78063018	-	Bcep18194_B2171	-	GntR family transcriptional regulator
2166	 71.40	+1	2488425..2489459	-	344	78063019	-	Bcep18194_B2172	-	lipase chaperone
2167	 66.12	0	2489463..2490557	-	364	78063020	-	Bcep18194_B2173	-	triacylglycerol lipase
2168	 67.32	0	2490786..2492918	-	710	78063021	-	Bcep18194_B2174	-	TonB-dependent copper receptor
2169	 70.73	+1	2493000..2493368	-	122	78063022	-	Bcep18194_B2175	-	hypothetical protein
2170	 64.62	0	2493524..2494060	-	178	78063023	-	Bcep18194_B2176	-	cytochrome B561
2171	 66.20	0	2494286..2494924	+	212	78063024	-	Bcep18194_B2177	-	hypothetical protein
2172	 70.88	+1	2494973..2495707	-	244	78063025	-	Bcep18194_B2178	-	peptidase M23B
2173	 66.67	0	2496133..2496453	+	106	78063026	-	Bcep18194_B2179	-	hypothetical protein
2174	 65.51	0	2496572..2496916	-	114	78063027	-	Bcep18194_B2180	-	hypothetical protein
2175	 65.39	0	2497118..2498530	-	470	78063028	-	Bcep18194_B2181	-	6-phosphogluconate dehydrogenase
2176	 70.25	0	2498628..2499269	-	213	78063029	-	Bcep18194_B2182	-	hypothetical protein
2177	 70.23	0	2499266..2500303	-	345	78063030	-	Bcep18194_B2183	-	NAD-dependent deacetylase
2178	 65.59	0	2500325..2500603	-	92	78063031	-	Bcep18194_B2184	-	hypothetical protein
2179	 70.78	+1	2500933..2501175	+	80	78063032	-	Bcep18194_B2185	-	hypothetical protein
2180	 70.22	0	2501197..2501928	+	243	78063033	-	Bcep18194_B2186	-	GCN5-related N-acetyltransferase
2181	 61.98	-1	2501950..2502354	-	134	78063034	-	Bcep18194_B2187	-	hypothetical protein
2182	 70.21	0	2502547..2503506	+	319	78063035	-	Bcep18194_B2188	-	flavin-dependent oxidoreductase
2183	 69.18	0	2503807..2506272	+	821	78063036	-	Bcep18194_B2189	-	MscS mechanosensitive ion channel
2184	 67.51	0	2506300..2507133	-	277	78063037	-	Bcep18194_B2190	-	TetR family transcriptional regulator
2185	 68.98	0	2507226..2508347	+	373	78063038	-	Bcep18194_B2191	-	HlyD family secretion protein
2186	 65.72	0	2508340..2509926	+	528	78063039	-	Bcep18194_B2192	-	EmrB/QacA family drug resistance transporter
2187	 68.62	0	2509940..2511427	+	495	78063040	-	Bcep18194_B2193	-	RND efflux system outer membrane lipoprotein
2188	 62.76	-1	2511758..2513293	+	511	78063041	-	Bcep18194_B2194	-	catalase
2189	 67.65	0	2513371..2513982	+	203	78063042	-	Bcep18194_B2195	-	ankyrin repeat-containing protein
2190	 63.91	0	2514062..2514532	+	156	78063043	-	Bcep18194_B2196	-	hypothetical protein
2191	 63.27	-1	2514651..2515445	-	264	78063044	-	Bcep18194_B2197	-	aminoglycoside phosphotransferase
2192	 61.94	-1	2515804..2516163	+	119	78063045	-	Bcep18194_B2198	-	hypothetical protein
2193	 66.34	0	2516227..2518059	+	610	78063046	-	Bcep18194_B2199	-	pseudomonalisin
2194	 67.99	0	2518511..2520172	+	553	78063047	-	Bcep18194_B2200	-	hypothetical protein
2195	 62.06	-1	2520309..2520959	-	216	78063048	-	Bcep18194_B2201	-	flavin-nucleotide-binding protein
2196	 67.62	0	2521279..2522745	+	488	78063049	-	Bcep18194_B2202	-	GntR family transcriptional regulator
2197	 63.70	0	2522768..2524318	-	516	78063050	-	Bcep18194_B2203	-	phospholipase D/transphosphatidylase
2198	 62.30	-1	2524791..2527217	-	808	78063051	-	Bcep18194_B2204	-	RNA polymerase sigma factor RpoD
2199	 64.84	0	2527306..2529222	-	638	78063052	dnaG	Bcep18194_B2205	-	DNA primase
2200	 65.10	0	2529244..2529690	-	148	78063053	-	Bcep18194_B2206	-	hypothetical protein
2201	 53.99	-2	2529901..2530113	-	70	78063054	rpsU	Bcep18194_B2207	-	30S ribosomal protein S21
2202	 69.21	0	2530221..2531441	-	406	78063055	-	Bcep18194_B2208	-	hypothetical protein
2203	 68.01	0	2531572..2532612	+	346	78063056	-	Bcep18194_B2209	-	O-sialoglycoprotein endopeptidase
2204	 64.44	0	2532704..2533513	-	269	78063057	-	Bcep18194_B2210	-	putative GTP cyclohydrolase
2205	 65.14	0	2533668..2535572	-	634	161702975	-	Bcep18194_B2211	-	1-deoxy-D-xylulose-5-phosphate synthase
2206	 68.02	0	2535654..2536538	-	294	78063059	-	Bcep18194_B2212	-	farnesyl-diphosphate synthase
2207	 64.97	0	2536535..2536828	-	97	78063060	-	Bcep18194_B2213	-	exodeoxyribonuclease VII small subunit
2208	 62.42	-1	2537099..2538205	+	368	78063061	-	Bcep18194_B2214	-	Rieske (2Fe-2S) protein
2209	 69.66	0	2538323..2539192	+	289	78063062	-	Bcep18194_B2215	-	3-mercaptopyruvate sulfurtransferase
2210	 65.64	0	2539247..2540122	-	291	78063063	-	Bcep18194_B2216	-	dienelactone hydrolase
2211	 68.32	0	2540546..2541937	-	463	78063064	-	Bcep18194_B2217	-	NADH dehydrogenase
2212	 64.81	0	2542152..2544905	-	917	78063065	-	Bcep18194_B2218	-	DNA polymerase I
2213	 62.71	-1	2544907..2545665	+	252	78063066	-	Bcep18194_B2219	-	hypothetical protein
2214	 69.36	0	2546059..2546355	+	98	78063067	-	Bcep18194_B2220	-	hypothetical protein
2215	 67.37	0	2546527..2547519	+	330	78063068	-	Bcep18194_B2221	-	transcriptional regulator
2216	 67.38	0	2547669..2548232	+	187	78063069	-	Bcep18194_B2222	-	hypothetical protein
2217	 67.20	0	2548511..2549443	-	310	78063070	-	Bcep18194_B2223	-	LysR family transcriptional regulator
2218	 66.67	0	2549566..2550066	+	166	78063071	-	Bcep18194_B2224	-	hypothetical protein
2219	 69.40	0	2550131..2550934	+	267	78063072	-	Bcep18194_B2225	-	Short-chain dehydrogenase/reductase SDR
2220	 64.71	0	2550961..2551932	+	323	78063073	-	Bcep18194_B2226	-	aldo/keto reductase
2221	 66.27	0	2552106..2553632	-	508	78063074	-	Bcep18194_B2227	-	AMP nucleosidase
2222	 67.17	0	2553762..2554157	+	131	78063075	-	Bcep18194_B2228	-	hypothetical protein
2223	 67.87	0	2554259..2555257	+	332	78063076	-	Bcep18194_B2229	-	homoserine kinase
2224	 66.54	0	2555248..2556057	+	269	78063077	-	Bcep18194_B2230	-	hypothetical protein
2225	 66.67	0	2556246..2556698	+	150	78063078	-	Bcep18194_B2231	-	MarR family transcriptional regulator
2226	 65.95	0	2556855..2557274	+	139	78063079	-	Bcep18194_B2232	-	OsmC-like protein
2227	 58.76	-2	2557388..2557564	-	58	78063080	-	Bcep18194_B2233	-	hypothetical protein
2228	 70.54	+1	2557646..2558755	-	369	78063081	-	Bcep18194_B2234	-	esterase, PHB depolymerase
2229	 69.81	0	2559003..2559701	+	232	78063082	-	Bcep18194_B2235	-	phosphoesterase, PA-phosphatase related
2230	 67.58	0	2559764..2560639	+	291	78063083	-	Bcep18194_B2236	-	molybdenum ABC transporter periplasmic-binding protein
2231	 69.91	0	2560650..2561327	+	225	78063084	-	Bcep18194_B2237	-	molybdate ABC transporter inner membrane protein
2232	 69.23	0	2561392..2562093	+	233	78063085	-	Bcep18194_B2238	-	ABC molybdate transporter, ATPase subunit
2233	 69.65	0	2562261..2563097	-	278	78063086	-	Bcep18194_B2239	-	ModE family transcriptional regulator
66.93	MEAN

3.60	STD DEV
